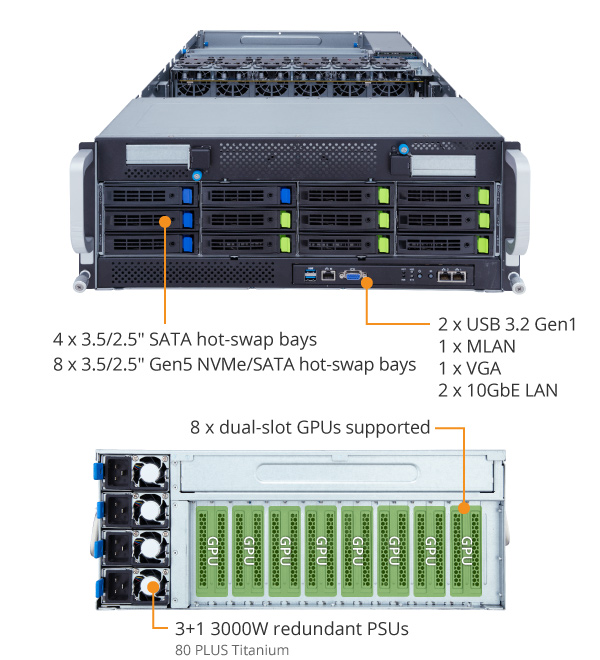

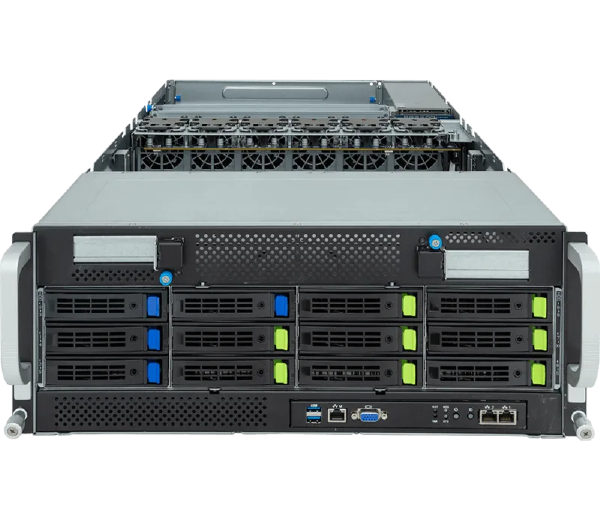

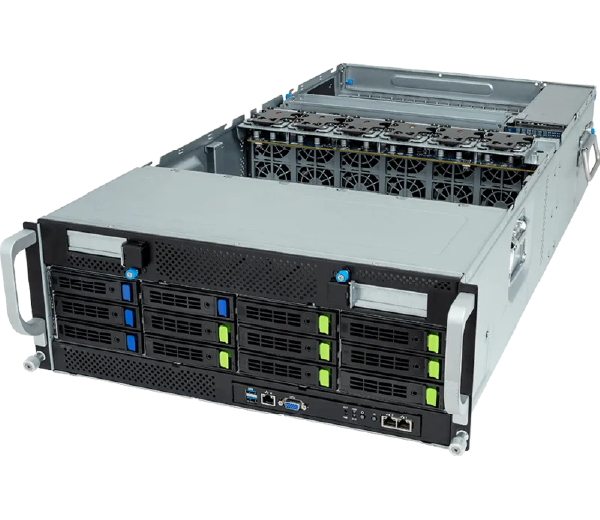

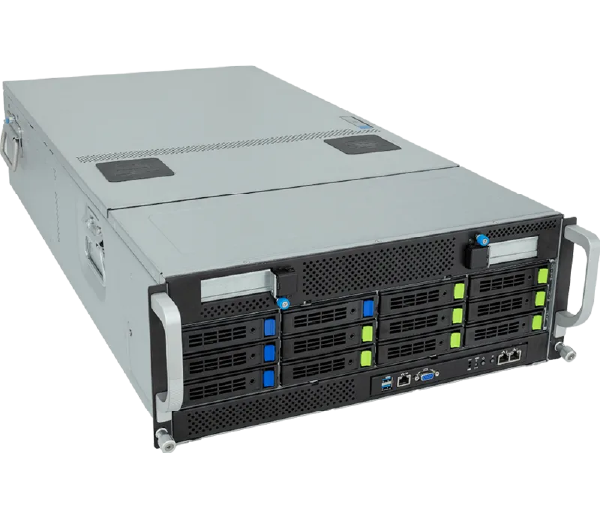

G493-SB0-AAP1 (Intel 8GPU)

HPC/AI Server - 5th/4th Gen Intel® Xeon® Scalable - 4U DP 8 x PCIe Gen5 GPUs

  • NVIDIA-Certified Systems™ - Data Center Servers
  • Supports up to 8 x Dual slot Gen5 GPUs
  • Dual 5th/4th Gen Intel® Xeon® Scalable Processors
  • Dual Intel® Xeon® CPU Max Series
  • 8-Channel DDR5 RDIMM, 32 x DIMMs
  • Dual ROM Architecture
  • 2 x 10Gb/s LAN ports via Intel® X710-AT2
  • 8 x 3.5"/2.5" Gen5 NVMe/SATA hot-swap bays
  • 4 x 3.5"/2.5" SATA hot-swap bays
  • 1 x M.2 slot with PCIe Gen3 x1 interface
  • 8 x FHFL PCIe Gen5 x16 slots for GPUs
  • 3+1 3000W 80 PLUS Titanium redundant power supplies
  • Ordering Numbers: 6NG493SB0DR000ABP1*
문의하기 데이터시트

  • Dimensions (WxHxD, mm)

    • 4U
      448 x 176 x 880

  • Motherboard

    • MSB3-G40

  • CPU

    • 5th Generation Intel® Xeon® Scalable Processors
      4th Generation Intel® Xeon® Scalable Processors
      Intel® Xeon® CPU Max Series

      Dual processor, TDP up to 350W

      [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

  • Socket

    • 2 x LGA 4677
      Socket E

  • Chipset

    • Intel® C741

  • Memory

    • 32 x DIMM slots
      Support DDR5 RDIMM
      8-Channel memory per processor

      5th Gen Intel® Xeon®:
      Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) [1]

      4th Gen Intel® Xeon®:
      Up to 4800 MT/s (1DPC), 4400MT/s (2DPC)

      Intel® Xeon® Max Series:
      Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

      [1] 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.

  • LAN

    • Front (I/O board - CDCG120):
      2 x 10Gb/s LAN (1 x Intel® X710-AT2)
      - Support NCSI function

      1 x 10/100/1000 Mbps Management LAN

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x VGA port

  • Storage

    • Front hot-swap:
      8 x 3.5"/2.5" Gen5 NVMe/SATA
      4 x 3.5"/2.5" SATA
      - (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)

      Internal M.2:
      1 x M.2 (2280/22110), PCIe Gen3 x1, from PCH

  • SAS

    • N/A

  • RAID

    • Intel® SATA RAID 0/1/10/5
      Onboard VROC key header

  • PCIe Expansion Slots

    • 4 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
      4 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs

      [Note] The system is only validated with a uniform GPU model.

  • Front I/O

    • I/O board - CDCG120:
      2 x USB 3.2 Gen1 ports (Type-A)
      1 x VGA port
      2 x RJ45 ports
      1 x MLAN port
      1 x Power button with LED
      1 x ID button with LED
      1 x NMI button
      1 x Reset button
      1 x Storage activity LED
      1 x System status LED

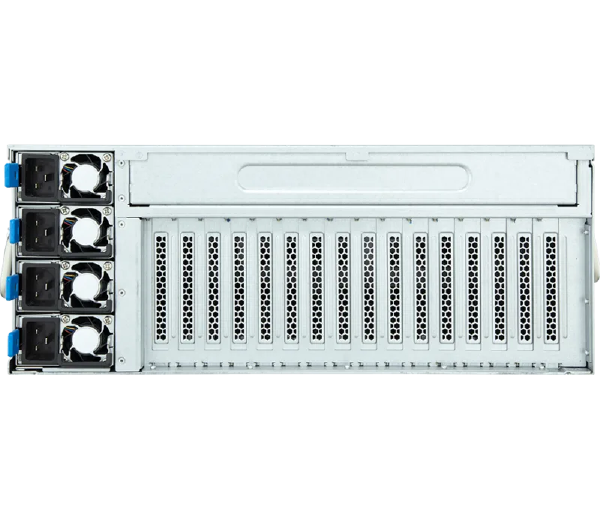

  • Rear I/O

    • N/A

  • Backplane Board

    • Speed and bandwidth:
      PCIe Gen5 x4 or SATA 6Gb/s

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM010

  • Power Supply[#1]

    • 3+1 3000W 80 PLUS Titanium redundant power supplies [1]

      AC Input:
      - 100-127V~/ 14.5A, 50/60Hz
      - 200-220V~/ 16A, 50/60Hz
      - 220-240V~/ 16A, 50/60Hz

      DC Input: (Only for China)
      - 240Vdc/ 16A

      DC Output:
      - Max 1097.4W/ 100-127V~
      +12.2V/ 87A
      +12Vsb/ 3A
      - Max 2598W/ 200-220V~
      +12.2V/ 210A
      +12Vsb/ 3A
      - Max 3037.2W/ 220-240V~ or 240Vdc Input
      +12.2V/ 246A
      +12Vsb/ 3A

      [1] The system power supply requires C19 power cord.

  • System Management

    • ASPEED® AST2600 Baseboard Management Controller
      GIGABYTE Management Console web interface

      Dashboard
      HTML5 KVM
      Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
      Sensor Reading History Data
      FRU Information
      SEL Log in Linear Storage / Circular Storage Policy
      Hardware Inventory
      Fan Profile
      System Firewall
      Power Consumption
      Power Control
      Advanced power capping
      LDAP / AD / RADIUS Support
      Backup & Restore Configuration
      Remote BIOS/BMC/CPLD Update
      Event Log Filter
      User Management
      Media Redirection Settings
      PAM Order Settings
      SSL Settings
      SMTP Settings

  • OS Certifications

    • Windows Server 2022

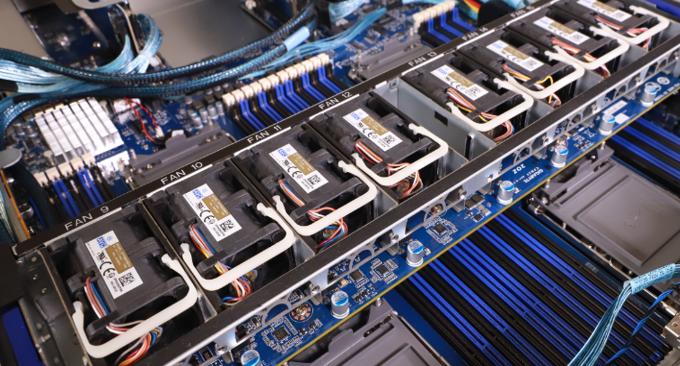

  • System Fans

    • 12 x 60x60x38mm [1]

      [1] Two fans share a single power connector.

  • Operating Properties

    • Operating temperature: 10°C to 35°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

  • Weight

    • L6 Net Weight: 35.8 kg
      L6 Gross Weight: 45.8 kg
      Gross Weight: 85.6 kg

  • Packaging Dimensions

    • 1200 x 800 x 439 mm

  • Packaging Content

    • 1 x G493-SB0-AAP1
      2 x CPU fansinks
      8 x GPU power cables (16-pin, 150mm)
      6 x Carriers
      1 x L-shape Rail kit

  • Part Numbers

    • - Barebone package (5th/4th Gen): 6NG493SB0DR000ABP1*
      - Barebone package (4th Gen): 6NG493SB0DR000AAP1*
      - Motherboard: 9MSB3G40NR-000*
      - L-shape Rail kit: 25HB2-A96100-K0R
      - CPU fansink: 25ST1-363204-C1R
      - Backplane board - CBP20C7: 9CBP20C7NR-00*
      - Fan module: 25ST2-663823-F1R
      - I/O board - CDCG120: 9CDCG120UR-00*
      - PCIe bridge board - CPBG084: 9CPBG084NR-00*
      - GPU power cable (16-pin, 150mm): 25CRI-1500B3-Y4R
      - Power supply: 25EP0-23000C-D0S

      Optional parts:

      - RMA packaging: 6NG493SB0SR-RMA-A100
