MS33-AR0

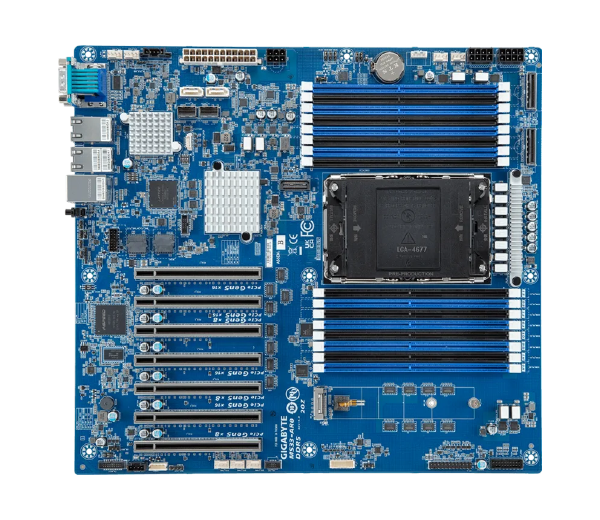

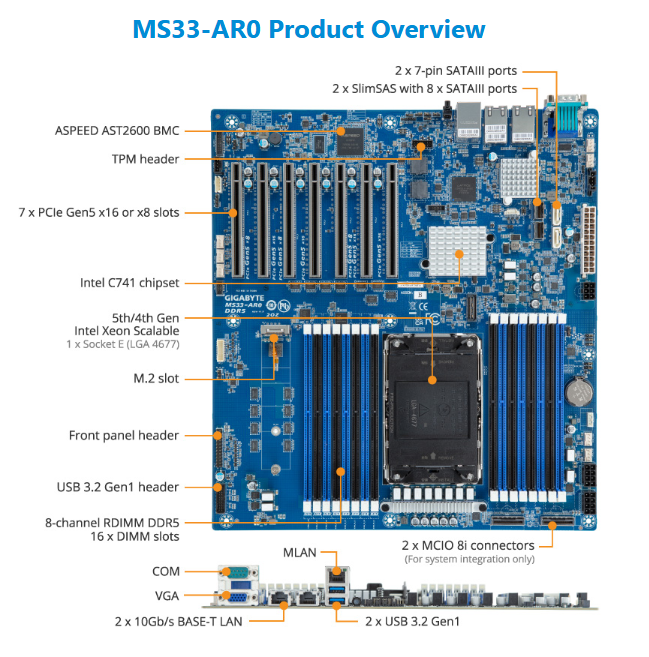

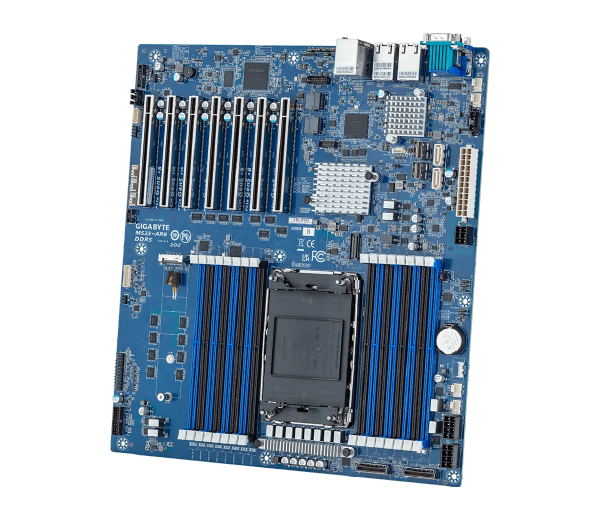

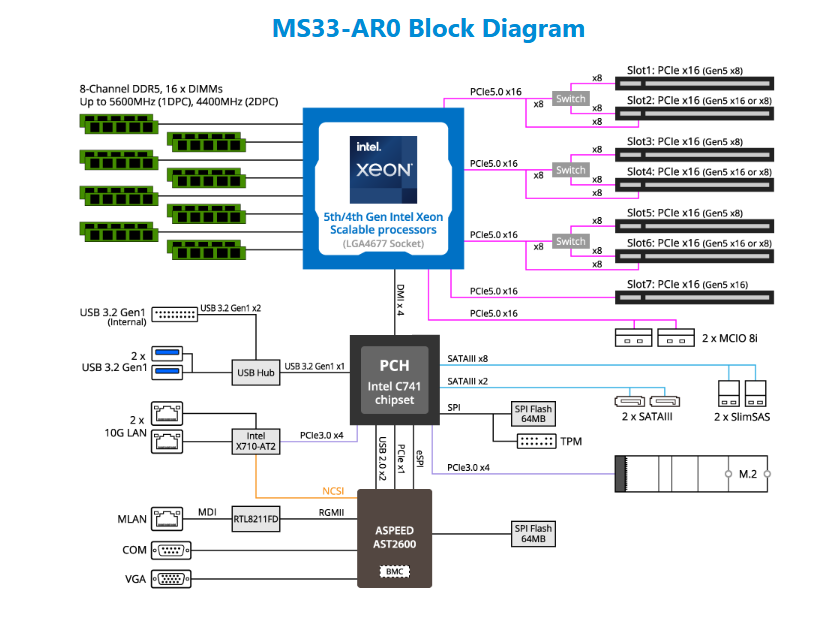

Motherboard - 5th/4th Gen Intel® Xeon® Scalable - E-ATX UP Intel Ethernet Controller

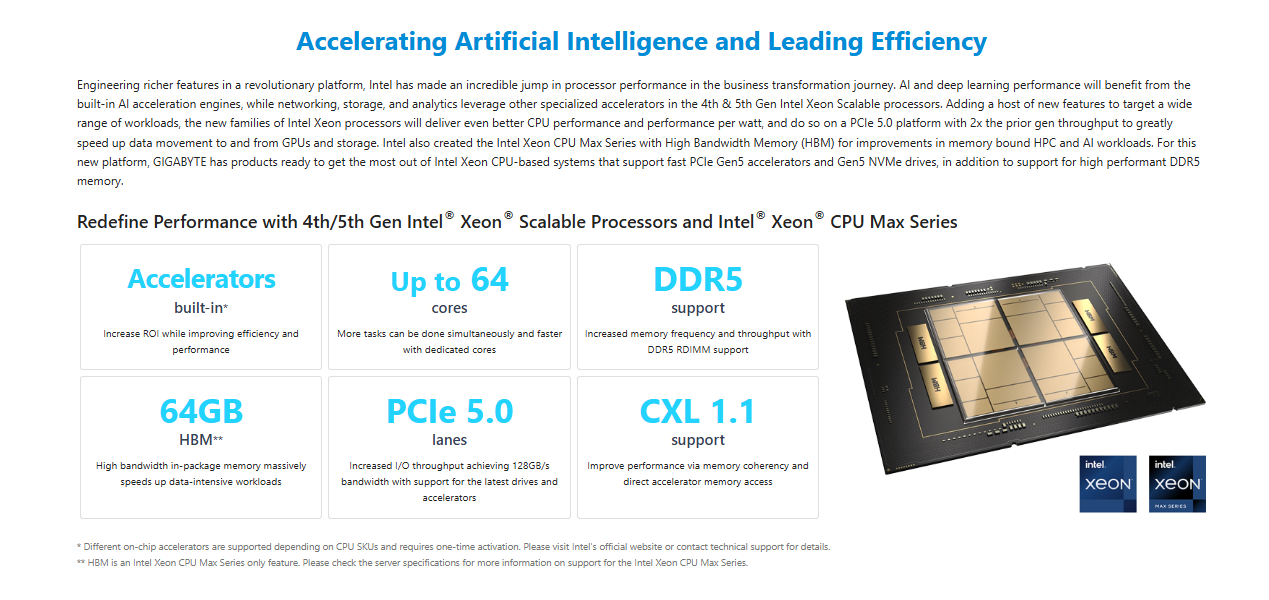

  • Single 5th/4th Gen Intel® Xeon® Scalable Processors
  • Single Intel® Xeon® CPU Max Series
  • 8-Channel DDR5 RDIMM, 16 x DIMMs
  • Intel® C741 Chipset
  • 2 x 10Gb/s LAN ports via Intel® X710-AT2
  • 2 x MCIO 8i connectors with PCIe Gen5 x8 interface
  • 2 x SlimSAS 4i connectors with SATA interface
  • 2 x SATA 7-pin ports
  • 1 x M.2 slot with PCIe Gen3 x4 interface
  • 7 x PCIe Gen5 x16 and x8 expansion slots
  • Ordering Numbers:
  • Retail: 9MS33AR0MR-000-3*
  • Bulk: 9MS33AR0NR-000-3*
문의하기 데이터시트










[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#3] All trademarks and logos are the property of their respective owners.

  • Form Factor (WxD, mm)

    • E-ATX
      304.8 x 330.2

  • CPU

    • 5th Generation Intel® Xeon® Scalable Processors
      4th Generation Intel® Xeon® Scalable Processors
      Intel® Xeon® CPU Max Series

      Single processor, TDP up to 350W

  • Socket

    • 1 x LGA 4677
      Socket E

  • Chipset

    • Intel® C741

  • Memory

    • 16 x DIMM slots
      Support DDR5 RDIMM
      8-Channel memory per processor

      5th Gen Intel® Xeon®:
      Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) [1]

      4th Gen Intel® Xeon®:
      Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

      Intel® Xeon® Max Series:
      Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

      [1] 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.

  • LAN

    • 2 x 10Gb/s LAN (1 x Intel® X710-AT2)
      - Support NCSI function

      1 x 10/100/1000 Mbps Management LAN

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x VGA port

  • Audio

    • N/A

  • Storage Interface

    • MCIO:
      2 x MCIO 8i for 4 x Gen5 NVMe, from CPU

      SlimSAS:
      2 x SlimSAS 4i for 8 x SATA, from PCH

      SATA 7-pin:
      2 x SATA, from PCH

      M.2:
      1 x M.2 (2280/22110), PCIe Gen3 x4, from PCH

  • RAID

    • Intel® SATA RAID 0/1/10/5
      Onboard VROC key header

  • PCIe Expansion Slots

    • Slot_7: PCIe x16 (Gen5 x16)
      Slot_6: PCIe x16 (Gen5 x16 or x8), shared with Slot_5
      Slot_5: PCIe x16 (Gen5 x8)
      Slot_4: PCIe x16 (Gen5 x16 or x8), shared with Slot_3
      Slot_3: PCIe x16 (Gen5 x8)
      Slot_2: PCIe x16 (Gen5 x16 or x8), shared with Slot_1
      Slot_1: PCIe x16 (Gen5 x8)

      2 x MCIO 8i (Gen5 x8)

  • Internal I/O

    • 1 x 24-pin ATX main power connector
      2 x 8-pin ATX 12V power connectors
      1 x 6-pin ATX 12V power connector
      2 x CPU fan headers
      5 x System fan headers
      1 x USB 3.2 Gen1 header
      1 x M.2 slot
      2 x MCIO 8i connectors
      2 x SlimSAS 4i connectors
      2 x SATA 7-pin connectors
      1 x VROC connector
      1 x Front panel header
      1 x Backplane board header
      1 x PMBus header
      1 x IPMB header
      1 x TPM header

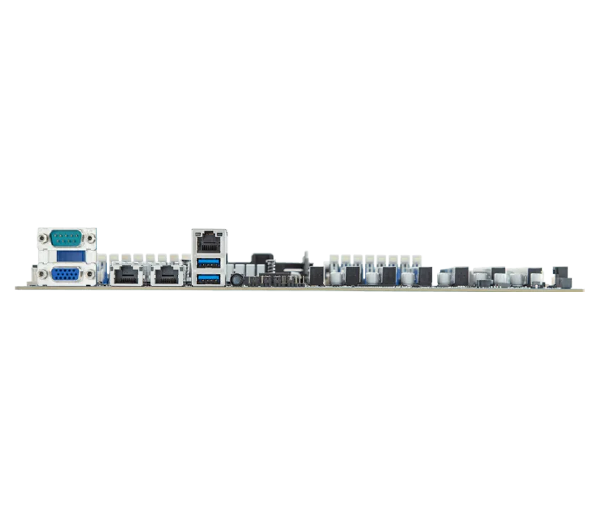

  • Rear I/O

    • 2 x USB 3.2 Gen1 ports (Type-A)
      1 x VGA port
      1 x Serial port
      2 x RJ45 ports
      1 x MLAN port
      1 x ID button with LED

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM010

  • OS Compatibility

    • OS certifications:
      Windows Server 2022

  • Board Management

    • ASPEED® AST2600 Baseboard Management Controller
      GIGABYTE Management Console web interface

      Dashboard
      HTML5 KVM
      Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
      Sensor Reading History Data
      FRU Information
      SEL Log in Linear Storage / Circular Storage Policy
      Hardware Inventory
      Fan Profile
      System Firewall
      Power Consumption
      Power Control
      Advanced power capping
      LDAP / AD / RADIUS Support
      Backup & Restore Configuration
      Remote BIOS/BMC/CPLD Update
      Event Log Filter
      User Management
      Media Redirection Settings
      PAM Order Settings
      SSL Settings
      SMTP Settings

  • PSU Connectors

    • 1 x 24-pin ATX main power connector
      2 x 8-pin ATX 12V power connectors
      1 x 6-pin ATX 12V power connector

  • Operating Properties

    • Operating temperature: 10°C to 40°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

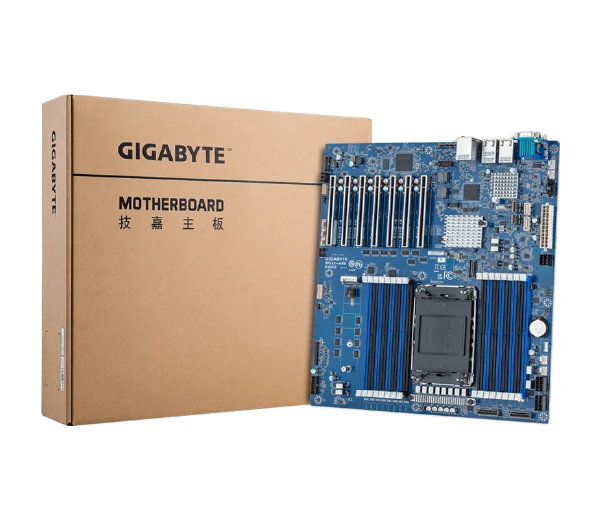

  • Retail Packaging Content

    • 1 x MS33-AR0
      1 x I/O shield
      1 x Quick start guide
      3 x Carriers
      1 x SlimSAS 4i to 4 x SATA cable (600mm)

      Single Box dimensions: 409 x 355 x 78 mm
      Carton dimensions: 729 x 415 x 432 mm
      Quantity: 10 x single boxes in one carton

  • Bulk Packaging Content

    • 10 x MS33-AR0
      10 x I/O shields
      30 x Carriers

      Carton dimensions: 600 x 473 x 517 mm

  • Reference Numbers

    • Retail: 9MS33AR0MR-000-3*/1*
      Bulk: 9MS33AR0NR-000-3*/1*

      Part Numbers:

      - I/O shield: 12AIO-MU92TU-00R
      - SlimSAS 4i to 4 x SATA cable (600mm): 25CFM-600700-A4R

      Optional parts:

      - CPU fansink: 25ST0-0Z9221-A3R
