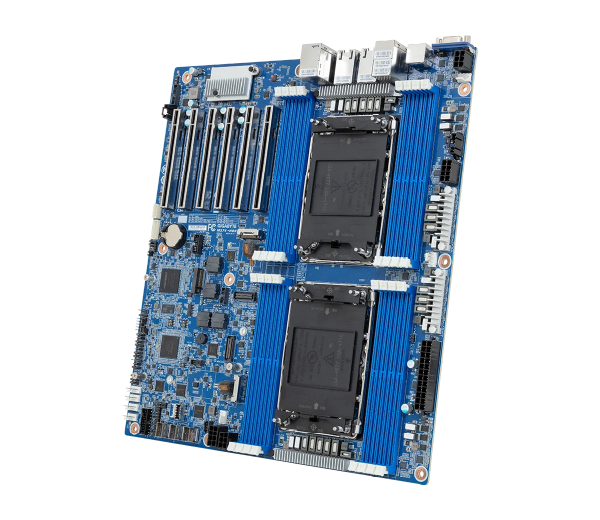

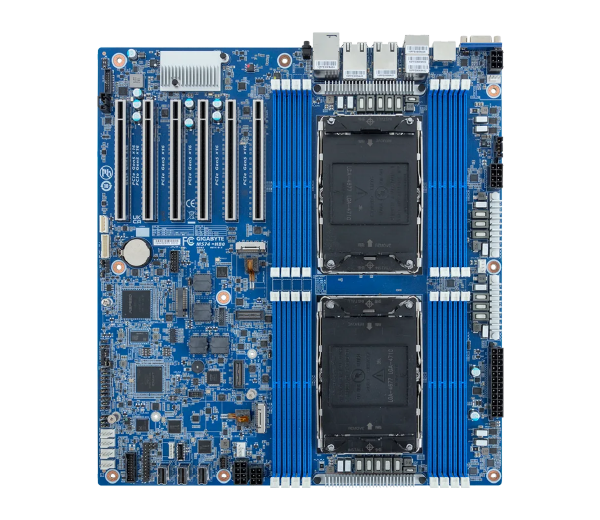

MS74-HB0

Motherboard - Intel® Xeon® 6 Processors - E-ATX DP

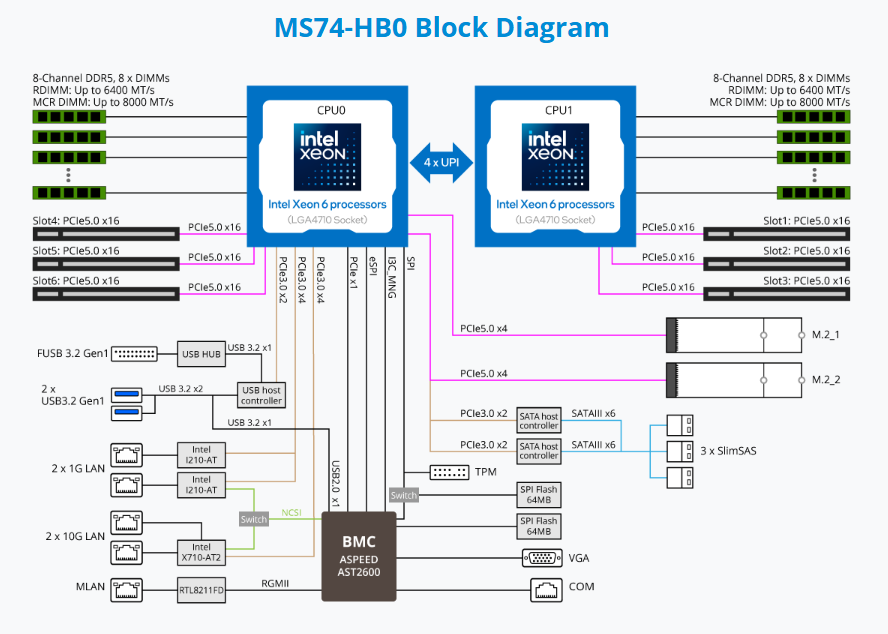

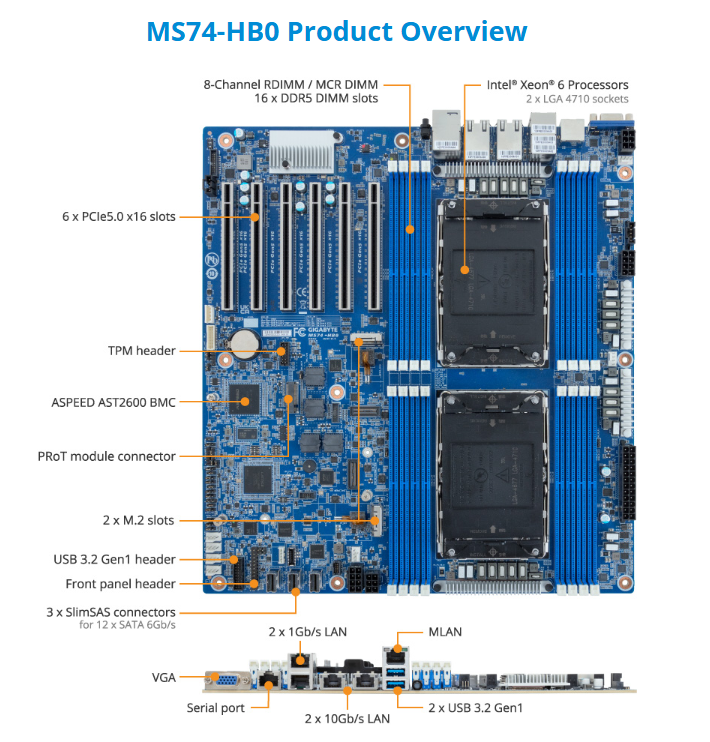

  • Dual Intel® Xeon® 6700/6500-Series Processors
  • 8-Channel DDR5 RDIMM / MRDIMM, 16 x DIMMs
  • Dual ROM Architecture
  • 2 x 10Gb/s LAN ports via Intel® X710-AT2
  • 2 x 1Gb/s LAN ports via Intel® I210-AT
  • 3 x SlimSAS 4i connectors with SATA interface
  • 2 x M.2 slots with PCIe Gen5 x4 interface
  • 6 x PCIe Gen5 x16 expansion slots
  • Ordering Numbers:
  • Retail: 9MS74HB0MR-000-1*
  • Bulk: 9MS74HB0NR-000-1*
문의하기 데이터시트











[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#3] All trademarks and logos are the property of their respective owners.

  • Form Factor (WxD, mm)

    • E-ATX
      304.8 x 330.2

  • CPU

    • Intel® Xeon® 6 Processors
      - Intel® Xeon® 6700-Series Processors
      - Intel® Xeon® 6500-Series Processors

      Dual processor, TDP up to 350W

      [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

  • Socket

    • 2 x LGA 4710
      Socket E2

  • Chipset

    • System on Chip

  • Memory

    • 16 x DIMM slots
      Support DDR5 RDIMM/MRDIMM [1]
      8-Channel memory per processor
      RDIMM: Up to 6400 MT/s
      MRDIMM: Up to 8000 MT/s

      [1] MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores.

  • LAN

    • 2 x 10Gb/s LAN (1 x Intel® X710-AT2)
      2 x 1Gb/s LAN (2 x Intel® I210-AT)
      - Support NCSI function

      1 x 10/100/1000 Mbps Management LAN

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x VGA port

  • Audio

    • N/A

  • Storage Interface

    • SlimSAS:
      3 x SlimSAS 4i for 12 x SATA, from CPU_0

      M.2:
      2 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_0

  • RAID

    • Onboard VROC key header

  • PCIe Expansion Slots

    • Slot_6: PCIe x16 (Gen5 x16), from CPU_0
      Slot_5: PCIe x16 (Gen5 x16), from CPU_0
      Slot_4: PCIe x16 (Gen5 x16), from CPU_0
      Slot_3: PCIe x16 (Gen5 x16), from CPU_1
      Slot_2: PCIe x16 (Gen5 x16), from CPU_1
      Slot_1: PCIe x16 (Gen5 x16), from CPU_1

  • Internal I/O

    • 1 x 24-pin ATX main power connector
      2 x 8-pin ATX 12V power connectors
      2 x 6-pin ATX 12V power connectors
      2 x CPU fan headers
      5 x System fan headers
      1 x USB 3.2 Gen1 x2 header
      2 x M.2 slots
      3 x SlimSAS 4i connectors
      1 x VROC connector
      1 x NCSI connector
      1 x Front panel header
      1 x Backplane board header
      1 x PMBus header
      1 x IPMB header
      1 x TPM header
      1 x PRoT connector (only enabled on RoT SKU)

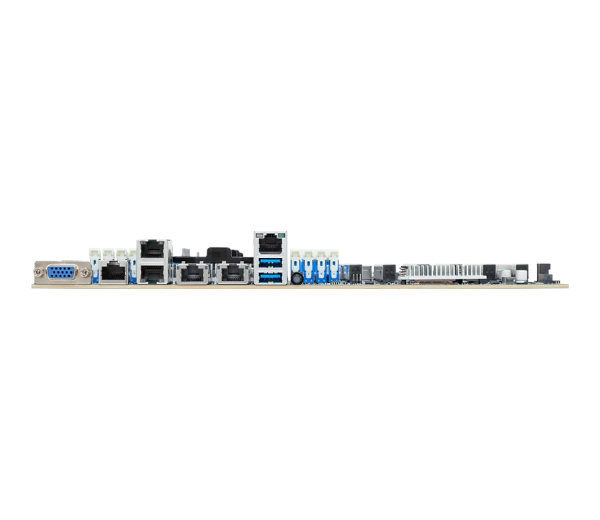

  • Rear I/O

    • 2 x USB 3.2 Gen1 ports (Type-A)
      1 x VGA port
      1 x RJ45 serial port
      4 x RJ45 ports
      1 x MLAN port
      1 x ID button with LED

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM012

      1 x PRoT connector (only enabled on RoT SKU)

  • Board Management

    • ASPEED® AST2600 Baseboard Management Controller
      GIGABYTE Management Console web interface

      Dashboard
      HTML5 KVM
      Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
      Sensor Reading History Data
      FRU Information
      SEL Log in Linear Storage / Circular Storage Policy
      Hardware Inventory
      Fan Profile
      System Firewall
      Power Consumption
      Power Control
      Advanced power capping
      LDAP / AD / RADIUS Support
      Backup & Restore Configuration
      Remote BIOS/BMC/CPLD Update
      Event Log Filter
      User Management
      Media Redirection Settings
      PAM Order Settings
      SSL Settings
      SMTP Settings

  • PSU Connectors

    • 1 x 24-pin ATX main power connector
      2 x 8-pin ATX 12V power connectors
      2 x 6-pin ATX 12V power connectors

  • Operating Properties

    • Operating temperature: 10°C to 40°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

  • Retail Packaging Content

    • 1 x MS74-HB0
      1 x I/O shield
      1 x Quick start guide
      4 x Carriers
      1 x SlimSAS 4i to 4 x SATA cable (600mm)

      Single Box dimensions: 409 x 355 x 78 mm
      Carton dimensions: 729 x 415 x 432 mm
      Quantity: 10 x single boxes in one carton

  • Bulk Packaging Content

    • 10 x MS74-HB0
      10 x I/O shields
      40 x Carriers

      Carton dimensions: 600 x 473 x 517 mm

  • Reference Numbers

    • Retail: 9MS74HB0MR-000-1*
      Bulk: 9MS74HB0NR-000-1*

      Part Numbers:

      - I/O shield: 12AIO-MD72HB-00R
      - SlimSAS 4i to 4 x SATA cable (600mm): 25CFM-600800-A4R
