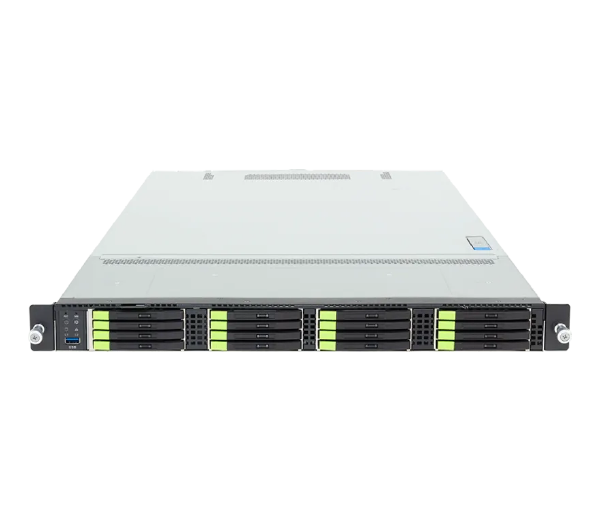

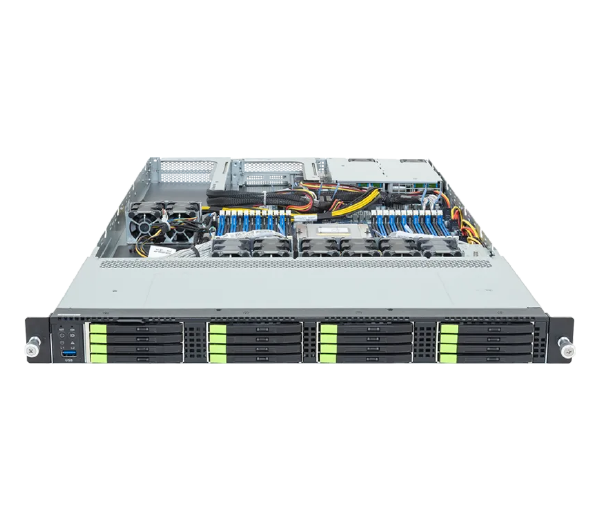

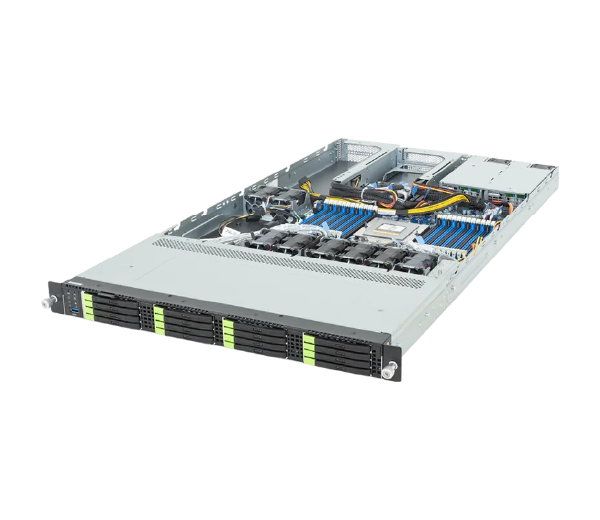

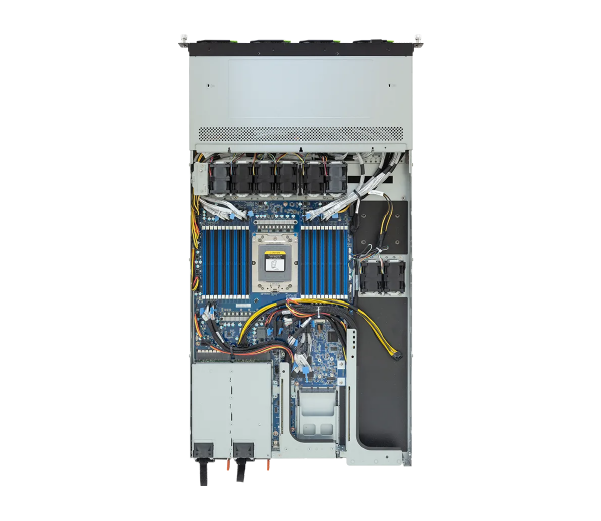

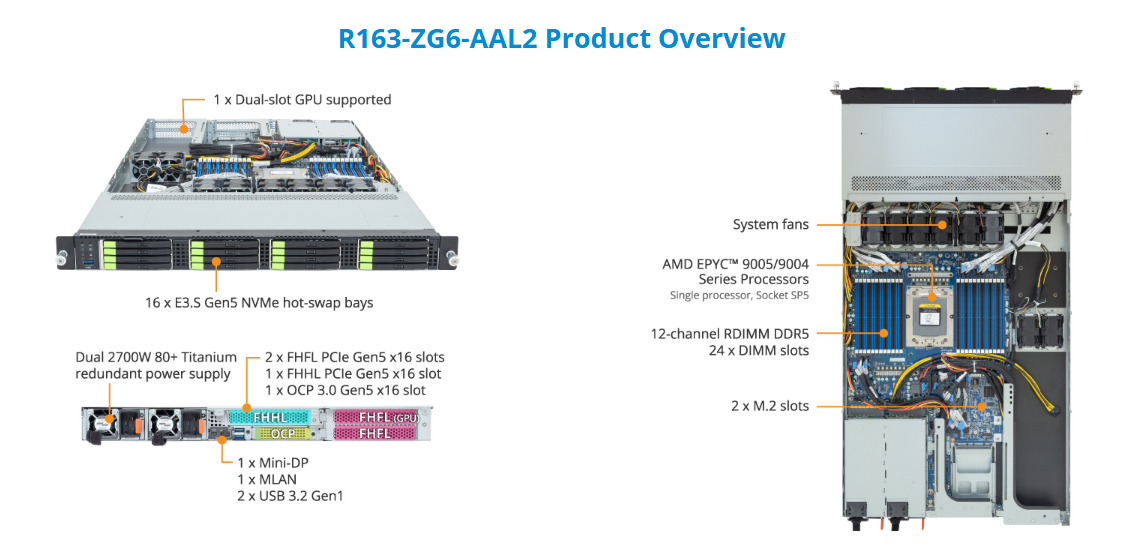

R163-ZG6-AAL2

Rack Server - AMD EPYC™ 9005/9004 - 1U UP 1 x PCIe Gen5 GPU

  • Supports 1 x Dual slot Gen5 GPU
  • Single AMD EPYC™ 9005/9004 Series Processors
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 16 x E3.S Gen5 NVMe hot-swap bays
  • 2 x M.2 slots with PCIe Gen3 x2 interface
  • 1 x FHFL PCIe Gen5 x16 slot for GPUs
  • 1 x FHFL PCIe Gen5 x16 slot
  • 1 x FHHL PCIe Gen5 x16 slot
  • 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
  • 1+1 2700W 80 PLUS Titanium redundant power supplies
  • Ordering Numbers: 6NR163ZG6DR000ACL2*
문의하기 데이터시트
















[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

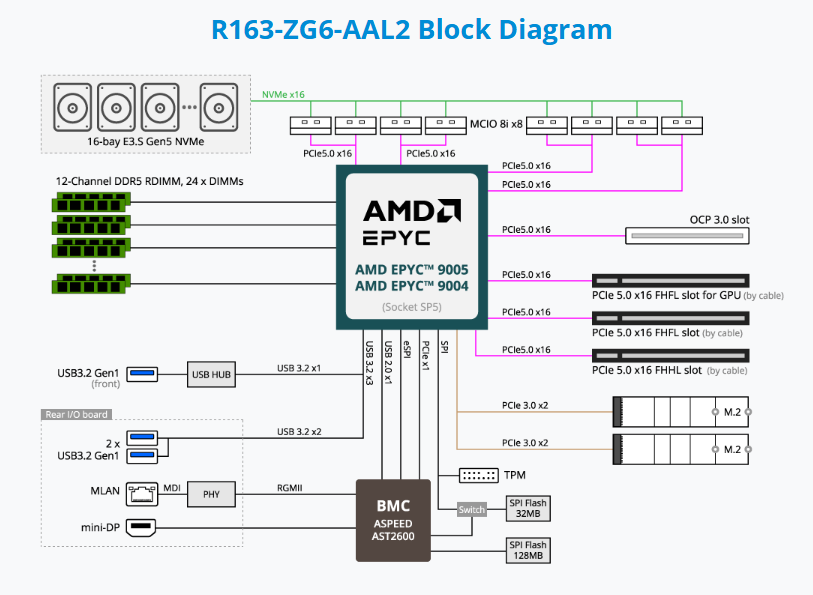

  • Dimensions (WxHxD, mm)

    • 1U
      438 x 43.5 x 815

  • Motherboard

    • MZG3-GU0

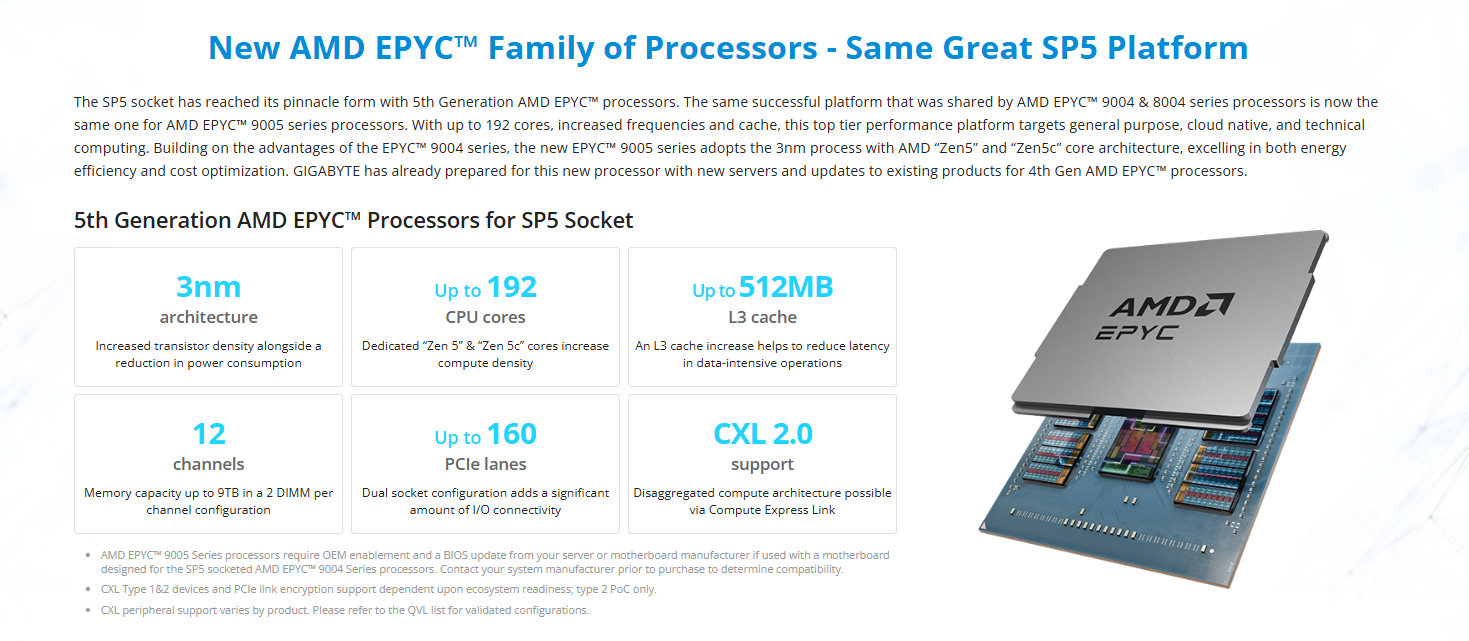

  • CPU

    • AMD EPYC™ 9005 Series Processors
      AMD EPYC™ 9004 Series Processors

      Single processor, cTDP up to 400W [1]
      - At 25°C ambient, cTDP up to 500W

      [1] Please refer to the QVL on the support page or contact our sales representatives for verified CPU SKUs.

  • Socket

    • 1 x LGA 6096
      Socket SP5

  • Chipset

    • System on Chip

  • Memory

    • 24 x DIMM slots
      DDR5 memory supported
      12-Channel memory per processor

      AMD EPYC™ 9005:
      RDIMM: Up to 5200 MT/s (1DPC)
      RDIMM: Up to 4400 MT/s (1R 2DPC), 4000 MT/s (2R 2DPC)

      AMD EPYC™ 9004:
      RDIMM: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)

  • LAN

    • Rear:
      1 x 10/100/1000 Mbps Management LAN

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x Mini-DP

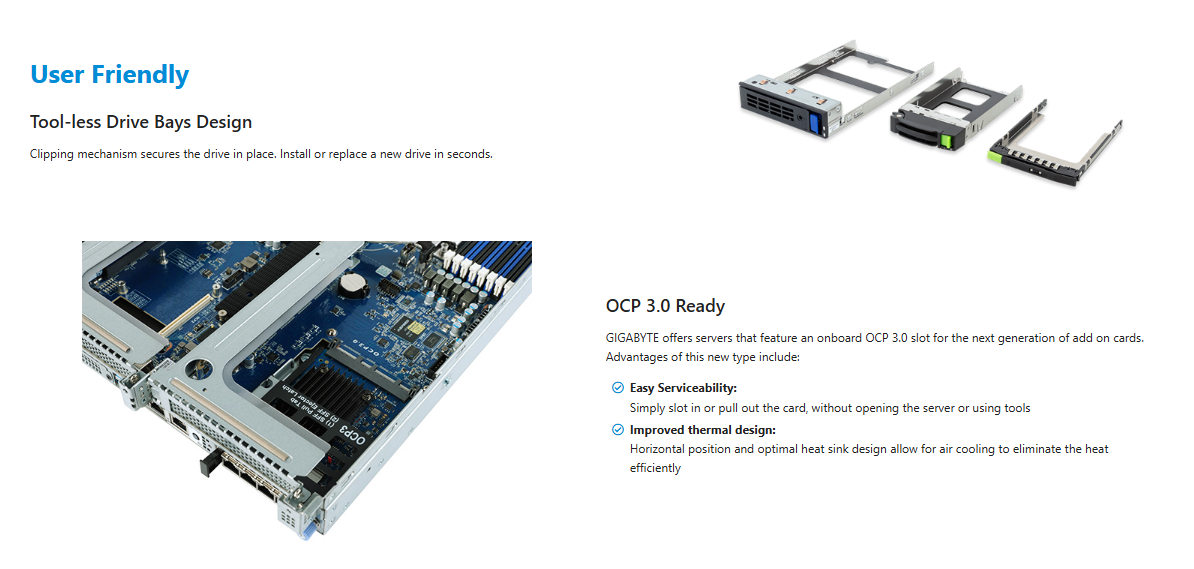

  • Storage

    • Front hot-swap:
      16 x E3.S Gen5 NVMe

      Internal M.2:
      2 x M.2 (2280/22110), PCIe Gen3 x2

  • SAS

    • N/A

  • RAID

    • Require RAID add-in cards

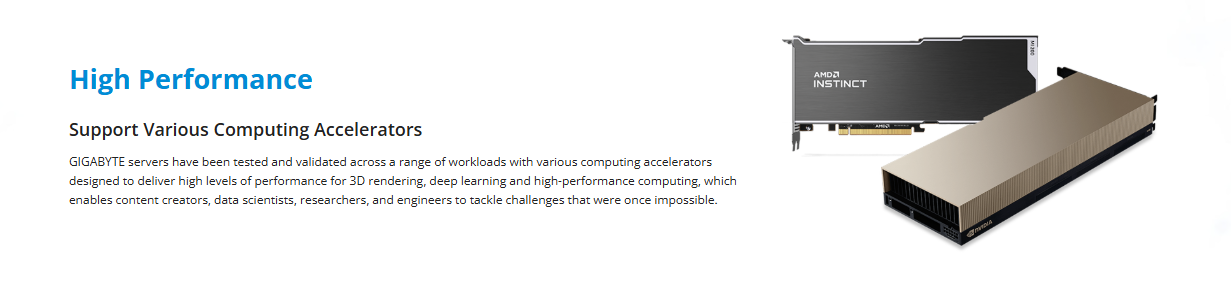

  • PCIe Expansion Slots

    • PCIe Cable x 3:
      - 1 x FHFL x16 (Gen5 x16), for GPUs
      - 1 x FHFL x16 (Gen5 x16) [1]
      - 1 x FHHL x16 (Gen5 x16)

      1 x OCP NIC 3.0 (Gen5 x16)
      - Supports NCSI function

      [1] Blocked when a Dual slot GPU is installed.

  • Front I/O

    • 1 x USB 3.2 Gen1 port (Type-A)
      1 x Power button with LED
      1 x ID button with LED
      1 x NMI button
      1 x Reset button
      2 x LAN activity LEDs (disabled)
      1 x Storage activity LED
      1 x System status LED

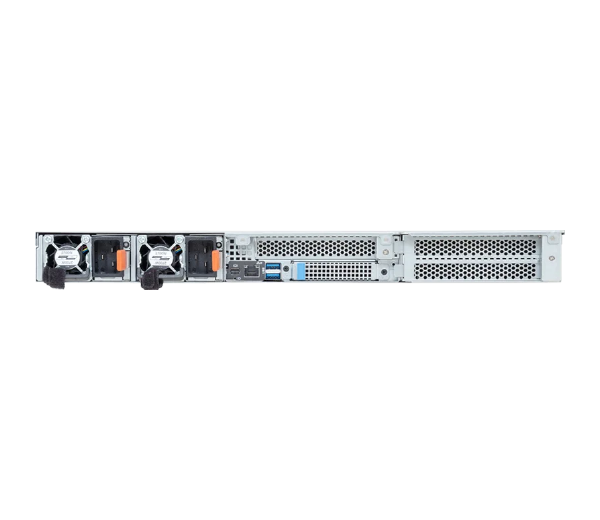

  • Rear I/O

    • 2 x USB 3.2 Gen1 ports (Type-A)
      1 x Mini-DP
      1 x MLAN port
      1 x ID LED

  • Backplane Board

    • Speed and bandwidth:
      PCIe Gen5 x4

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM012

  • Power Supply[#1]

    • 1+1 2700W 80 PLUS Titanium redundant power supplies [1]

      AC Input:
      - 100-127V~/ 12A, 50-60Hz
      - 200-240V~/ 16A, 50-60Hz

      DC Input: (Only for China)
      - 240Vdc/ 16A

      DC Output:
      - Max 1008W/ 100-127V~
      +12V/ 84A
      +12Vsb/ 3A
      - Max 2700W/ 200-240V~ or 240Vdc Input
      +12V/ 225A
      +12Vsb/ 3A

      [1] The system power supply requires C19 power cord.

      [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.

  • System Management

    • ASPEED® AST2600 Baseboard Management Controller
      GIGABYTE Management Console web interface

      Dashboard
      HTML5 KVM
      Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
      Sensor Reading History Data
      FRU Information
      SEL Log in Linear Storage / Circular Storage Policy
      Hardware Inventory
      Fan Profile
      System Firewall
      Power Consumption
      Power Control
      Advanced power capping
      LDAP / AD / RADIUS Support
      Backup & Restore Configuration
      Remote BIOS/BMC/CPLD Update
      Event Log Filter
      User Management
      Media Redirection Settings
      PAM Order Settings
      SSL Settings
      SMTP Settings

  • OS Compatibility

    • Please refer to OS compatibility table in support page

  • System Fans

    • 2 x 40x40x56mm
      6 x 40x40x56mm

  • Operating Properties

    • Operating temperature: 10°C to 30°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

  • Weight

    • Net Weight: 17.66 kg
      Gross Weight: 24 kg

  • Packaging Dimensions

    • 1026 x 576 x 220 mm

  • Packaging Content

    • 1 x R163-ZG6-AAL2
      1 x CPU heatsink
      1 x Mini-DP to D-Sub cable
      1 x GPU power cable (12VHPWR, 400mm)
      1 x 2-Section Rail kit

  • Part Numbers

    • - Barebone package: 6NR163ZG6DR000ACL2*
      - Motherboard: 9MZG3GU0UR-000-3*
      - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
      - CPU heatsink: 25ST1-553201-M1R
      - M.2 heatsink: 12SP2-11000E-00R
      - Backplane board - CBP10F0: 9CBP10F0NR-00*
      - Fan module: 25ST2-40562H-A0R
      - Fan module: 25ST2-40562O-D0R
      - I/O board - CBG70: 9CBG70NR-00*
      - Mini-DP to D-Sub cable: 25CRN-200801-K1R
      - GPU power cable (12VHPWR, 400mm): 25CRI-4000B0-Y4R
      - Power supply: 25EP0-227000-D0S

      Optional parts:

      - 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
      - Cable Management Arm: 25HB1-R18300-K0R
