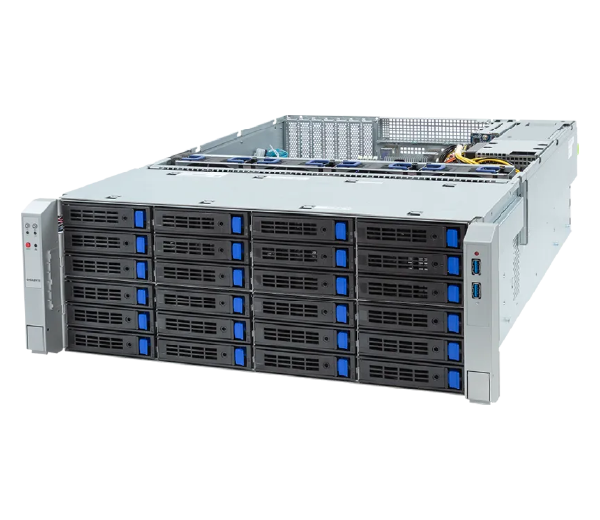

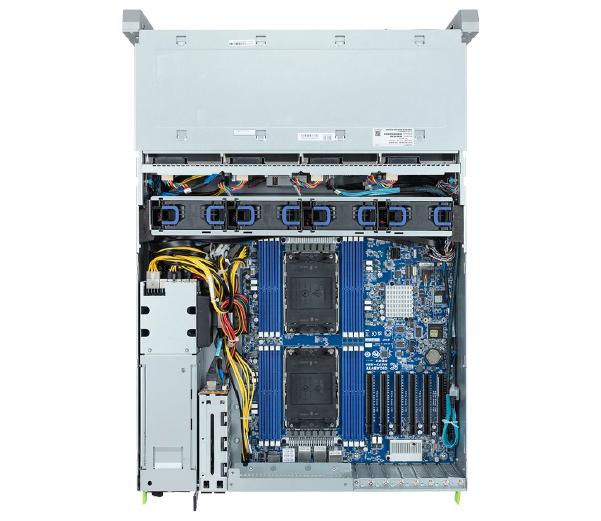

S453-S70-AAV1

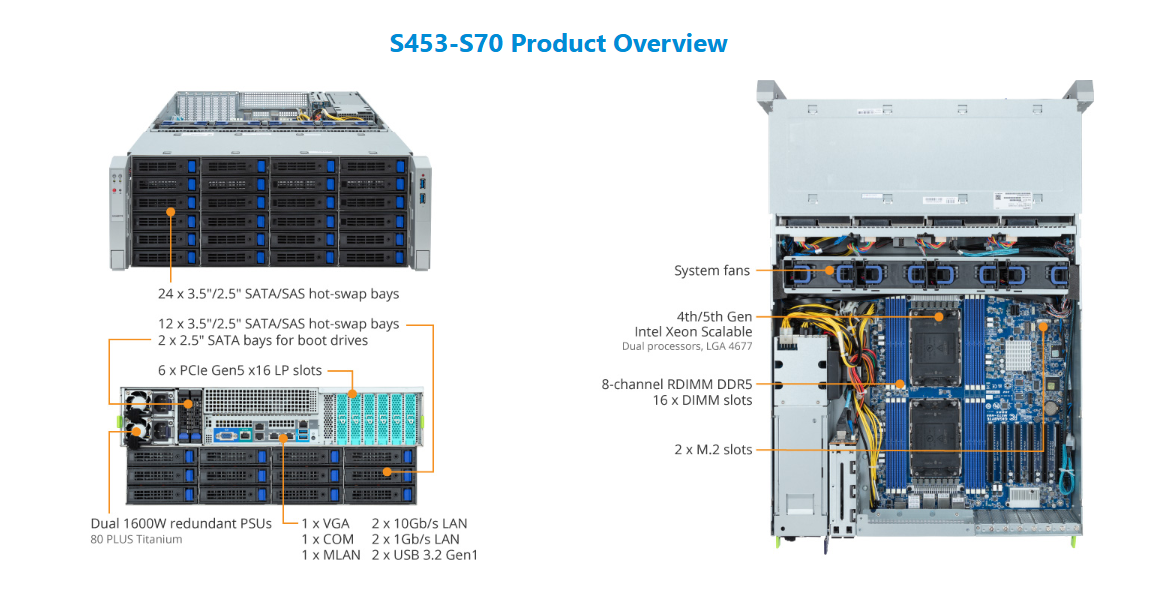

Storage Server - 5th/4th Gen Intel® Xeon® Scalable - 4U DP 36+2-Bay SATA/SAS
- Dual 5th/4th Gen Intel® Xeon® Scalable Processors
- 8-Channel DDR5 RDIMM, 16 x DIMMs
- 2 x 10Gb/s LAN ports via Intel® X710-AT2
- 2 x 1Gb/s LAN ports via Intel® I210-AT

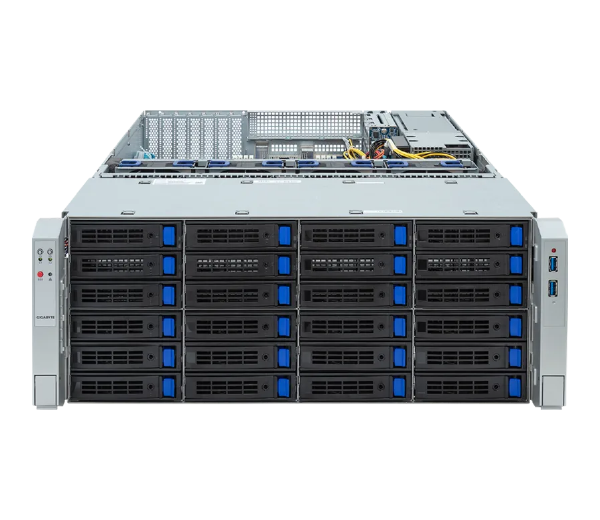

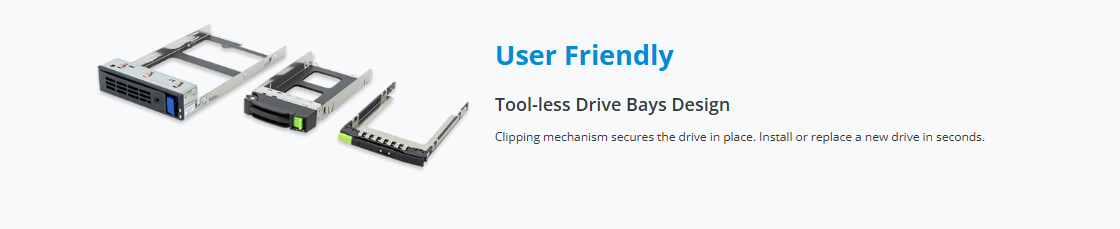

- 24 x 3.5"/2.5" SATA/SAS hot-swap bays on the front side

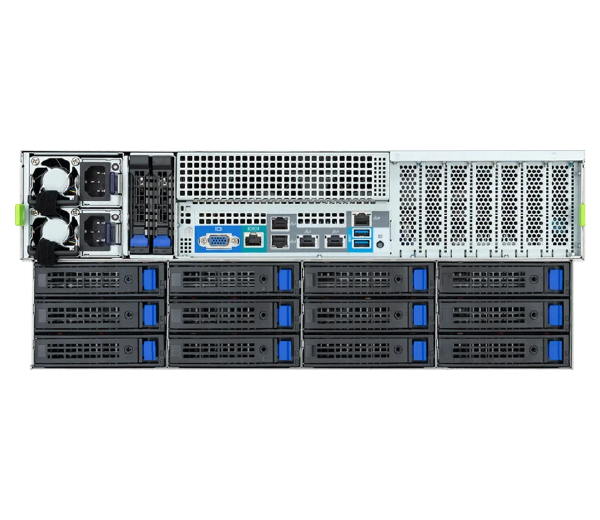

- 12 x 3.5"/2.5" SATA/SAS hot-swap bays on the rear side
- 2 x 2.5" SATA/SAS bays on the rear side for boot drives
- SAS expander with 12Gb/s transfer speed
- 2 x M.2 slots with PCIe Gen4 x4 interface
- 6 x LP PCIe Gen5 x16 slots
- Dual 1600W 80 PLUS Titanium redundant power supply
- Ordering Numbers: 6NS453S70MR000ABV1*
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
-
Dimensions (WxHxD, mm)
- 4U
482.6 x 177 x 625
- 4U
-

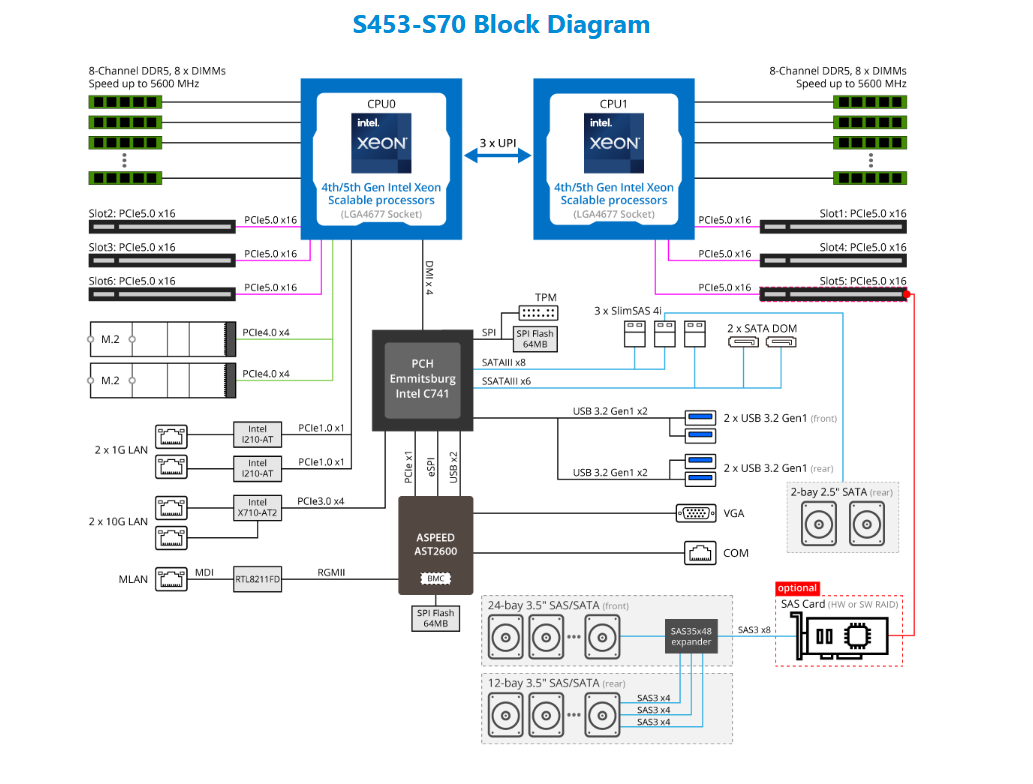

Motherboard
- MS73-HB0
-

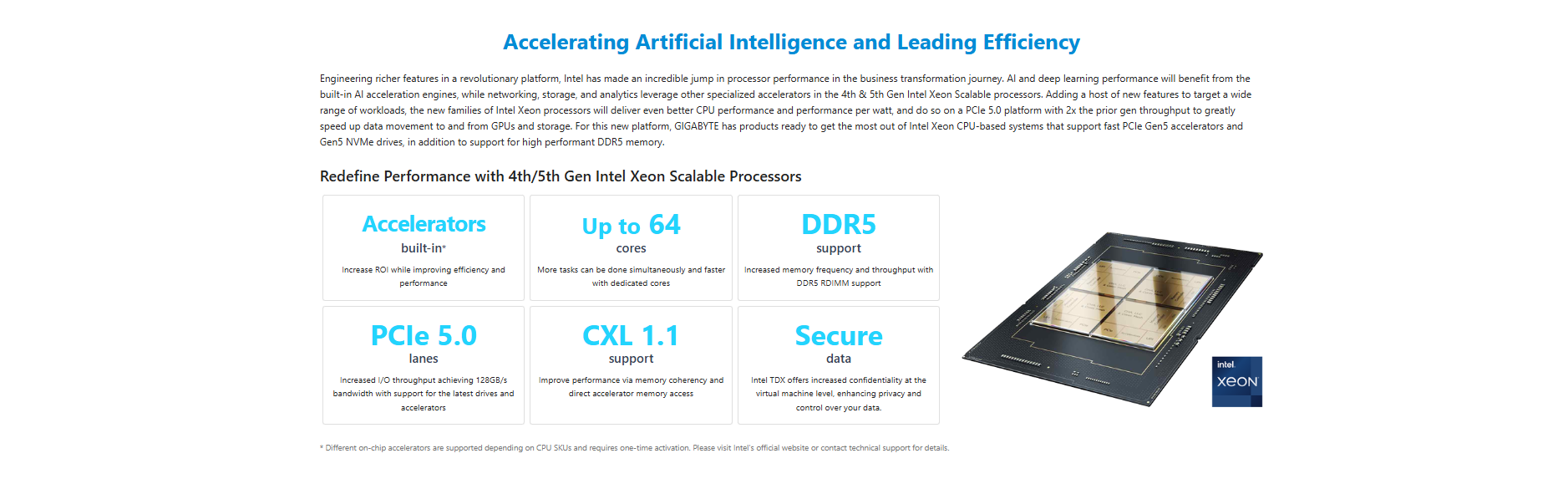

CPU
- 5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Dual processor, TDP up to 270W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
- 5th Generation Intel® Xeon® Scalable Processors
-
Socket
- 2 x LGA 4677
Socket E
- 2 x LGA 4677
-
Chipset
- Intel® C741
-
Memory
- 16 x DIMM slots [1]
DDR5 memory supported
8-Channel memory per processor
5th Gen Intel® Xeon®:
RDIMM: Up to 5600 MT/s
4th Gen Intel® Xeon®:
RDIMM: Up to 4800 MT/s
[1] Total memory supports up to 512GB with 1600W power supply. Please select 2000W power supply for higher memory configuration.
- 16 x DIMM slots [1]
-
LAN
- Rear:
2 x 10Gb/s LAN (1 x Intel® X710-AT2)
2 x 1Gb/s LAN (2 x Intel® I210-AT)
- Support NCSI function (by switch setting)
1 x 10/100/1000 Mbps Management LAN
- Rear:
-
Video
- Integrated in ASPEED® AST2600
- 1 x VGA port
- Integrated in ASPEED® AST2600
-

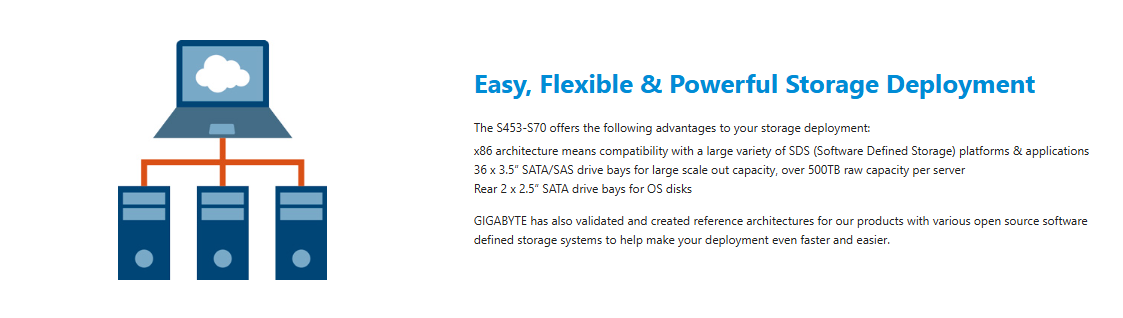

Storage
- Front hot-swap:
24 x 3.5"/2.5" SATA/SAS [1], connected to expander
Rear hot-swap:
12 x 3.5"/2.5" SATA/SAS [1], connected to expander
2 x 2.5" SATA/SAS [2], for boot drives
Internal M.2:
2 x M.2 (2280/22110), PCIe Gen4 x4, from CPU_0
[1] Storage card is required to enable SATA and SAS drives.
- Broadcom SAS35x48 expander
- Bandwidth: SATA 6Gb/s or SAS 12Gb/s per port
[2] Additional SAS card is required for SAS support on boot drives.
- Front hot-swap:
-
SAS
- Supported via storage cards
Recommended SAS cards:
CSA4710
CRA4760
CRA4761
- Supported via storage cards
-
RAID
- Require RAID add-in cards
Onboard VROC key header
Recommended RAID cards:
CRA4760
CRA4761
- Require RAID add-in cards
-
PCIe Expansion Slots
- 6 x LP x16 (Gen5 x16)
-
Front I/O
- 2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x System status LED
- 2 x USB 3.2 Gen1 ports (Type-A)
-
Rear I/O
- 2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
1 x COM port
4 x RJ45 ports
1 x MLAN port
1 x ID button with LED
- 2 x USB 3.2 Gen1 ports (Type-A)
-
Backplane Board
- Speed and bandwidth:
Front - CBPD4O0: SATA 6Gb/s or SAS 12Gb/s
Rear - CBP2021: SATA 6Gb/s or SAS 12Gb/s
Rear - CBPD0C0: SATA 6Gb/s or SAS 12Gb/s
- Speed and bandwidth:
-

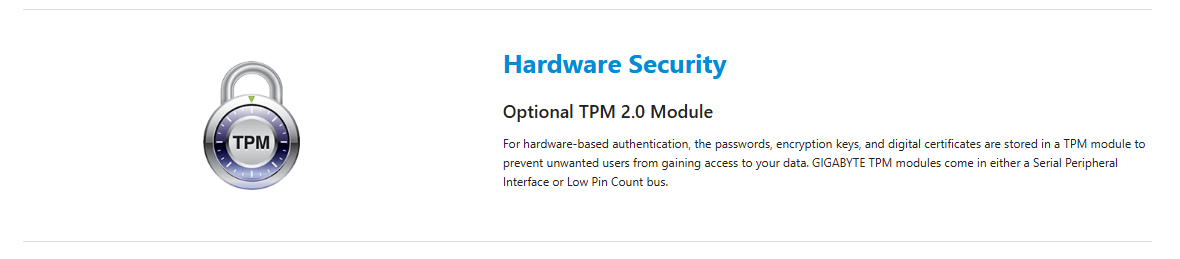

Security Modules
- 1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- 1 x TPM header with SPI interface
-

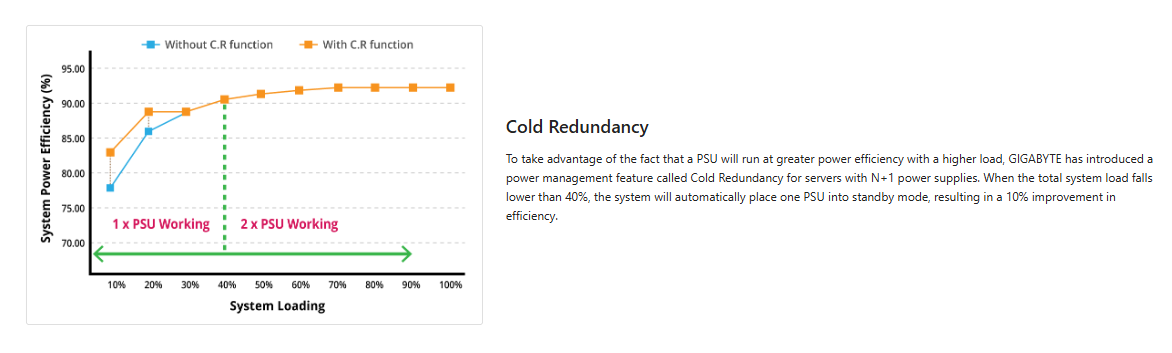

Power Supply[#1]
- Dual 1600W 80 PLUS Titanium redundant power supply
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 8A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12.2V/ 132A
+12.2Vsb/ 3A
- Dual 1600W 80 PLUS Titanium redundant power supply
-
System Management
- ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
- ASPEED® AST2600 Baseboard Management Controller
-
OS Compatibility
- Please refer to OS compatibility table in support page
Additional certifications:
Windows Server 2022
- Please refer to OS compatibility table in support page
-
System Fans
- 4 x 80x80x38mm (16,300rpm)
-
Operating Properties
- Operating temperature: 10°C to 35°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
- Operating temperature: 10°C to 35°C
-
Weight
- Net Weight: 28 kg
Gross Weight: 47.76 kg
- Net Weight: 28 kg
-
Packaging Dimensions
- 860 x 630 x 290 mm
-
Packaging Content
- 1 x S453-S70-AAV1
2 x CPU heatsinks
6 x Carriers
1 x 3-Section Rail kit
- 1 x S453-S70-AAV1
-
Part Numbers
- - Barebone package (5th/4th Gen): 6NS453S70MR000ABV1*
- Barebone package (4th Gen): 6NS453S70MR000AAV1*
- Motherboard: 9MS73HB0NR-000*
- 3-Section Rail kit: 25HB2-3A6104-I0R
- CPU heatsink: 25ST1-323208-A0R
- Backplane board - CBP2021: 9CBP2021NR-00*
- Backplane board - CBPD0C0: 9CBPD0C0NR-00*
- Backplane board - CBPD4O0: 9CBPD4O0NR-00*
- Fan module: 25ST2-883829-D0R
- 1600W power supply: 25EP0-21600D-G1S
Optional parts:
- 2000W power supply (GosPower): 25EP0-22000L-G1S
- 2000W power supply (LITEON): 25EP0-22000M-L0S
- - Barebone package (5th/4th Gen): 6NS453S70MR000ABV1*
