W332-Z00

Entry Workstation - AMD Ryzen™ 7000 Series

  • Single AMD Ryzen™ 7000 Series Processors
  • Dual Channel DDR5 ECC / Non-ECC UDIMM, 4 DIMMs
  • Realtek® DASH Remote Management
  • Realtek® 2.5Gb/s LAN and 1Gb/s DASH LAN
  • 2 x M.2 slots with PCIe Gen5 x4 interface
  • 2 x 3.5"/2.5" SATA bays
  • 1 x PCIe Gen5 x16 slot
  • 2 x PCIe Gen4 x4 and x1 slots
  • Rear HDMI and DP support
  • Single 500W 80 PLUS Bronze power supply
문의하기 데이터시트










[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

  • Dimensions (WxHxD, mm)

    • Mini-Tower
      198 x 370 x 375 mm

  • Motherboard

    • MC13-NB1

  • CPU

    • AMD Ryzen™ 7000 Series Processors

      Note:
      - Recommend to install CPU TDP under 105W.
      - The BIOS includes standard mode and performance mode. Users can refer to the manual for more details.

  • Socket

    • 1 x AM5

  • Chipset

    • AMD B650E

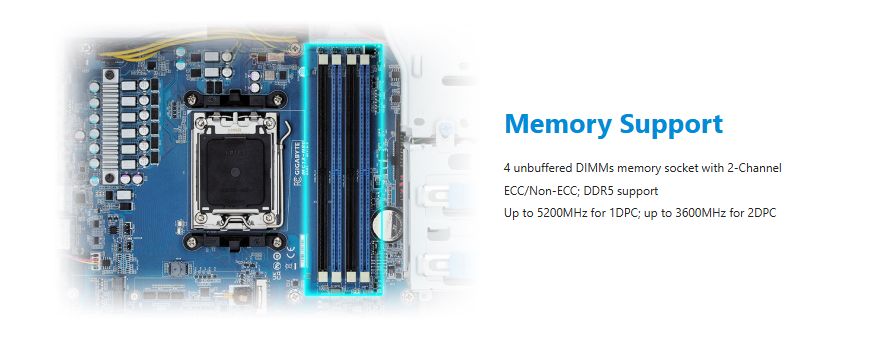

  • Memory

    • 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
      Dual channel memory architecture
      Support ECC UDIMM 1Rx8/2Rx8 memory modules
      Support Non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
      Memory speed: Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC)

  • LAN

    • 2 x LAN ports
      - Realtek® 2.5Gb/s LAN (RTL8125)
      - Realtek® 1Gb/s DASH LAN (RTL8111EP)

  • Video

    • 1 x DP port: Maximum resolution of 4096x2160@60Hz; Supports DP 1.2.
      2 x HDMI ports: Maximum resolution of 4096x2160@60Hz; Support HDMI 2.1, HDCP 2.3, HDR.

  • Audio

    • Realtek® ALC897 audio codec
      High Definition audio; 2/4/5.1/7.1-channel
      3 ports Audio Jack (Line in/Line out/Mic)

  • Storage

    • 2 x 3.5"/2.5" fixed SATA bays

  • RAID

    • RAID 0/1/10

  • Peripheral Drives

    • Optional ODD devices

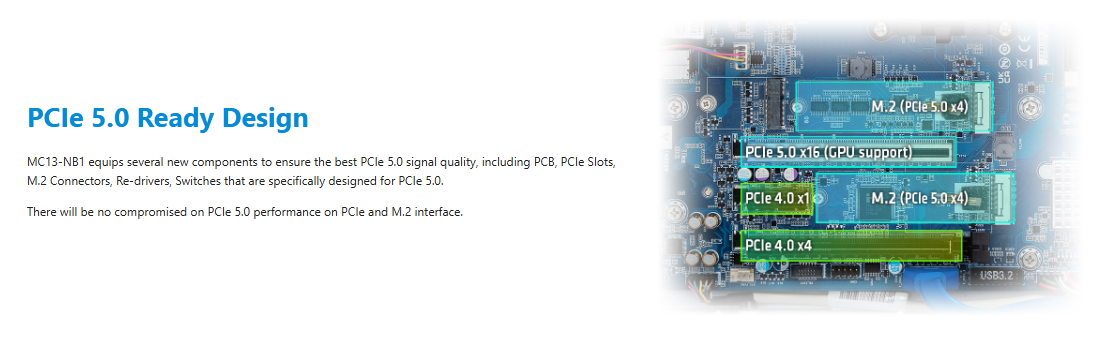

  • Expansion Slots

    • 1 x PCIe x16 (Gen5 x16) slot, from CPU
      1 x PCIe x16 (Gen4 x4) slot, from FCH
      1 x PCIe x1 (Gen4 x1) slot, from FCH

      2 x M.2 slots:
      - M-key
      - PCIe Gen5 x4, from CPU
      - Supports 2280 cards

      1 x M.2 slot for Wi-Fi:
      - E-key, from FCH
      - Supports 2230 cards

  • Internal I/O

    • 1 x 24-pin ATX main power connector
      1 x 8-pin ATX 12V power connector
      4 x SATA 6Gb/s ports
      1 x CPU fan header
      3 x System fan headers
      1 x Serial header (COM)
      1 x TPM header
      1 x Front panel header
      1 x Front Audio header
      1 x Front USB3.2 Gen1 header

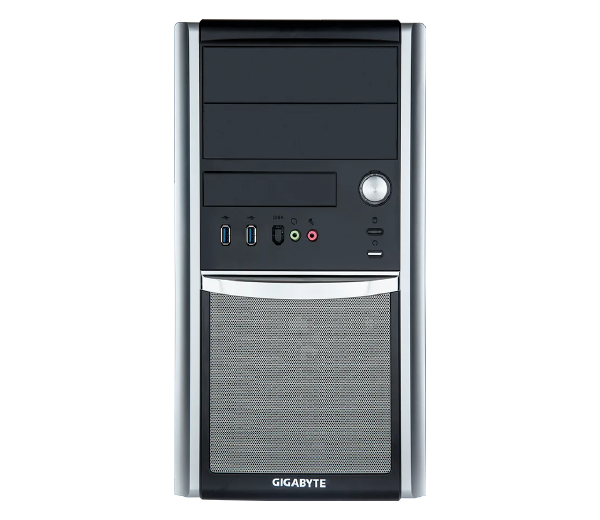

  • Front I/O

    • 2 x USB3.2 Gen1 ports
      1 x Line out port
      1 x Mic in port
      1 x Power Button
      1 x Storage activity LED
      1 x Reset Button

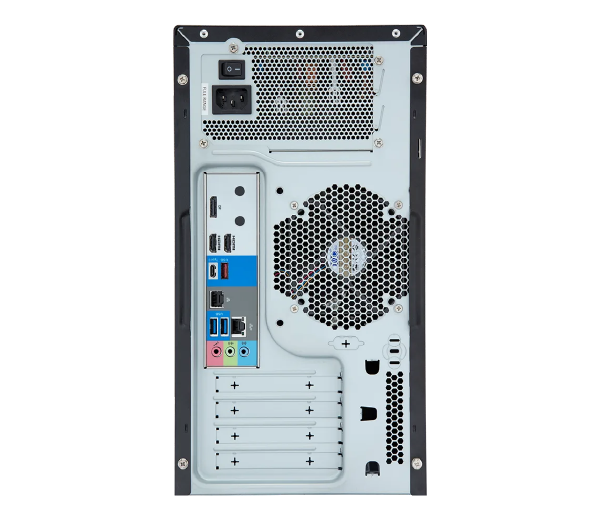

  • Rear I/O

    • 1 x Display port
      2 x HDMI ports
      2 x Antenna ports (reserved for option)
      3 x USB 3.2 Gen2 type A
      1 x USB 3.2 Gen2 type C
      1 x 2.5Gb/s RJ45 LAN port
      1 x 1Gb/s RJ45 DASH LAN port
      3 x Audio Jacks (Line in / Line out / Mic in)

  • TPM

    • Onboard with SPI interface

  • Power Supply[#1]

    • Single 500W 80 PLUS Bronze power supply

      AC Input:
      - 100-240V~/ 7-3A, 50-60Hz

      DC Output:
      - Max 500W/ 100-240V~
      +12V/ 41.66A
      +5V/ 20A
      +3.3V/ 20A
      +5Vsb/ 2.5A

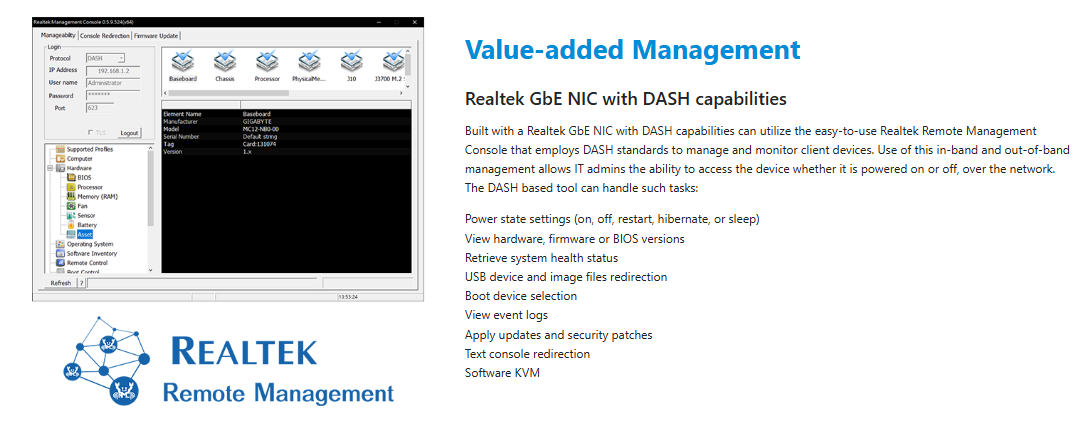

  • System Management

    • Realtek® DASH Remote Management

      - Power state settings (on, off, restart, hibernate, or sleep)
      - View hardware, firmware or BIOS versions
      - Retrieve system health status
      - USB device redirection
      - Boot device selection
      - View event logs
      - Apply updates and security patches
      - Text Console Redirection
      - Software KVM

  • OS Compatibility

    • Windows 11 (64bit)
      Windows 10 (64bit)

  • System Fans

    • 2 x 92x92x25mm (4,500rpm)

  • Operating Properties

    • Operating temperature: 0°C to 30°C
      Operating humidity: 8%-80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20%-95% (non-condensing)

  • Packaging Dimensions

    • 512 x 324 x 503 mm

  • Packaging Content

    • 1 x W332-Z00
      1 x Quick Start Guide

      Note: The CPU fansink is not included by default. Fansinks included in the AMD CPU package are recommended. Other verified fansinks are listed in the optional parts section.

  • Part Numbers

    • - Barebone package: 6BW332Z00MR-00-2*
      - Chassis kit: 25EC2-W33100-C1R
      - Motherboard: 9MC13NB1NR-00
      - I/O shield: 12AIO-MC13NB-00R
      - System Fan: 25Y00-92250-A20R
      - SATA cable: 25CF4-350500-S9R
      - Power supply: 25EP0-20500C-F3S

      Optional parts:

      - Fansink: 25ST0-0C1920-C1R
