W753-W50-AA01

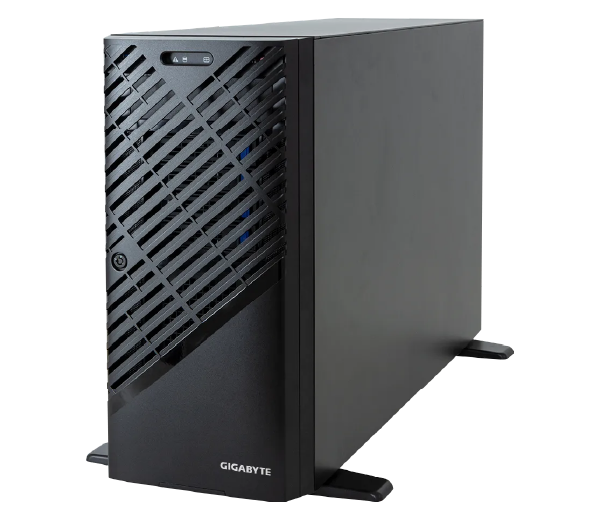

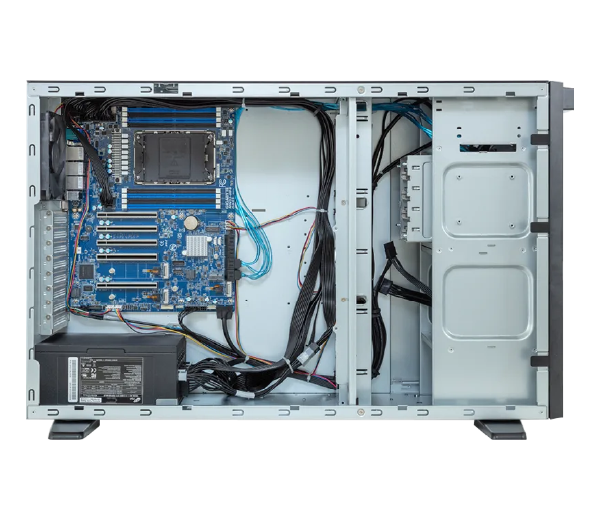

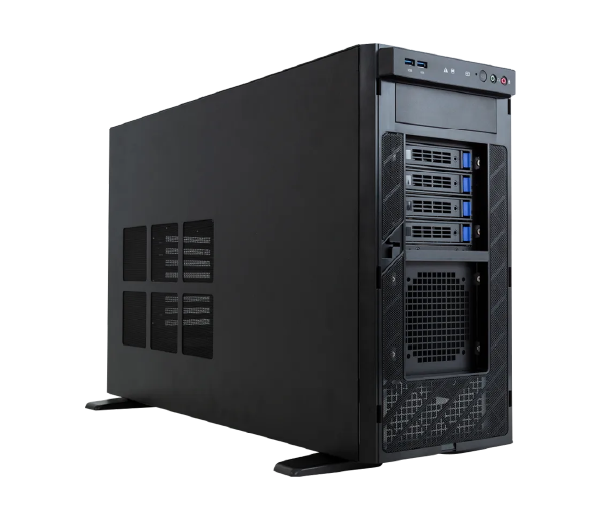

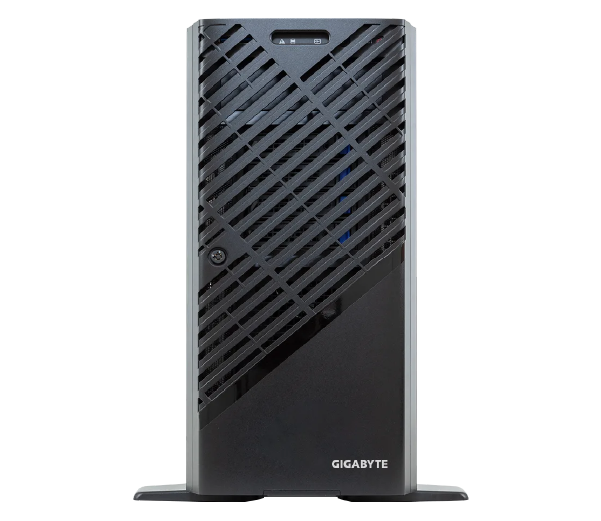

GPU Workstation - Intel® Xeon® W-2500/2400 - UP 2 x PCIe Gen5 GPUs

  • Supports up to 2 x Dual slot Gen5 GPUs
  • Single Intel® Xeon® W-2500/2400 Processors
  • 4-Channel DDR5 RDIMM/3DS-RDIMM, 8 x DIMMs
  • Intel® W790 Chipset
  • 2 x 2.5Gb/s LAN ports via Intel® I226-LM
  • 3 x M.2 slots with PCIe Gen4 x4 interface
  • Up to 8 x 3.5"/2.5" SATA bays
  • 4 x PCIe Gen5 x16 slots
  • 1 x PCIe Gen3 x4 slot
  • Single 1200W ATX 80 PLUS Platinum power supply
문의하기 데이터시트













[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

  • Dimensions (WxHxD, mm)

    • Pedestal
      218 x 455 x 726.3

  • Motherboard

    • MW53-HP0

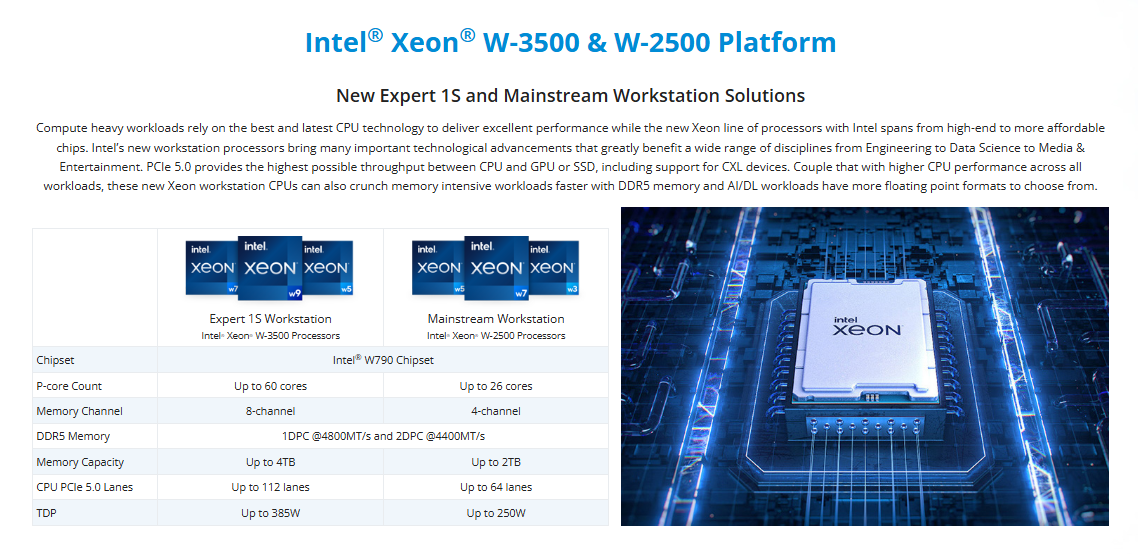

  • CPU

    • Intel® Xeon® W-2500 Processors
      Intel® Xeon® W-2400 Processors
      Single processor, TDP up to 250W

  • Socket

    • 1 x LGA 4677
      Socket E

  • Chipset

    • Intel® W790

  • Memory

    • 8 x DIMM slots
      DDR5 memory supported only
      4-channel memory architecture
      RDIMM up to 64GB supported
      3DS RDIMM up to 256GB supported
      Memory speed: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

      Note: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0.

  • LAN

    • 2 x 2.5Gb/s LAN ports (2 x Intel® I226-LM)
      1 x 10/100/1000 Mbps Management LAN

  • Video

    • Integrated in Aspeed® AST2600
      - 1 x VGA port

  • Audio

    • Realtek® ALC897 HD Audio Codec
      Supports 2/4/5.1/7.1 channel configurations
      Rear 3 x Audio jacks (Audio in/Audio out/Mic)
      Front 2 x Audio jacks (Audio out/Mic)

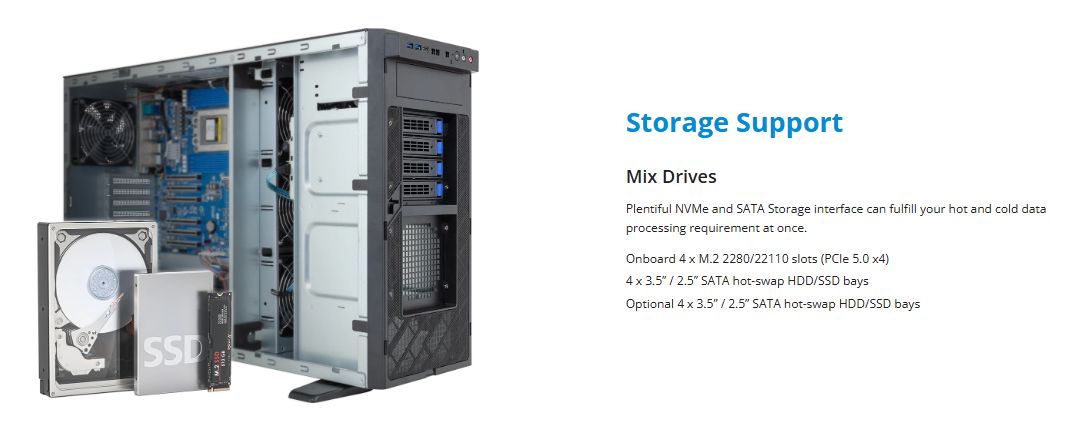

  • Storage

    • 4 x 3.5"/2.5" SATA bays
      Optional 4 x 3.5"/2.5" SATA bays

      Note: Storage card is required to support NVMe and SAS drives.

  • RAID

    • Intel® SATA RAID 0/1/10/5

  • Peripheral Drives

    • 5.25" space reserved for ODD device

  • Expansion Slots

    • Slot_7: PCIe x16 (Gen5 x16) slot, from CPU
      Slot_6: PCIe x16 (Gen5 x16) slot, from CPU
      Slot_5: PCIe x16 (Gen5 x16) slot, from CPU
      Slot_4: PCIe x16 (Gen5 x16) slot, from CPU
      Slot_2: PCIe x16 (Gen3 x4) slot, from PCH

      3 x M.2 slots for storage:
      - M-key
      - PCIe Gen4 x4, from PCH
      - Support 2280 cards

  • Internal I/O

    • 1 x TPM header
      1 x VROC connector

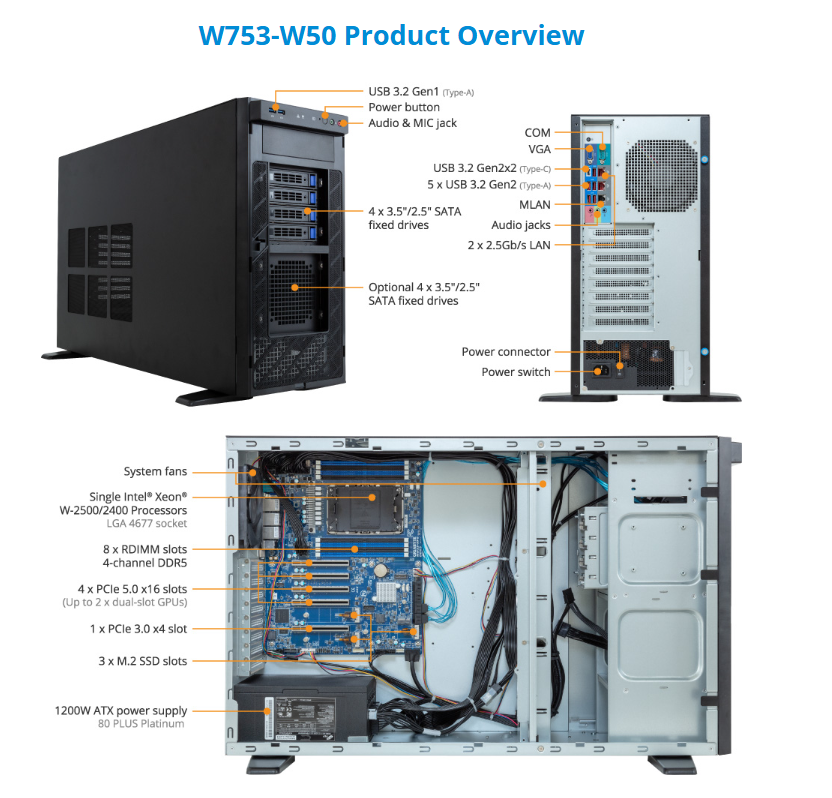

  • Front I/O

    • 2 x USB 3.2 Gen1 (Type-A)
      2 x Audio jacks (Audio out/Mic)
      1 x Power button with LED
      1 x Reset button
      1 x Power LED
      1 x Storage activity LED
      1 x System status LED

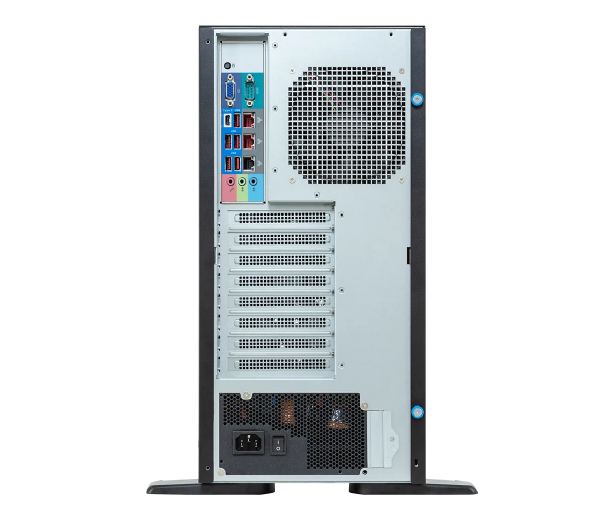

  • Rear I/O

    • 1 x USB 3.2 Gen2x2 (Type-C)
      5 x USB 3.2 Gen2x1 (Type-A)
      1 x VGA
      1 x COM
      2 x RJ45
      1 x MLAN
      3 x Audio jacks
      1 x ID button with LED

  • TPM

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM010

  • Power Supply[#1]

    • Single 1200W ATX 80 PLUS Platinum power supply

      AC Input:
      - 110-240V~/ 14-9A, 50-60Hz
      - 200-240V~/ 9A, 50-60Hz (Only for China and Korea)

      DC Output:
      - Max 1200W
      +12V/ 100A
      +5V/ 20A
      +3.3V/ 20A
      +5Vsb/ 2.5A

  • System Management

    • ASPEED® AST2600 Baseboard Management Controller
      GIGABYTE Management Console web interface

      Dashboard
      HTML5 KVM
      Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
      Sensor Reading History Data
      FRU Information
      SEL Log in Linear Storage / Circular Storage Policy
      Hardware Inventory
      Fan Profile
      System Firewall
      Power Consumption
      Power Control
      Advanced power capping
      LDAP / AD / RADIUS Support
      Backup & Restore Configuration
      Remote BIOS/BMC/CPLD Update
      Event Log Filter
      User Management
      Media Redirection Settings
      PAM Order Settings
      SSL Settings
      SMTP Settings

  • OS Compatibility

    • CentOS Stream 9 (x64)
      Debian 11.5.0
      Red Hat Enterprise Linux 9.0 (x64)
      Ubuntu 22.04 LTS (x64)
      Windows 11 Enterprise (x64)

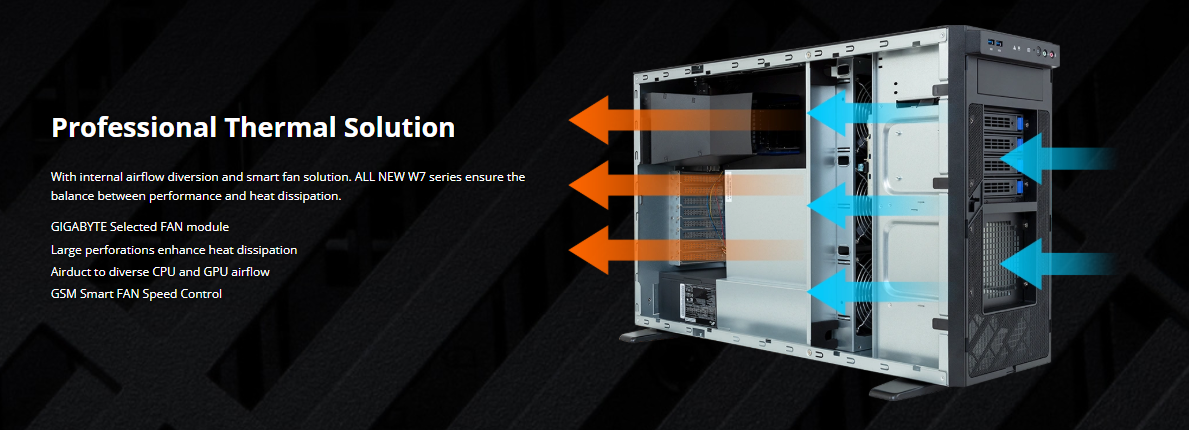

  • System Fans

    • Middle fan: 3 x 120x120x38mm (4,000rpm)
      Rear fan: 1 x 120x120x25mm (2,800rpm)

  • Operating Properties

    • Operating temperature: 10°C to 35°C
      Operating humidity: 8-80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20%-95% (non-condensing)

  • Packaging Dimensions

    • 1045 x 588 x 403 mm

  • Packaging Content

    • 1 x W753-W50-AA01
      1 x CPU fansink
      1 x Carrier
      1 x Quick installation guide

  • Part Numbers

    • - Barebone package (Refresh): 6NW753W50MR000AB01*
      - Barebone package: 6NW753W50MR000AA01*
      - Motherboard: 9MW53HP0NR-000
      - I/O shield: 12AIO-MW53HP-10R
      - CPU fansink: 25ST0-0Z9221-A3R
      - Carrier: 12KRC-0I4677-10R
      - M.2 heatsink: 12SP2-080027-00R
      - Middle fan: 25ST2-113824-S1R
      - Rear fan: 25ST2-112522-S1R
      - Power supply: 25EP0-21200C-F3S

      Optional parts:

      - Rail kit for W7x3 series ((A)+(B)+(C)+(D)):
      (A) 25HB2-A66126-K0R (Slide Rail), Q'ty: 1 set
      (B) 25HB4-W77304-C0R (Rack Ear Right), Q'ty: 1 set
      (C) 25HB4-W77305-C0R (Rack Ear Left), Q'ty: 1 set
      (D) 25HB7-W77300-C0R (Top Cover for Assembly), Q'ty: 1 set
