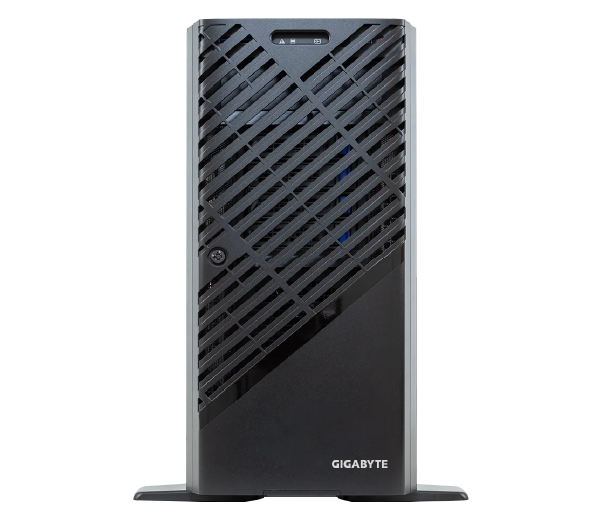

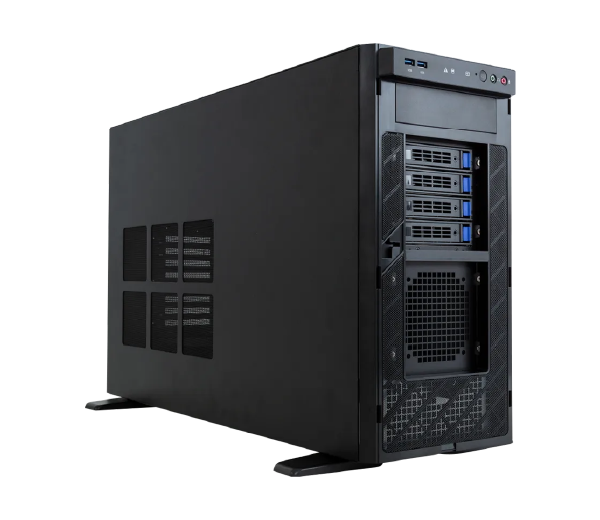

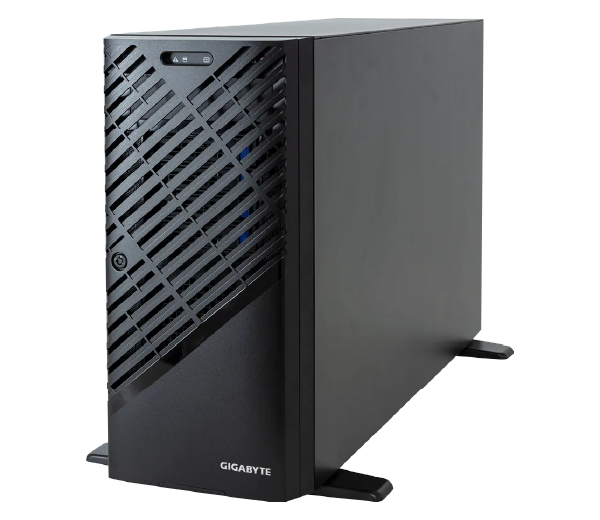

W733-W30-AA01
GPU Workstation - 14th/13th/12th Gen Intel® Core™ - UP 1 x PCIe Gen5 GPU
- Supports 1 x Multi-slot Gen5 GPU
- Single 14th/13th/12th Gen Intel® Core™ Desktop Processor
- Dual Channel DDR4 3200 MT/s UDIMM, 4 x DIMMs
- Intel® W680 Chipset
- 1 x 2.5Gb/s LAN port via Intel® I225
- 4 x M.2 slots with PCIe Gen4 x4 interface
- Up to 8 x 3.5"/2.5" SATA bays
- 2 x PCIe Gen5 x16 and x8 slots
- 1 x PCIe Gen3 x4 slot
- Single 850W ATX 80 PLUS Gold power supply
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
-
Dimensions (WxHxD, mm)
- Pedestal
218 x 455 x 726.3
- Pedestal
-

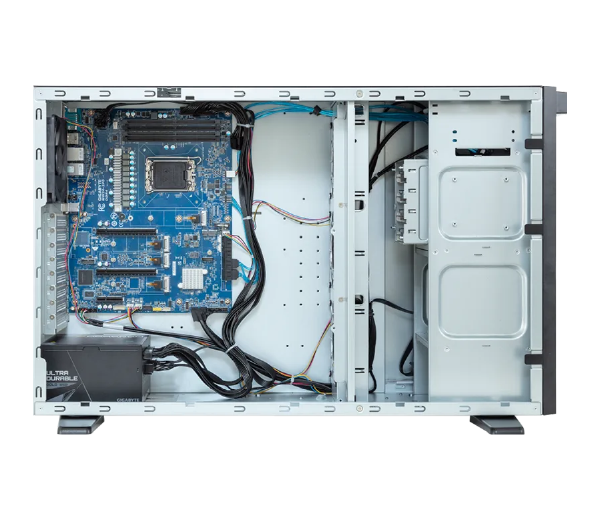

Motherboard
- MW34-SP0
-
CPU
- 14th Gen Intel® Core™ Desktop Processor
13th Gen Intel® Core™ Desktop Processor
12th Gen Intel® Core™ Desktop Processor
Single Processor
Up to 24 cores, 32 threads
- 14th Gen Intel® Core™ Desktop Processor
-
Socket
- 1 x LGA 1700
-
Chipset
- Intel® W680
-
Memory
- 4 x DIMM slots
Dual channel memory architecture
Supports 1.2V DDR4 3200 MT/s memory
ECC UDIMM supported
Total capacity up to 128GB
Note: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0.
- 4 x DIMM slots
-
LAN
- 1 x 2.5Gb/s LAN (1 x Intel® I225)
1 x 10/100/1000 Mbps Management LAN
- 1 x 2.5Gb/s LAN (1 x Intel® I225)
-
Video
- Integrated in Intel® Processor:
- 1 x DisplayPort, supports DisplayPort 1.4a
- 1 x HDMI port, supports for HDMI 2.0b
Integrated in ASPEED® AST2600:
- 1 x VGA Port
- Integrated in Intel® Processor:
-
Audio
- Realtek® ALC897 HD Audio Codec
Supports 2/4/5.1/7.1 channel configurations
Rear 3 x Audio Jacks (Audio in/Audio out/Mic)
Front 2 x Audio Jacks (Audio out/Mic)
- Realtek® ALC897 HD Audio Codec
-

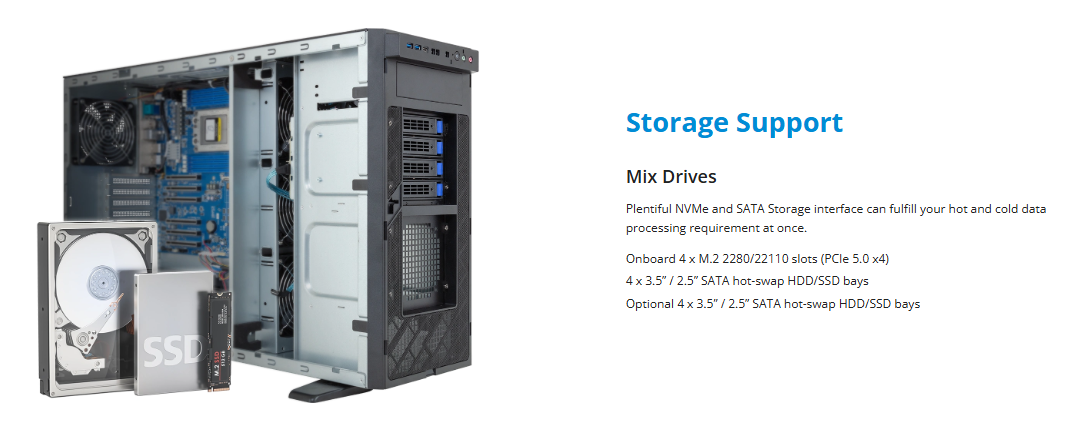

Storage
- 4 x 3.5"/2.5" SATA bays
Optional 4 x 3.5"/2.5" SATA bays
[Note] An optional storage card and storage kit are required to support NVMe and SAS drives.
- 4 x 3.5"/2.5" SATA bays
-
RAID
- Intel® RAID 0/1/5/10
- Intel® RAID 0/1/5/10
-
Peripheral Drives
- 5.25" space reserved for ODD devices
-

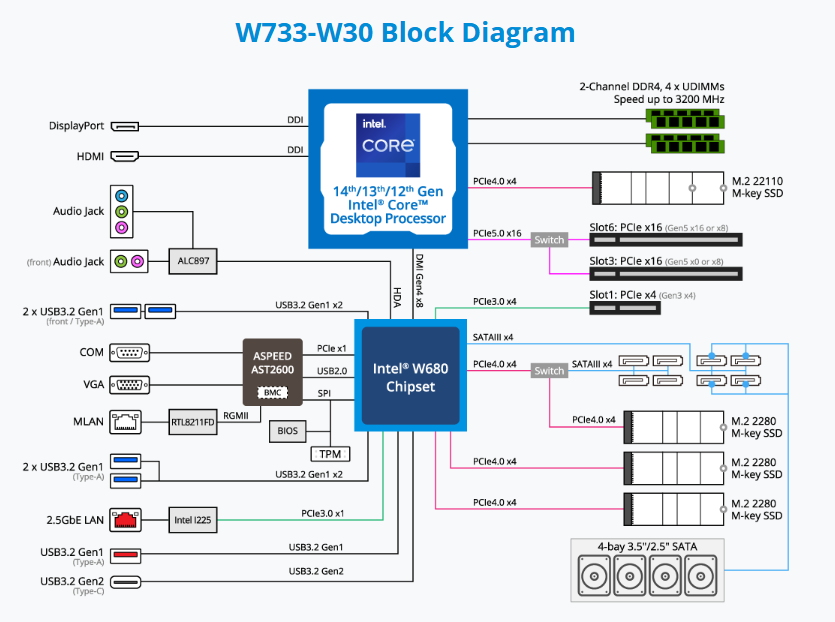

Expansion Slots
- Slot_6: PCIe x16 (Gen5 x16 or x8) slot, from CPU
Slot_3: PCIe x16 (Gen5 x0 or x8) slot, from CPU, shared with Slot_6
Slot_1: PCIe x4 (Gen3 x4) slot, from PCH
1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU
- Supports 2280/22110 cards
3 x M.2 slots:
- M-key
- PCIe Gen4 x4, from PCH
- Support 2280 cards
1 x M.2 slot for Wi-Fi:
- E-key
- PCIe Gen3 x1, from PCH
- Supports 2230 cards
- Slot_6: PCIe x16 (Gen5 x16 or x8) slot, from CPU
-

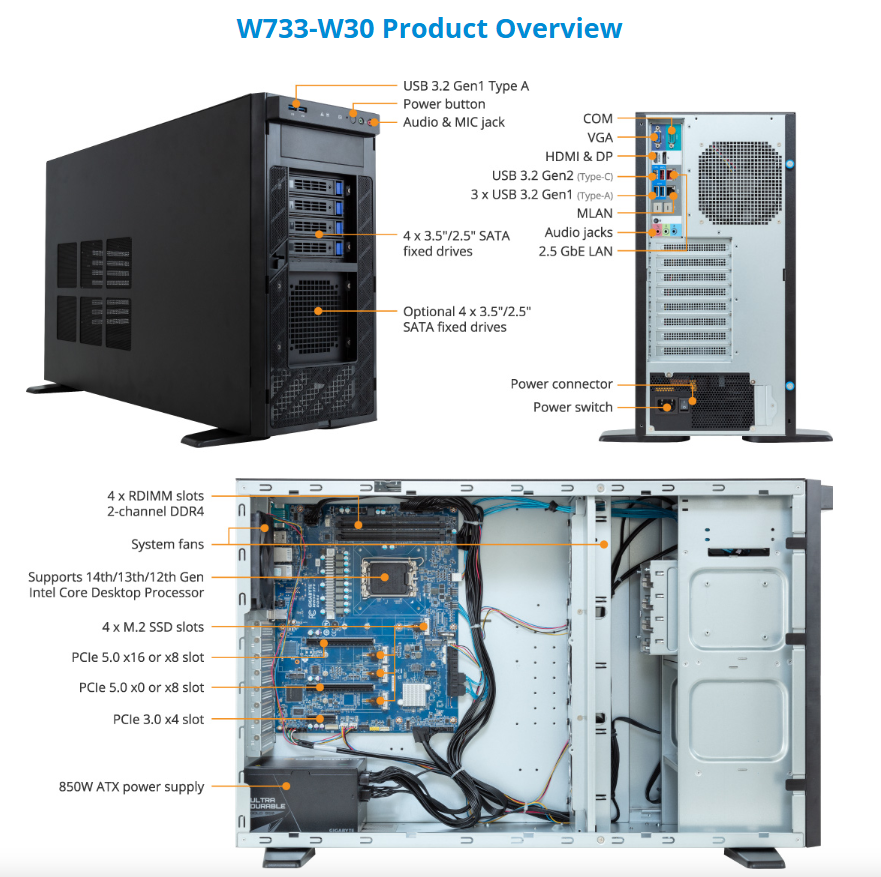

Internal I/O
- 1 x TPM header
-
Front I/O
- 2 x USB 3.2 Gen1 (Type-A)
2 x Audio jacks (Audio out/Mic)
1 x Power button with LED
1 x Reset button
1 x Power LED
1 x Storage activity LED
1 x System status LED
- 2 x USB 3.2 Gen1 (Type-A)
-

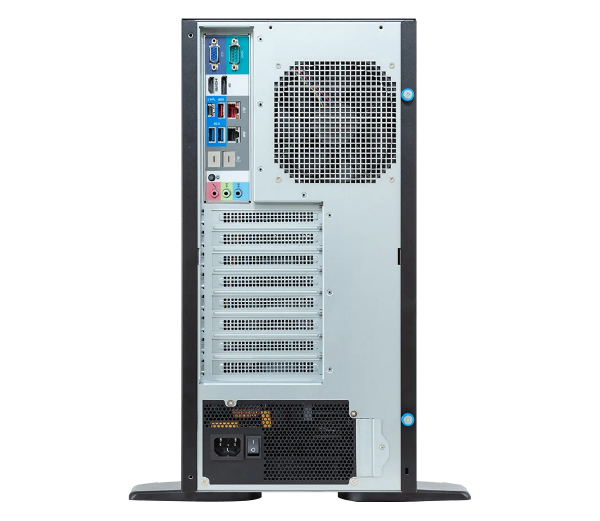

Rear I/O
- 1 x USB 3.2 Gen2x2 (Type-C)
3 x USB 3.2 Gen1 (Type-A)
1 x HDMI
1 x DP
1 x VGA
1 x COM
1 x RJ45 (2.5G)
1 x MLAN
3 x Audio jacks (Audio in/Audio out/Mic)
1 x ID button with LED
- 1 x USB 3.2 Gen2x2 (Type-C)
-
TPM
- 1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- 1 x TPM header with SPI interface
-
Power Supply[#1]
- Single 850W ATX 80 PLUS Gold power supply
AC Input:
- 100-240V~/ 12-6A, 60-50Hz
- 100-240V~/ 10-6A, 60-50Hz (Only for China)
DC Output:
- Max 850W/ 100-240V~
+12V/ 70.8A
+5V/ 20A
+5Vsb/ 3A
+3.3V/ 20A
- Single 850W ATX 80 PLUS Gold power supply
-
System Management
- ASPEED® AST2600 Management Controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
- ASPEED® AST2600 Management Controller
-
OS Compatibility
- Windows 10 (x64)
Windows 11 (x64)
- Windows 10 (x64)
-

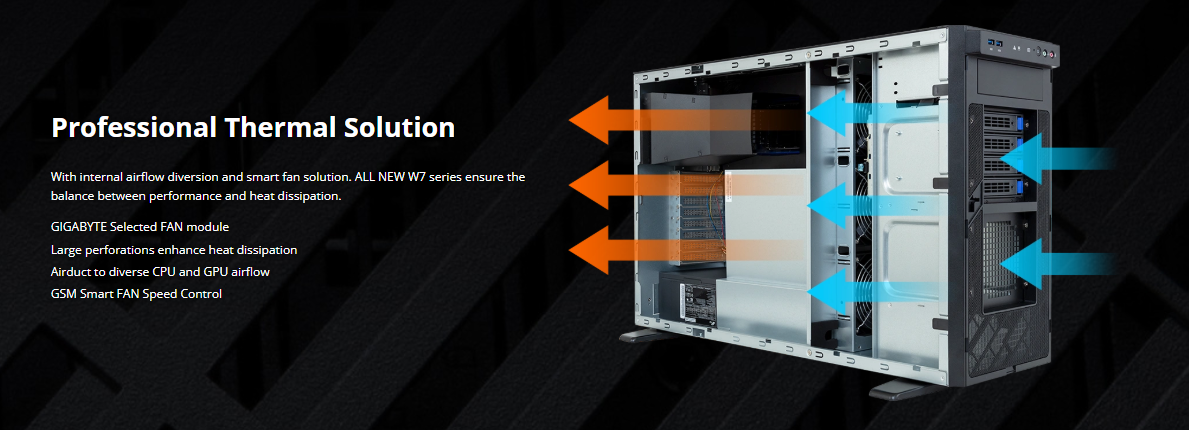

System Fans
- Middle fan: 3 x 120x120x38mm (4,400rpm)
Rear fan: 1 x 120x120x25mm (2,800rpm)
- Middle fan: 3 x 120x120x38mm (4,400rpm)
-
Operating Properties
- Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
- Operating temperature: 10°C to 35°C
-
Weight
- Net Weight: 21.57 kg
Gross Weight: 29.6 kg
- Net Weight: 21.57 kg
-
Packaging Dimensions
- 1045 x 588 x 403 mm
- 1045 x 588 x 403 mm
-
Packaging Content
- 1 x W733-W30-AA01
1 x CPU fansink
1 x Quick installation guide
- 1 x W733-W30-AA01
-
Part Numbers
- - Barebone package: 6NW733W30MR000AA01*
- Motherboard: 9MW34SP0MR-00*
- I/O shield: 12AIO-MW34S0-00R
- CPU fansink: 25ST0-0Z9222-A3R
- M.2 heatsink: 12SP2-080027-00R
- Middle fan: 25ST2-113824-S1R
- Rear fan: 25ST2-112522-S1R
- Power supply: 25EP0-208504-M0S
Optional parts:
- SAS storage kit ((A)+(B)):
(A) 4-Bay backplane board - CBPW040: 9CBPW040NR-00*
(B) SlimSAS cable (8i to 2x 4i): 25CFM-760822-A4R
- Rail kit for W7x3 series ((A)+(B)+(C)+(D)):
(A) 25HB2-A66126-K0R (Slide Rail)
(B) 25HB4-W77304-C0R (Rack Ear Right)
(C) 25HB4-W77305-C0R (Rack Ear Left)
(D) 25HB7-W77300-C0R (Top Cover for Assembly)
- - Barebone package: 6NW733W30MR000AA01*
