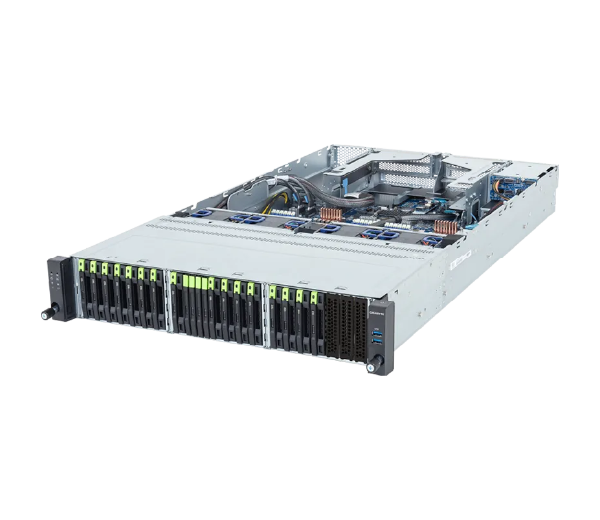

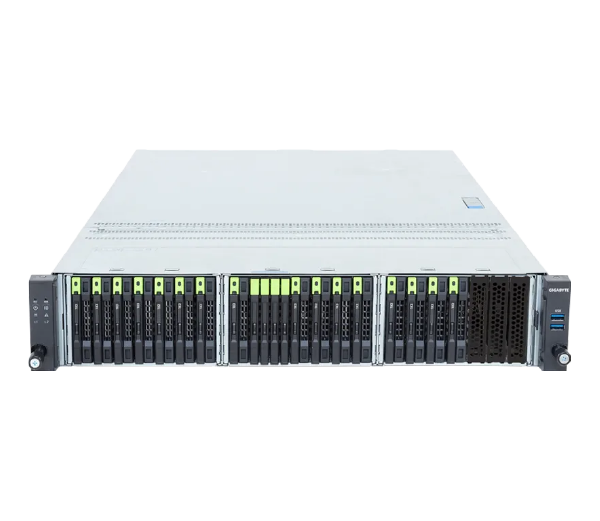

R284-A91-AAL3

Rack Server - Intel® Xeon® 6 Processors - 2U DP 4-Bay E3.S Gen5 NVMe + 16-Bay E3.S 2T CXL

• Dual Intel® Xeon® 6900-Series Processors
• 12-Channel DDR5 RDIMM / MRDIMM, 24 x DIMMs
• Dual ROM Architecture
• 2 x 1Gb/s LAN ports via Intel® I350-AM2
• 4 x E3.S Gen5 NVMe hot-swap bays
• 16 x E3.S 2T bays for CXL memory expansion modules
• 2 x 2.5" SATA/SAS-4 hot-swap bays on the rear side
• 2 x M.2 slots with PCIe Gen5 x4 interface
• 1 x FHHL PCIe Gen5 x16 slot
• 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
• 1+1 2700W 80 PLUS Titanium redundant power supplies
• Ordering Numbers: 6NR284A91DR000AAL3*
