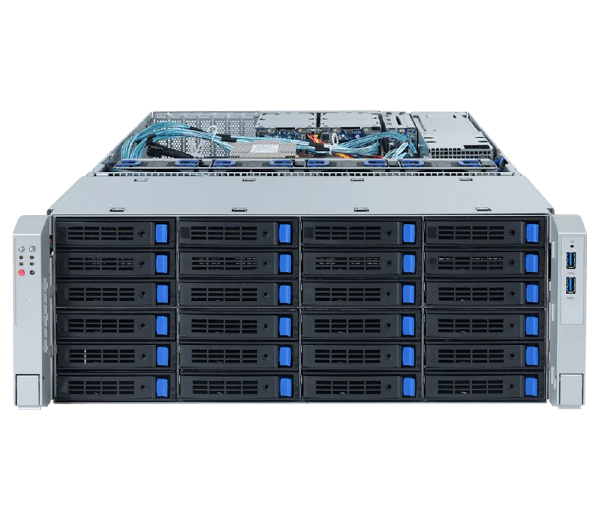

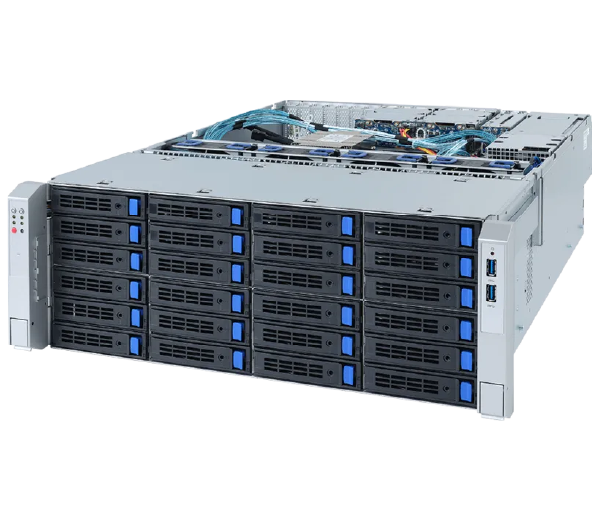

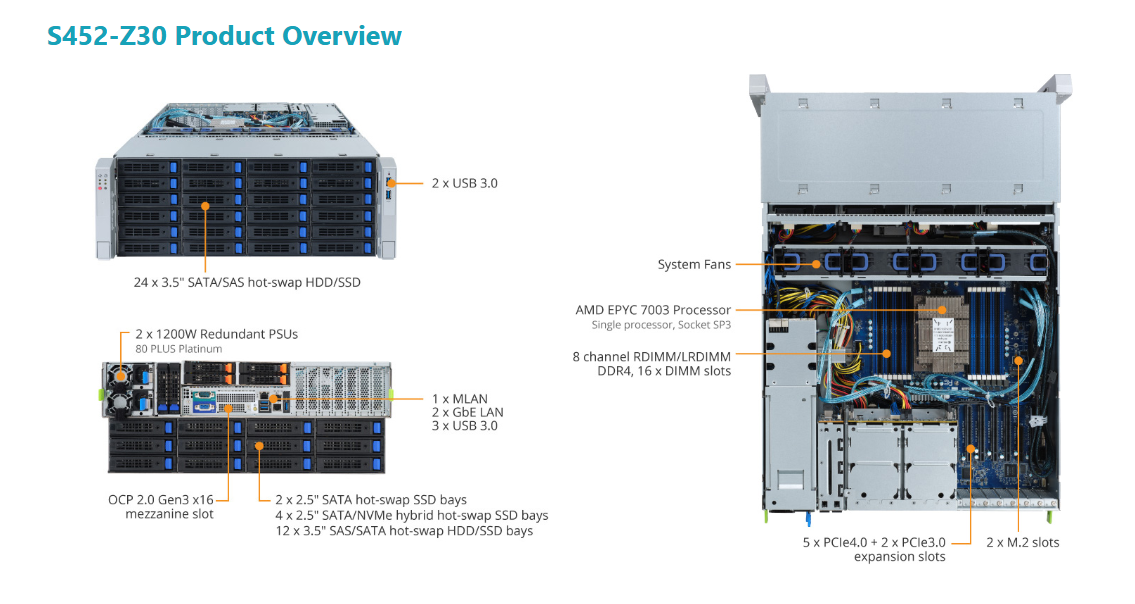

S452-Z30
Storage Server - AMD EPYC™ 7003/7002 - 4U UP 42-Bay Gen3 NVMe/SATA/SAS
- Single AMD EPYC™ 7003/7002 Series Processors
- 8-Channel DDR4 RDIMM/LRDIMM, 16 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 36 x 3.5"/2.5" SATA/SAS hot-swap bays
- 4 x 2.5" Gen3 NVMe/SATA hot-swap bays on the rear side
- 2 x 2.5" SATA hot-swap bays on the rear side
- SAS expander with 12Gb/s transfer speed
- 2 x M.2 slots with PCIe Gen3 x4 interface
- 4 x LP PCIe Gen4 x16 and x8 slots
- 2 x LP PCIe Gen3 x16 and x8 slots
- 1+1 1200W 80 PLUS Platinum redundant power supplies (-A00)
- 1+1 1300W 80 PLUS Platinum redundant power supplies (-A01/-B0x)
- 1+1 1300W 80 PLUS Titanium redundant power supplies (-ATx)
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
-
Dimensions (WxHxD, mm)
- 4U
482.6 x 177 x 625
- 4U
-

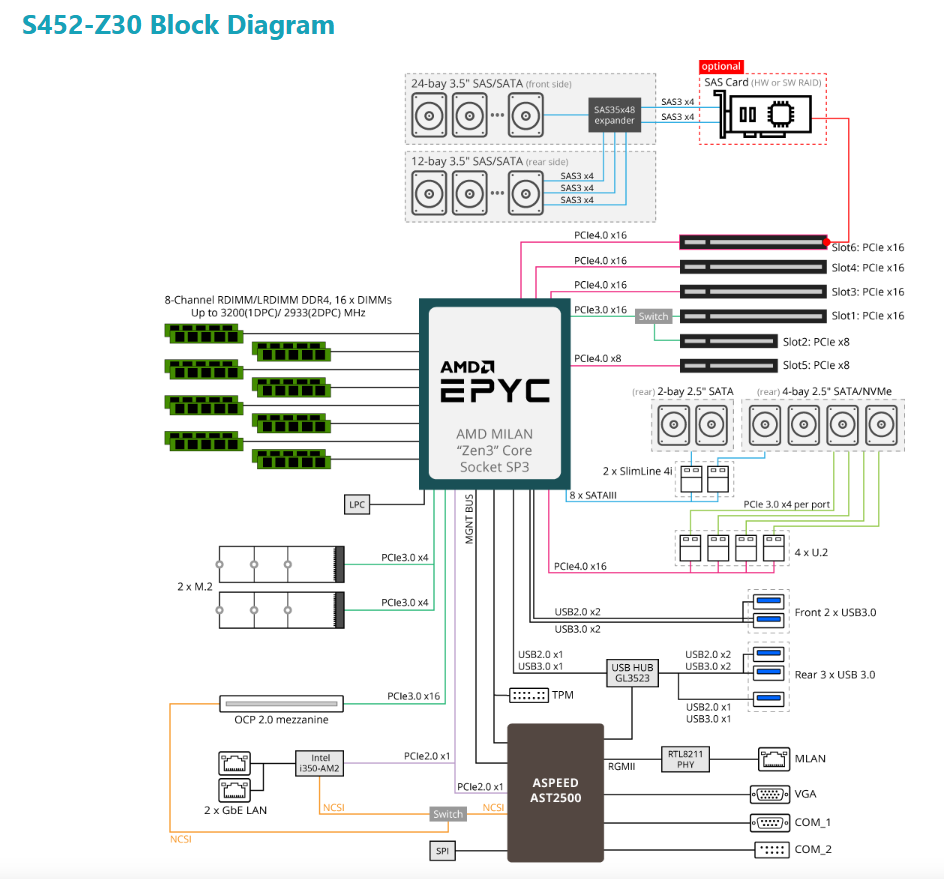

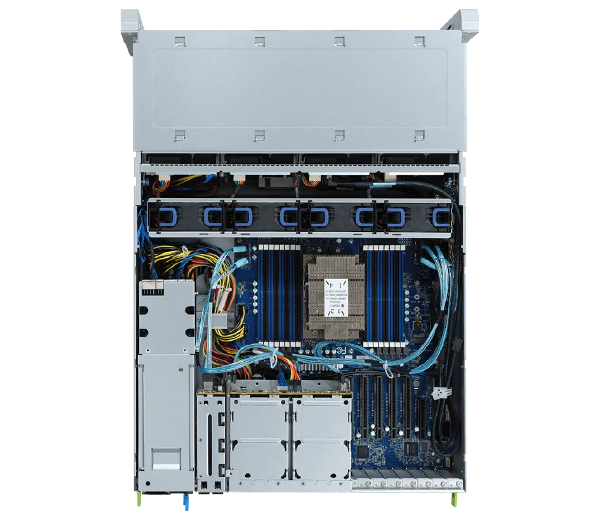

Motherboard
- MZ32-AR0
-

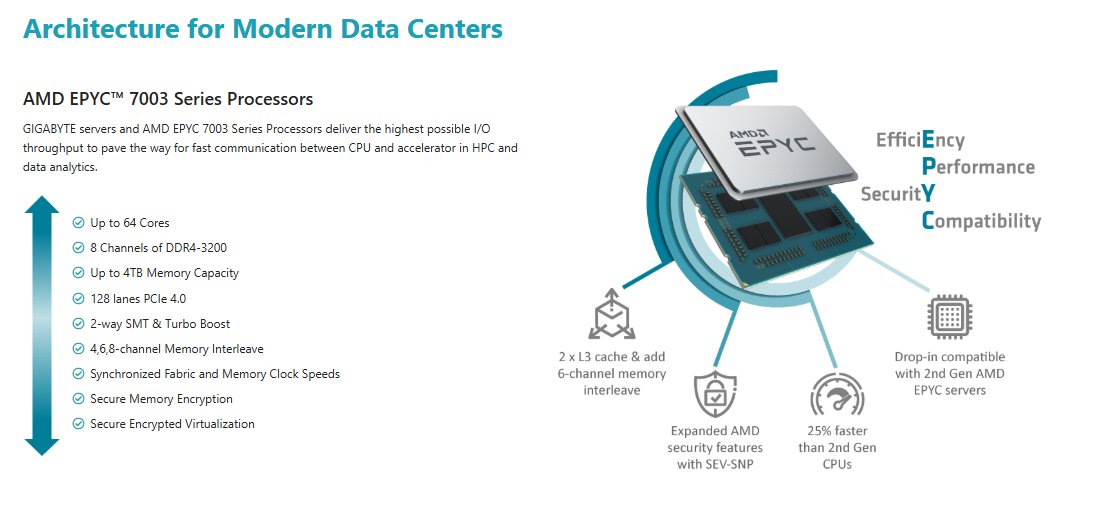

CPU
- AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Single processor, cTDP up to 180W
- AMD EPYC™ 7003 Series Processors
-
Socket
- 1 x LGA 4094
Socket SP3
- 1 x LGA 4094
-
Chipset
- System on Chip
-
Memory
- 16 x DIMM slots
DDR4 memory supported
8-Channel memory per processor

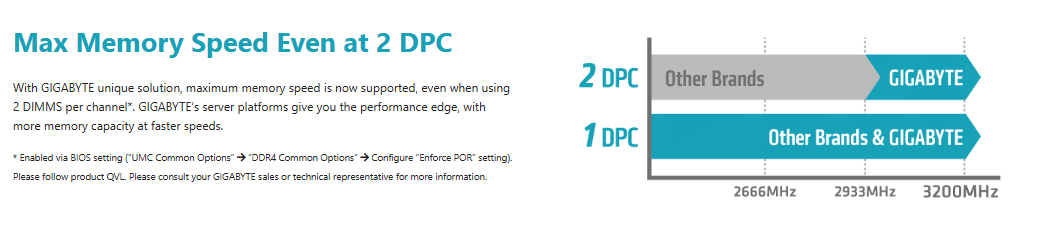

RDIMM/LRDIMM: Up to 3200/2933 MT/s [1]
[1] Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
- 16 x DIMM slots
-
LAN
- Rear:
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
- Rear:
-
Video
- Integrated in ASPEED® AST2500
- 1 x VGA port
- Integrated in ASPEED® AST2500
-
Storage
- Front hot-swap:
24 x 3.5"/2.5" SATA/SAS [1]
Rear hot-swap:
12 x 3.5"/2.5" SATA/SAS [1]
4 x 2.5" Gen3 NVMe/SATA [2]
2 x 2.5" SATA [2]
Internal M.2:
2 x M.2 (2242/2260/2280), PCIe Gen3 x4
[1] Storage card is required to enable SATA and SAS drives.
- Broadcom SAS35x48 expander
- Bandwidth: SATA 6Gb/s or SAS 12Gb/s per port
[2] Rear side 2.5" bays only support Solid State Drives due to thermal consideration.
- Front hot-swap:
-
SAS
- Supported via storage cards
-
RAID
- Require RAID add-in cards
-
PCIe Expansion Slots
- Slot_6: LP PCIe x16 (Gen4 x16)
Slot_5: LP PCIe x16 (Gen4 x8)
Slot_4: LP PCIe x16 (Gen4 x16)
Slot_3: LP PCIe x16 (Gen4 x16)
Slot_2: LP PCIe x8 (Gen3 x0 or x8)
Slot_1: LP PCIe x16 (Gen3 x16 or x8), shared with Slot_2
1 x OCP 2.0 mezzanine (Gen3 x16)(Type1, P1, P2, P3, P4) [1]
- Supports NCSI function
[1] Installing an OCP 2.0 mezzanine card requires removal of the rear 4-bay drive cage.
- Slot_6: LP PCIe x16 (Gen4 x16)
-
Front I/O
- 2 x USB 3.0 ports
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x System status LED
- 2 x USB 3.0 ports
-

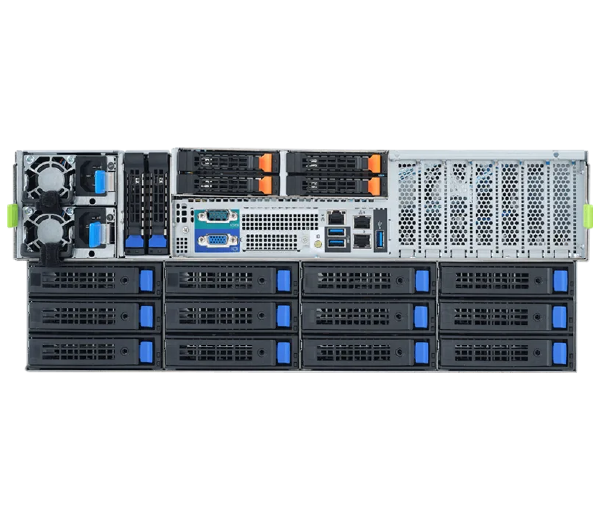

Rear I/O
- 3 x USB 3.0 ports
1 x VGA port
1 x COM_1 port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
- 3 x USB 3.0 ports
-
Backplane Board
- Speed and bandwidth:
Front - CBPD4O0: SATA 6Gb/s or SAS 12Gb/s
Rear - CBPD0C0: SATA 6Gb/s or SAS 12Gb/s
Rear - CBP2021: SATA 6Gb/s
Rear - COBPU43: PCIe Gen3 x4 or SATA 6Gb/s
- Speed and bandwidth:
-
Security Modules

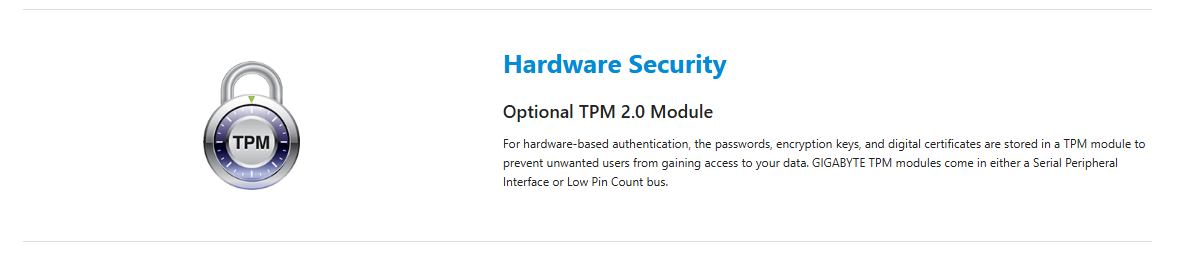

- 1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- 1 x TPM header with SPI interface
-

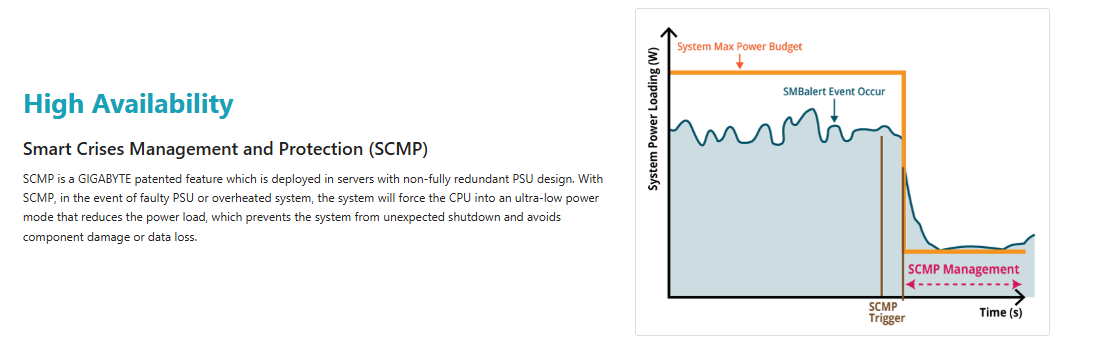

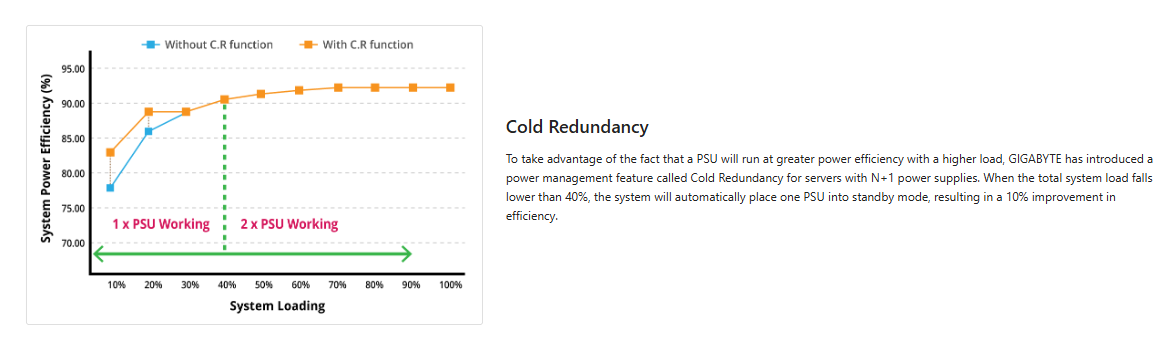

Power Supply[#1]
- 1+1 1200W 80 PLUS Platinum redundant power supplies (-A00)
AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+12V/ 82A
+12Vsb/ 2A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 98A
+12Vsb/ 2A
1+1 1300W 80 PLUS Platinum redundant power supplies (-A01/B0x)
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 6.5A
DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12V/ 105.4A
+12Vsb/ 3A
1+1 1300W 80 PLUS Titanium redundant power supplies (-ATx)
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12.2V/ 106A
+12.2Vsb/ 3A
- 1+1 1200W 80 PLUS Platinum redundant power supplies (-A00)
-
System Management
- ASPEED® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface
Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage/Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
- ASPEED® AST2500 Baseboard Management Controller
-
OS Compatibility
- Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
- Citrix Hypervisor 8.2.0 or later
-
System Fans
- 8 x 80x80x38mm
-
Operating Properties
- Operating temperature: 10°C to 35°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
- Operating temperature: 10°C to 35°C
-
Weight
- 843 x 610 x 290 mm
-
Packaging Dimensions
- 1 x S452-Z30
1 x CPU heatsink
1 x 3-Section Rail kit
- 1 x S452-Z30
-
Part Numbers
- - Barebone package: 6NS452Z30MR-00-A*/B*
- Motherboard: 9MZ32AR0NR-00*
- 3-Section Rail kit: 25HB2-3A6104-I0R
- CPU heatsink: 25ST1-44320G-A0R
- Backplane board - CBPD0C0: 9CBPD0C0NR-00*
- Backplane board - CBPD4O0: 9CBPD4O0NR-00*
- Backplane board - CBP2021: 9CBP2021NR-00*
- Backplane board - COBPU43: 9COBPU43NR-00*
- Fan module: 25ST2-883829-D0R
- Power supply (-A00): 25EP0-212003-D0S
- Power supply (-A01/-B0x): 25EP0-21300B-F3S
- Power supply (-ATx): 25EP0-21300C-G1S
Optional parts:
- RMA packaging: 6NS452Z30SR-RMA-A100
- - Barebone package: 6NS452Z30MR-00-A*/B*
