R263-Z39-AAJ2

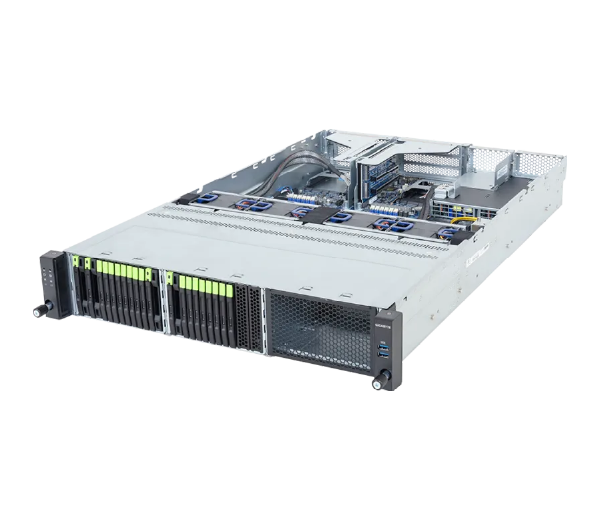

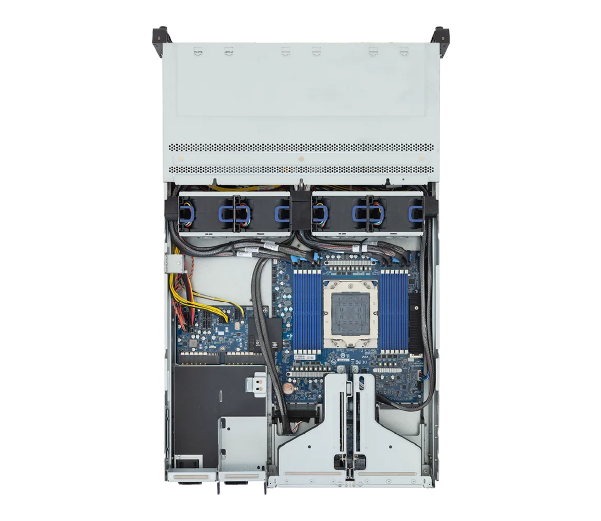

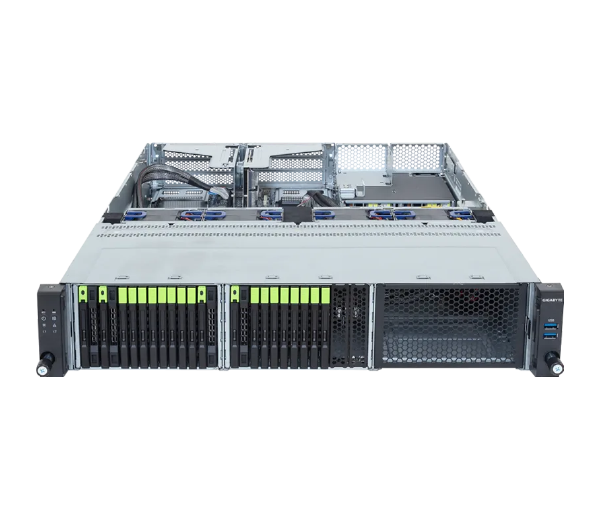

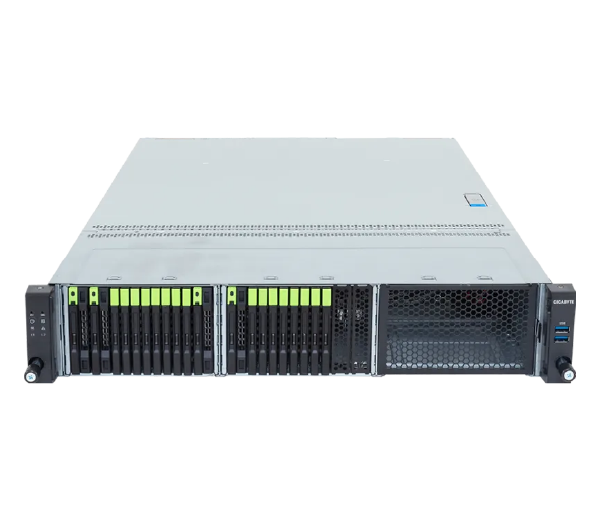

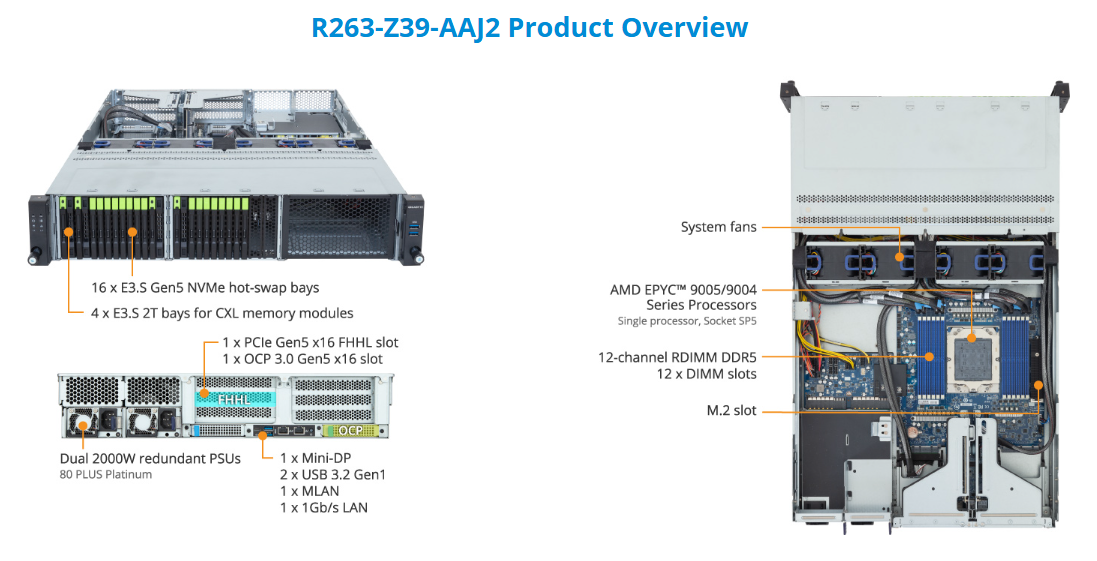

Rack Server - AMD EPYC™ 9005/9004 - 2U UP 16-Bay E3.S Gen5 NVMe + 4-Bay E3.S 2T CXL

  • Single AMD EPYC™ 9005/9004 Series Processors
  • 12-Channel DDR5 RDIMM, 12 x DIMMs
  • Dual ROM Architecture
  • 1 x 1Gb/s LAN port via Intel® I210-AT
  • 16 x E3.S Gen5 NVMe hot-swap bays
  • 4 x E3.S 2T bays for CXL memory expansion modules
  • 1 x M.2 slot with PCIe Gen3 x4 interface
  • 1 x FHHL PCIe Gen5 x16 slot
  • 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
  • 1+1 2000W 80 PLUS Titanium redundant power supplies
  • Ordering Numbers: 6NR263Z39DR000ACJ2*
문의하기 데이터시트
















[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

  • Dimensions (WxHxD, mm)

    • 2U
      438 x 87.5 x 710

  • Motherboard

    • MZ33-DC1

  • CPU

    • AMD EPYC™ 9005 Series Processors
      AMD EPYC™ 9004 Series Processors

      Single processor, cTDP up to 500W

  • Socket

    • 1 x LGA 6096
      Socket SP5

  • Chipset

    • System on Chip

  • Memory

    • 12 x DIMM slots
      Support DDR5 RDIMM
      12-Channel memory per processor

      AMD EPYC™ 9005:
      Up to 6400 MT/s

      AMD EPYC™ 9004:
      Up to 4800 MT/s

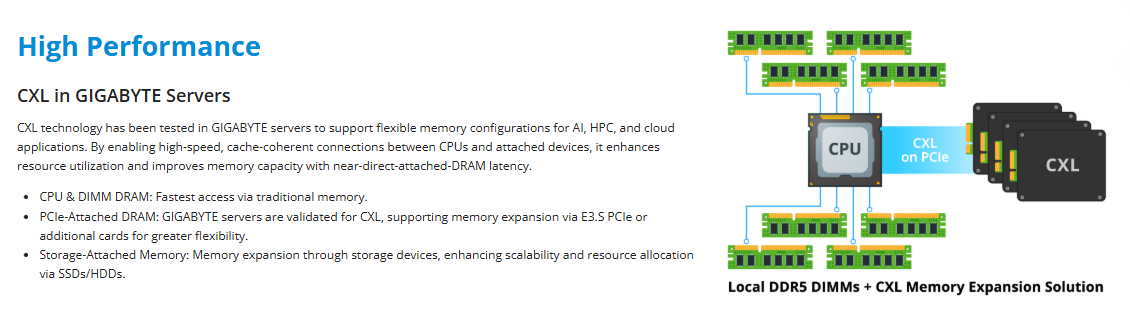

      CXL memory expansion module:
      4 x E3.S 2T (Gen5 x8)

  • LAN

    • Rear:
      1 x 1Gb/s LAN (1 x Intel® I210-AT)
      - Supports NCSI function

      1 x 10/100/1000 Mbps Management LAN

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x Mini-DP

  • Storage

    • Front hot-swap:
      16 x E3.S Gen5 NVMe

      Internal M.2:
      1 x M.2 (2280/22110), PCIe Gen3 x4

  • SAS

    • N/A

  • RAID

    • Require RAID add-in cards

  • PCIe Expansion Slots

    • Riser Card CRS201H:
      - 1 x FHHL x16 (Gen5 x16)

      1 x OCP NIC 3.0 (Gen5 x16)
      - Supports NCSI function

      1 x OCP NIC 3.0 (Gen5 x16), occupied for CXL memory expansion

  • Front I/O

    • 2 x USB 3.2 Gen1 ports (Type-A)
      1 x Power button with LED
      1 x ID button with LED
      1 x NMI button
      1 x Reset button
      2 x LAN activity LEDs (1 x LED disabled)
      1 x Storage activity LED
      1 x System status LED

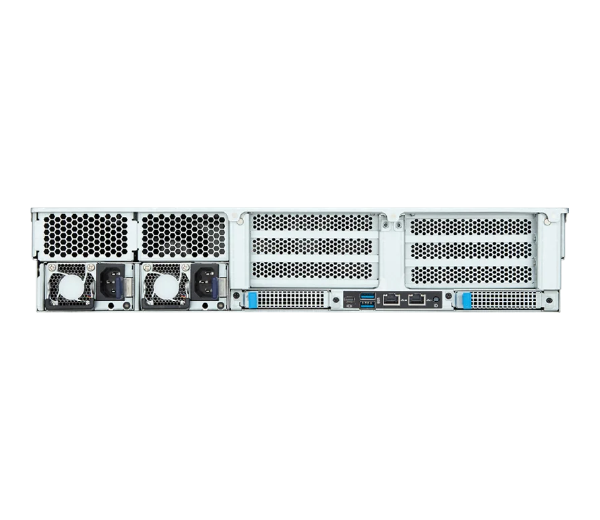

  • Rear I/O

    • 2 x USB 3.2 Gen1 ports (Type-A)
      1 x Mini-DP
      1 x RJ45 port
      1 x MLAN port
      1 x ID button with LED

  • Backplane Board

    • Speed and bandwidth:
      PCIe Gen5 x4

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM012

  • Power Supply[#1]

    • 1+1 2000W 80 PLUS Titanium redundant power supplies

      AC Input:
      - 100-127V~/ 12A, 50/60Hz
      - 200-240V~/ 10A, 50/60Hz

      DC Input: (Only for China)
      - 240Vdc/ 10A

      DC Output:
      - Max 1000W/ 100-127V~
      +12.2V/ 82A
      +12Vsb/ 3A
      - Max 1800W/ 200-207V~
      +12.2V/ 147.5A
      +12Vsb/ 3A
      - Max 1900W/ 208-219V~
      +12.2V/ 155.7A
      +12Vsb/ 3A
      - Max 2000W/ 220-240V~ or 240Vdc Input
      +12.2V/ 164A
      +12Vsb/ 3A

      [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.

  • System Management

    • ASPEED® AST2600 Baseboard Management Controller
      GIGABYTE Management Console web interface

      Dashboard
      HTML5 KVM
      Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
      Sensor Reading History Data
      FRU Information
      SEL Log in Linear Storage / Circular Storage Policy
      Hardware Inventory
      Fan Profile
      System Firewall
      Power Consumption
      Power Control
      Advanced power capping
      LDAP / AD / RADIUS Support
      Backup & Restore Configuration
      Remote BIOS/BMC/CPLD Update
      Event Log Filter
      User Management
      Media Redirection Settings
      PAM Order Settings
      SSL Settings
      SMTP Settings

  • OS Compatibility

    • Please refer to OS compatibility table in support page

  • System Fans

    • 4 x 80x80x56mm

  • Operating Properties

    • Operating temperature: 10°C to 30°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

  • Weight

    • Net Weight: 20.3 kg
      Gross Weight: 28 kg

  • Packaging Dimensions

    • 994 x 600 x 293 mm

  • Packaging Content

    • 1 x R263-Z39-AAJ2
      1 x CPU heatsink
      1 x Mini-DP to D-Sub cable
      1 x 2-Section Rail kit

  • Part Numbers

    • - Barebone package: 6NR263Z39DR000ACJ2*
      - Motherboard: 9MZ33DC1UR-000-3*
      - 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R
      - CPU heatsink: 25ST1-563400-C1R
      - M.2 heatsink: 12SP2-11000E-00R
      - Front panel board - CFP2001: 9CFP2001NR-00*
      - Backplane board - CBP20P0: 9CBP20P0NR-00*
      - Fan module: 25ST2-885621-A0R
      - Riser card - CRS201H: 9CRS201HNR-00*
      - Mini-DP to D-Sub cable: 25CRN-200801-K1R
      - Power supply: 25EP0-22000O-L0S

      Optional parts:

      - 3-Section Rail kit (Supports CMA): 25HB2-A56120-K0R
      - Cable Management Arm: 25HBZ-R18100-K0R
