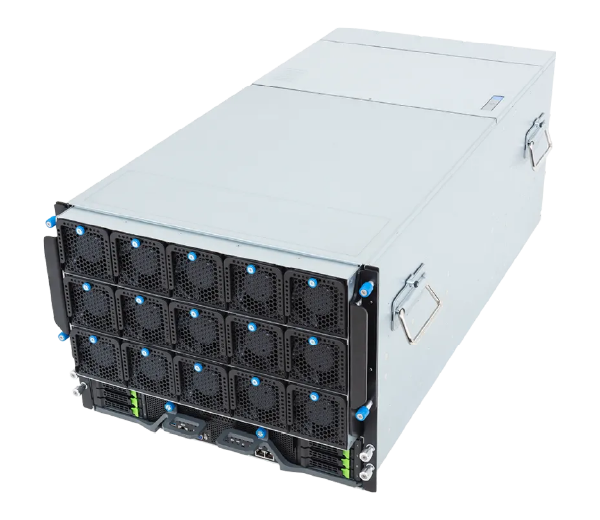

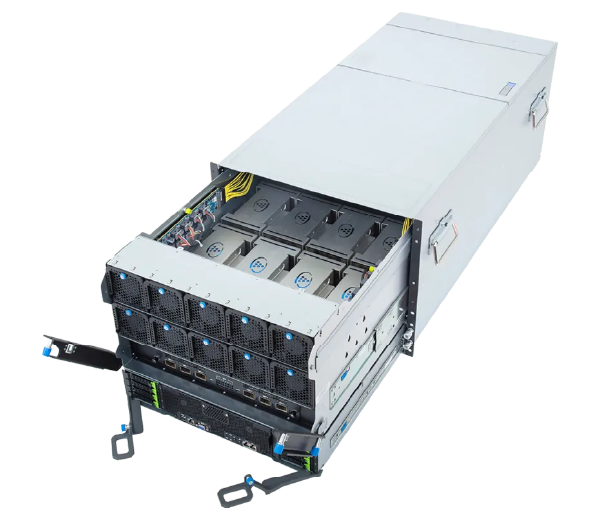

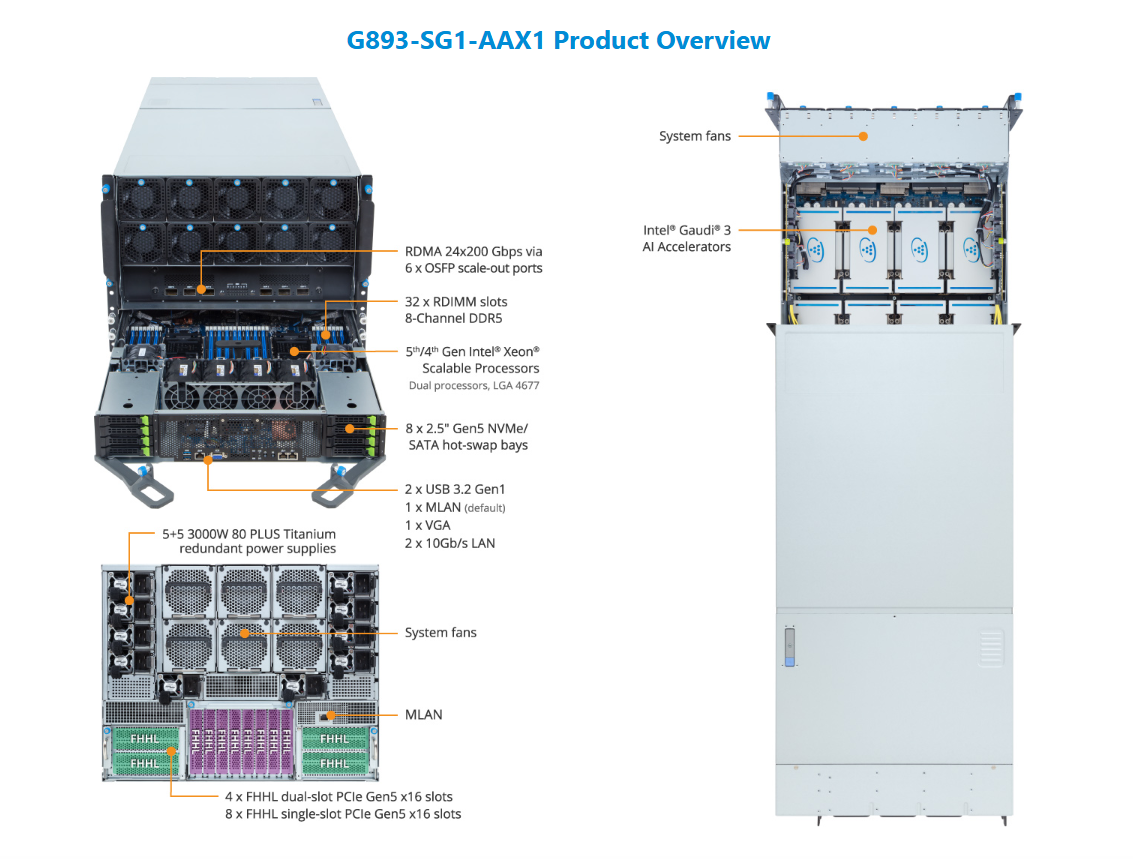

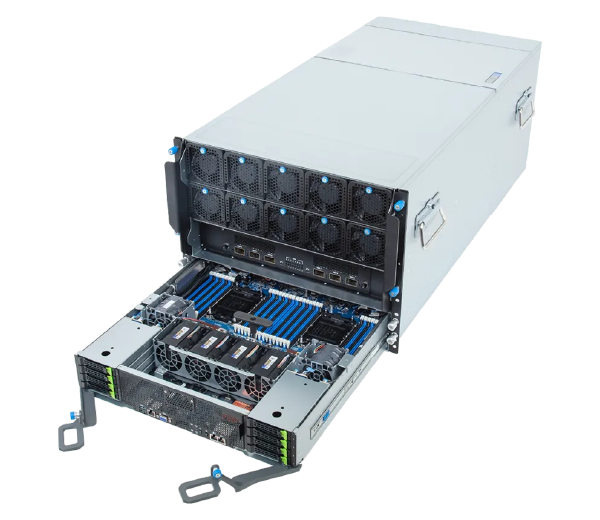

G893-SG1-AAX1

HPC/AI Server - 5th/4th Gen Intel® Xeon® Scalable - 8U DP Intel® Gaudi® 3

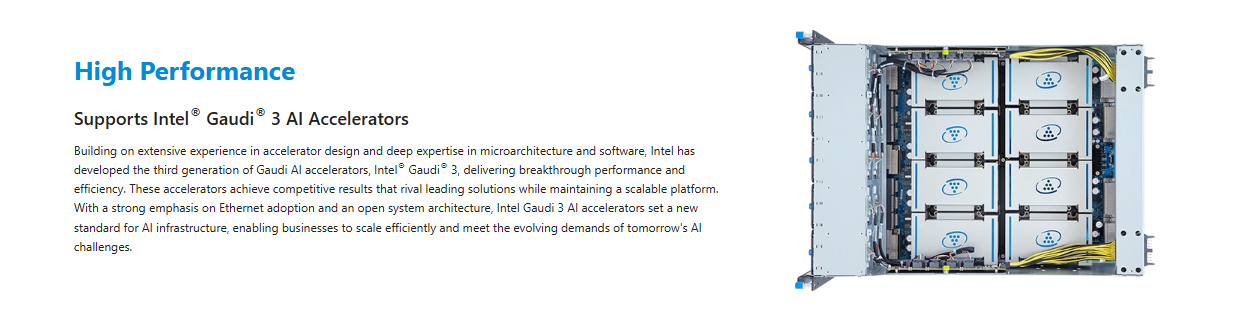

  • Intel® Gaudi® 3 AI Accelerators
  • 6 x 800 Gb/s OSFP with RDMA (RoCE v2) 24 x 200 Gb/s Ethernet for accelerator scale-out
  • Dual 5th/4th Gen Intel® Xeon® Scalable Processors
  • Dual Intel® Xeon® CPU Max Series
  • 8-Channel DDR5 RDIMM, 32 x DIMMs
  • Dual ROM Architecture
  • 2 x 10Gb/s LAN ports via Intel® X710-AT2
  • 2 x M.2 slots with PCIe Gen3 x2 and x1 interface
  • 8 x 2.5" Gen5 NVMe/SATA hot-swap bays
  • 4 x FHHL dual-slot PCIe Gen5 x16 slots
  • 8 x FHHL single-slot PCIe Gen5 x16 slots
  • 5+5 3000W 80 PLUS Titanium redundant power supplies
  • Ordering Numbers: 6NG893SG1DR000ABX1*
















[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

  • Dimensions (WxHxD, mm)

    • 8U
      447 x 351 x 923

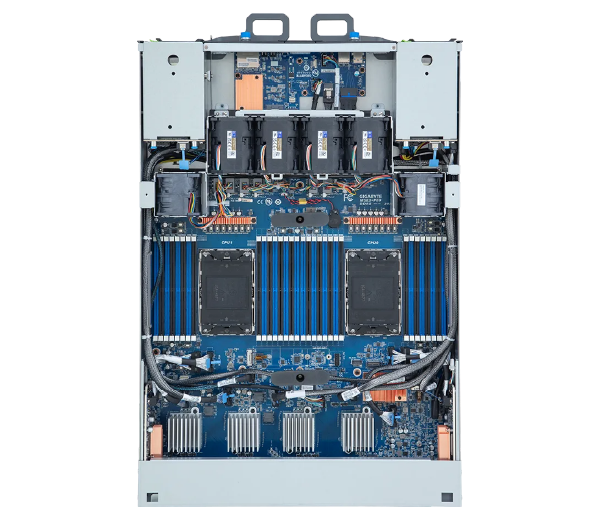

  • Motherboard

    • MSB3-PE0
  • CPU

    • 5th Generation Intel® Xeon® Scalable Processors
      4th Generation Intel® Xeon® Scalable Processors
      Intel® Xeon® CPU Max Series

      Dual processor, TDP up to 350W

      [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
  • Socket

    • 2 x LGA 4677
      Socket E
  • Chipset

    • Intel® C741
  • Memory

    • 32 x DIMM slots
      Support DDR5 RDIMM
      8-Channel memory per processor

      5th Gen Intel® Xeon®:
      Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) [1]

      4th Gen Intel® Xeon®:
      Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

      Intel® Xeon® Max Series:
      Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

      [1] 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.
  • LAN

    • Front:
      6 x 800 Gb/s OSFP with RDMA (RoCE v2) 24 x 200 Gb/s Ethernet, for accelerator scale-out

      Front (I/O board - CFPG540):
      2 x 10Gb/s LAN (1 x Intel® X710-AT2)
      - Support NCSI function

      1 x 10/100/1000 Mbps Management LAN

      Rear (MLAN board - CDB66):
      1 x 10/100/1000 Mbps Management LAN

      [Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
  • Video

    • Integrated in ASPEED® AST2600
      - 1 x VGA port
  • Storage

    • Front hot-swap:
      8 x 2.5" Gen5 NVMe/SATA
      - (NVMe from PEX89104)

      Internal M.2:
      1 x M.2 (2280/22110), PCIe Gen3 x2, from PCH
      1 x M.2 (2280/22110), PCIe Gen3 x1, from PCH
  • SAS

    • N/A
  • RAID

    • Intel® SATA RAID 0/1/10/5
  • Modular GPU

    • Intel® Gaudi® 3 AI accelerators
      - 8 x HL-325L OAM mezzanine cards
      - 1 x HLB-325 baseboard
  • PCIe Expansion Slots

    • PCIe Bridge Board - CBG76:
      - 8 x FHHL x16 (Gen5 x16), from PEX89104

      PCIe Bridge Board - CPBG045 x 2:
      - 4 x FHHL x16 (Gen5 x16), from PEX89048
  • Front I/O

    • 6 x OSFP ports

      I/O board - CFPG540:
      2 x USB 3.2 Gen1 ports (Type-A)
      1 x VGA port
      2 x RJ45 ports
      1 x MLAN port (default)
      1 x Power button with LED
      1 x ID button with LED
      1 x NMI button
      1 x Reset button
      1 x Storage activity LED
      1 x System status LED
  • Rear I/O

    • MLAN board - CDB66:
      1 x MLAN port
  • Backplane Board

    • Speed and bandwidth:
      PCIe Gen5 x4 or SATA 6Gb/s
  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM012
  • Power Supply[#1]

    • 5+5 3000W 80 PLUS Titanium redundant power supplies [1]

      AC Input:
      - 115-127V~/ 14.2A, 50-60Hz
      - 200-220V~/ 15.8A, 50-60Hz
      - 220-240V~/ 14.9A, 50-60Hz

      DC Input: (Only for China)
      - 240Vdc/ 14A

      DC Output:
      - Max 1450W/ 115-127V~
      +54V/ 26.6A
      +12Vsb/ 3A
      - Max 2900W/ 200-220V~
      +54V/ 53.4A
      +12Vsb/ 3A
      - Max 3002.4W/ 220-240V~ or 240Vdc Input
      +54V/ 55.6A
      +12Vsb/ 3A

      [1] The system power supply requires C19 power cord.
  • System Management

    • ASPEED® AST2600 Baseboard Management Controller
      GIGABYTE Management Console web interface

      Dashboard
      HTML5 KVM
      Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
      Sensor Reading History Data
      FRU Information
      SEL Log in Linear Storage / Circular Storage Policy
      Hardware Inventory
      Fan Profile
      System Firewall
      Power Consumption
      Power Control
      Advanced power capping
      LDAP / AD / RADIUS Support
      Backup & Restore Configuration
      Remote BIOS/BMC/CPLD Update
      Event Log Filter
      User Management
      Media Redirection Settings
      PAM Order Settings
      SSL Settings
      SMTP Settings

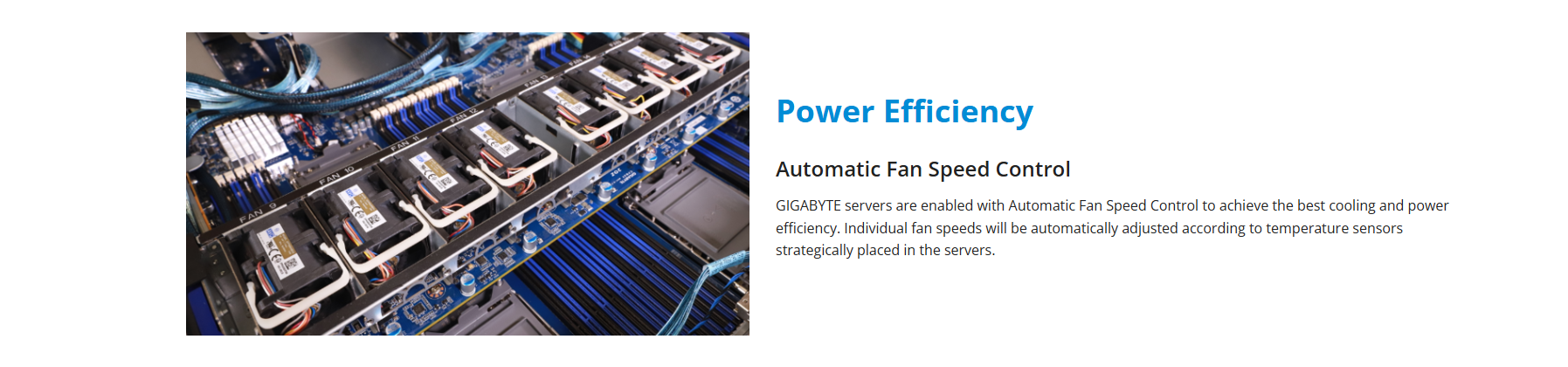

  • System Fans

    • Motherboard:
      2 x 60x60x56mm
      4 x 60x60x76mm

      PCIe slots:
      4 x 80x80x56mm

      GPU tray:
      16 x 80x80x80mm
  • Operating Properties

    • Operating temperature: 10°C to 30°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)
  • Weight

    • 1200 x 800 x 615 mm
  • Packaging Dimensions

    • 1200 x 800 x 615 mm
  • Packaging Content

    • 1 x G893-SG1-AAX1
      2 x CPU heatsinks
      6 x Carriers
      1 x L-shape Rail kit
  • Part Numbers

    • - Barebone with Intel module: 6NG893SG1DR000ABX1*
      - Motherboard: 9MSB3PE0UR-000*
      - L-shape Rail kit: 25HB2-UM6100-K0R
      - CPU heatsink: 25ST1-323208-A0R
      - Front panel board - CFPG540: 9CFPG540NR-00*
      - Backplane board - CBPG641: 9CBPG641NR-00*
      - Fan module 60x60x56mm: 25ST2-665623-S1R
      - Fan module 60x60x76mm: 25ST2-667621-A0R
      - Fan module 80x80x56mm: 25ST2-885622-A0R
      - Fan module 80x80x80mm: 25ST2-888037-A0R
      - Fan module 80x80x80mm: 25ST2-888038-A0R
      - PCIe bridge board - CPBG045: 9CPBG045NR-00*
      - PCIe switch board - CBG76: 9CBG76NR-00*
      - Rear MLAN board - CDB66: 9CDB66NR-00*
      - Power supply: 25EP0-203K01-D0S
