G894-SG1-AAX1

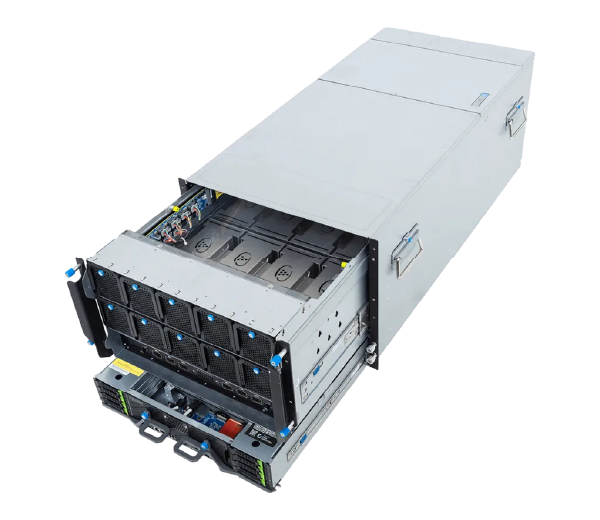

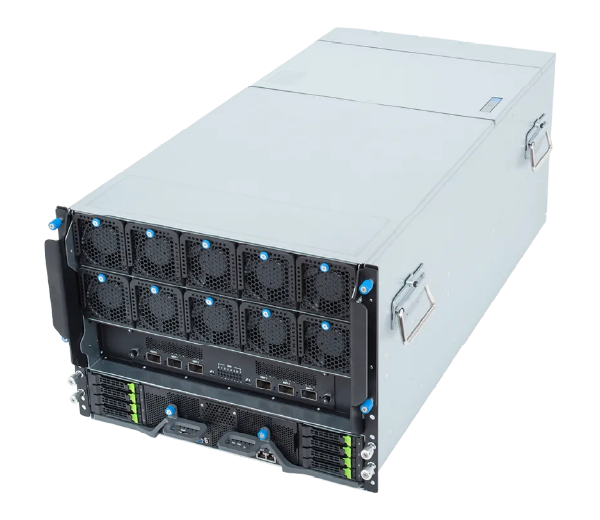

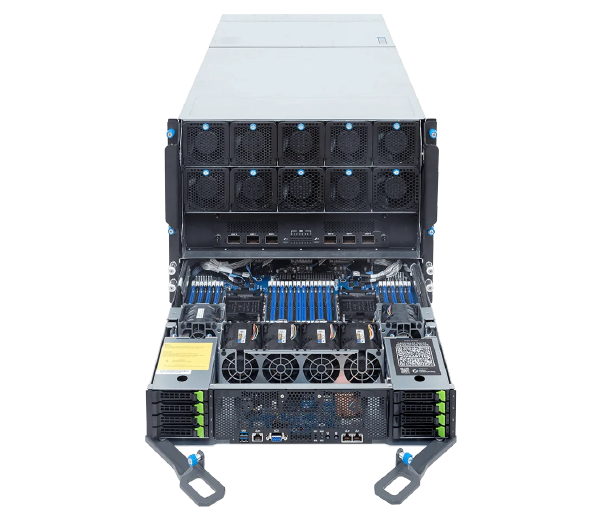

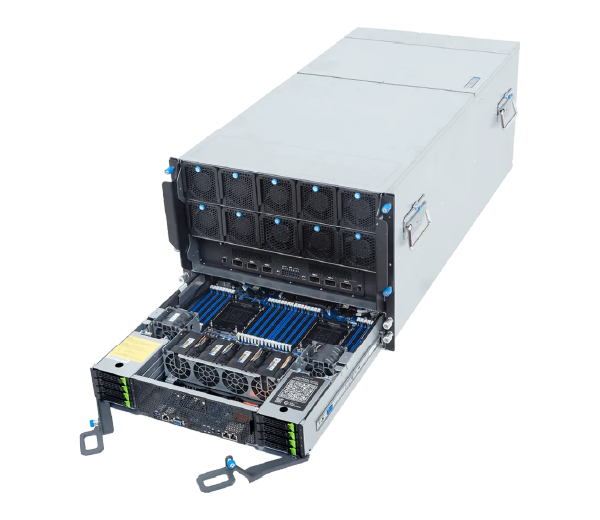

G894-SG1-AAX1 HPC/AI Server - Intel® Xeon® 6 Processors - 8U DP Intel® Gaudi® 3

  • Intel® Gaudi® 3 AI Accelerators
  • 6 x 800 Gb/s OSFP with RDMA (RoCE v2) 24 x 200 Gb/s Ethernet for accelerator scale-out
  • Dual Intel® Xeon® 6700/6500-Series Processors
  • 8-Channel DDR5 RDIMM / MRDIMM, 32 x DIMMs
  • 2 x 10Gb/s LAN ports via Intel® X710-AT2
  • 2 x M.2 slots with PCIe Gen5 x4 and x2 interface
  • 8 x 2.5" Gen5 NVMe hot-swap bays
  • 4 x FHHL dual-slot PCIe Gen5 x16 slots
  • 8 x FHHL single-slot PCIe Gen5 x16 slots
  • 5+5 3000W 80 PLUS Titanium redundant power supplies
  • Ordering Numbers: 6NG894SG1DR000AAX1*
문의하기 데이터시트















[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

  • Dimensions (WxHxD, mm)

    • 8U
      447 x 351 x 923

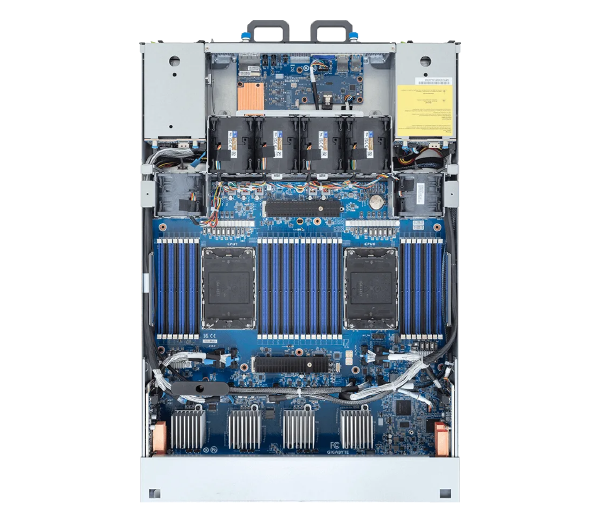

  • Motherboard

    • MSB4-PE0

  • CPU

    • Intel® Xeon® 6 Processors
      - Intel® Xeon® 6700-Series Processors
      - Intel® Xeon® 6500-Series Processors

      Dual processor, TDP up to 350W

      [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

  • Socket

    • 2 x LGA 4710
      Socket E2

  • Chipset

    • System on Chip

  • Memory

    • 32 x DIMM slots
      Support DDR5 RDIMM/MRDIMM [1]
      8-Channel memory per processor
      RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
      MRDIMM: Up to 8000 MT/s

      [1] MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores and in a 1DPC configuration.

  • LAN

    • Front:
      6 x 800 Gb/s OSFP with RDMA (RoCE v2) 24 x 200 Gb/s Ethernet, for accelerator scale-out

      Front (I/O board - CFPG440):
      2 x 10Gb/s LAN (1 x Intel® X710-AT2)
      - Support NCSI function

      1 x 10/100/1000 Mbps Management LAN

      Rear (MLAN board - CDB66):
      1 x 10/100/1000 Mbps Management LAN

      [Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x VGA port

  • Storage

    • Front hot-swap:
      8 x 2.5" Gen5 NVMe
      - (NVMe from PEX89104)

      Internal M.2:
      1 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_1
      1 x M.2 (2280/22110), PCIe Gen5 x2, from CPU_1

  • Modular GPU

    • Intel® Gaudi® 3 AI accelerators
      - 8 x HL-325L OAM mezzanine cards
      - 1 x HLB-325 baseboard

  • PCIe Expansion Slots

    • PCIe Bridge Board - CBG76:
      - 8 x FHHL x16 (Gen5 x16), from PEX89104

      PCIe Bridge Board - CPBG045 x 2:
      - 4 x FHHL x16 (Gen5 x16), from PEX89048

  • Front I/O

    • 6 x OSFP ports

      I/O board - CFPG440:
      2 x USB 3.2 Gen1 ports (Type-A)
      1 x VGA port
      2 x RJ45 ports
      1 x MLAN port (default)
      1 x Power button with LED
      1 x ID button with LED
      1 x NMI button
      1 x Reset button
      1 x Storage activity LED
      1 x System status LED

  • Rear I/O

    • MLAN board - CDB66:
      1 x MLAN port

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM012

  • Power Supply[#1]

    • 5+5 3000W 80 PLUS Titanium redundant power supplies [1]

      AC Input:
      - 115-127V~/ 14.2A, 50-60Hz
      - 200-220V~/ 15.8A, 50-60Hz
      - 220-240V~/ 14.9A, 50-60Hz

      DC Input: (Only for China)
      - 240Vdc/ 14A

      DC Output:
      - Max 1450W/ 115-127V~
      +54V/ 26.6A
      +12Vsb/ 3A
      - Max 2900W/ 200-220V~
      +54V/ 53.4A
      +12Vsb/ 3A
      - Max 3002.4W/ 220-240V~ or 240Vdc Input
      +54V/ 55.6A
      +12Vsb/ 3A

      [1] The system power supply requires C19 power cord.

  • System Fans

    • Motherboard:
      2 x 60x60x56mm
      4 x 60x60x76mm

      PCIe slots:
      4 x 80x80x56mm

      GPU tray:
      16 x 80x80x80mm

  • Operating Properties

    • Operating temperature: 10°C to 30°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

  • Packaging Dimensions

    • 1200 x 800 x 620 mm

  • Packaging Content

    • 1 x G894-SG1-AAX1
      2 x CPU heatsinks
      4 x Carriers
      1 x L-shape Rail kit

  • Part Numbers

    • - Barebone with Intel module: 6NG894SG1DR000AAX1*
      - Motherboard: 9MSB4PE0UR-000*
      - L-shape Rail kit: 25HB2-UM6100-K0R
      - CPU heatsink: 25ST1-152300-M1R
      - Front panel board - CFPG440: 9CFPG440NR-00*
      - Backplane board - CBPG641: 9CBPG641NR-00*
      - Fan module 60x60x56mm: 25ST2-665623-S1R
      - Fan module 60x60x76mm: 25ST2-667621-A0R
      - Fan module 80x80x56mm: 25ST2-885622-A0R
      - Fan module 80x80x80mm: 25ST2-888037-A0R
      - Fan module 80x80x80mm: 25ST2-888038-A0R
      - PCIe bridge board - CPBG045: 9CPBG045NR-00*
      - PCIe switch board - CBG76: 9CBG76NR-00*
      - Rear MLAN board - CDB66: 9CDB66NR-00*
      - Power supply: 25EP0-203K01-D0S
