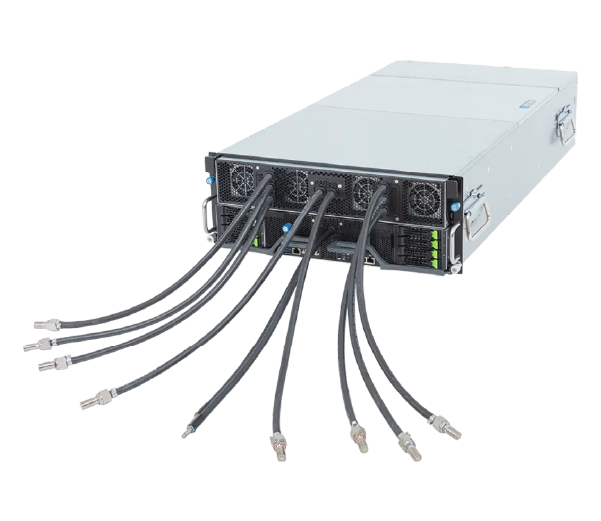

G4L3-ZX1-LAT4
HPC/AI Server - AMD EPYC™ 9005/9004 - 4U DP AMD Instinct™ MI355X DLC
- Liquid-cooled 8 x AMD Instinct™ MI355X OAM GPUs
- CPU+GPU direct liquid cooling solution with leak detection
- Dual AMD EPYC™ 9005/9004 Series Processors
- 12-Channel DDR5 RDIMM, 24 x DIMMs
- 2 x 10Gb/s LAN ports via Intel® X710-AT2
- 2 x M.2 slots with PCIe Gen3 x4 and x1 interface
- 8 x 2.5" Gen5 NVMe hot-swap bays
- 4 x FHHL dual-slot PCIe Gen5 x16 slots
- 8 x FHHL single-slot PCIe Gen5 x16 slots
- 3+3 5200W 80 PLUS Titanium redundant power supplies
- Ordering Numbers: 6NG4L3ZX1DR000LCT4*
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
-
Dimensions (WxHxD, mm)
- 4U
447 x 175.5 x 901
- 4U
-
Motherboard
- MZB3-PE0
-
CPU
- AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 500W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
- AMD EPYC™ 9005 Series Processors
-
Socket
- 2 x LGA 6096
Socket SP5
- 2 x LGA 6096
-
Chipset
- System on Chip
-
Memory
- 24 x DIMM slots
Support DDR5 RDIMM
12-Channel memory per processor
AMD EPYC™ 9005:
Up to 6400 MT/s
AMD EPYC™ 9004:
Up to 4800 MT/s
- 24 x DIMM slots
-
LAN
- Front (I/O board - CFPG540):
2 x 10Gb/s LAN (1 x Intel® X710-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Rear (MLAN board - CDB66):
1 x 10/100/1000 Mbps Management LAN
[Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
- Front (I/O board - CFPG540):
-
Video
- Integrated in ASPEED® AST2600
- 1 x VGA port
- Integrated in ASPEED® AST2600
-
Storage
- Front hot-swap:
8 x 2.5" Gen5 NVMe
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0
- Front hot-swap:
-
SAS
- N/A
-
RAID
- N/A
-
Modular GPU

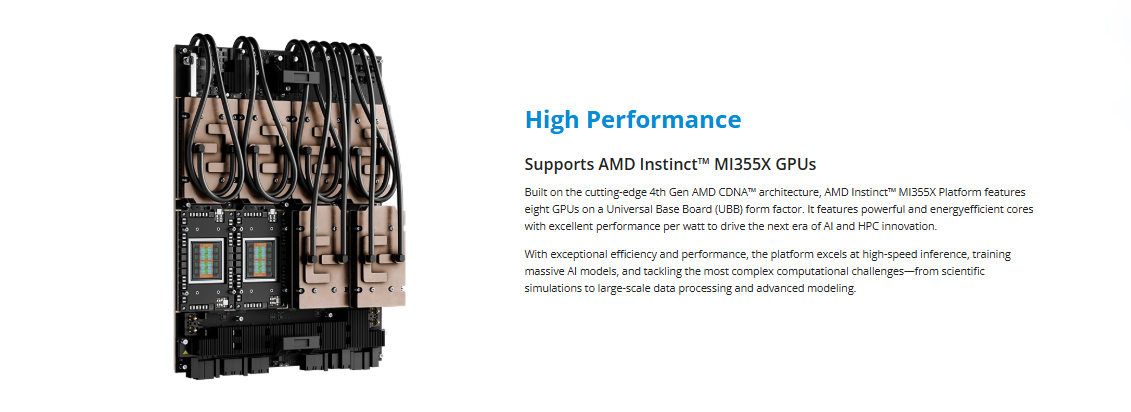

- Liquid-cooled 8 x AMD Instinct™ MI355X OAM GPUs
-
PCIe Expansion Slots
- PCIe Bridge Board - CBG76:
- 8 x FHHL x16 (Gen5 x16), single-slot, from PEX89104
PCIe Bridge Board - CPBG045 x 2:
- 4 x FHHL x16 (Gen5 x16), dual-slot, from PEX89048
- PCIe Bridge Board - CBG76:
-
Front I/O
- I/O board - CFPG540:
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port (default)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
- I/O board - CFPG540:
-
Rear I/O
- MLAN board - CDB66:
1 x MLAN port
- MLAN board - CDB66:
-
Backplane Board
- Speed and bandwidth:
PCIe Gen5 x4
- Speed and bandwidth:
-
Security Modules
- 1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012
- 1 x TPM header with SPI interface
-
Power Supply[#1]
- 3+3 5200W 80 PLUS Titanium redundant power supplies [1]
AC Input:
- 200-240V~/ 25A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 25A
DC Output:
- Max 4600W/ 200-220V~
+54V/ 85.2A
+12Vsb/ 3A
- Max 5000W/ 220-230V~
+54V/ 92.6A
+12Vsb/ 3A
- Max 5200W/ 230-240V~
+54V/ 96.3A
+12Vsb/ 3A
- Max 4600W/ 240Vdc
+54V/ 85.2A
+12Vsb/ 3A
[1] The system power supply requires SDG400 power cord.
- 3+3 5200W 80 PLUS Titanium redundant power supplies [1]
-
System Management
- ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
- ASPEED® AST2600 Baseboard Management Controller
-
OS Certifications
- Please refer to OS compatibility table in support page
- Please refer to OS compatibility table in support page
-
System Fans
- Motherboard:
2 x 60x60x56mm
2 x 60x60x76mm
PCIe slots:
4 x 80x80x56mm
GPU tray:
4 x 60x60x38mm
- Motherboard:
-
Operating Properties
- Operating temperature: 10°C to 30°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
[Note] To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 40°C.
- Operating temperature: 10°C to 30°C
-
Weight
- Net Weight: 56.5 kg
Gross Weight: 86.8 kg
- Net Weight: 56.5 kg
-
Packaging Dimensions
- 1300 x 800 x 444 mm
-
Packaging Content
- 1 x G4L3-ZX1-LAT4
1 x L-shape Rail kit
- 1 x G4L3-ZX1-LAT4
-
Part Numbers
- - Barebone with AMD module: 6NG4L3ZX1DR000LCT4*
- Motherboard: 9MZB3PE0UR-000*
- L-shape Rail kit: 25HB2-A96102-K0R
- CPU cold plate loop: 25ST7-200010-C1R
- GPU cold plate loop: 25ST7-2G0002-C1R/25ST7-2G0003-C1R
- Front panel board - CFPG540: 9CFPG540NR-00*
- Backplane board - CBPG641: 9CBPG641NR-00*
- Fan module 60x60x38mm: 25ST2-663830-F1R
- Fan module 60x60x56mm: 25ST2-665623-S1R
- Fan module 60x60x76mm: 25ST2-667621-A0R
- Fan module 80x80x56mm: 25ST2-885622-A0R
- PCIe bridge board - CPBG045: 9CPBG045NR-00*
- PCIe switch board - CBG76: 9CBG76NR-00*
- Rear MLAN board - CDB66: 9CDB66NR-00*
- Leak sensor board - CNBG72: 9CNBG72NR-00*
- Power supply: 25EP0-252000-G1S
- - Barebone with AMD module: 6NG4L3ZX1DR000LCT4*
