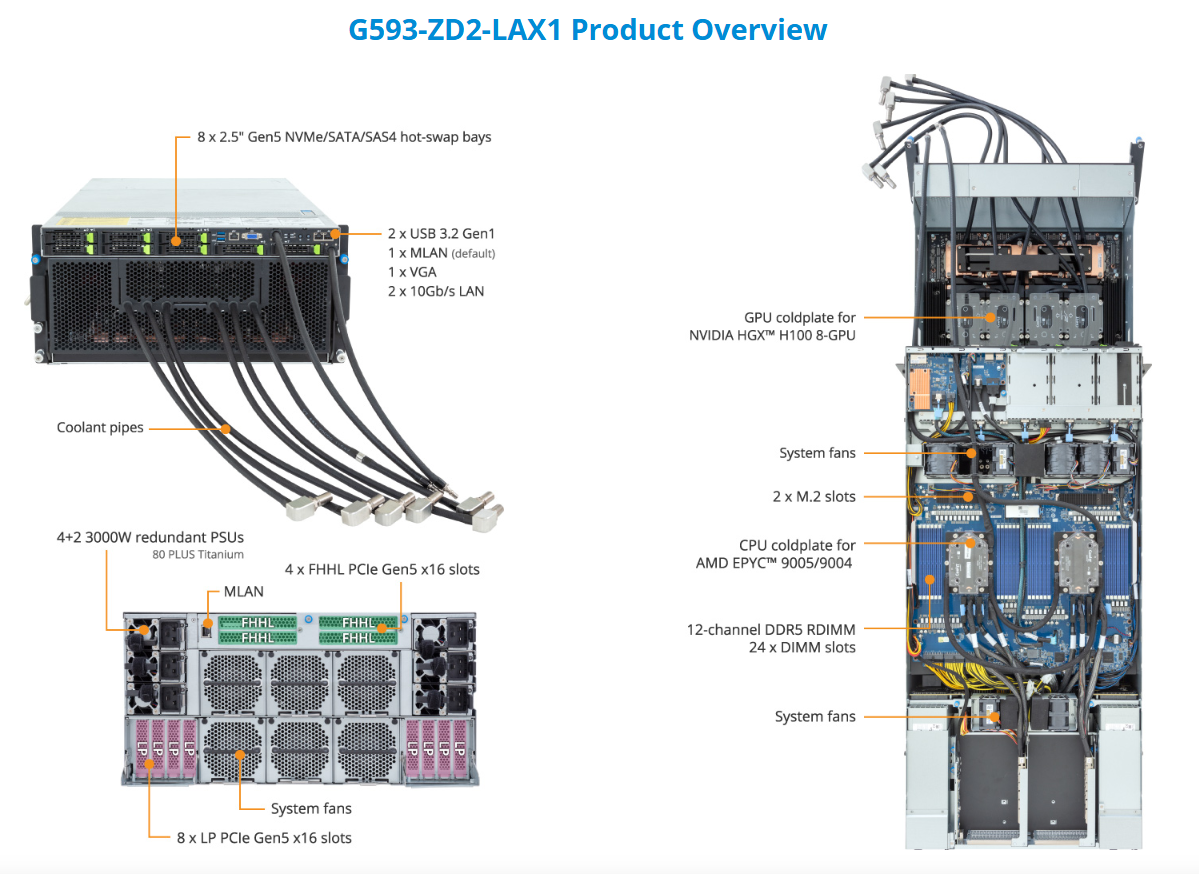

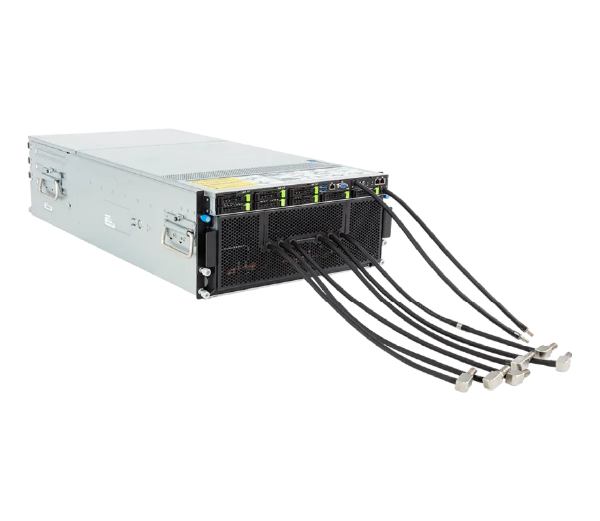

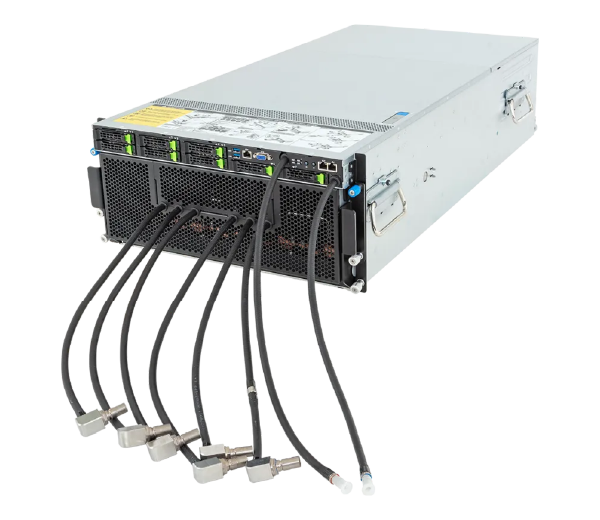

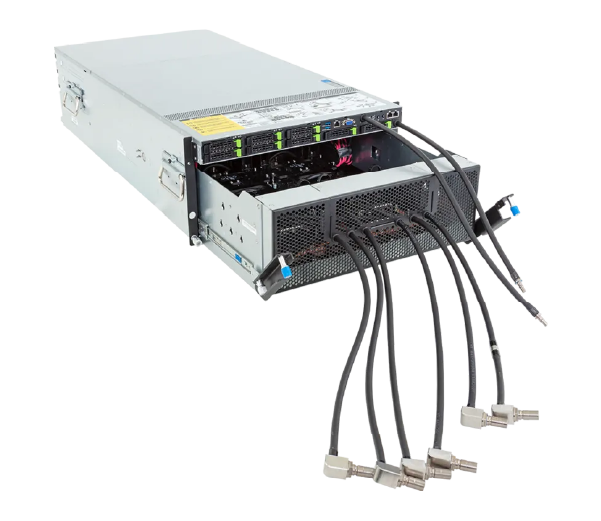

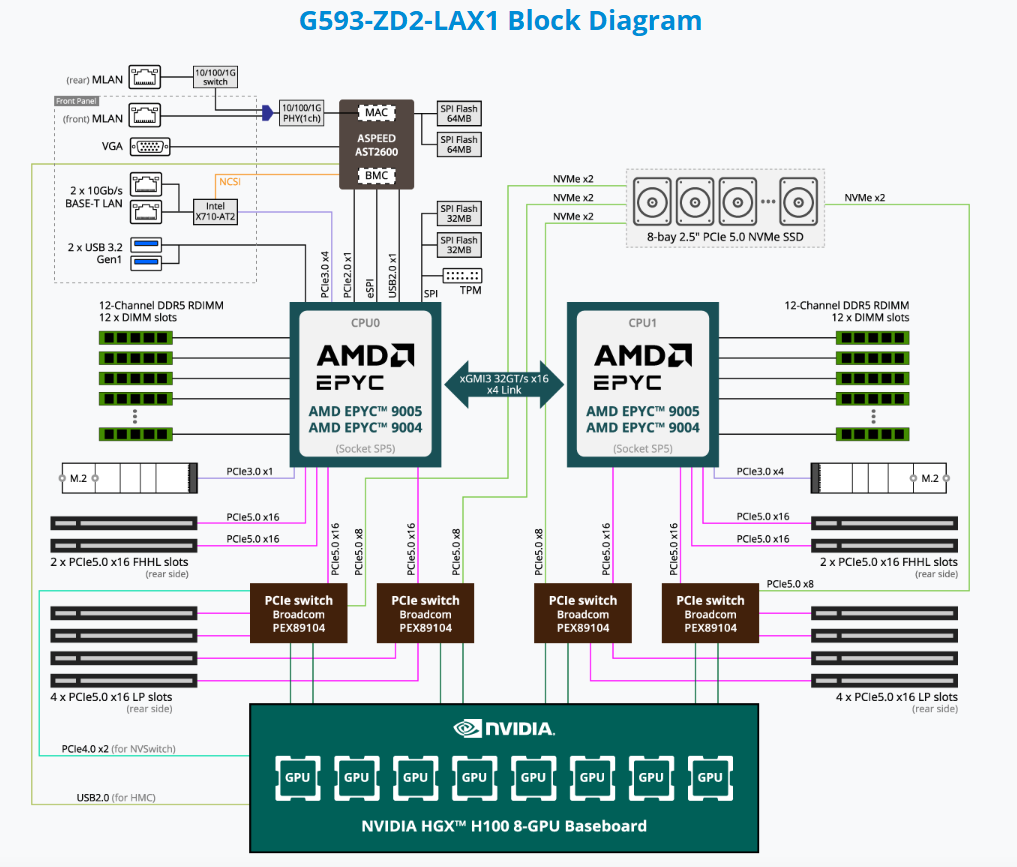

G593-ZD2-LAX1

HPC/AI Server - AMD EPYC™ 9005/9004 - 5U DP NVIDIA HGX™ H100 8-GPU 4-Root Port DLC

  • Liquid-cooled NVIDIA HGX™ H100 8-GPU

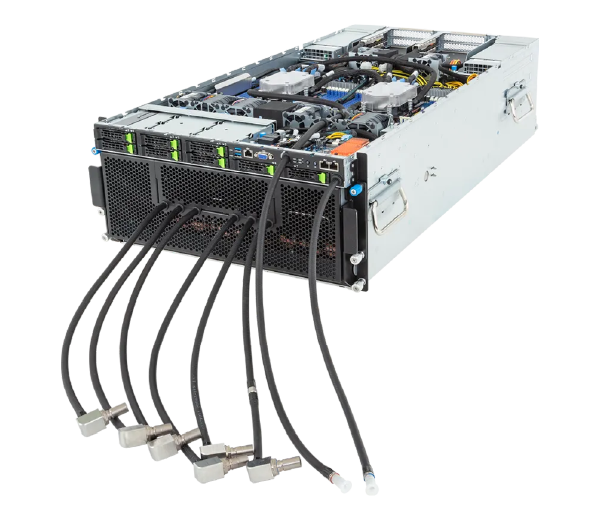

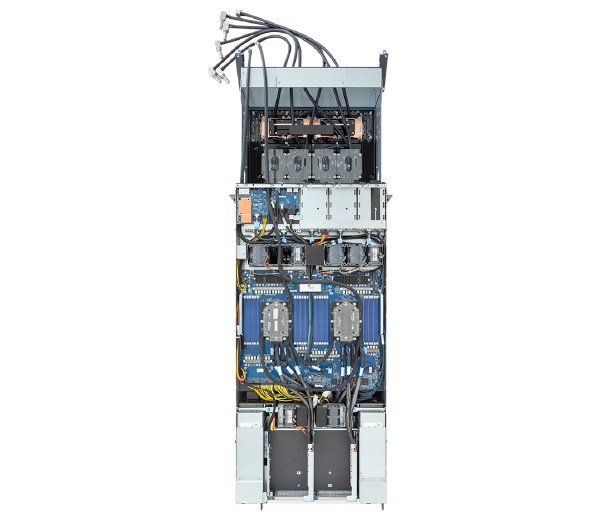

  • CPU+GPU direct liquid cooling solution
  • 900GB/s GPU-to-GPU bandwidth with NVIDIA NVLink™ and NVSwitch™
  • Dual AMD EPYC™ 9005/9004 Series Processors
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 2 x 10Gb/s LAN ports via Intel® X710-AT2
  • 2 x M.2 slots with PCIe Gen3 x4 and x1 interface
  • 8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 4 x FHHL PCIe Gen5 x16 slots
  • 8 x LP PCIe Gen5 x16 slots
  • 4+2 3000W 80 PLUS Titanium redundant power supplies
  • Ordering Numbers: 6NG593ZD2DR000LCX1*
문의하기 데이터시트
















[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

  • Dimensions (WxHxD, mm)

    • 5U
      447 x 219.7 x 945

  • Motherboard

    • MZB3-G43

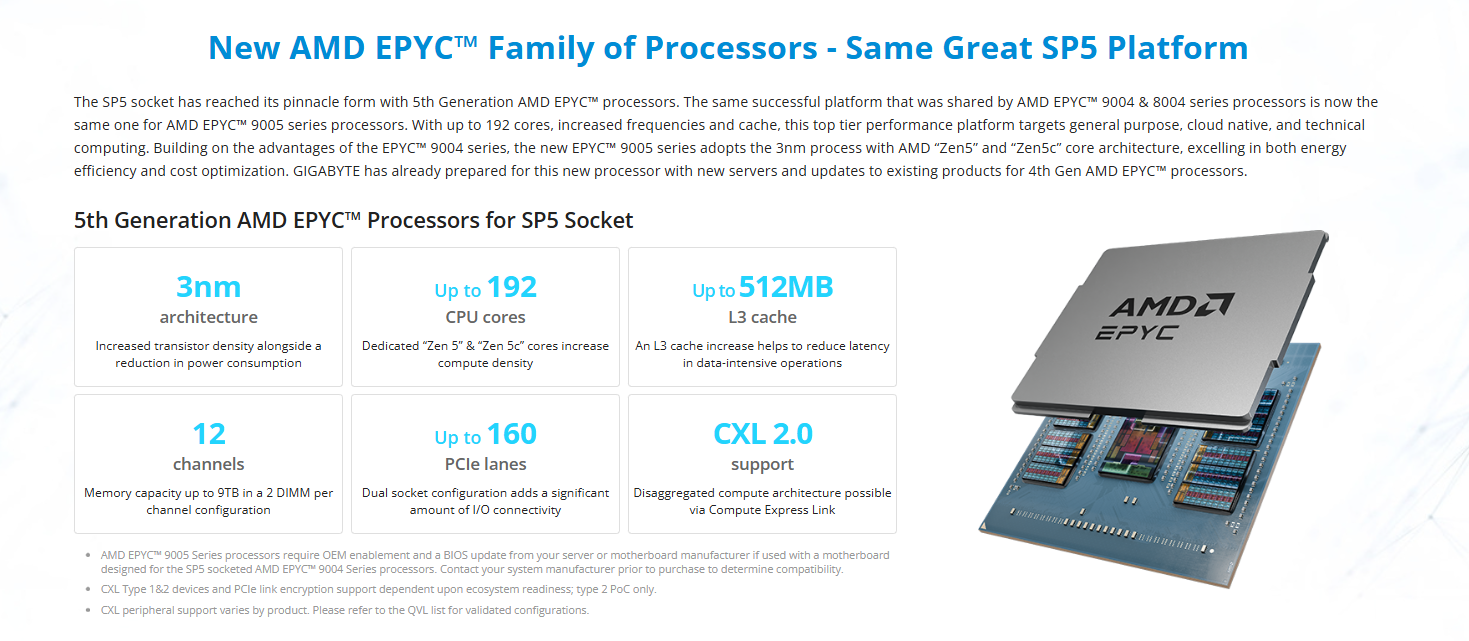

  • CPU

    • AMD EPYC™ 9005 Series Processors
      AMD EPYC™ 9004 Series Processors

      Dual processor, cTDP up to 500W

      [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

  • Socket

    • 2 x LGA 6096
      Socket SP5

  • Chipset

    • System on Chip

  • Memory

    • 24 x DIMM slots
      Support DDR5 RDIMM
      12-Channel memory per processor

      AMD EPYC™ 9005:
      Up to 6400 MT/s

      AMD EPYC™ 9004:
      Up to 4800 MT/s

  • LAN

    • Front:
      2 x 10Gb/s LAN (1 x Intel® X710-AT2)
      - Support NCSI function

      1 x 10/100/1000 Mbps Management LAN

      Rear (MLAN board - CDB66):
      1 x 10/100/1000 Mbps Management LAN

      [Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x VGA port

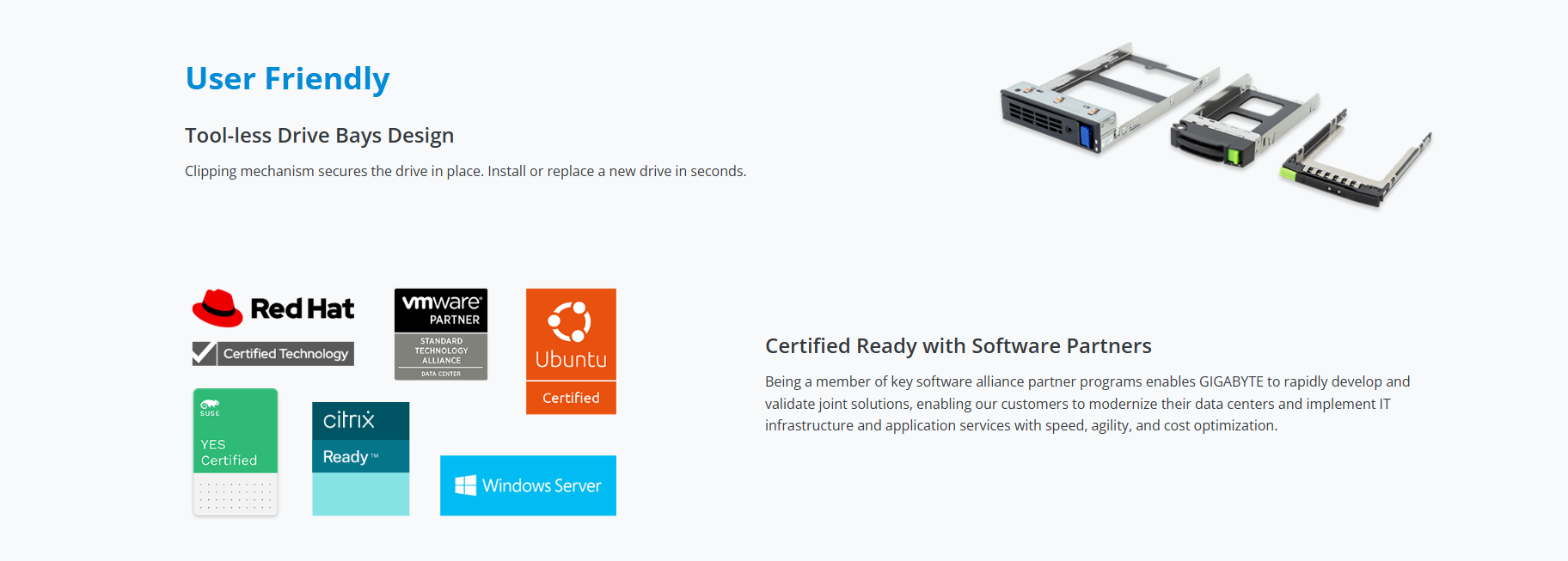

  • Storage

    • Front hot-swap:
      8 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
      - (NVMe from PEX89104)

      Internal M.2:
      1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
      1 x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0

      [1] Storage card is required to support SATA and SAS drives.

  • SAS

    • Require SAS add-in cards

  • RAID

    • Require RAID add-in cards

  • Modular GPU

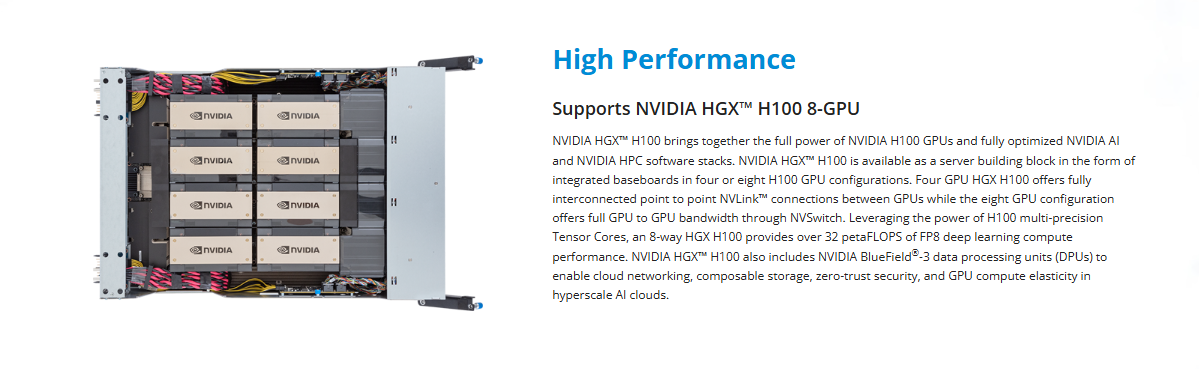

    • Liquid-cooled NVIDIA HGX™ H100 with 8 x SXM5 GPUs

  • PCIe Expansion Slots

    • Extension Board CPBG044 x 2:
      - 8 x LP x16 (Gen5 x16), from PEX89104

      PCIe Cable x 4:
      - 2 x FHHL x16 (Gen5 x16), from CPU_0
      - 2 x FHHL x16 (Gen5 x16), from CPU_1

      [Note] The ambient temperature is limited to 25°C when NVIDIA® BlueField®-3 DPUs/SuperNIC™ are installed.

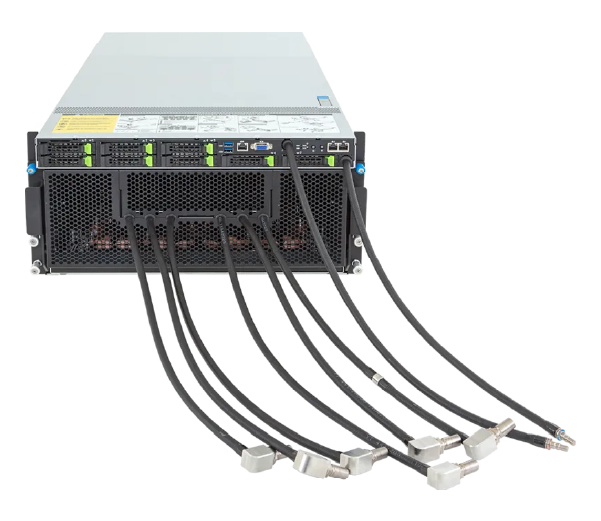

  • Front I/O

    • 2 x USB 3.2 Gen1 ports (Type-A)
      1 x VGA port
      2 x RJ45 ports
      1 x MLAN port (default)
      1 x Power button with LED
      1 x ID button with LED
      1 x NMI button
      1 x Reset button
      1 x Storage activity LED
      1 x System status LED

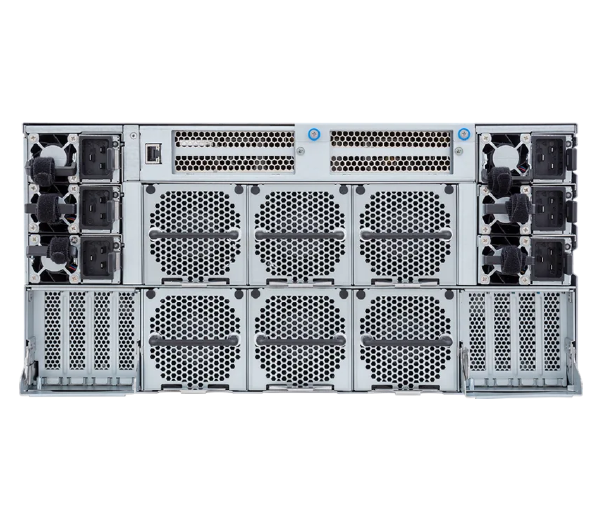

  • Rear I/O

    • MLAN board - CDB66:
      1 x MLAN port

  • Backplane Board

    • Speed and bandwidth:
      PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM010

  • Power Supply[#1]

    • 4+2 3000W 80 PLUS Titanium redundant power supplies [1]

      AC Input:
      - 115-127V~/ 14.2A, 50-60Hz
      - 200-220V~/ 15.8A, 50-60Hz
      - 220-240V~/ 14.9A, 50-60Hz

      DC Input: (Only for China)
      - 240Vdc/ 14A

      DC Output:
      - Max 1450W/ 115-127V~
      +54V/ 26.6A
      +12Vsb/ 3A
      - Max 2900W/ 200-220V~
      +54V/ 53.4A
      +12Vsb/ 3A
      - Max 3002.4W/ 220-240V~ or 240Vdc Input
      +54V/ 55.6A
      +12Vsb/ 3A

      [1] The system power supply requires C19 power cord.

  • System Management

    • ASPEED® AST2600 Baseboard Management Controller
      GIGABYTE Management Console web interface

      Dashboard
      HTML5 KVM
      Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
      Sensor Reading History Data
      FRU Information
      SEL Log in Linear Storage / Circular Storage Policy
      Hardware Inventory
      Fan Profile
      System Firewall
      Power Consumption
      Power Control
      Advanced power capping
      LDAP / AD / RADIUS Support
      Backup & Restore Configuration
      Remote BIOS/BMC/CPLD Update
      Event Log Filter
      User Management
      Media Redirection Settings
      PAM Order Settings
      SSL Settings
      SMTP Settings

  • OS Certifications

    • Windows Server 2022
      Windows Server 2025

  • System Fans

    • Motherboard:
      2 x 40x40x56mm
      3 x 60x60x56mm

      PCIe slots:
      4 x 40x40x28mm
      2 x 40x40x56mm

      GPU tray:
      4 x 80x80x80mm

  • Operating Properties

    • Operating temperature: 10°C to 35°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

      [Note] To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 40°C.

  • Weight

    • Net Weight: 70 kg
      Gross Weight: 101.56 kg

  • Packaging Dimensions

    • 1200 x 800 x 485 mm

  • Packaging Content

    • 1 x G593-ZD2-LAX1
      1 x L-shape Rail kit

  • Part Numbers

    • - Barebone with NVIDIA module: 6NG593ZD2DR000LCX1*
      - Motherboard: 9MZB3G43UR-000-3*
      - L-shape Rail kit: 25HB2-A96102-K0R
      - CoolIT CPU cold plate loop: 25ST7-20000I-C4R
      - CoolIT GPU cold plate loop: 25ST7-3000G5-C4R
      - CoolIT Switch cold plate loop: 25ST7-3000Z6-C4R
      - Front panel board - CFPG540: 9CFPG540NR-00*
      - Backplane board - CBPG680: 9CBPG680NR-00*
      - Fan module 40x40x28mm: 25ST2-44282D-D0R
      - Fan module 40x40x56mm: 25ST2-40562G-A0R
      - Fan module 40x40x56mm: 25ST2-40562L-A0R
      - Fan module 60x60x56mm: 25ST2-665620-S1R
      - Fan module 80x80x80mm: 25ST2-808037-S1R
      - PCIe extension board - CPBG044: 9CPBG044NR-00*
      - PCIe switch board - CPBG902: 9CPBG902NR-00*
      - Rear MLAN board - CDB66: 9CDB66NR-00*
      - Power supply: 25EP0-23000J-D0S
