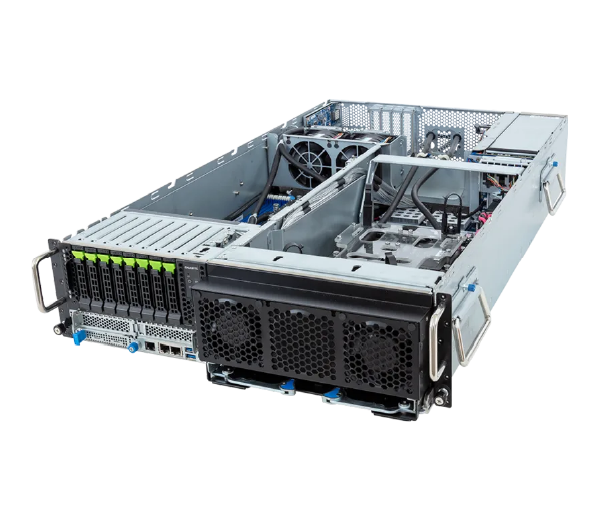

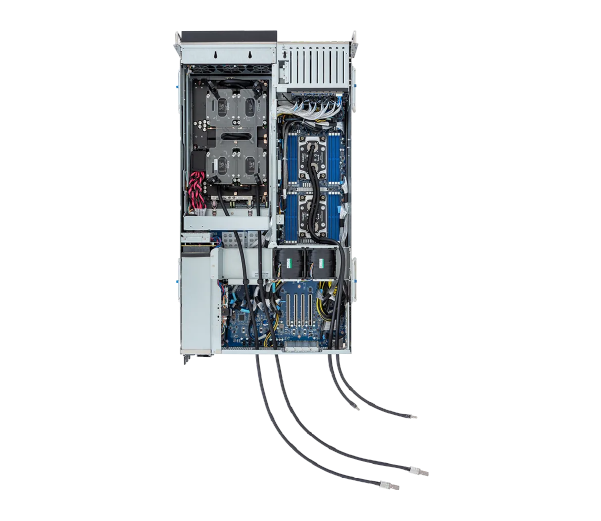

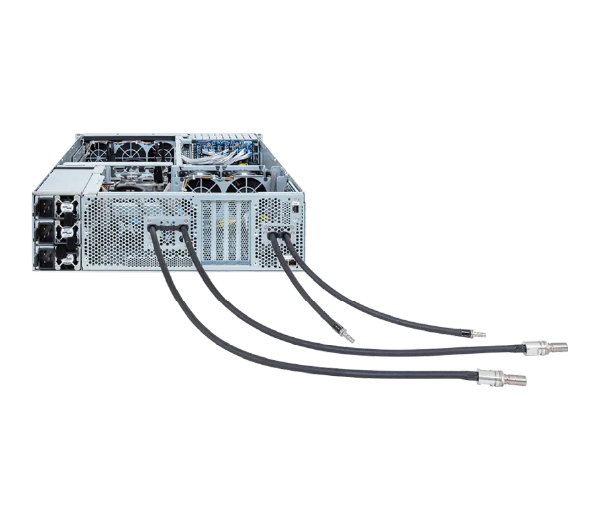

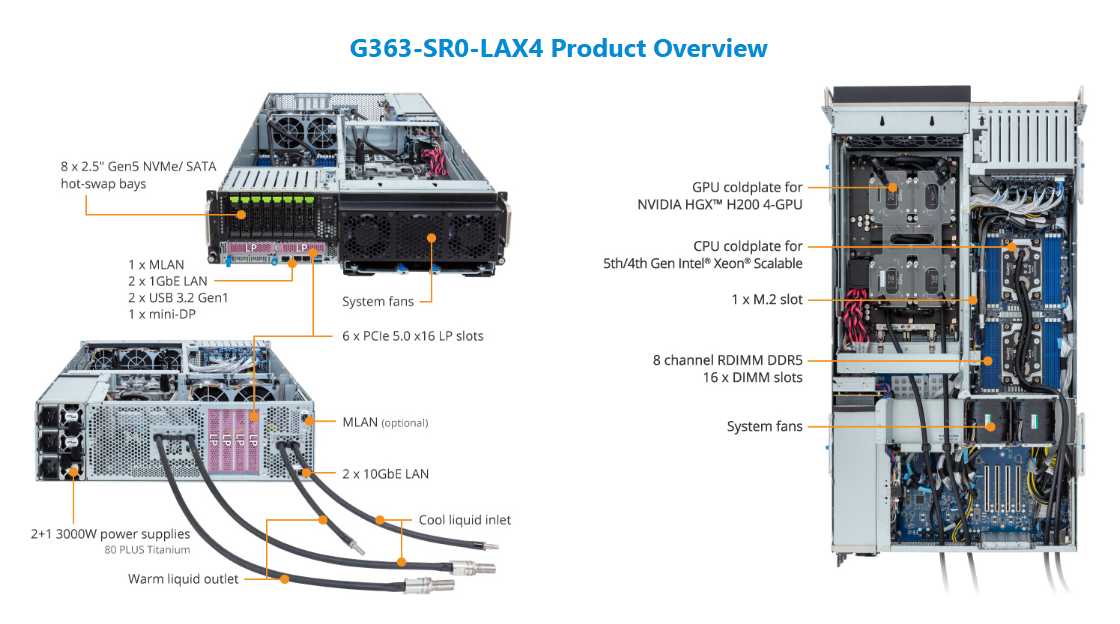

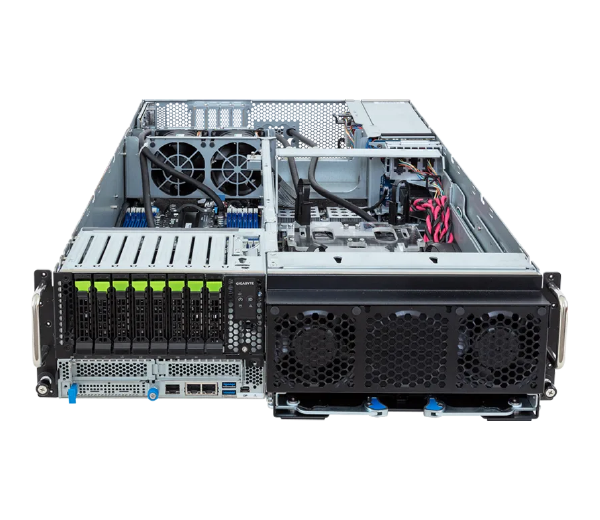

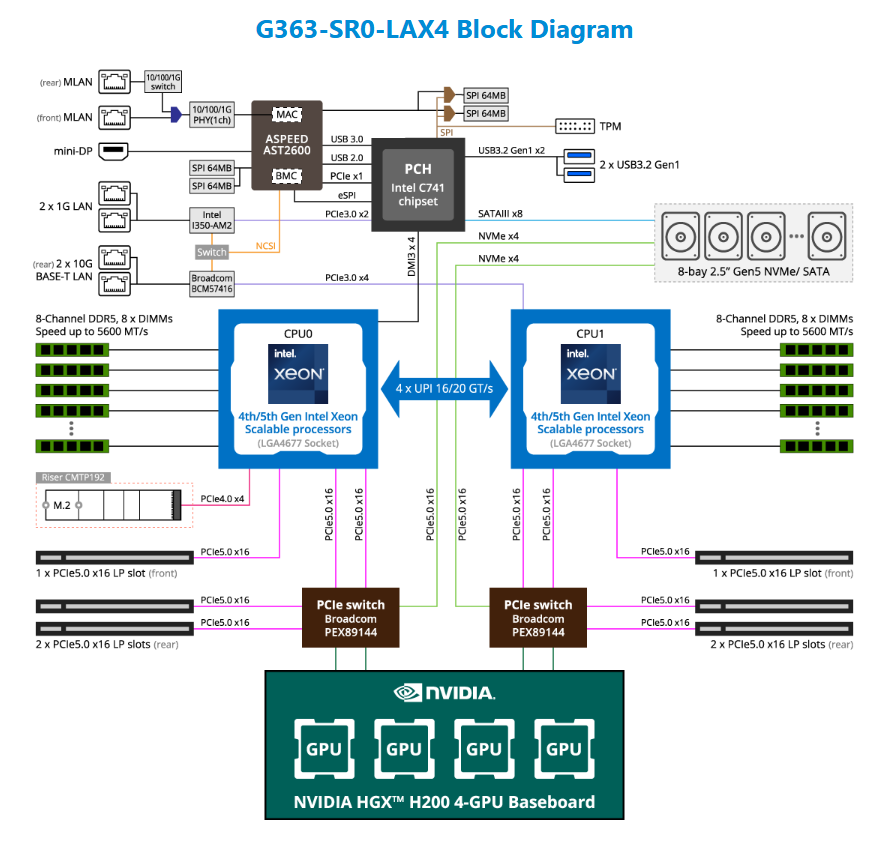

G363-SR0-LAX4

HPC/AI Server - 5th/4th Gen Intel® Xeon® Scalable - 3U DP HGX™ H200 4-GPU DLC

  • Liquid-cooled NVIDIA HGX™ H200 4-GPU
  • CPU+GPU direct liquid cooling solution
  • 900GB/s 4th-generation NVIDIA NVLink™
  • Dual 5th/4th Gen Intel® Xeon® Scalable Processors
  • Dual Intel® Xeon® CPU Max Series
  • 8-Channel DDR5 RDIMM, 16 x DIMMs
  • Dual ROM Architecture
  • 2 x 10Gb/s LAN ports via Broadcom® BCM57416
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2

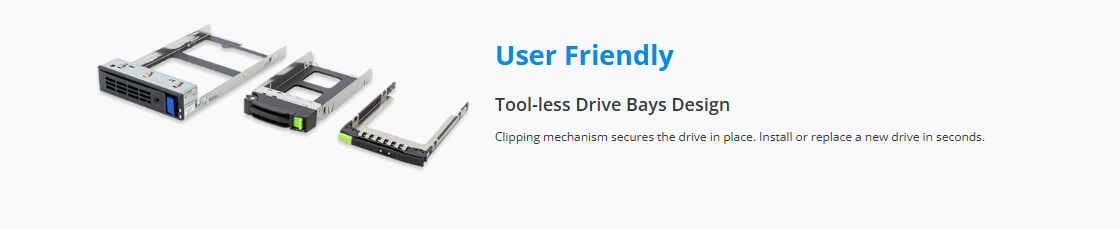

  • 8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 1 x M.2 slot with PCIe Gen4 x4 interface
  • 6 x LP PCIe Gen5 x16 slots
  • 2+1 3000W 80 PLUS Titanium redundant power supplies
  • Ordering Numbers: 6NG363SR0DR000LBX4*
문의하기 데이터시트
















[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

  • Dimensions (WxHxD, mm)

    • 3U
      448 x 131 x 850.2

  • Motherboard

    • MS63-HD2

  • CPU

    • 5th Generation Intel® Xeon® Scalable Processors
      4th Generation Intel® Xeon® Scalable Processors
      Intel® Xeon® CPU Max Series

      Dual processor, TDP up to 385W

      [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

  • Socket

    • 2 x LGA 4677
      Socket E

  • Chipset

    • Intel® C741

  • Memory

    • 16 x DIMM slots
      Support DDR5 RDIMM
      8-Channel memory per processor

      5th Gen Intel® Xeon®:
      Up to 5600 MT/s

      4th Gen Intel® Xeon®:
      Up to 4800 MT/s

      Intel® Xeon® Max Series:
      Up to 4800 MT/s

  • LAN

    • Front (I/O board - CLBH160):
      2 x 1Gb/s LAN (1 x Intel® I350-AM2)
      - Support NCSI function (by switch setting)

      1 x 10/100/1000 Mbps Management LAN

      Rear:
      2 x 10Gb/s LAN (1 x Broadcom® BCM57416)
      - Support NCSI function (by switch setting)

      Rear (MLAN board - CDB66):
      1 x 10/100/1000 Mbps Management LAN

      [Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x Mini-DP

  • Storage

    • Front hot-swap:
      8 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
      - (NVMe from PEX89144)

      Internal M.2 (CMTP192):
      1 x M.2 (2280/22110), PCIe Gen4 x4, from CPU_0

      [1] SAS card is required to support SAS drives.

  • SAS

    • Require SAS add-in cards

  • RAID

    • Intel® SATA RAID 0/1/10/5

      Support optional RAID add-in cards

  • Modular GPU

    • Liquid-cooled NVIDIA HGX™ H200 with 4 x SXM GPUs

  • PCIe Expansion Slots

    • Front:
      Riser Card CRSH01R:
      - 1 x LP x16 (Gen5 x16), from CPU_0

      PCIe Cable:
      - 1 x LP x16 (Gen5 x16), from CPU_1

      1 x OCP NIC 3.0, from CPU_0, disabled

      Rear:
      4 x LP x16 (Gen5 x16), from PEX89144, support RDMA
      - (Equipped with full-height brackets)

      [Note] The ambient temperature is limited to 30°C when NVIDIA® BlueField®-3 DPUs/SuperNIC™ are installed.

  • Front I/O

    • 1 x Power button with LED
      1 x ID button with LED
      1 x Reset button
      1 x Storage activity LED
      1 x System status LED

      I/O board - CLBH160:
      2 x USB 3.2 Gen1 ports (Type-A)
      1 x Mini-DP
      2 x RJ45 ports (Intel I350)
      1 x MLAN port (default)

  • Rear I/O

    • 2 x RJ45 ports (Broadcom BCM57416)

      MLAN board - CDB66:
      1 x MLAN port

  • Backplane Board

    • Speed and bandwidth:
      PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM010

  • Power Supply[#1]

    • 2+1 3000W 80 PLUS Titanium redundant power supplies [1]

      AC Input:
      - 115-127V~/ 14.2A, 50-60Hz
      - 200-220V~/ 15.8A, 50-60Hz
      - 220-240V~/ 14.9A, 50-60Hz

      DC Input: (Only for China)
      - 240Vdc/ 14A

      DC Output:
      - Max 1450W/ 115-127V~
      +54V/ 26.6A
      +12Vsb/ 3A
      - Max 2900W/ 200-220V~
      +54V/ 53.4A
      +12Vsb/ 3A
      - Max 3002.4W/ 220-240V~ or 240Vdc Input
      +54V/ 55.6A
      +12Vsb/ 3A

      [1] The system power supply requires C19 power cord.

  • System Management

    • ASPEED® AST2600 Baseboard Management Controller
      GIGABYTE Management Console web interface

      Dashboard
      HTML5 KVM
      Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
      Sensor Reading History Data
      FRU Information
      SEL Log in Linear Storage / Circular Storage Policy
      Hardware Inventory
      Fan Profile
      System Firewall
      Power Consumption
      Power Control
      Advanced power capping
      LDAP / AD / RADIUS Support
      Backup & Restore Configuration
      Remote BIOS/BMC/CPLD Update
      Event Log Filter
      User Management
      Media Redirection Settings
      PAM Order Settings
      SSL Settings
      SMTP Settings

  • OS Certifications

    • Windows Server 2022

  • System Fans

    • 4 x 80x80x80mm

  • Operating Properties

    • Operating temperature: 10°C to 40°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

      [Note] To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 40°C.

  • Weight

    • Net Weight: 50 kg
      Gross Weight: 60 kg

  • Packaging Dimensions

    • 1200 x 800 x 439 mm

  • Packaging Content

    • 1 x G363-SR0-LAX4
      1 x Mini-DP to D-Sub cable
      6 x Carriers
      1 x L-shape Rail kit

  • Part Numbers

    • - Barebone with NVIDIA module: 6NG363SR0DR000LBX4*
      - Motherboard: 9MS63HD2UR-000*
      - L-shape Rail kit: 25HB2-A86102-K0R
      - CoolIT CPU cold plate loop: 25ST7-100006-C4R
      - CoolIT GPU cold plate loop: 25ST7-3000Z5-C4R
      - Front panel board - CFP1000: 9CFP1000NR-00*
      - Backplane board - CBP2081: 9CBP2081NR-00*
      - Fan module: 25ST2-888030-S1R
      - Fan module: 25ST2-888031-S1R
      - M.2 expansion card - CMTP192: 9CMTP192NR-00*
      - Riser card - CRSH01R: 9CRSH01RNR-00*
      - OCP card - CNVC171: 9CNVC171NR-00*
      - Front I/O board (incl. I350-AM2) - CLBH160: 9CLBH160NR-00*
      - PCIe switch board: - CPBG901 9CPBG901NR-00*
      - Rear MLAN board - CDB66: 9CDB66NR-00*
      - Mini-DP to D-Sub cable: 25CRN-200801-K1R
      - Power supply: 25EP0-23000A-D0S

      Optional parts:

      - RMA packaging: 6NG363SR0SR-RMA-L100
