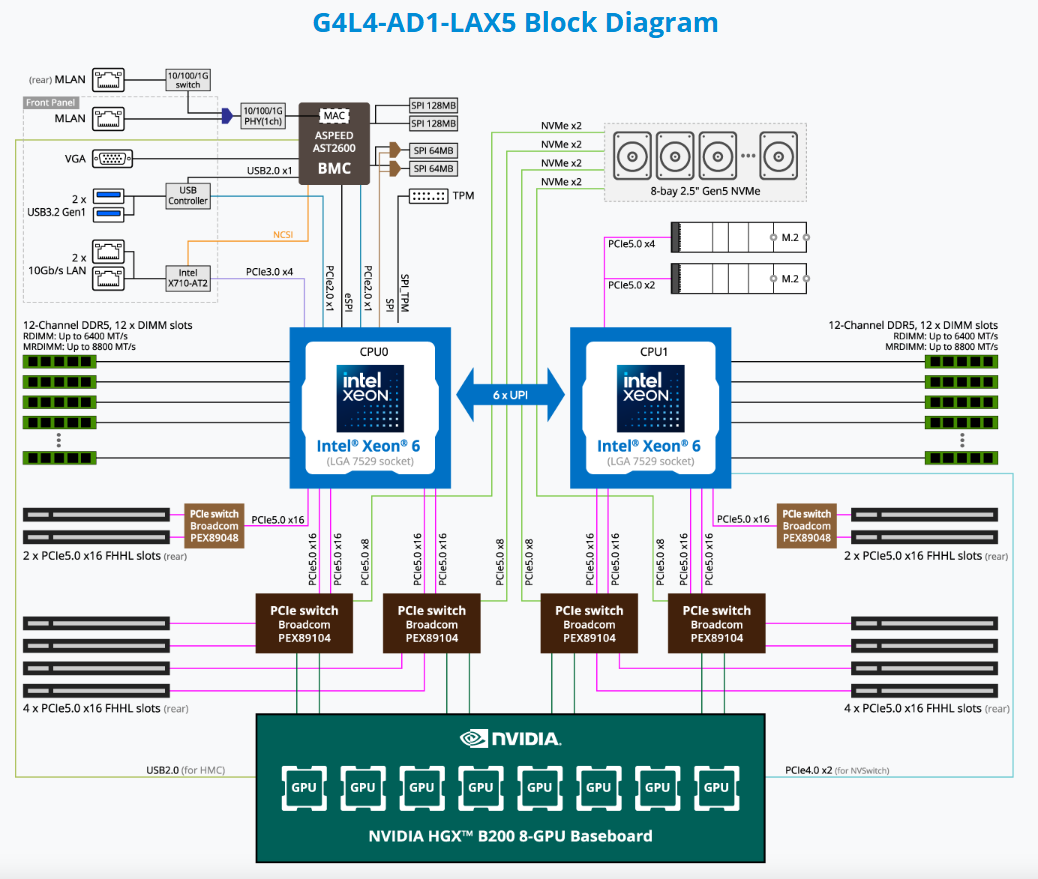

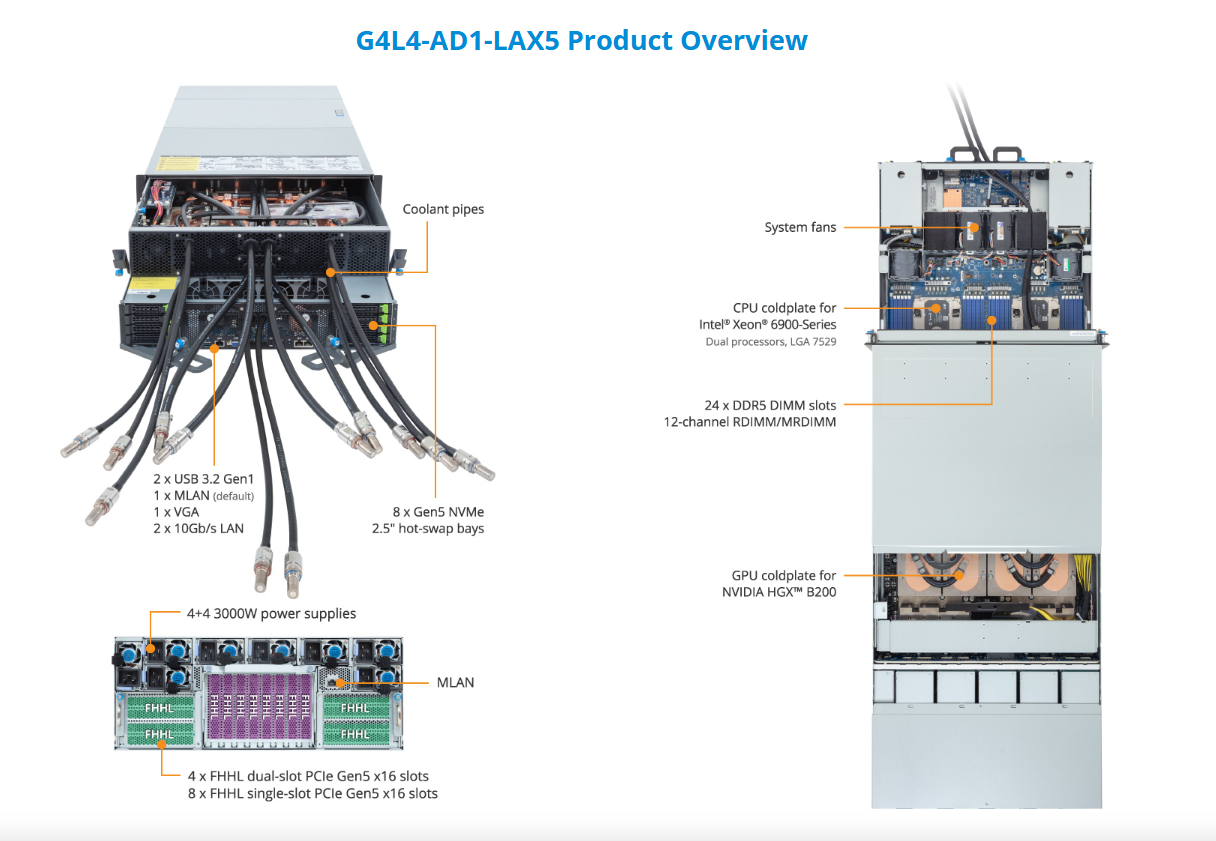

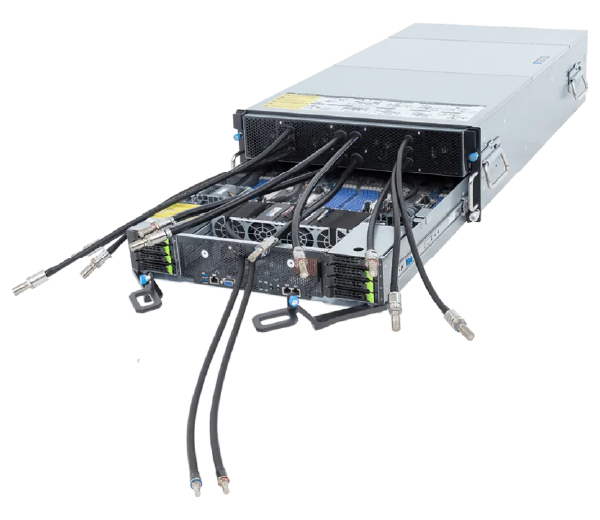

G4L4-AD1-LAX5

HPC/AI Server - Intel® Xeon® 6 Processors - 4U DP NVIDIA HGX™ B200 DLC

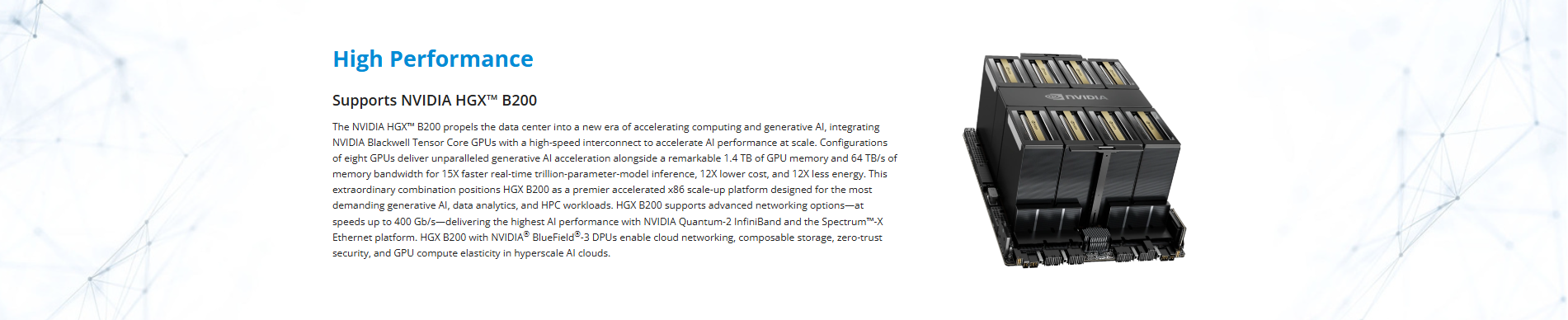

  • Liquid-cooled NVIDIA HGX™ B200

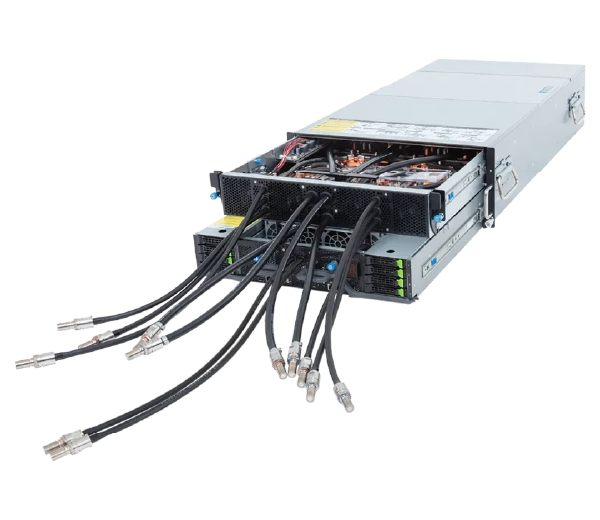

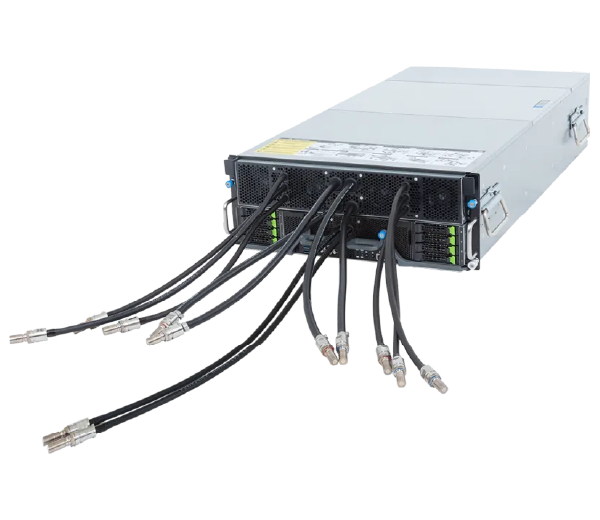

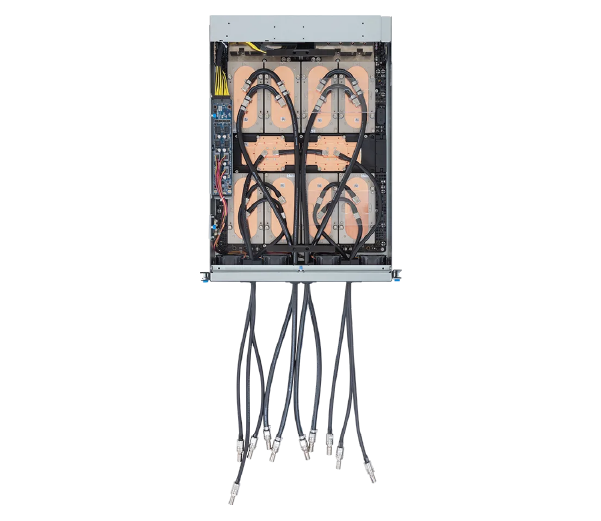

  • CPU+GPU direct liquid cooling solution with leak detection
  • 1.8TB/s GPU-to-GPU bandwidth with NVIDIA NVLink™ and NVSwitch™
  • Dual Intel® Xeon® 6900-Series Processors
  • 12-Channel DDR5 RDIMM / MRDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • Compatible with NVIDIA® BlueField®-3 DPUs and NVIDIA ConnectX®-7 NICs
  • 2 x 10Gb/s LAN ports via Intel® X710-AT2
  • 2 x M.2 slots with PCIe Gen5 x4 and x2 interface

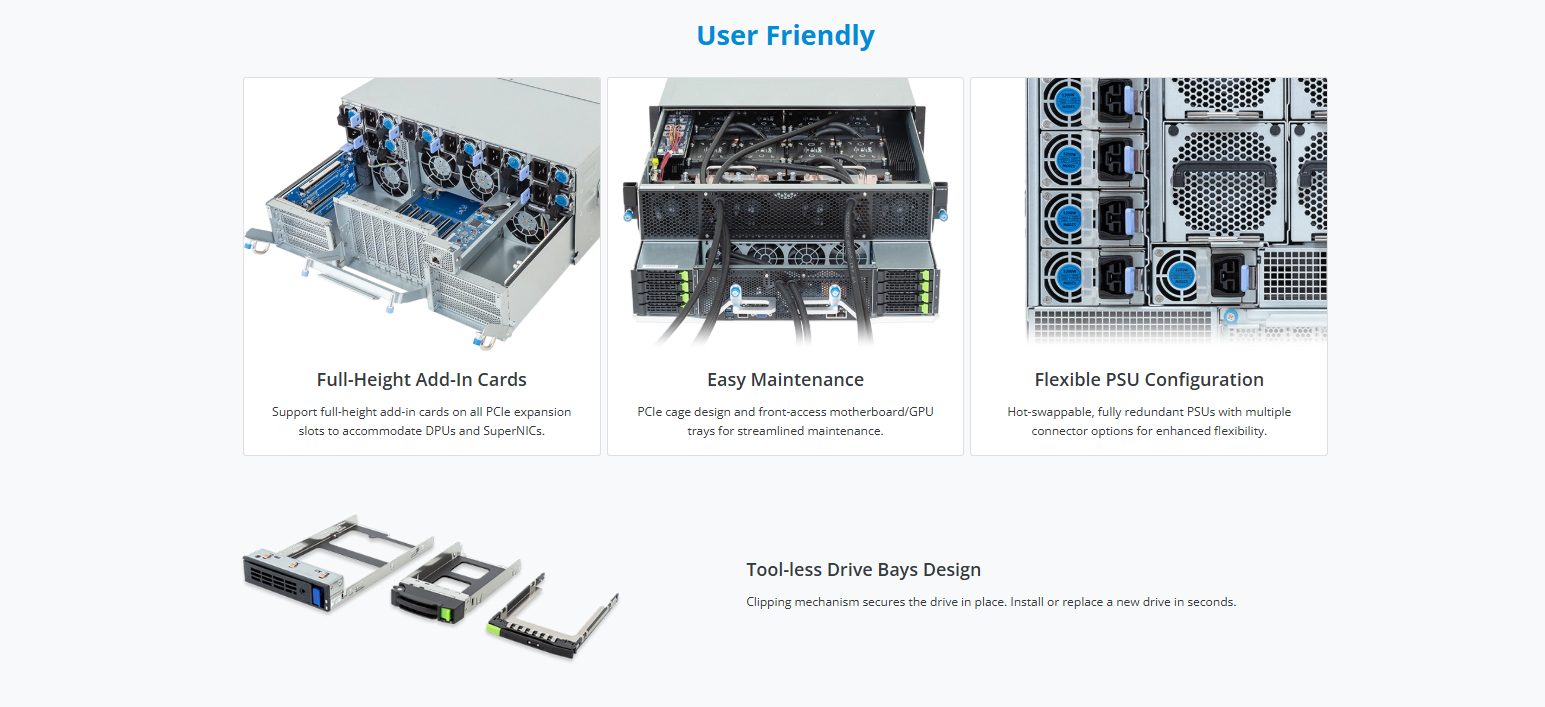

  • 8 x 2.5" Gen5 NVMe hot-swap bays
  • 4 x FHHL dual-slot PCIe Gen5 x16 slots
  • 8 x FHHL single-slot PCIe Gen5 x16 slots
  • 4+4 3000W 80 PLUS Titanium redundant power supplies
문의하기 데이터시트















[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

  • Dimensions (WxHxD, mm)

    • 4U
      447 x 175.3 x 900

  • Motherboard

    • MAB4-PE0

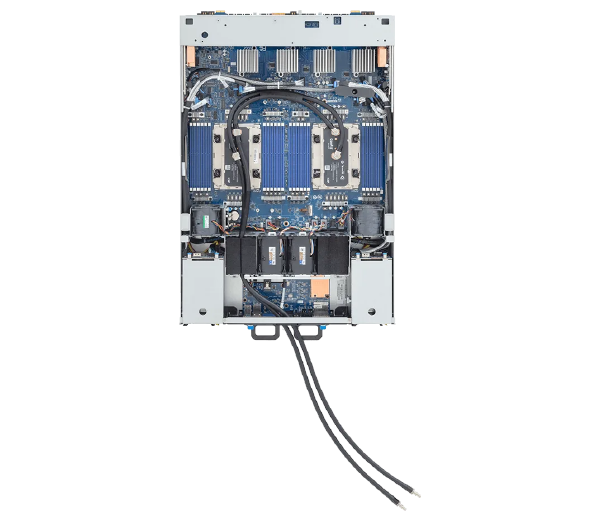

  • CPU

    • Intel® Xeon® 6 Processors
      - Intel® Xeon® 6900-Series Processors

      Dual processor, TDP up to 500W

      [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

  • Socket

    • 2 x LGA 7529
      Socket BR

  • Chipset

    • System on Chip

  • Memory

    • 24 x DIMM slots
      Support DDR5 RDIMM/MRDIMM [1]
      12-Channel memory per processor
      RDIMM: Up to 6400 MT/s
      MRDIMM: Up to 8800 MT/s

      [1] MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores.

  • LAN

    • Front (I/O board - CFPG440):
      2 x 10Gb/s LAN (1 x Intel® X710-AT2)
      - Support NCSI function

      1 x 10/100/1000 Mbps Management LAN

      Rear (MLAN board - CDB66):
      1 x 10/100/1000 Mbps Management LAN

      [Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x VGA port

  • Storage

    • Front hot-swap:
      8 x 2.5" Gen5 NVMe
      - (NVMe from PEX89104)

      Internal M.2:
      1 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_1
      1 x M.2 (2280/22110), PCIe Gen5 x2, from CPU_1

  • SAS

    • N/A

  • RAID

    • N/A

  • Modular GPU

    • Liquid-cooled NVIDIA HGX™ B200 with 8 x SXM GPUs

  • PCIe Expansion Slots

    • PCIe Bridge Board - CBG76:
      - 8 x FHHL x16 (Gen5 x16), from PEX89104

      PCIe Bridge Board - CPBG045 x 2:
      - 4 x FHHL x16 (Gen5 x16), from PEX89048

      [Note] The ambient temperature is limited to 30°C when NVIDIA® BlueField®-3 DPUs/SuperNIC™ are installed.
      Front I/O

  • Front I/O

    • I/O board - CFPG440:
      2 x USB 3.2 Gen1 ports (Type-A)
      1 x VGA port
      2 x RJ45 ports
      1 x MLAN port (default)
      1 x Power button with LED
      1 x ID button with LED
      1 x NMI button
      1 x Reset button
      1 x Storage activity LED
      1 x System status LED

  • Rear I/O

    • MLAN board - CDB66:
      1 x MLAN port

  • Backplane Board

    • Speed and bandwidth:
      PCIe Gen5 x4

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM012

  • Power Supply[#1]

    • 4+4 3000W 80 PLUS Titanium redundant power supplies [1]

      [1] The system power supply requires C19 power cord.

  • System Management

    • ASPEED® AST2600 Baseboard Management Controller
      GIGABYTE Management Console web interface

      Dashboard
      HTML5 KVM
      Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
      Sensor Reading History Data
      FRU Information
      SEL Log in Linear Storage / Circular Storage Policy
      Hardware Inventory
      Fan Profile
      System Firewall
      Power Consumption
      Power Control
      Advanced power capping
      LDAP / AD / RADIUS Support
      Backup & Restore Configuration
      Remote BIOS/BMC/CPLD Update
      Event Log Filter
      User Management
      Media Redirection Settings
      PAM Order Settings
      SSL Settings
      SMTP Settings

  • System Fans

    • Motherboard:
      2 x 60x60x56mm
      2 x 60x60x76mm

      PCIe slots:
      4 x 80x80x56mm

      GPU tray:
      4 x 60x60x38mm

  • Operating Properties

    • Operating temperature: 10°C to 35°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

      [Note] To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 40°C.

  • Packaging Content

    • 1 x G4L4-AD1-LAX5
      2 x Carriers
      1 x L-shape Rail kit

  • Part Numbers

    • - Barebone with NVIDIA module: 6NG4L4AD1DR000LAX5*
      - Motherboard: 9MAB4PE0UR-000*
