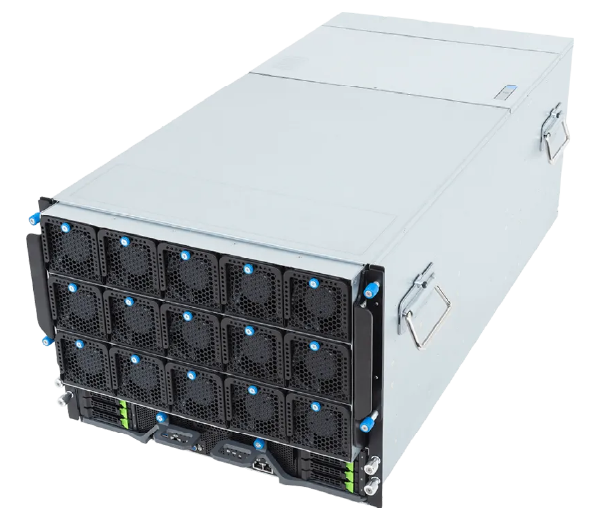

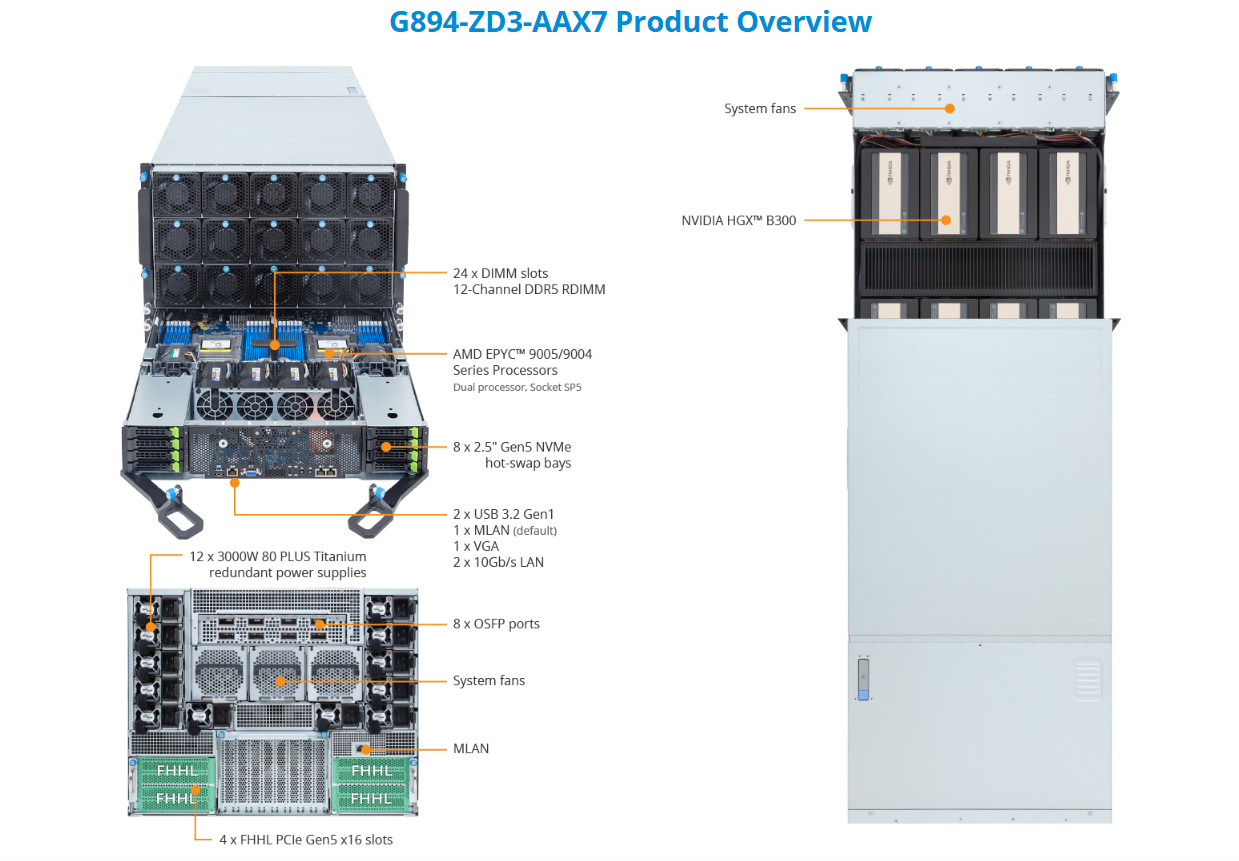

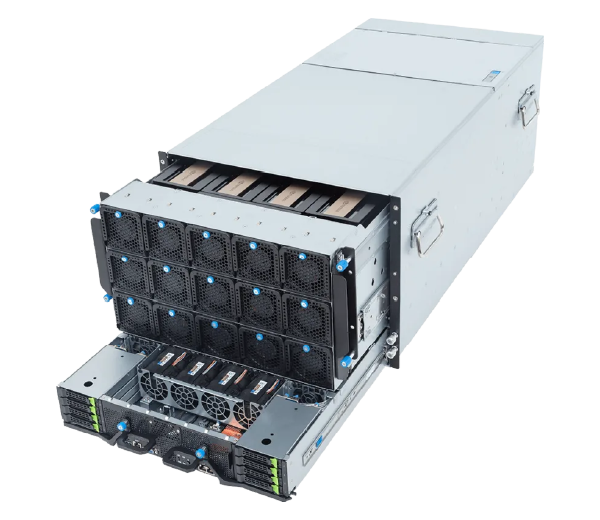

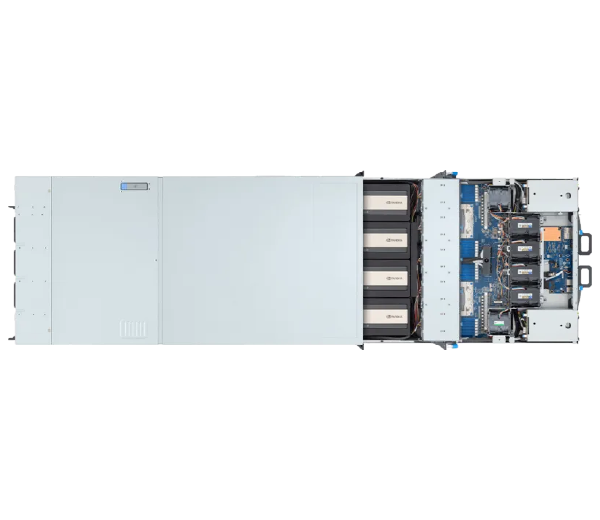

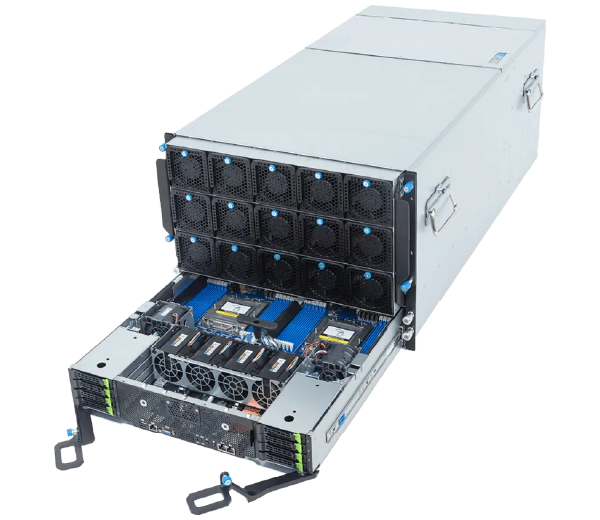

G894-ZD3-AAX7
HPC/AI Server - AMD EPYC™ 9005/9004 - 8U DP NVIDIA HGX™ B300
- NVIDIA HGX™ B300
- 8 x 800 Gb/s OSFP InfiniBand XDR / Dual 400 Gb/s Ethernet GPU networking ports
- via onboard NVIDIA ConnectX®-8 SuperNIC™
- 1.8TB/s GPU-to-GPU bandwidth with NVIDIA NVLink™ and NVSwitch™
- Dual AMD EPYC™ 9005/9004 Series Processors
- 12-Channel DDR5 RDIMM, 24 x DIMMs
- Compatible with NVIDIA® BlueField®-3 DPUs
- 2 x 10Gb/s LAN ports via Intel® X710-AT2
- 2 x M.2 slots with PCIe Gen3 x4 and x1 interface
- 8 x 2.5" Gen5 NVMe hot-swap bays
- 4 x FHHL PCIe Gen5 x16 slots
- 12 x 3000W 80 PLUS Titanium redundant power supplies
- Ordering Numbers: 6NG894ZD3DR000ACX7*
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
-
Dimensions (WxHxD, mm)
- 8U
447 x 351 x 923
- 8U
-

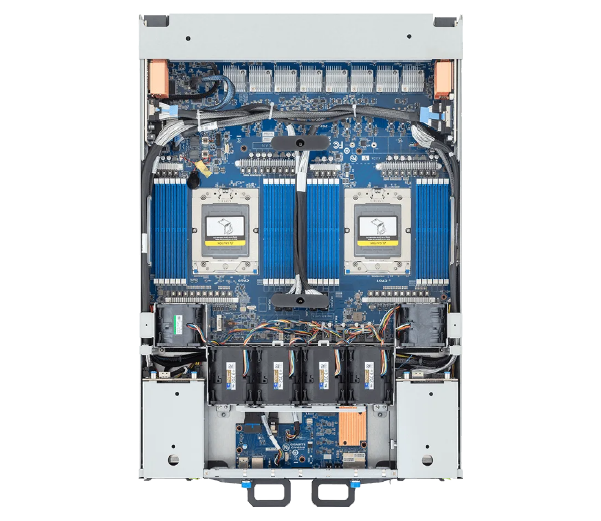

Motherboard
- MZB3-PE2
-
CPU
- AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 500W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
- AMD EPYC™ 9005 Series Processors
-
Socket
- 2 x LGA 6096
Socket SP5
- 2 x LGA 6096
-
Chipset
- System on Chip
-
Memory
- 24 x DIMM slots
Support DDR5 RDIMM
12-Channel memory per processor
AMD EPYC™ 9005:
Up to 6400 MT/s
AMD EPYC™ 9004:
Up to 4800 MT/s
- 24 x DIMM slots
-
LAN
- Front (I/O board - CFPG540):
2 x 10Gb/s LAN (1 x Intel® X710-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Rear:
8 x 800 Gb/s OSFP InfiniBand XDR / Dual 400 Gb/s Ethernet, for GPU networking, via NVIDIA ConnectX®-8 SuperNIC™
Rear (MLAN board - CDB66):
1 x 10/100/1000 Mbps Management LAN
[Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
- Front (I/O board - CFPG540):
-
Video
- Integrated in ASPEED® AST2600
- 1 x VGA port
- Integrated in ASPEED® AST2600
-
Storage
- Front hot-swap:
8 x 2.5" Gen5 NVMe
- (NVMe from PEX89072)
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0
- Front hot-swap:
-
Modular GPU
- NVIDIA HGX™ B300 with 8 x SXM GPUs
-
PCIe Expansion Slots
- PCIe Bridge Board - CPBG045 x 2:
- 4 x FHHL x16 (Gen5 x16), from PEX89072
- PCIe Bridge Board - CPBG045 x 2:
-
Front I/O
- I/O board - CFPG540:
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port (default)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
- I/O board - CFPG540:
-
Rear I/O
- 8 x OSFP ports
MLAN board - CDB66:
1 x MLAN port
- 8 x OSFP ports
-
Security Modules
- 1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012
- 1 x TPM header with SPI interface
-
Power Supply[#1]
- 12 x 3000W 80 PLUS Titanium redundant power supplies [1]
[1] The system power supply requires C19 power cord.
- 12 x 3000W 80 PLUS Titanium redundant power supplies [1]
-

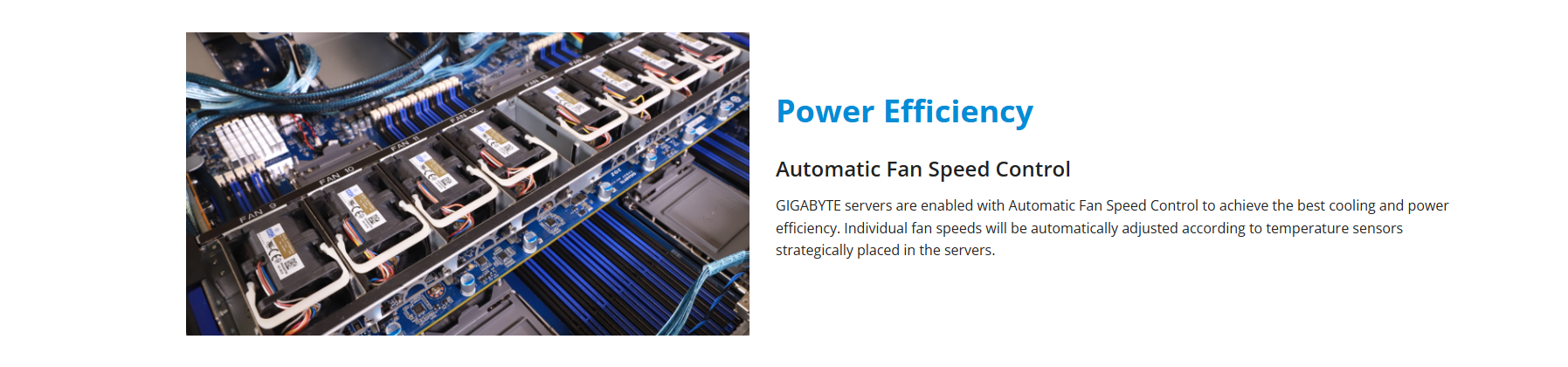

System Fans
- Motherboard:
2 x 60x60x56mm
4 x 60x60x76mm
OSFP ports:
4 x 40x40x56mm
PCIe slots:
2 x 80x80x56mm
GPU tray:
15 x 80x80x80mm
- Motherboard:
-
Operating Properties
- Operating temperature: 10°C to 30°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
- Operating temperature: 10°C to 30°C
-
Packaging Content
- 1 x G894-ZD3-AAX7
2 x CPU heatsinks
1 x L-shape Rail kit
- 1 x G894-ZD3-AAX7
-
Part Numbers
- - Barebone with NVIDIA module: 6NG894ZD3DR000ACX7*
