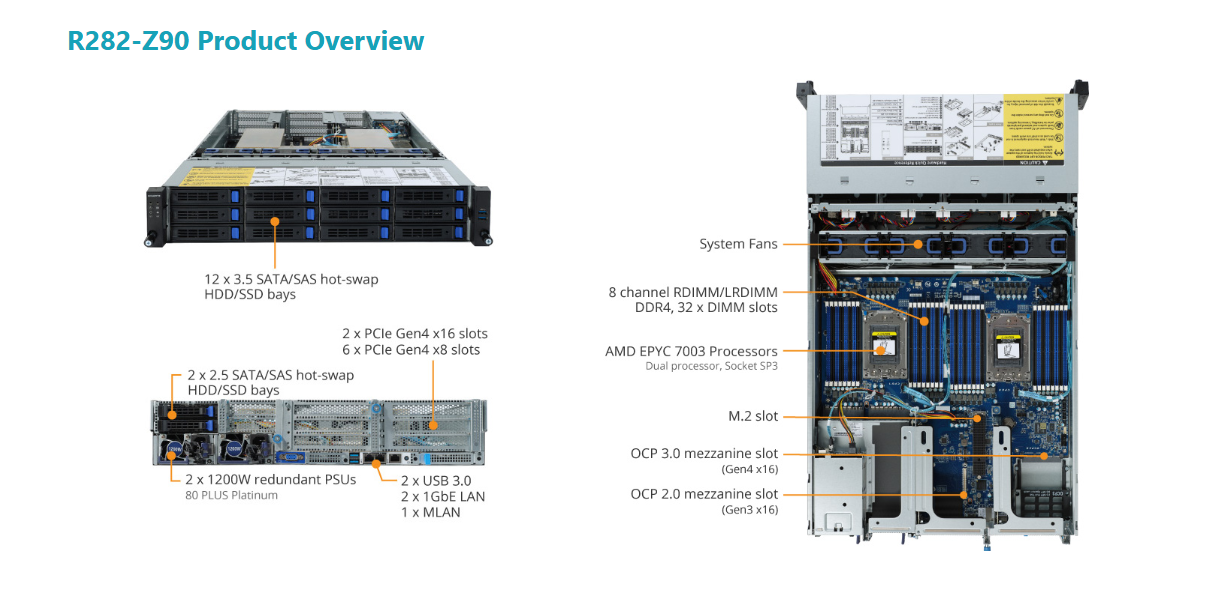

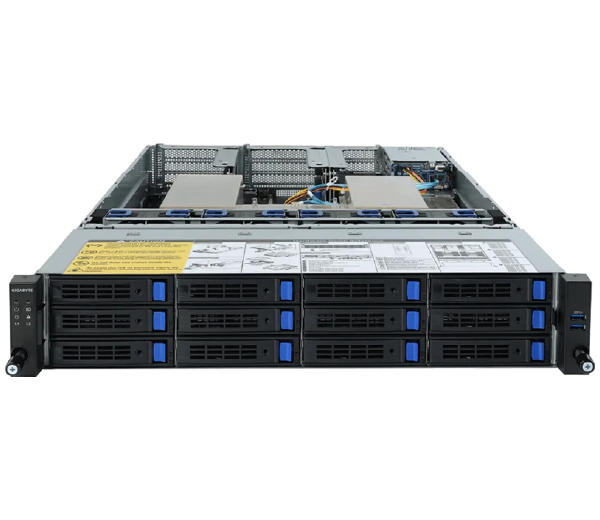

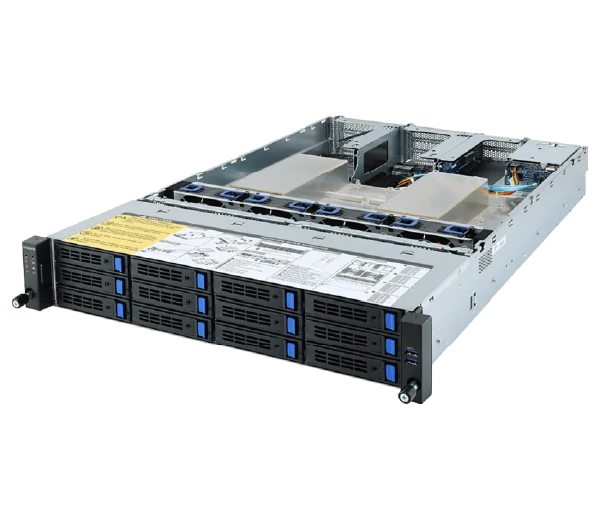

R282-Z90
Rack Server - AMD EPYC™ 7003/7002 - 2U DP 12+2-Bay SATA/SAS
- Dual AMD EPYC™ 7003/7002 Series Processors
- 8-Channel DDR4 RDIMM/LRDIMM, 32 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 12 x 3.5"/2.5" SATA/SAS hot-swappable bays
- 2 x 2.5" SATA/SAS hot-swappable bays on the rear side
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 6 x FHHL PCIe Gen4 x16 and x8 slots
- 2 x LP PCIe Gen4 x8 slots
- 1 x OCP 3.0 Gen4 x16 slot
- 1 x OCP 2.0 Gen3 x8 mezzanine slot
- Dual 1200W 80 PLUS Platinum redundant power supply
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
-
Dimensions (WxHxD, mm)
- 2U
438 x 87 x 730
- 2U
-
Motherboard
- MZ92-FS0 Rev. 3.0
-

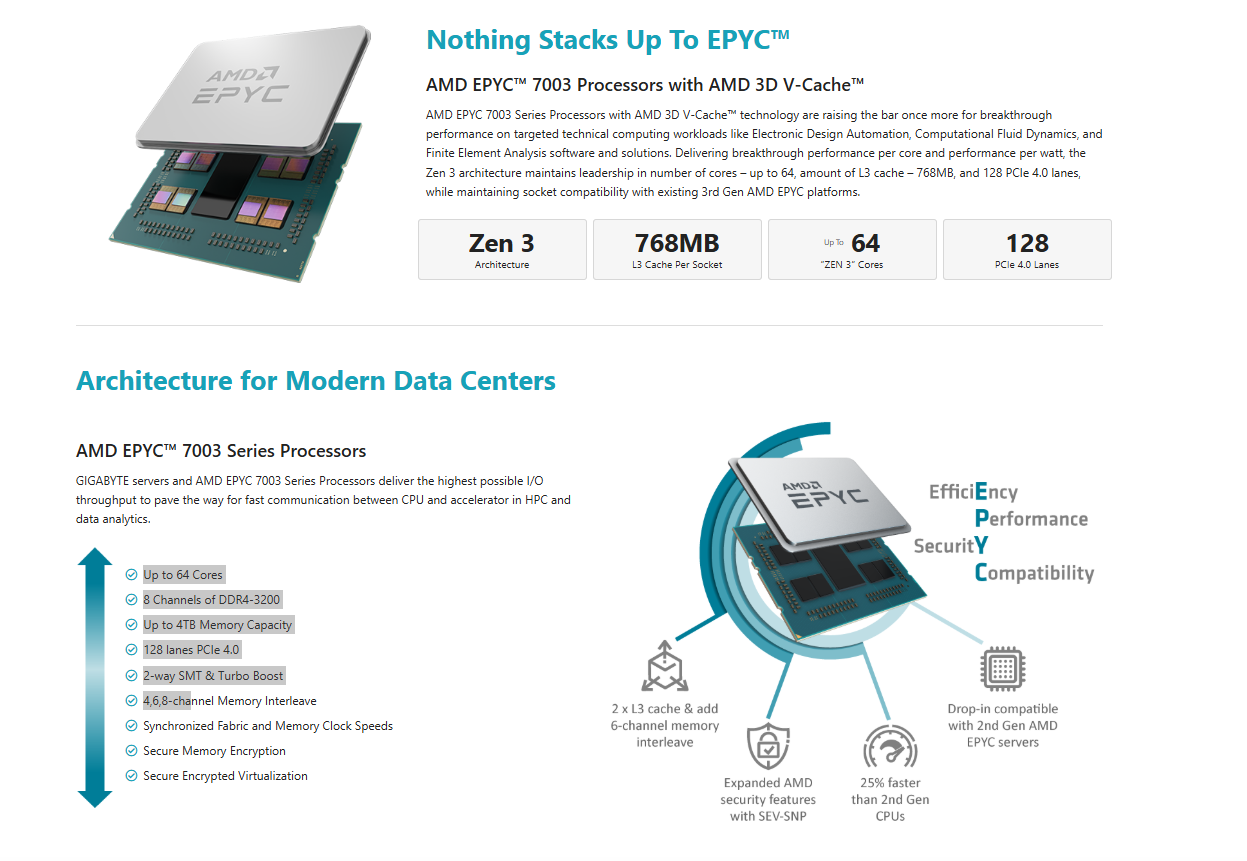

CPU
- AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
cTDP up to 280W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
- AMD EPYC™ 7003 Series Processors
-
Socket
- 2 x LGA 4094
Socket SP3
- 2 x LGA 4094
-
Chipset
- System on Chip
-
Memory
- 32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported

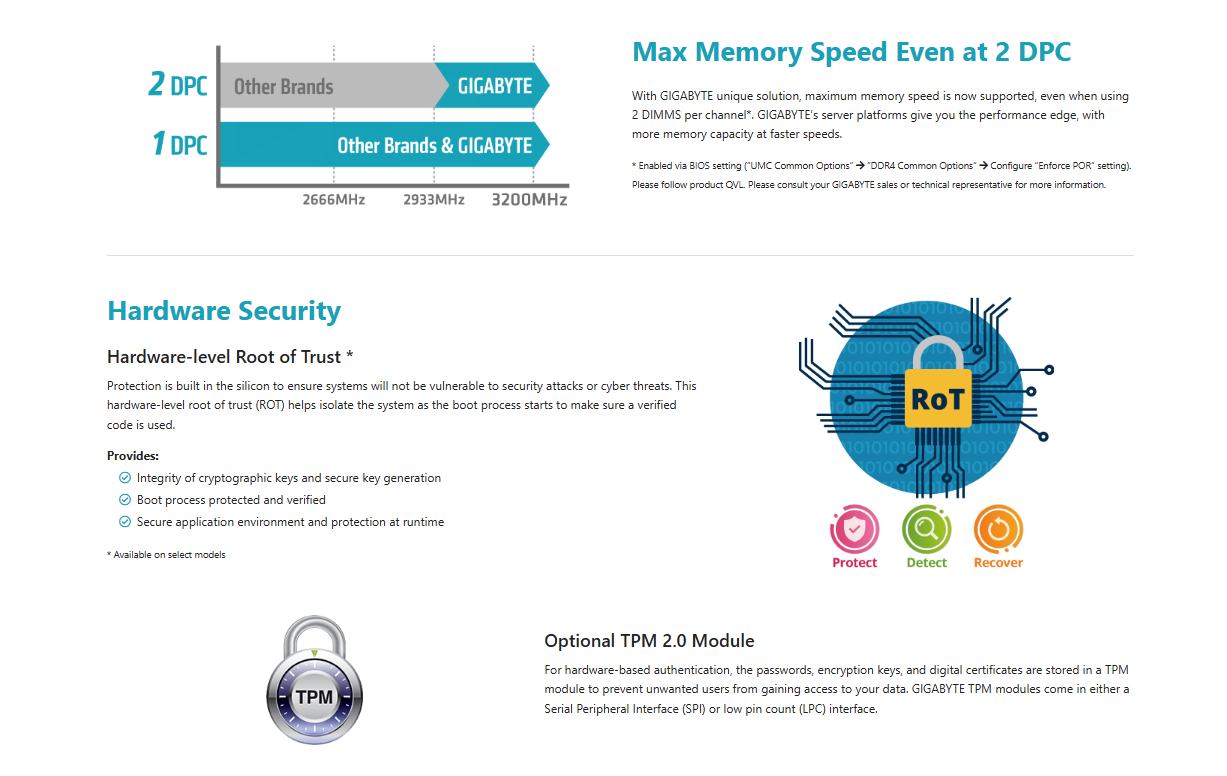

Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
- 32 x DIMM slots
-
LAN
- Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
- Rear side:
-
Video
- Integrated in Aspeed® AST2500
- 1 x VGA port
- Integrated in Aspeed® AST2500
-
Storage
- Front side:
12 x 3.5"/2.5" SATA/SAS hot-swappable bays
- (8 x from CPU_0, 4 x from CPU_1)
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays, from CPU_1
Front side default configuration supports:
12 x SATA drives
or
4 x SATA drives
8 x SAS drives via SAS HBA
SAS card is required for SAS devices support
- Front side:
-
SAS
- Depends on SAS add-in cards
-
RAID
- N/A
-
Expansion Slots
- Riser Card CRS2027:
- 2 x PCIe x8 (Gen4 x8) low-profile slots, from CPU_1
Riser Card CRS2033 x 2:
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0
- 2 x PCIe x8 (Gen4 x8) FHHL slots, from CPU_0
- 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1
- 2 x PCIe x8 (Gen4 x8) FHHL slots, from CPU_1
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth (Type1, P1, P2), from CPU_1
Supports NCSI function
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 225W if using M.2 device
- Riser Card CRS2027:
-
Internal I/O
- 1 x TPM header
-
Front I/O
- 2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
- 2 x USB 3.0
-

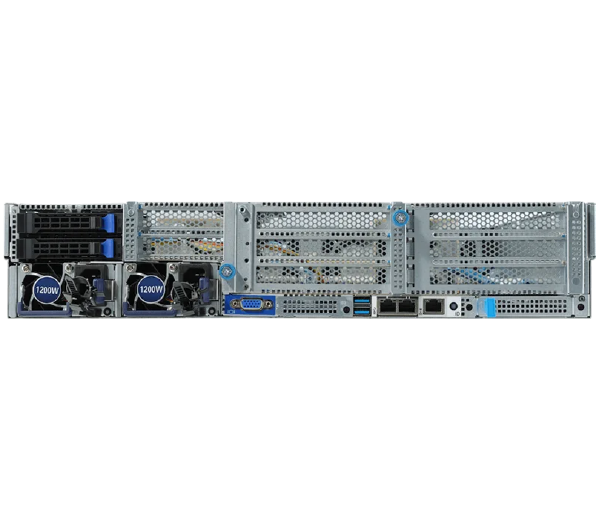

Rear I/O
- 2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
- 2 x USB 3.0
-
Backplane Board
- Speed and bandwidth:
Front side - CBP20C4: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2020: SATA 6Gb/s or SAS 12Gb/s
- Speed and bandwidth:
-
TPM
- 1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- 1 x TPM header with SPI interface
-
Power Supply[#1]
- Dual 1200W 80 PLUS Platinum redundant power supply
AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz
DC Input: (Only for China):
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+12V/ 82A
+12Vsb/ 2A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 98A
+12Vsb/ 2A
Note: Select 1600W power supply if using 280W CPUs with full loading configuration.
- Dual 1200W 80 PLUS Platinum redundant power supply
-
System Management
- Aspeed® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
- Aspeed® AST2500 Baseboard Management Controller
-
OS Compatibility
- Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.5 Update3
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
- Citrix Hypervisor 8.2.0 or later
-
System Fans
- 4 x 80x80x38mm (16,300rpm)
-
Operating Properties
- Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
- Operating temperature: 10°C to 35°C
-
Weight
- Net Weight: 18 kg
Gross Weight: 25.5 kg
- Net Weight: 18 kg
-
Packaging Dimensions
- 982 x 588 x 268 mm
-
Packaging Content
- 1 x R282-Z90
2 x CPU heatsinks
1 x 2-Section Rail kit
- 1 x R282-Z90
-
Part Numbers
- - Barebone package: 6NR282Z90MR-00-A*
- Motherboard: 9MZ92FS0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Backplane board - CBP20C4: 9CBP20C4NR-00
- Backplane board - CBP2020: 9CBP2020NR-00
- Front panel board - CFP2001: 9CFP2001NR-00
- Fan module: 25ST2-883829-D0R
- Riser card - CRS2027: 9CRS2027NR-00
- Riser card - CRS2033: 9CRS2033NR-00
- Power supply: 25EP0-212008-D0S
Optional parts:
- 4 x NVMe kit: 6NR282Z9BSR-00-100
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
- RMA packaging: 6NR282Z90SR-RMA-A100
- - Barebone package: 6NR282Z90MR-00-A*
