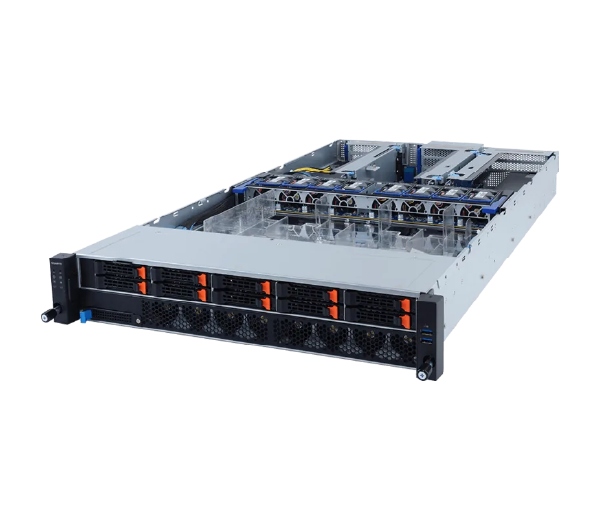

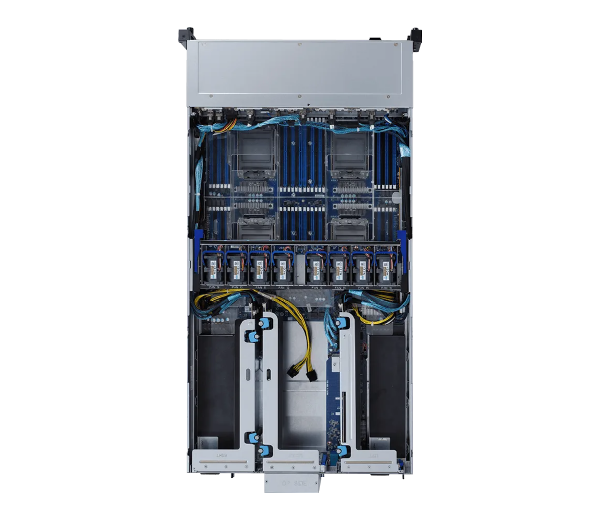

R292-4S0
4-Way Rack Server - 3rd Gen Intel® Xeon® Scalable - 2U QP 4 x PCIe Gen3 GPUs
- Supports up to 4 x Dual slot Gen3 GPUs
- Quad 3rd Gen Intel® Xeon® Scalable Processors
- 6-Channel DDR4 RDIMM/LRDIMM, 48 x DIMMs
- Supports Intel® Optane™ Persistent Memory 200 series
- 2 x 10Gb/s LAN ports via Intel® X710-AT2
- 10 x 2.5" Gen3 NVMe/SAS/SATA hot-swappable bays
- 1 x M.2 slot with PCIe Gen3 x2 interface
- 6 x FHFL PCIe Gen3 x16 slots
- 1 x OCP 3.0 Gen3 x16 slot on the front side
- Dual 3200W 80 PLUS Platinum redundant power supply
-
Dimensions (WxHxD, mm)
- 2U
438 x 87.5 x 858
- 2U
-
Motherboard
- MRQ2-4S0
-
CPU
- 3rd Generation Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum 8300 Processors
Intel® Xeon® Gold 6300 Processors
6 UPI Links per processor
Quad processor, TDP up to 165W
- 3rd Generation Intel® Xeon® Scalable Processors
-
Socket
- 4 x LGA 4189
Socket P5
- 4 x LGA 4189
-
Chipset
- Intel® C621A
-
Memory
- Total 48 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
Supports Intel® Optane™ Persistent Memory 200 series
1.2V modules: 3200 (1DPC)/2933 (2DPC) MT/s
- Total 48 x DIMM slots
-
LAN
- Rear side:
2 x 10Gb/s LAN ports (1 x Intel® X710-AT2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
- Rear side:
-
Video
- Integrated in Aspeed® AST2500
- 1 x VGA port
- Integrated in Aspeed® AST2500
-
Storage
- Front side:
10 x 2.5" Gen3 NVMe/SAS/SATA hot-swappable bays
SAS card is required for SAS devices support
- Front side:
-
SATA
- Supported
-
SAS
- Depends on SAS add-in cards
-
RAID
- Intel® SATA RAID 0/1/10/5
-
Expansion Slots
- Supports 4 x FHFL Dual slot GPUs or 6 x FHFL PCIe HBAs
Riser Card CRS202A:
- 2 x PCIe x16 (Gen3 x16) FHFL slots, from CPU_0 and CPU_1
Riser Card CRS2040:
- 2 x PCIe x16 (Gen3 x16) FHFL slots, from CPU_0 and CPU_3
Riser Card CRS2029:
- 2 x PCIe x16 (Gen3 x16) FHFL slots, from CPU_2 and CPU_3
1 x OCP 3.0 slot with PCIe Gen3 x16 bandwidth (Supports OCP 3.0 SFF standard), from CPU_1
1 x M.2 slot:
- M-key
- PCIe Gen3 x2, from PCH
- Supports 2280 cards
- Supports 4 x FHFL Dual slot GPUs or 6 x FHFL PCIe HBAs
-
Internal I/O
- 1 x TPM header
1 x VROC connector
- 1 x TPM header
-

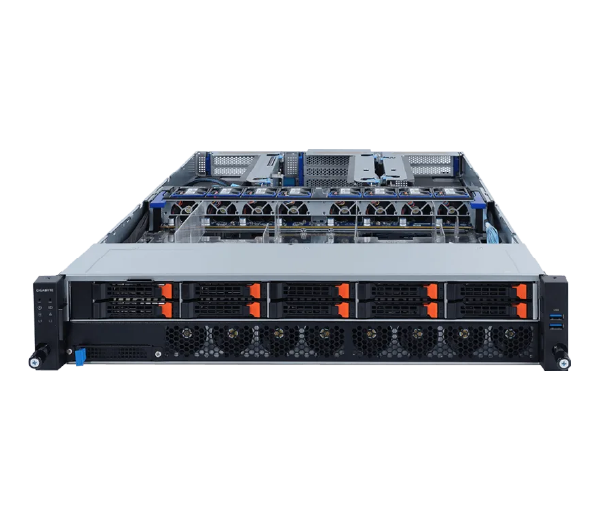

Front I/O
- 2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
- 2 x USB 3.0
-

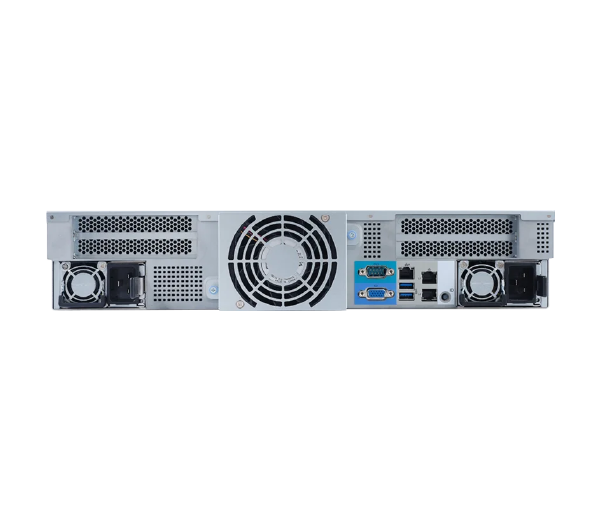

Rear I/O
- 2 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
- 2 x USB 3.0
-
Backplane Board
- Speed and bandwidth:
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
- Speed and bandwidth:
-
TPM
- 1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- 1 x TPM header with SPI interface
-
Power Supply[#1]
- Dual 3200W 80 PLUS Platinum redundant power supply
AC Input:
- 100-127V~/ 14A, 50/60Hz
- 200-208V~/ 16A, 50/60Hz
- 214-234V~/ 16A, 50/60Hz
- 240V~/ 16A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1106W/ 100-127V~
+12.3V/ 87A
+12Vsb/ 3A
- Max 2434W/ 200-208V~
+12.3V/ 195A
+12Vsb/ 3A
- Max 2828W/ 214-234V~
+12.3V/ 227A
+12Vsb/ 3A
- Max 3234W/ 240V~ or 240Vdc Input
+12.3V/ 260A
+12Vsb/ 3A
Note: The system power supply requires C19 power cord.
Note: 1+1 3000W redundant supported if without GPU card installed.
- Dual 3200W 80 PLUS Platinum redundant power supply
-
System Management
- Aspeed® AST2500 Baseboard Management Controller
Avocent® MergePoint IPMI 2.0 web interface:
Network settings
Network security settings
Hardware information
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Fan profiles
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (HTML5)
- Aspeed® AST2500 Baseboard Management Controller
-
OS Compatibility
- Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 7.9 or later
Red Hat Enterprise Linux 8.2 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 7.0 U1 or later
VMware ESXi 8.0 or later
Windows Server 2016
Windows Server 2019
Windows Server 2022
- Citrix Hypervisor 8.2.0 or later
-
System Fans
- 16 x 40x40x56mm (29,000rpm)
1 x 80x80x38mm (16,300rpm)
- 16 x 40x40x56mm (29,000rpm)
-
Operating Properties
- *Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
*Please contact GIGABYTE technical support for optimized temperature if installed with 4 x GPUs.
- *Operating temperature: 10°C to 35°C
-
Packaging Dimensions
- 1177 x 670 x 291 mm
-
Packaging Content
- 1 x R292-4S0
4 x CPU heatsinks
1 x 2-Section Rail kit
- 1 x R292-4S0
-
Part Numbers
- - Barebone package: 6NR2924S0MR-00-1*
- Motherboard: 9MRQ24S0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-243104-C1R
- M.2 heatsink: 12SP2-080027-00R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP10A5: 9CBP10A5NR-00
- Fan module: 25ST2-405624-A0R
- Fan module: 25ST2-405625-A0R
- Fan module: 25ST2-405626-A0R
- Fan module: 25ST2-405627-A0R
- Fan module: 25ST2-883827-D0R
- Riser card - CRS202A: 9CRS202ANR-00
- Riser card - CRS2040: 9CRS2040NR-00
- Riser card - CRS2029: 9CRS2029NR-00
- Power supply: 25EP0-232002-D0S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- - Barebone package: 6NR2924S0MR-00-1*
