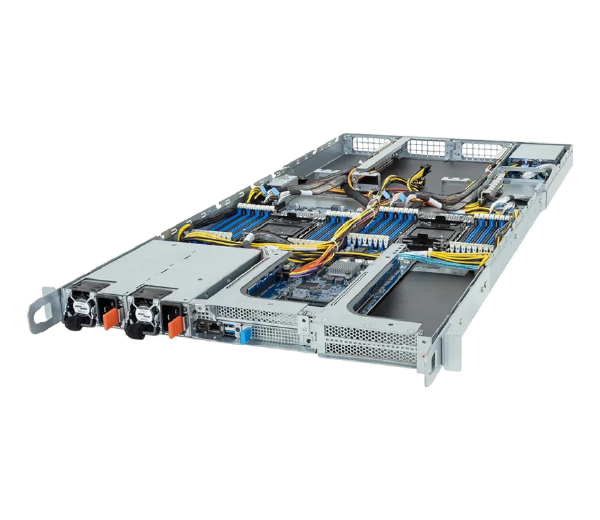

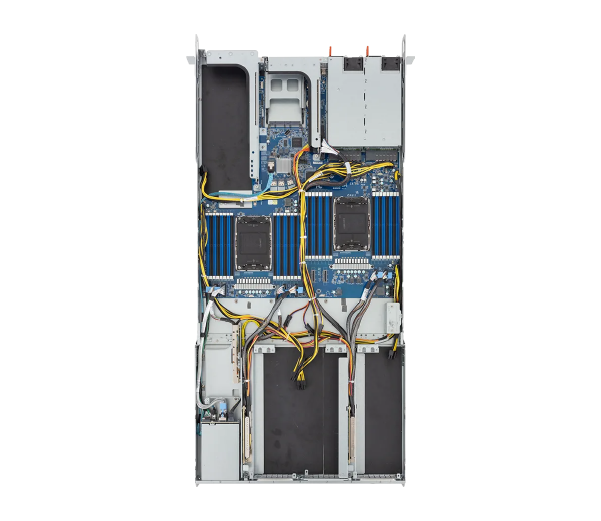

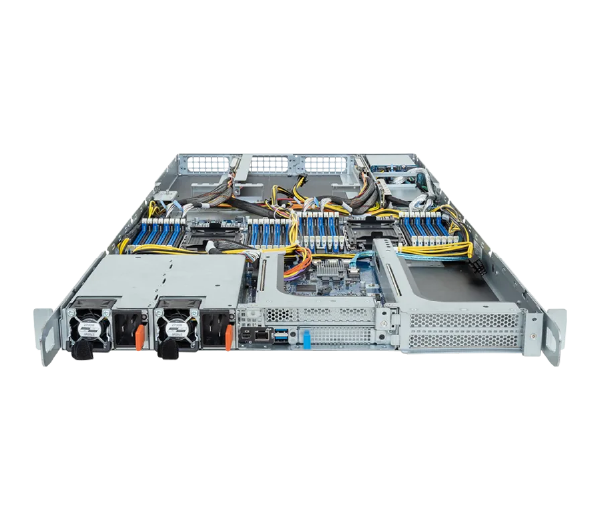

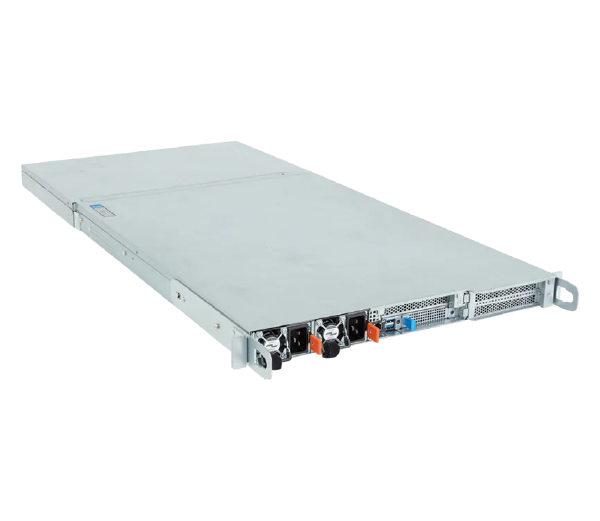

R183-SF2-IAL1

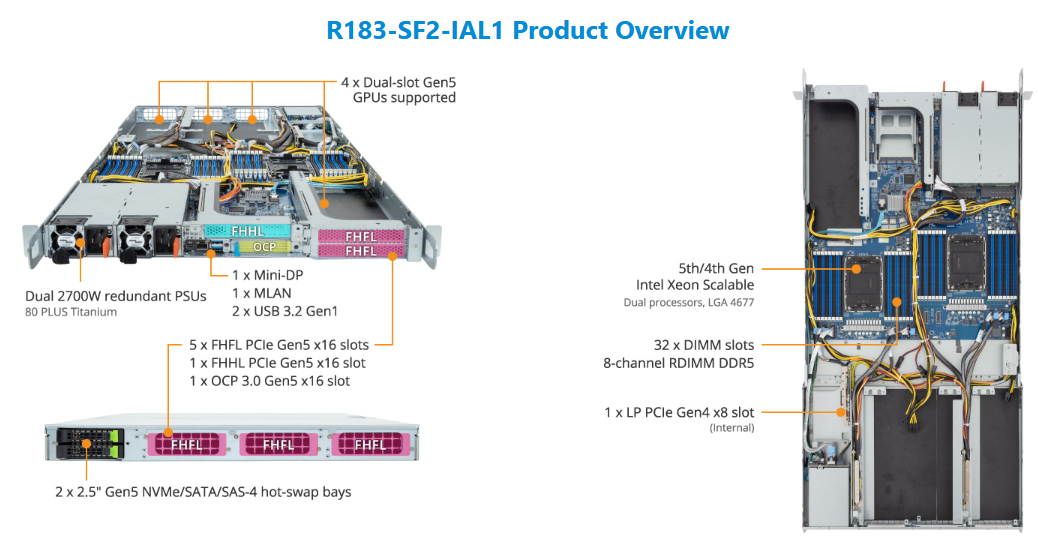

Rack Server - 5th/4th Gen Intel® Xeon® Scalable - 1U DP 4 x PCIe Gen5 GPUs Immersion

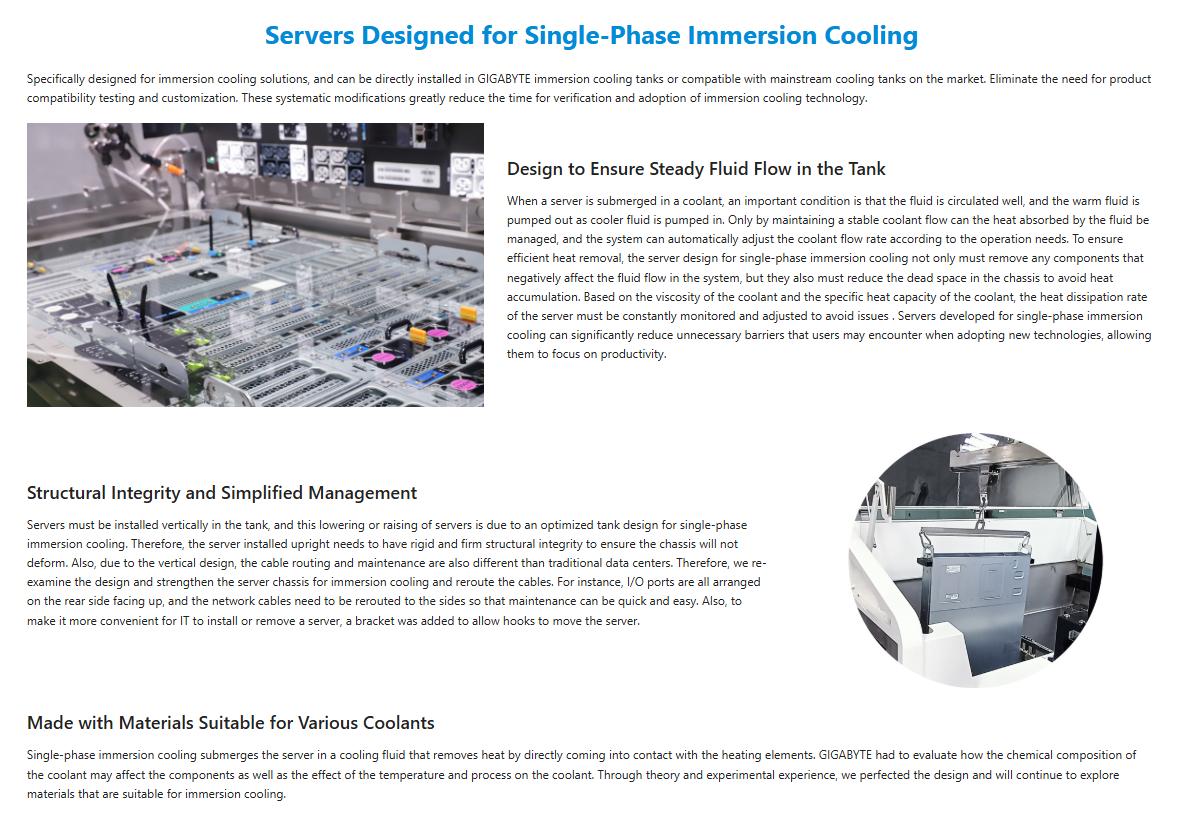

  • Immersion Cooling Server
  • Supports up to 4 x Dual slot Gen5 GPUs
  • Dual 5th/4th Gen Intel® Xeon® Scalable Processors
  • Dual Intel® Xeon® CPU Max Series
  • 8-Channel DDR5 RDIMM, 32 x DIMMs
  • Dual ROM Architecture

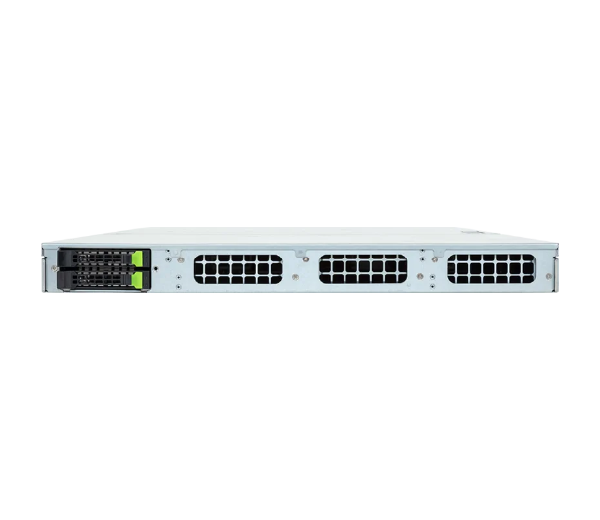

  • 2 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 4 x FHFL PCIe Gen5 x16 slots for GPUs
  • 1 x FHFL PCIe Gen5 x16 slot
  • 1 x FHHL PCIe Gen5 x16 slot
  • 1 x Internal LP PCIe Gen4 x8 slot
  • 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
  • Dual 2700W 80 PLUS Titanium redundant power supply
  • Ordering Numbers: 6NR183SF2DR000IBL1*
문의하기 데이터시트














[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

  • Dimensions (WxHxD, mm)

    • 1U
      448 x 43.5 x 900

  • Motherboard

    • MSF3-GP0

  • CPU

    • 5th Generation Intel® Xeon® Scalable Processors
      4th Generation Intel® Xeon® Scalable Processors
      Intel® Xeon® CPU Max Series
      Dual processor, TDP up to 350W

      [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

  • Socket

    • 2 x LGA 4677
      Socket E

  • Chipset

    • Intel® C741

  • Memory

    • 32 x DIMM slots
      DDR5 memory supported
      8-Channel memory per processor

      5th Gen Intel® Xeon®:
      RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)

      4th Gen Intel® Xeon®:
      RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

      Intel® Xeon® Max Series:
      RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

  • LAN

    • Top:
      1 x 10/100/1000 Mbps Management LAN

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x Mini-DP

  • Storage

    • Bottom hot-swap:
      2 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
      - (NVMe from CPU_0)

      [1] SAS card is required to support SAS devices.

  • SAS

    • Require SAS add-in cards

  • RAID

    • Intel® SATA RAID 0/1/10/5
      Onboard VROC key header

      Support optional RAID add-in cards

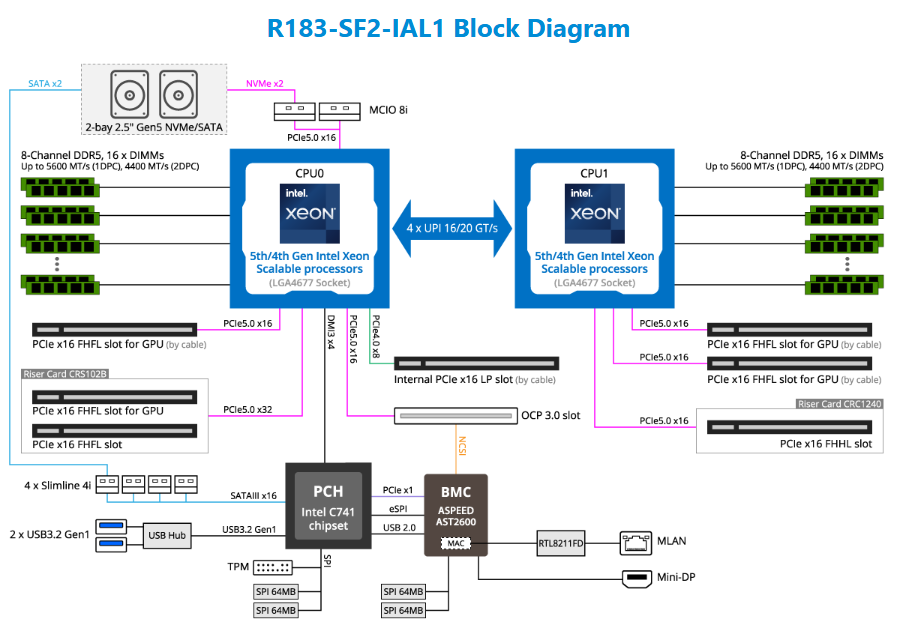

  • PCIe Expansion Slots

    • PCIe Cable x 4:
      - 1 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
      - 2 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
      - 1 x Internal LP x16 (Gen4 x8), from CPU_0

      Riser Card CRC1240:
      - 1 x FHHL x16 (Gen5 x16), from CPU_1

      Riser Card CRS102B:
      - 1 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
      - 1 x FHFL x16 (Gen5 x16), from CPU_0 [1]

      1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
      - Supports NCSI function

      [1] Blocked when a Dual slot GPU is installed.

  • Top I/O

    • 2 x USB 3.2 Gen1 ports (Type-A)
      1 x Mini-DP
      1 x MLAN port
      1 x ID LED

  • Backplane Board

    • Speed and bandwidth:
      PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM010

  • Power Supply[#1]

    • Dual 2700W 80 PLUS Titanium redundant power supply [1]

      AC Input:
      - 100-127V~/ 12A, 50-60Hz
      - 200-240V~/ 16A, 50-60Hz

      DC Input: (Only for China)
      - 240Vdc/ 16A

      DC Output:
      - Max 1008W/ 100-127V~
      +12V/ 84A
      +12Vsb/ 3A
      - Max 2700W/ 200-240V~ or 240Vdc Input
      +12V/ 225A
      +12Vsb/ 3A

      [1] The system power supply requires C19 power cord.

  • System Management

    • ASPEED® AST2600 Baseboard Management Controller
      GIGABYTE Management Console web interface

      Dashboard
      HTML5 KVM
      Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
      Sensor Reading History Data
      FRU Information
      SEL Log in Linear Storage / Circular Storage Policy
      Hardware Inventory
      Fan Profile
      System Firewall
      Power Consumption
      Power Control
      Advanced power capping
      LDAP / AD / RADIUS Support
      Backup & Restore Configuration
      Remote BIOS/BMC/CPLD Update
      Event Log Filter
      User Management
      Media Redirection Settings
      PAM Order Settings
      SSL Settings
      SMTP Settings

  • OS Compatibility

    • Please refer to OS compatibility table in support page

      Additional certifications:
      Windows Server 2025

  • Operating Properties

    • Operating coolant temperature: 25°C to 35°C
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20%-95% (non-condensing)

  • Packaging Dimensions

    • 1178 x 782 x 257 mm

  • Packaging Content

    • 1 x R183-SF2-IAL1
      2 x CPU heatsinks
      1 x Mini-DP to D-Sub cable
      2 x GPU power cables (12VHPWR, 400mm)
      1 x GPU power cable (12VHPWR, 500mm)
      1 x GPU power cable (12VHPWR, 650mm)
      6 x Carriers

  • Part Numbers

    • - Barebone package: 6NR183SF2DR000IBL1*
      - Motherboard: 9MSF3GP0UR-000*
      - CPU heatsink: 25ST1-4534Z0-S7R
      - Backplane board - CBP2025: 9CBP2025NR-00*
      - Riser card - CRC1240: 9CRC1240NR-00*
      - Riser card - CRS102B: 9CRS102BNR-00*
      - Mini-DP to D-Sub cable: 25CRN-200801-K1R
      - GPU power cable (12VHPWR, 400mm): 25CRI-4003B1-Y4R
      - GPU power cable (12VHPWR, 400mm): 25CRI-4003B2-Y4R
      - GPU power cable (12VHPWR, 500mm): 25CRI-5003B1-Y4R
      - GPU power cable (12VHPWR, 650mm): 25CRI-6503B0-Y4R
      - Power supply: 25EP0-227001-D0S
