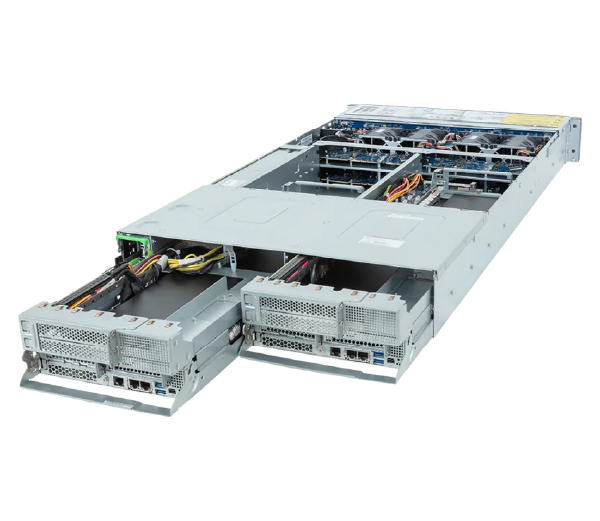

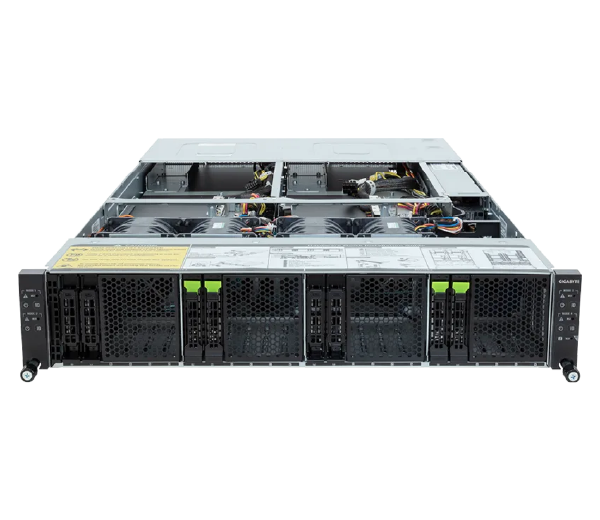

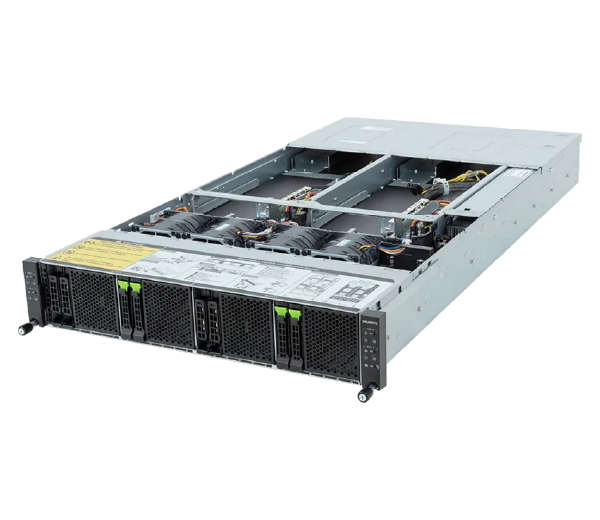

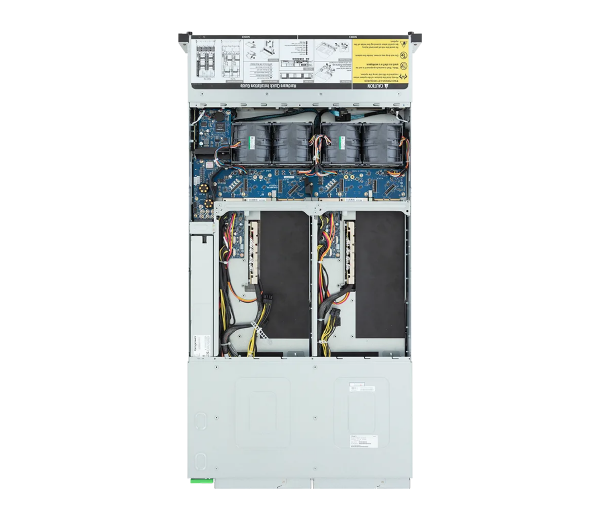

H233-Z80-AAW1

High Density Server - AMD EPYC™ 9005/9004 - 2U 2-Node DP 4 x PCIe Gen5 GPUs 3000W

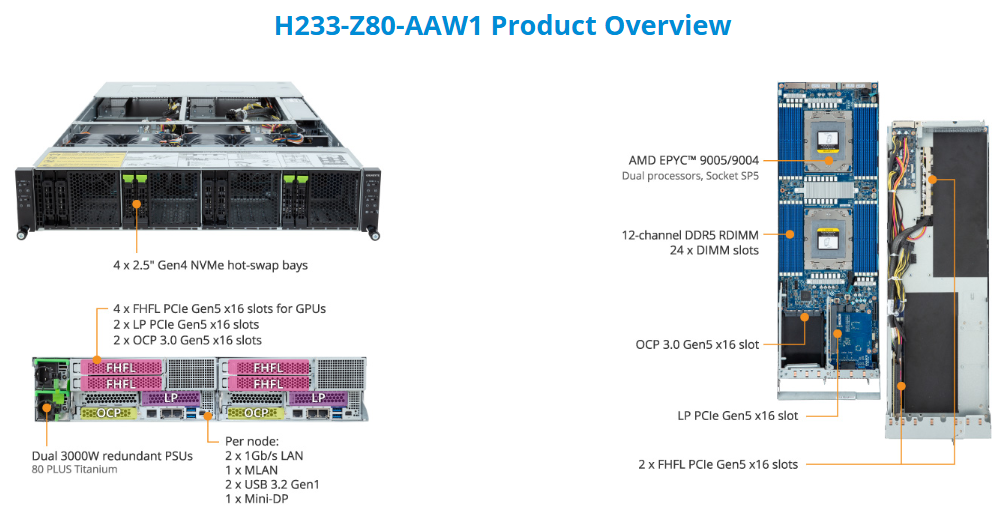

  • Supports up to 4 x Dual slot Gen5 GPUs
  • 2U 2-node rear access server system
  • Dual AMD EPYC™ 9005/9004 Series Processors per node
  • 12-Channel DDR5 RDIMM, 24 x DIMMs per node
  • Dual ROM Architecture
  • 4 x 1Gb/s LAN ports via Intel® I350-AM2

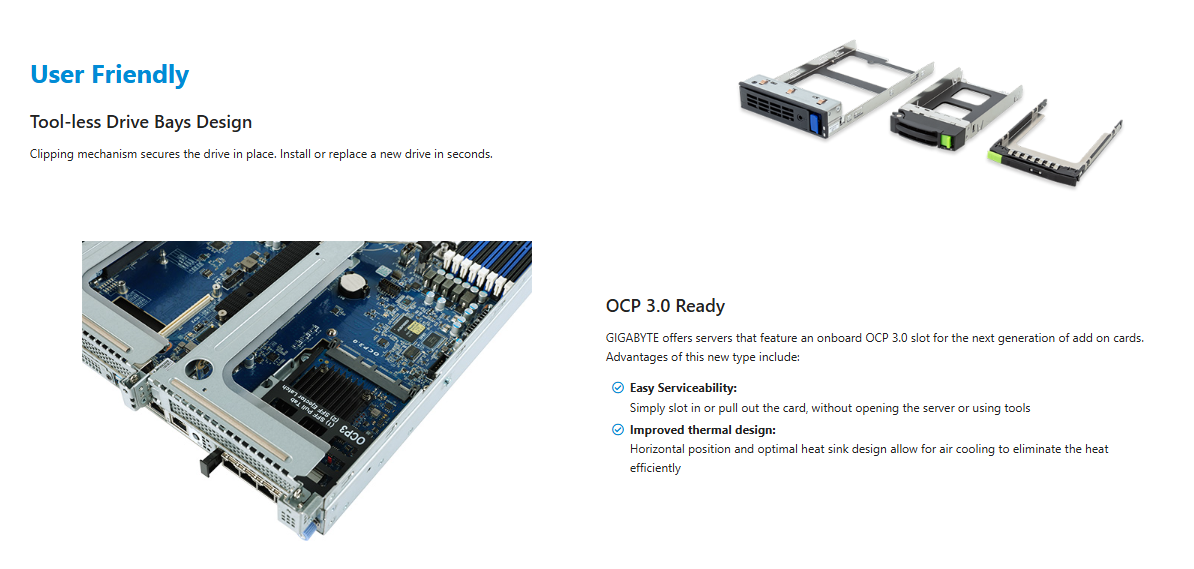

  • 4 x 2.5" Gen4 NVMe hot-swap bays
  • 4 x FHFL PCIe Gen5 x16 slots for GPUs
  • 2 x LP PCIe Gen5 x16 slots
  • 2 x OCP NIC 3.0 PCIe Gen5 x16 slots
  • Dual 3000W 80 PLUS Titanium redundant power supply
  • Ordering Numbers: 6NH233Z80DR000ACW1*
문의하기 데이터시트

















[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

  • Dimensions (WxHxD, mm)

    • 2U 2-Node - Rear access
      440 x 87.5 x 877

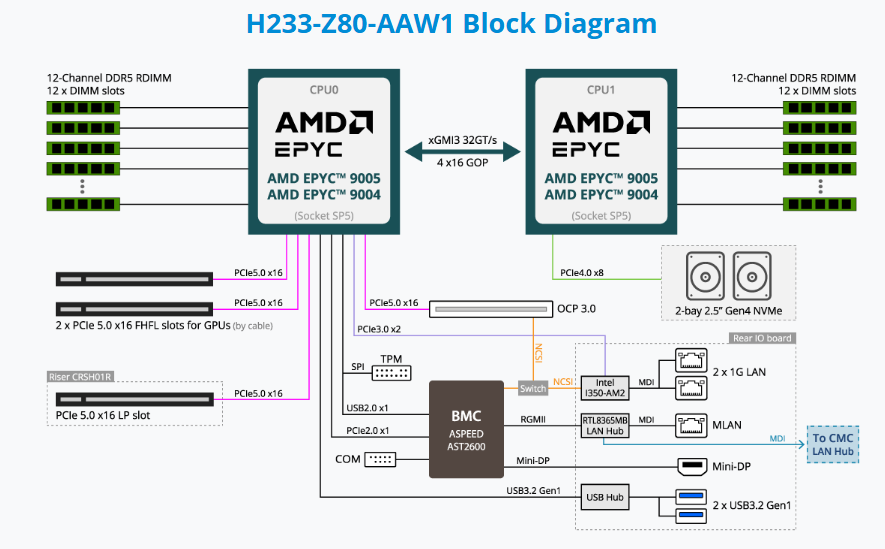

  • Motherboard

    • MZ83-HD0

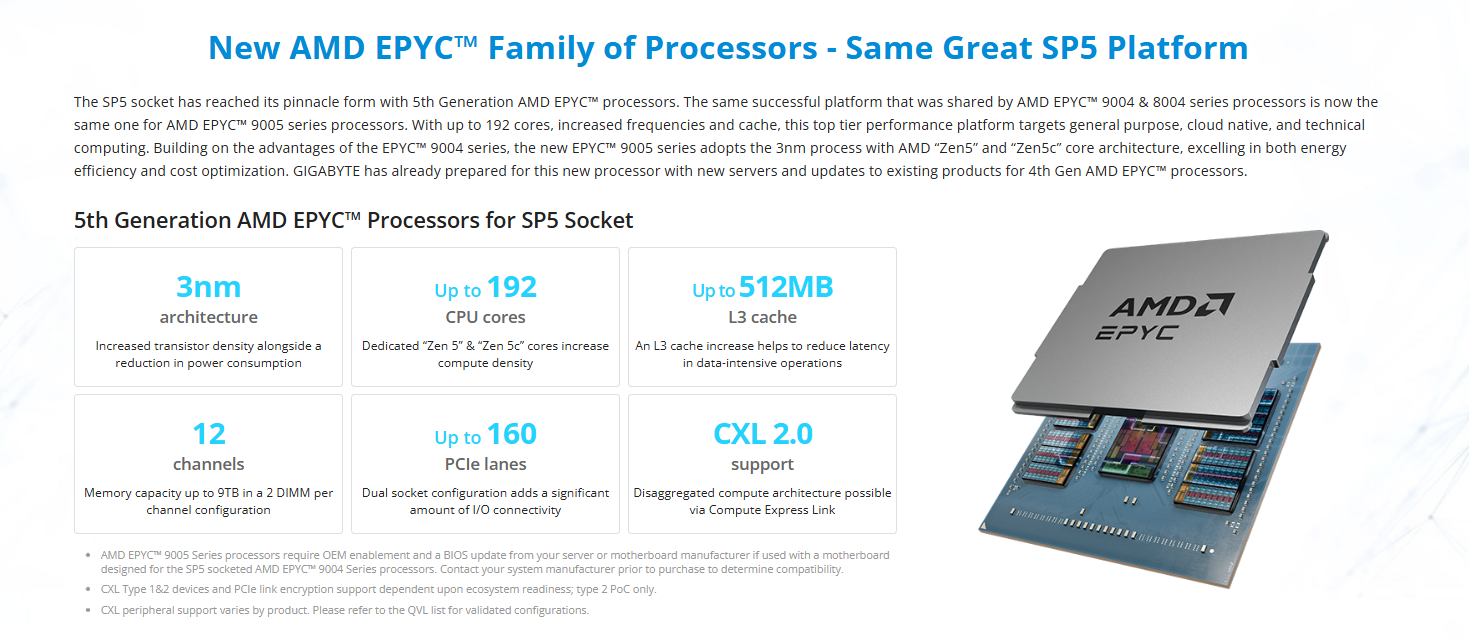

  • CPU

    • AMD EPYC™ 9005 Series Processors
      AMD EPYC™ 9004 Series Processors

      Dual processor per node, cTDP up to 240W

      [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

  • Socket

    • 4 x LGA 6096
      Socket SP5

  • Chipset

    • System on Chip

  • Memory

    • 48 x DIMM slots
      DDR5 memory supported
      12-Channel memory per processor

      AMD EPYC™ 9005:
      RDIMM: Up to 6400 MT/s

      AMD EPYC™ 9004:
      RDIMM: Up to 4800 MT/s

  • LAN

    • Rear:
      4 x 1Gb/s LAN (2 x Intel® I350-AM2)
      - Support NCSI function

      2 x 10/100/1000 Mbps Management LAN

      [Note] Spanning Tree Protocol (STP) must be enabled on LAN switches when using a ring topology.

  • Video

    • Integrated in ASPEED® AST2600 x 2
      - 2 x Mini-DP

  • Storage

    • Front hot-swap:
      4 x 2.5" Gen4 NVMe
      - (NVMe from CPU_1)

  • SAS

    • N/A

  • RAID

    • Require RAID add-in cards

  • PCIe Expansion Slots

    • PCIe Cable x 4:
      - 4 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs

      Riser Card CRSH01R x 2:
      - 2 x LP x16 (Gen5 x16), from CPU_0

      2 x OCP NIC 3.0 (Gen5 x16), from CPU_0
      - Support NCSI function

  • Front I/O

    • 4 x Power buttons with LED (2 x buttons disabled)
      4 x ID buttons with LED (2 x buttons disabled)
      4 x Reset buttons (2 x buttons disabled)
      4 x System status LEDs (2 x LEDs disabled)
      1 x CMC status LED
      1 x CMC reset button

      [Note] Node 1 and Node 3 are disabled.

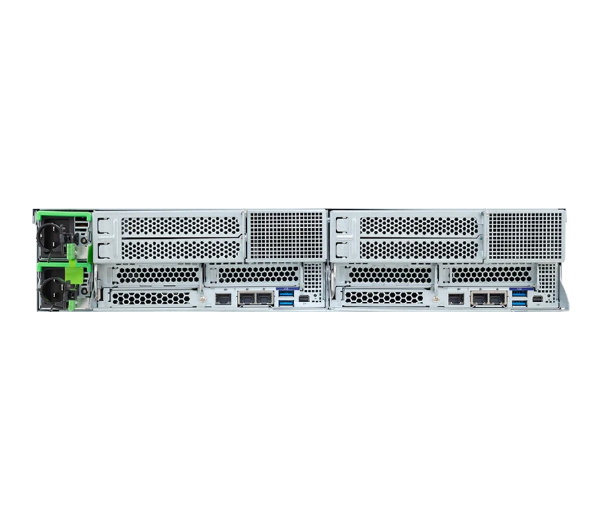

  • Rear I/O

    • 4 x USB 3.2 Gen1 ports (Type-A)
      2 x Mini-DP
      4 x RJ45 ports
      2 x MLAN ports
      2 x System status LEDs

  • Backplane Board

    • Speed and bandwidth:
      PCIe Gen4 x4

  • Security Modules

    • 2 x TPM headers with SPI interface
      - Optional TPM2.0 kit: CTM010

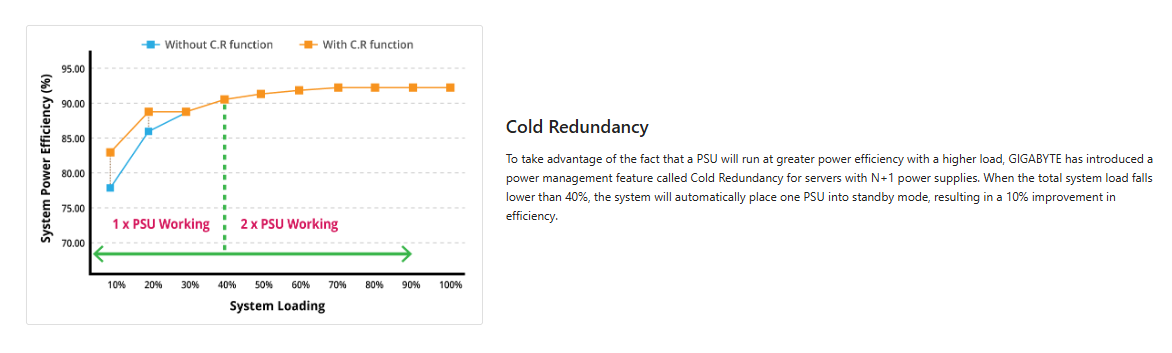

  • Power Supply[#1]

    • Dual 3000W 80 PLUS Titanium redundant power supply [1]

      AC Input:
      - 100-127V~/ 16A, 50/60Hz
      - 200-207V~/ 16A, 50/60Hz
      - 208-240V~/ 16A, 50/60Hz

      DC Input: (Only for China)
      - 240Vdc/ 16A

      DC Output:
      - Max 1200W/ 100-127V~
      +12.2V/ 98.36A
      +12.2Vsb/ 3A
      - Max 2600W/ 200-207V~
      +12.2V/ 213A
      +12.2Vsb/ 3A
      - Max 3000W/ 208-240V~ or 240Vdc Input
      +12.2V/ 245.9A
      +12.2Vsb/ 3A

      [1] The system power supply requires C19 power cord.

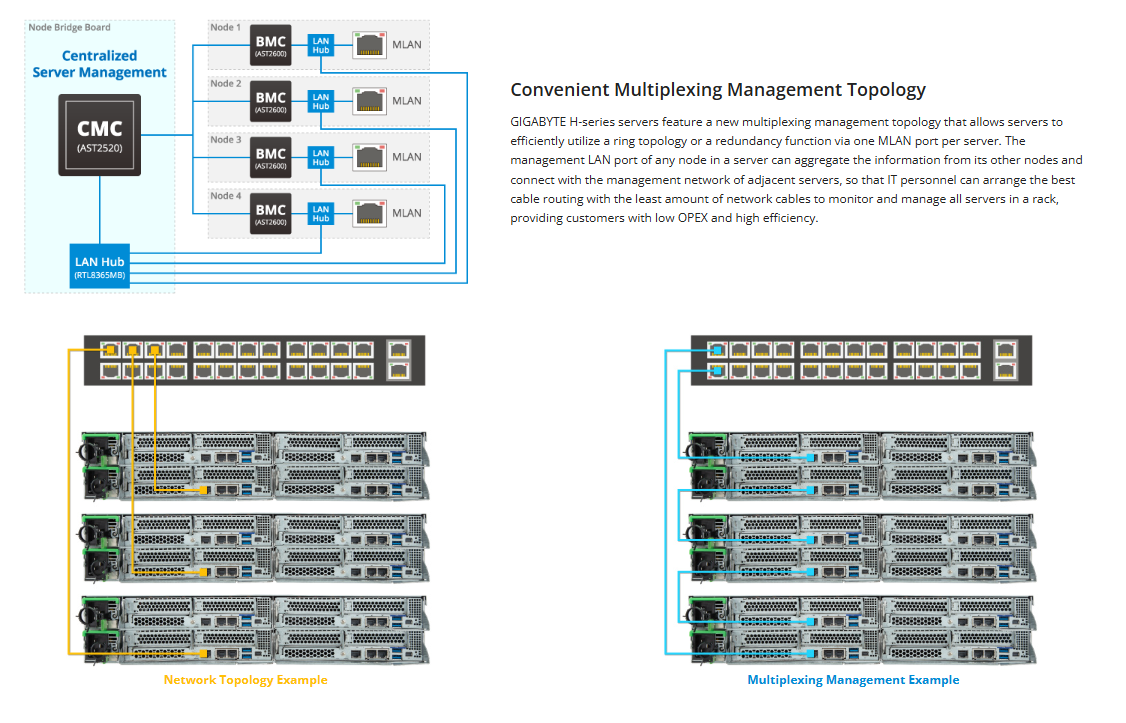

  • System Management

    • ASPEED® AST2600 Baseboard Management Controller
      ASPEED® AST2520 Chassis Management Controller
      GIGABYTE Management Console web interface

      Dashboard
      HTML5 KVM
      Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
      Sensor Reading History Data
      FRU Information
      SEL Log in Linear Storage / Circular Storage Policy
      Hardware Inventory
      Fan Profile
      System Firewall
      Power Consumption
      Power Control
      Advanced power capping
      LDAP / AD / RADIUS Support
      Backup & Restore Configuration
      Remote BIOS/BMC/CPLD Update
      Event Log Filter
      User Management
      Media Redirection Settings
      PAM Order Settings
      SSL Settings
      SMTP Settings

  • OS Certifications

    • Please refer to OS compatibility table in support page

      Additional certifications:
      Windows Server 2025

  • System Fans

    • 4 x 80x80x80mm (16,500rpm)

  • Operating Properties

    • Operating temperature: 10°C to 30°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

  • Weight

    • Net Weight: 43.31 kg
      Gross Weight: 48.31 kg

  • Packaging Dimensions

    • 1184 x 706 x 394 mm

  • Packaging Content

    • 1 x H233-Z80-AAW1
      4 x CPU heatsinks
      1 x Mini-DP to D-Sub cable
      4 x GPU power cables (CPU 8pin, 400mm)
      1 x 3-Section Rail Kit

  • Part Numbers

    • - Barebone package: 6NH233Z80DR000ACW1*
      - Motherboard: 9MZ83HD0UR-000-3*
      - 3-Section Rail kit: 25HB2-A66125-K0R
      - CPU heatsink: 25ST1-25320N-M1R/25ST1-25320Q-M1R
      - Front panel board - CFPH004: 9CFPH004NR-00*
      - Backplane board - CBPH081: 9CBPH081NR-00*
      - Fan module: 25ST2-888020-S1R
      - Riser card - CRSH01R: 9CRSH01RNR-00*
      - I/O board (incl. LAN chip) - CLBH160: 9CLBH160NR-00*
      - Mini-DP to D-Sub cable: 25CRN-200801-K1R
      - GPU power cable (CPU 8pin, 400mm): 25CRI-4001D0-B1R
      - Power supply: 25EP0-230009-L0S

      Optional parts:

      - RMA packaging: 6NH233Z80SR-RMA-A100
