R284-SF0-IAL1

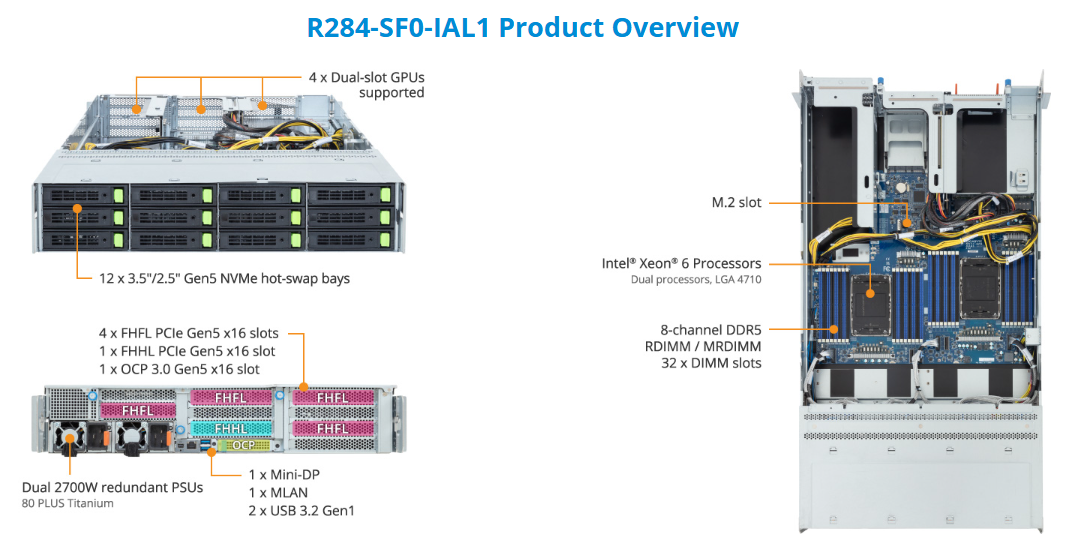

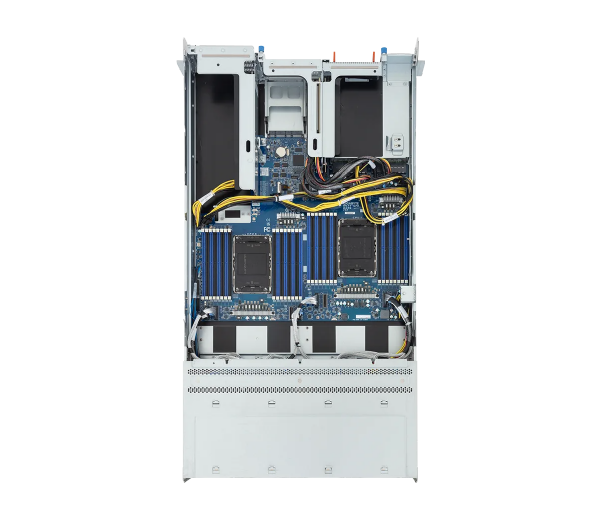

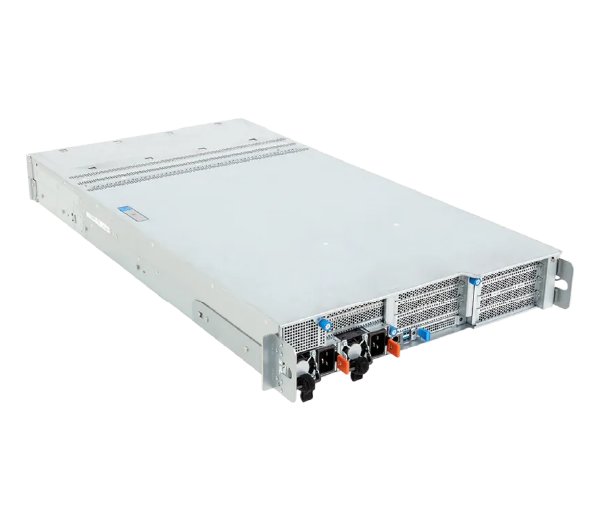

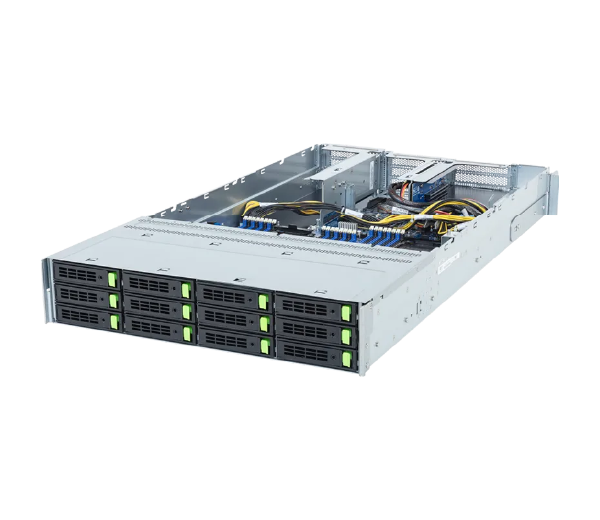

Rack Server - Intel® Xeon® 6 Processors - 2U DP 4 x PCIe Gen5 GPUs Immersion

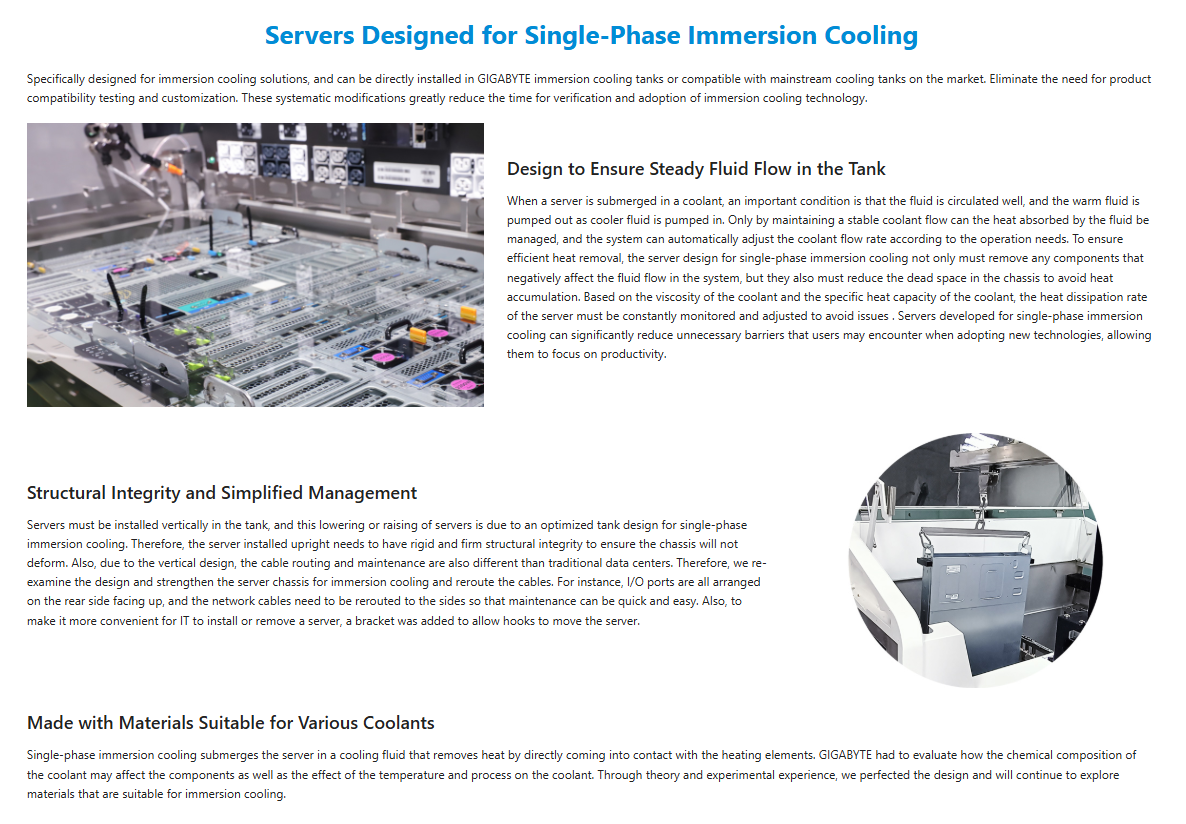

  • Immersion Cooling Server
  • Supports up to 4 x Dual slot Gen5 GPUs
  • Dual Intel® Xeon® 6700/6500-Series Processors
  • 8-Channel DDR5 RDIMM / MRDIMM, 32 x DIMMs
  • Dual ROM Architecture

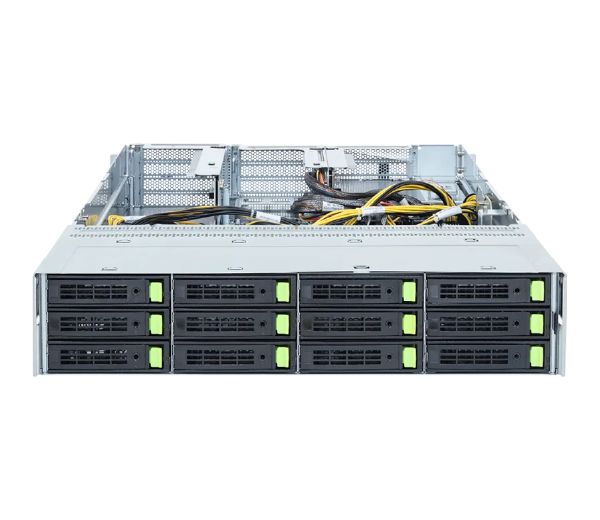

  • 12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 bays
  • 1 x M.2 slot with PCIe Gen5 x4 interface
  • 4 x FHFL PCIe Gen5 x16 slots for GPUs
  • 1 x FHHL PCIe Gen5 x16 slot
  • 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
  • 2 x 2700W 80 PLUS Titanium redundant power supplies
  • Ordering Numbers: 6NR284SF0DR000IAL1*
문의하기 데이터시트














[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

  • Dimensions (WxHxD, mm)

    • 2U
      438 x 87.5 x 815

  • Motherboard

    • MSF4-GP0

  • CPU

    • Intel® Xeon® 6 Processors
      - Intel® Xeon® 6700-Series Processors
      - Intel® Xeon® 6500-Series Processors

      Dual processor, TDP up to 350W

      [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

  • Socket

    • 2 x LGA 4710
      Socket E2

  • Chipset

    • System on Chip

  • Memory

    • 32 x DIMM slots
      Support DDR5 RDIMM/MRDIMM [1]
      8-Channel memory per processor
      RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
      MRDIMM: Up to 8000 MT/s

      [1] MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores and in a 1DPC configuration.

  • LAN

    • Top:
      1 x 10/100/1000 Mbps Management LAN

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x Mini-DP

  • Storage

    • Bottom:
      12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 [1]
      - (6 x NVMe from CPU_0, 6 x NVMe from CPU_1)

      Internal M.2:
      1 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_0

      [1] Storage card is required to support SATA and SAS drives.

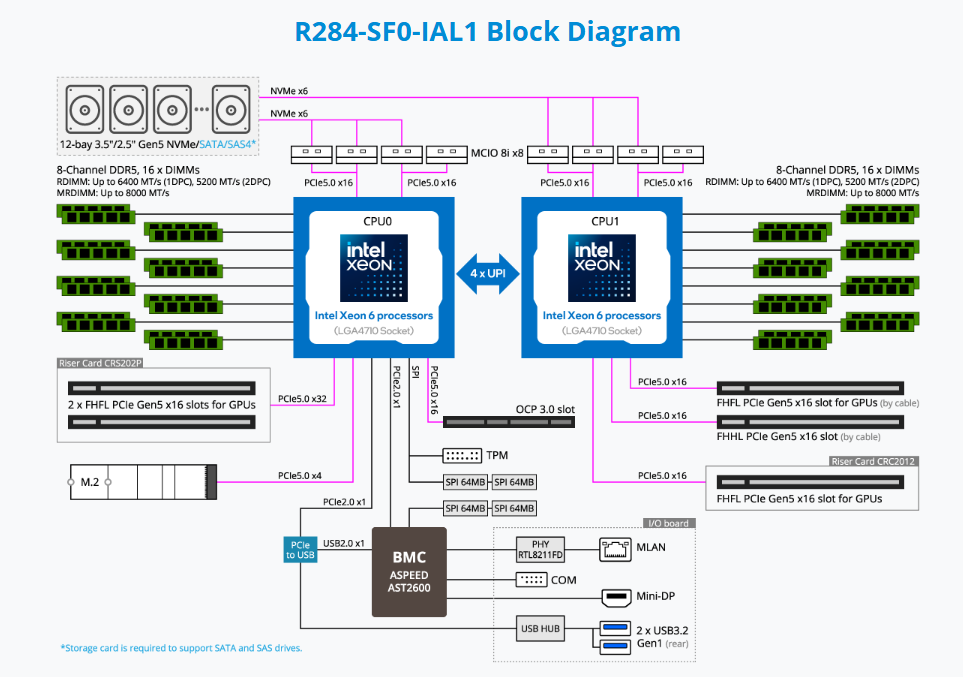

  • PCIe Expansion Slots

    • PCIe Cable x 2:
      - 1 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
      - 1 x FHHL x16 (Gen5 x16), from CPU_1

      Riser Card CRC2012:
      - 1 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs

      Riser Card CRS202P:
      - 2 x FHFL x16 (Gen5 x16), from CPU_0

      1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
      - Supports NCSI function

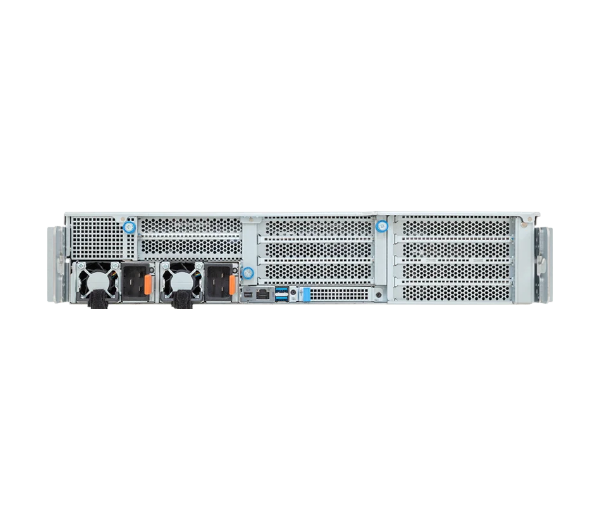

  • Top I/O

    • 2 x USB 3.2 Gen1 ports (Type-A)
      1 x Mini-DP
      1 x MLAN port
      1 x ID LED

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM012

      1 x PRoT connector (only enabled on RoT SKU)

  • Power Supply[#1]

    • 2 x 2700W 80 PLUS Titanium redundant power supplies [1]

      AC Input:
      - 100-127V~/ 12A, 50-60Hz
      - 200-240V~/ 16A, 50-60Hz

      DC Input: (Only for China)
      - 240Vdc/ 16A

      DC Output:
      - Max 1008W/ 100-127V~
      +12V/ 84A
      +12Vsb/ 3A
      - Max 2700W/ 200-240V~ or 240Vdc Input
      +12V/ 225A
      +12Vsb/ 3A

      [1] The system power supply requires C19 power cord.

  • OS Certifications

    • Windows Server 2022
      Windows Server 2025

  • Operating Properties

    • Operating coolant temperature: 20°C to 35°C
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

  • Packaging Dimensions

    • 1082 x 685 x 314 mm

  • Packaging Content

    • 1 x R284-SF0-IAL1
      2 x CPU heatsinks
      1 x Mini-DP to D-Sub cable
      1 x GPU power cable (16-pin, 100mm)
      1 x GPU power cable (16-pin, 280mm)
      1 x GPU power cable (16-pin, 450mm)
      1 x GPU power cable (16-pin, 550mm)
      4 x Carriers

  • Part Numbers

    • - Barebone package: 6NR284SF0DR000IAL1*
      - Motherboard: 9MSF4GP0UR-000*
      - CPU heatsink: 25ST1-453219-C1R
      - Backplane board - CBP20C7: 9CBP20C7NR-00*
      - Riser card - CRC2012: 9CRC2012NR-00*
      - Riser card - CRS202P: 9CRS202PNR-00*
      - I/O board - CBG70: 9CBG70NR-00*
      - Mini-DP to D-Sub cable: 25CRN-200801-K1R
      - GPU power cable (16-pin, 100mm): 25CRI-1000B2-Y4R
      - GPU power cable (16-pin, 280mm): 25CRI-3000B2-Y4R
      - GPU power cable (16-pin, 450mm): 25CRI-4500B0-Y4R
      - GPU power cable (16-pin, 550mm): 25CRI-5500B0-Y4R
      - Power supply: 25EP0-227003-D0S
