R264-SG0-AAS1

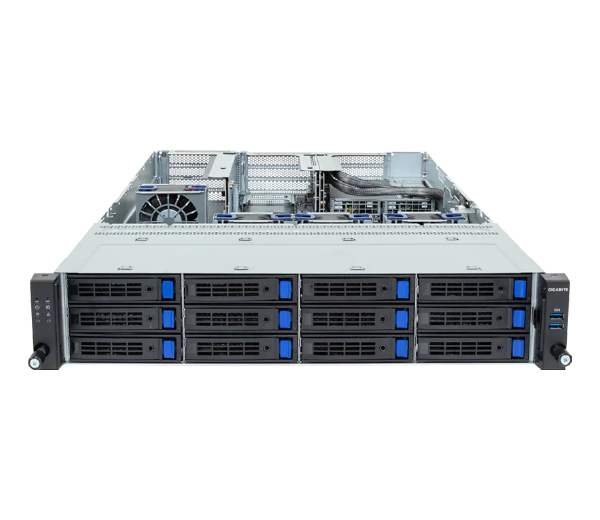

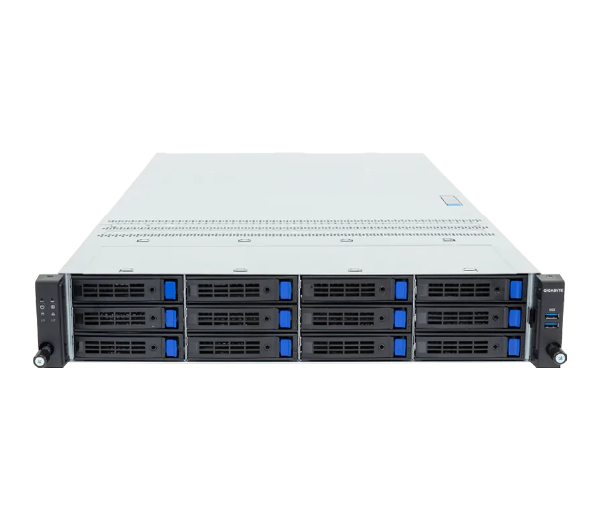

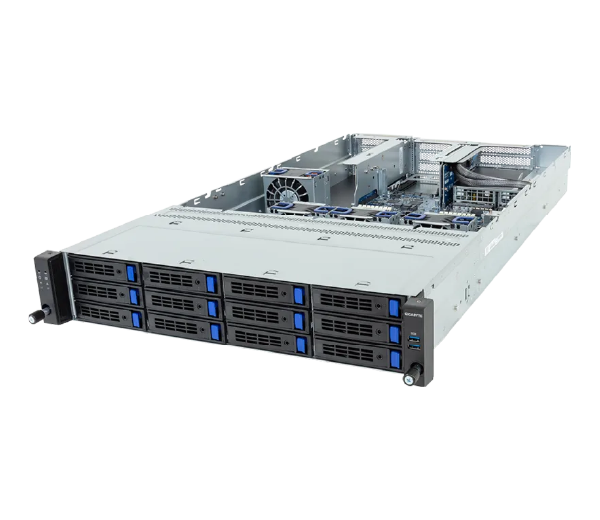

R264-SG0-AAS1 Rack Server - Intel® Xeon® 6 Processors - 2U UP 4 x PCIe Gen5 GPUs

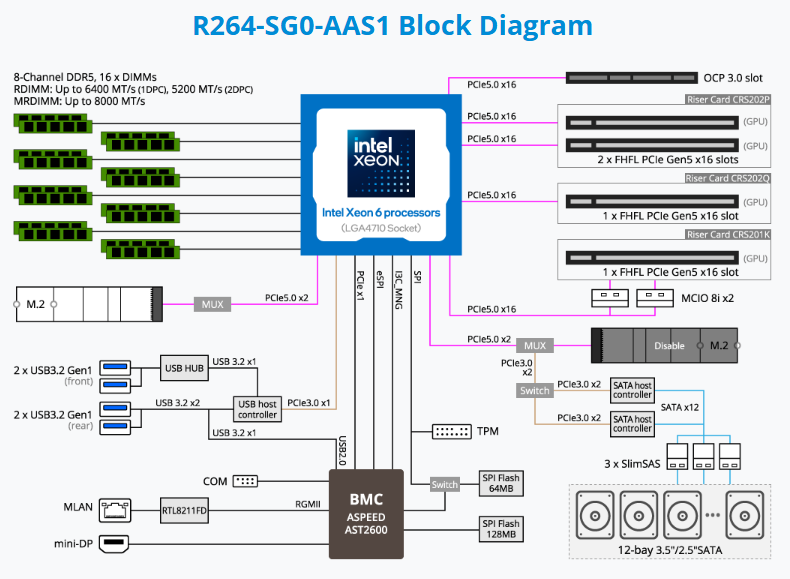

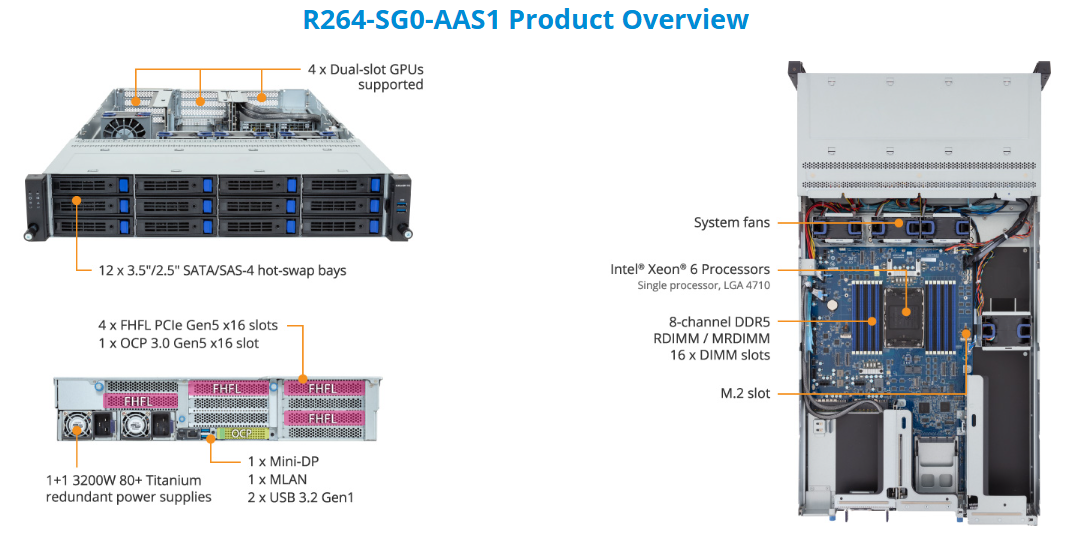

  • Supports up to 4 x Dual slot Gen5 GPUs
  • Single Intel® Xeon® 6700/6500-Series Processors
  • 8-Channel DDR5 RDIMM / MRDIMM, 16 x DIMMs
  • Dual ROM Architecture
  • 12 x 3.5"/2.5" SATA/SAS-4 hot-swap bays
  • 1 x M.2 slot with PCIe Gen5 x2 interface
  • 1 x M.2 slot with PCIe Gen5 x2 interface, shared with SATA
  • 4 x FHFL PCIe Gen5 x16 slots for GPUs
  • 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
  • 1+1 3200W 80 PLUS Titanium redundant power supplies
  • Ordering Numbers: 6NR264SG0DR000AAS1*
문의하기 데이터시트
















[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

  • Dimensions (WxHxD, mm)

    • 2U
      438 x 87.5 x 815

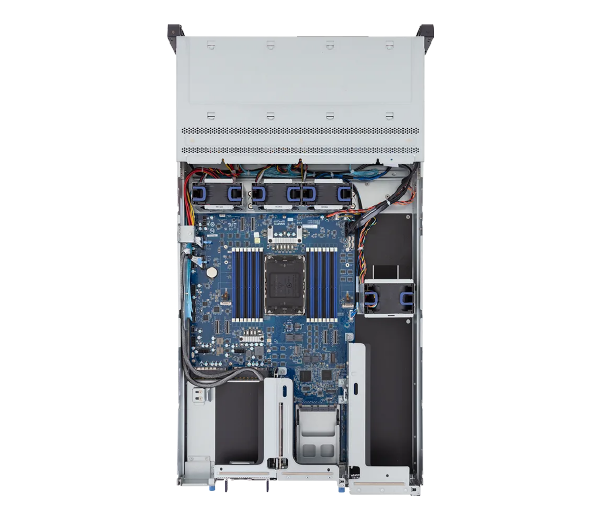

  • Motherboard

    • MSG4-GU0

  • CPU

    • Intel® Xeon® 6 Processors
      - Intel® Xeon® 6700-Series Processors
      - Intel® Xeon® 6500-Series Processors

      Single processor, TDP up to 350W

  • Socket

    • 1 x LGA 4710
      Socket E2

  • Chipset

    • System on Chip

  • Memory

    • 16 x DIMM slots
      Support DDR5 RDIMM/MRDIMM [1]
      8-Channel memory per processor
      RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
      MRDIMM: Up to 8000 MT/s

      [1] MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores and in a 1DPC configuration.

  • LAN

    • Rear:
      1 x 10/100/1000 Mbps Management LAN

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x Mini-DP

  • Storage

    • Front hot-swap:
      12 x 3.5"/2.5" SATA/SAS-4 [1]

      Internal M.2:
      1 x M.2 (2280/22110), PCIe Gen5 x2
      1 x M.2 (2280/22110), PCIe Gen5 x2, shared with SATA [1]

      [1] SAS card is required to support SAS drives.

      [2] To enable the M.2 slot, please adjust the switch according to the manual.

  • PCIe Expansion Slots

    • Riser Card CRS202P:
      - 2 x FHFL x16 (Gen5 x16), for GPUs

      Riser Card CRS202Q:
      - 1 x FHFL x16 (Gen5 x16), for GPUs

      Riser Card CRS201K:
      - 1 x FHFL x16 (Gen5 x16), for GPUs

      1 x OCP NIC 3.0 (Gen5 x16)
      - Supports NCSI function

  • Front I/O

    • 2 x USB 3.2 Gen1 ports (Type-A)
      1 x Power button with LED
      1 x ID button with LED
      1 x NMI button
      1 x Reset button
      2 x LAN activity LEDs (disabled)
      1 x Storage activity LED
      1 x System status LED

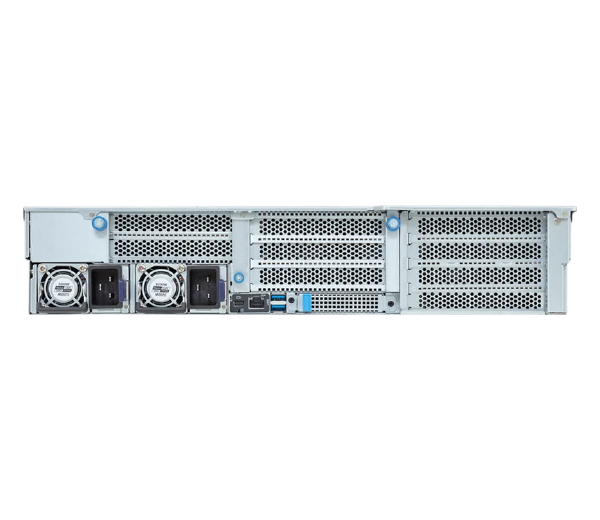

  • Rear I/O

    • 2 x USB 3.2 Gen1 ports (Type-A)
      1 x Mini-DP
      1 x MLAN port
      1 x ID LED

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM012

      1 x PRoT connector (only enabled on RoT SKU)

  • Power Supply[#1]

    • 1+1 3200W 80 PLUS Titanium redundant power supplies [1]

      AC Input:
      - 100-127V~/ 16A, 50-60Hz
      - 200-220V~/ 16A, 50-60Hz
      - 220-240V~/ 16A, 50-60Hz

      DC Input: (Only for China)
      - 240Vdc/ 16A

      DC Output:
      - Max 1300W/ 100-127V~
      +12.2V/ 106.6A
      +12.2Vsb/ 3A
      - Max 3000W/ 200-220V~
      +12.2V/ 246A
      +12.2Vsb/ 3A
      - Max 3200W/ 220-240V~ or 240Vdc Input
      +12.2V/ 262.3A
      +12.2Vsb/ 3A

      [1] The system power supply requires C19 power cord.

      [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.

  • System Fans

    • 3 x 80x80x38mm
      1 x 80x80x56mm

  • Operating Properties

    • Operating temperature: 10°C to 35°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

  • Weight

    • Net Weight: 18.4 kg
      Gross Weight: 20.6 kg

  • Packaging Dimensions

    • 1077 x 679 x 300 mm

  • Packaging Content

    • 1 x R264-SG0-AAS1
      1 x CPU heatsink
      1 x Mini-DP to D-Sub cable
      1 x GPU power cable (16-pin, 250mm)
      2 x GPU power cables (16-pin, 450mm)
      1 x GPU power cable (16-pin, 550mm)
      2 x Carriers
      1 x 2-Section Rail kit

  • Part Numbers

    • - Barebone package: 6NR264SG0DR000AAS1*
      - Motherboard: 9MSG4GU0UR-000*
      - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
      - CPU heatsink: 25ST1-4Z3200-S7R
      - M.2 heatsink: 12SP2-11000E-00R
      - Front panel board - CFP2001: 9CFP2001NR-00*
      - Backplane board - CBP20C5: 9CBP20C5NR-00*
      - Fan module 80x80x38mm: 25ST2-443820-S1R
      - Fan module 80x80x56mm: 25ST2-885621-A0R
      - Riser card - CRS201K: 9CRS201KNR-00*
      - Riser card - CRS202P: 9CRS202PNR-00*
      - Riser card - CRS202Q: 9CRS202QNR-00*
      - Mini-DP to D-Sub cable: 25CRN-200801-K1R
      - GPU power cable (16-pin, 250mm): 25CRI-250107-Y4R
      - GPU power cable (16-pin, 450mm): 25CRI-450101-Y4R
      - GPU power cable (16-pin, 550mm): 25CRI-550107-Y4R
      - Power supply: 25EP0-232000-G1S

      Optional parts:

      - 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
      - Cable Management Arm: 25HB1-R18300-K0R
