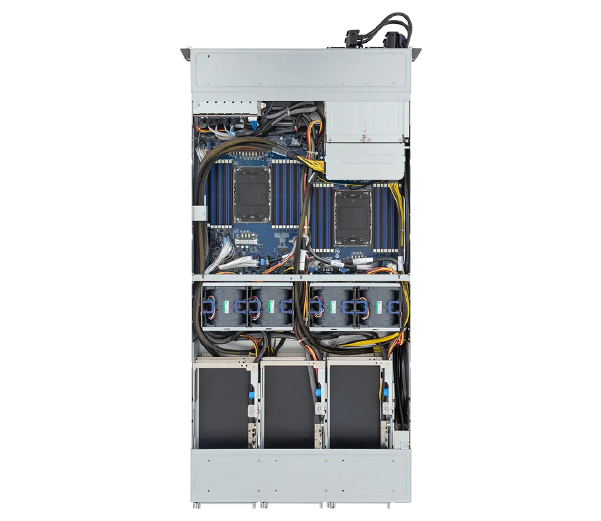

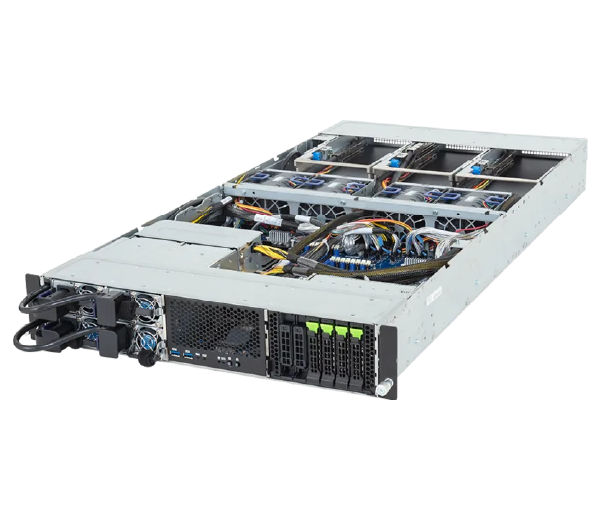

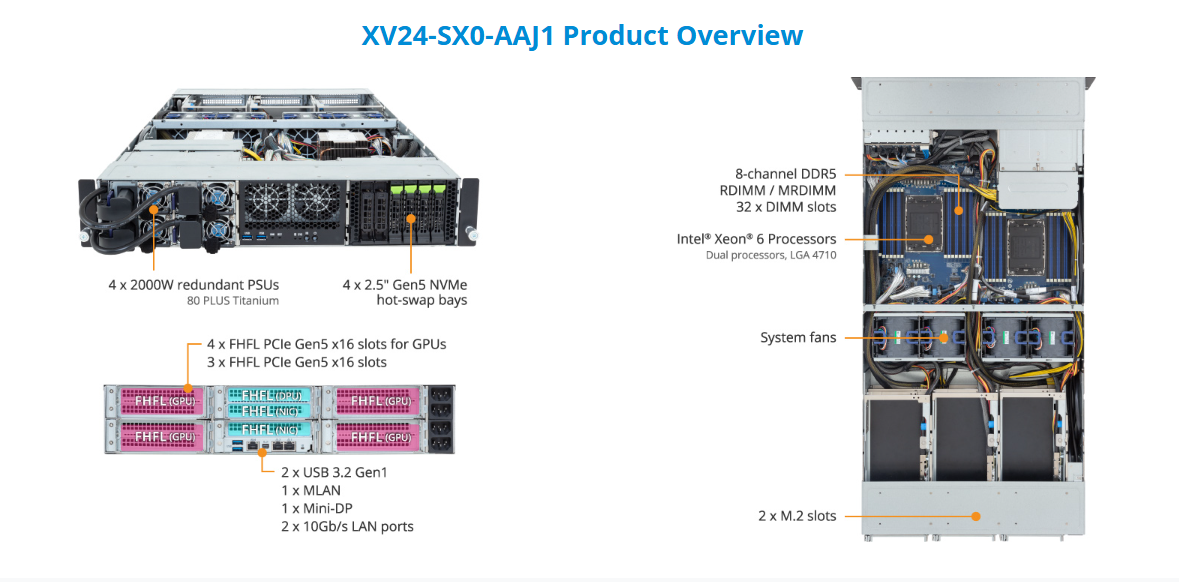

XV24-SX0-AAJ1

NVIDIA MGX™ Server - Intel® Xeon® 6 Processors - 2U DP 4 x PCIe Gen5 GPUs

  • Supports up to 4 x Dual slot Gen5 GPUs
  • Supports 4 x NVIDIA H200 NVL PCIe GPUs with 2-way NVLink bridges
  • NVIDIA MGX™ modular server design
  • Dual Intel® Xeon® 6700/6500-Series Processors
  • 8-Channel DDR5 RDIMM / MRDIMM, 32 x DIMMs
  • 2 x 10Gb/s LAN ports via Intel® X550-AT2
  • 4 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 2 x M.2 slots with PCIe Gen5 x2 interface
  • 4 x FHFL PCIe Gen5 x16 slots for GPUs
  • 2 x FHFL PCIe Gen5 x16 slots for NVIDIA ConnectX®-7 NICs
  • 1 x FHFL PCIe Gen5 x16 slot for NVIDIA® BlueField®-3 DPUs
  • 3+1 2000W 80 PLUS Titanium redundant power supplies
  • Ordering Numbers: 6NXV24SX0DR000AAJ1*
문의하기 데이터시트














[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

  • Dimensions (WxHxD, mm)

    • 2U
      438 x 87 x 900

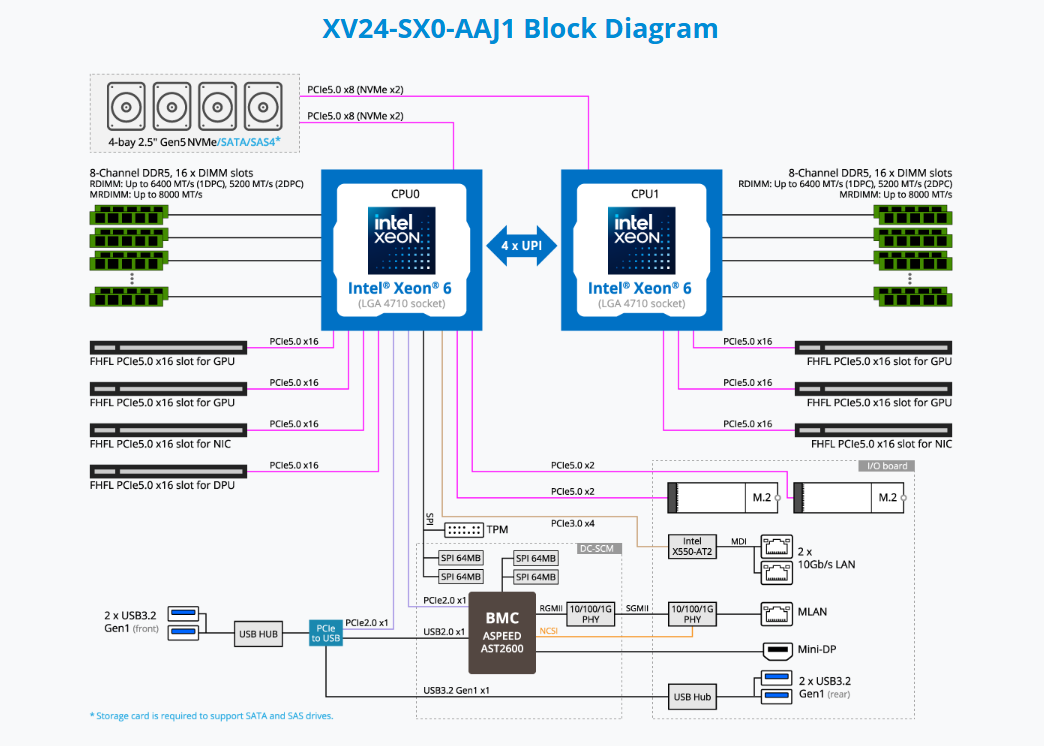

  • Motherboard

    • MSX4-MG0

  • CPU

    • Intel® Xeon® 6 Processors
      - Intel® Xeon® 6700-Series Processors
      - Intel® Xeon® 6500-Series Processors

      Dual processor, TDP up to 350W

      [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

  • Socket

    • 2 x LGA 4710
      Socket E2

  • Chipset

    • System on Chip

  • Memory

    • 32 x DIMM slots
      Support DDR5 RDIMM/MRDIMM [1]
      8-Channel memory per processor
      RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
      MRDIMM: Up to 8000 MT/s

      [1] MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores and in a 1DPC configuration.

  • LAN

    • Front (I/O board - CFPX141):
      2 x 10Gb/s LAN (1 x Intel® X550-AT2)
      - Support NCSI function

      1 x 10/100/1000 Mbps Management LAN

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x Mini-DP

  • Storage

    • Front hot-swap:
      4 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
      - (2 x NVMe from CPU_0, 2 x NVMe from CPU_1)

      Internal M.2:
      2 x M.2 (2280/22110), PCIe Gen5 x2, from CPU_0

      [1] Storage card is required to support SATA and SAS drives.

  • PCIe Expansion Slots

    • PCIe Cable x 7:
      - 2 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
      - 2 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
      - 1 x FHFL x16 (Gen5 x16), from CPU_0, for DPUs
      - 1 x FHFL x16 (Gen5 x16), from CPU_0, for NICs
      - 1 x FHFL x16 (Gen5 x16), from CPU_1, for NICs

      [Note] The system supports 4 x NVIDIA H200 NVL PCIe GPUs at 25°C ambient, arranged as two 2-GPU sets, each with a 2-way NVLink bridge. Please contact our sales representatives for more details.

      [Note] The system is only validated with a uniform GPU model.

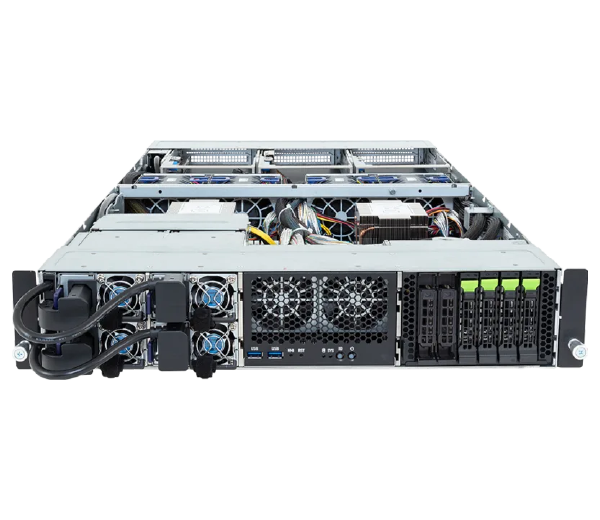

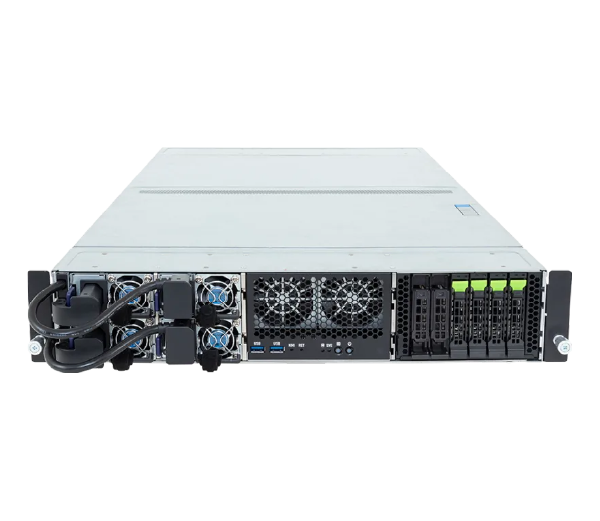

  • Front I/O

    • 2 x USB 3.2 Gen1 ports (Type-A)
      1 x Power button with LED
      1 x ID button with LED
      1 x NMI button
      1 x Reset button
      1 x Storage activity LED
      1 x System status LED

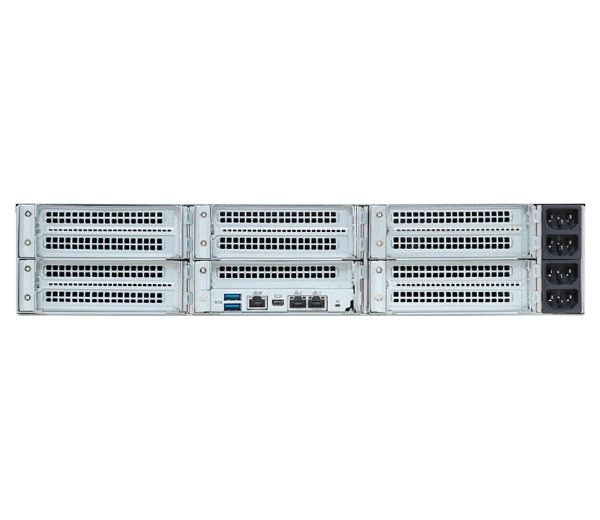

  • Rear I/O

    • 2 x USB 3.2 Gen1 ports (Type-A)
      1 x Mini-DP
      2 x RJ45 ports
      1 x MLAN port
      1 x ID LED

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM012

      1 x PRoT connector (only enabled on RoT SKU)

  • Power Supply[#1]

    • 3+1 2000W 80 PLUS Titanium redundant power supplies

      AC Input:
      - 100-127V~/ 13A, 50-60Hz
      - 200-220V~/ 10A, 50-60Hz
      - 220-240V~/ 10A, 50-60Hz

      DC Input: (Only for China)
      - 240Vdc/ 10A

      DC Output:
      - Max 1000W/ 100-127V~
      +12.2V/ 82A
      +12.2Vsb/ 3A
      - Max 1800W/ 200-220V~
      +12.2V/ 148A
      +12.2Vsb/ 3A
      - Max 2000W/ 220-240V~ or 240Vdc Input
      +12.2V/ 164A
      +12.2Vsb/ 3A

  • OS Certifications

    • Windows Server 2025

  • System Fans

    • 4 x 80x80x80mm

  • Operating Properties

    • Operating temperature: 10°C to 35°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

  • Packaging Dimensions

    • 1178 x 730 x 387 mm

  • Packaging Content

    • 1 x XV24-SX0-AAJ1
      2 x CPU heatsinks
      1 x Mini-DP to D-Sub cable
      2 x GPU power cables (16-pin, 620mm)
      2 x GPU power cables (16-pin, 750mm)
      4 x Carriers
      1 x 3-Section Rail kit

  • Part Numbers

    • - Barebone package: 6NXV24SX0MR000AAJ1*
      - Motherboard: 9MSX4MG0UR-000*
      - 3-Section Rail kit: 25HB2-T76100-K0R
      - CPU heatsink: 25ST1-323208-A0R
      - Front panel board - CFP1010: 9CFP1010NR-00*
      - Backplane board - CBPX060: 9CBPX060NR-00*
      - Fan module: 25ST2-88802D-F1R
      - I/O board - CFPX141: 9CFPX141NR-00*
      - DC-SCM board (A)+(B):
      A) CDCX101: 9CDCX101NR-00*
      B) CSC402: 9CSC402NR-00*
      - Mini-DP to D-Sub cable: 25CRN-200801-K1R
      - GPU power cable (16-pin, 620mm): 25CRI-6200B0-Y4R
      - GPU power cable (16-pin, 750mm): 25CRI-7500B0-Y4R
      - Power supply: 25EP0-22000P-G1S

      Optional parts:

      - Chassis intrusion switch: 25HA1-R28390-U1R
      - Cable Management Arm: 25HB2-2AA700-K0R
