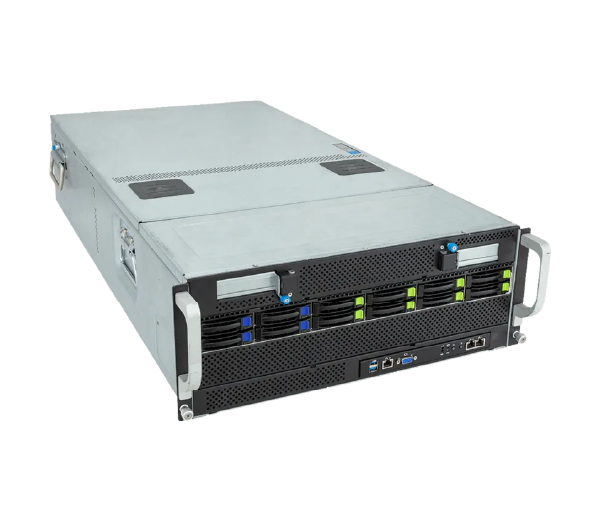

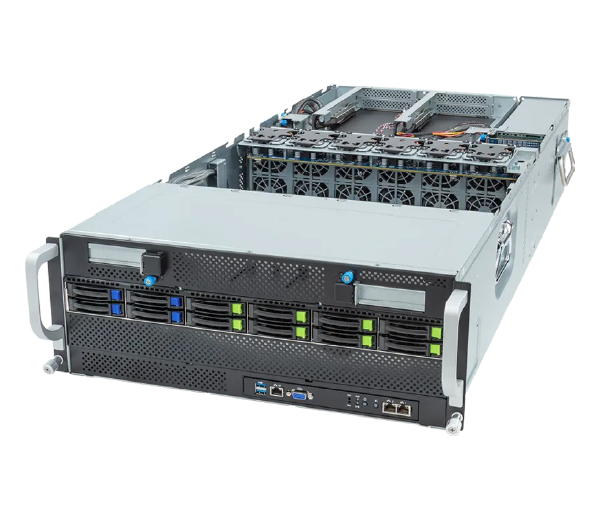

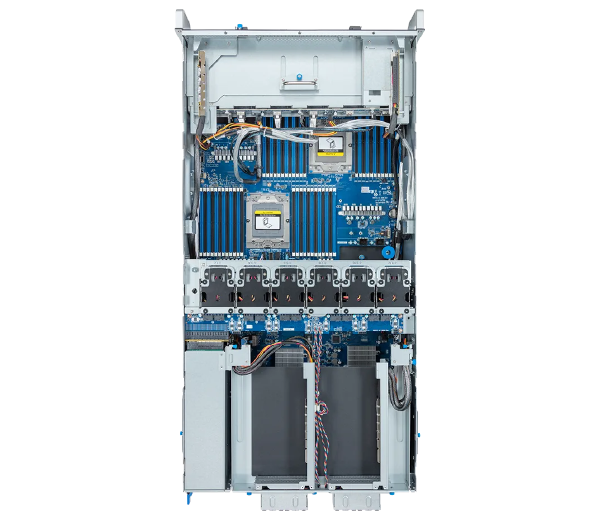

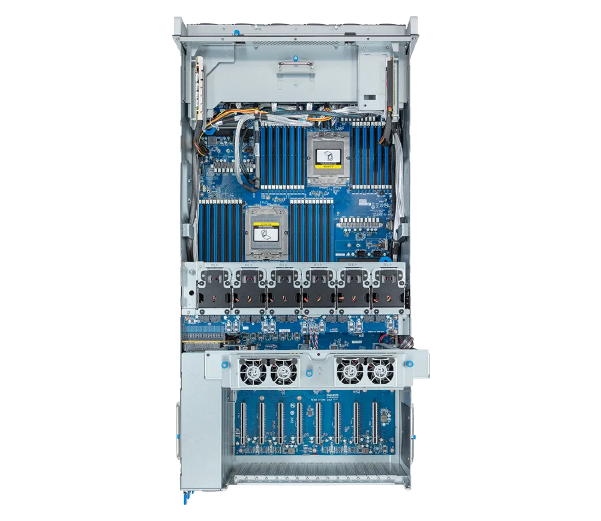

G493-ZB1-AAP1

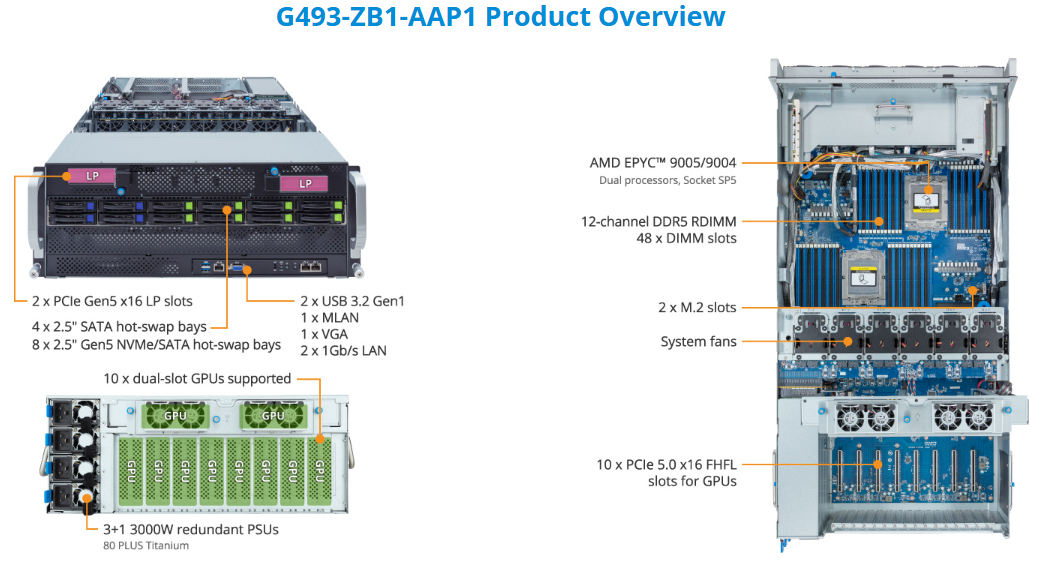

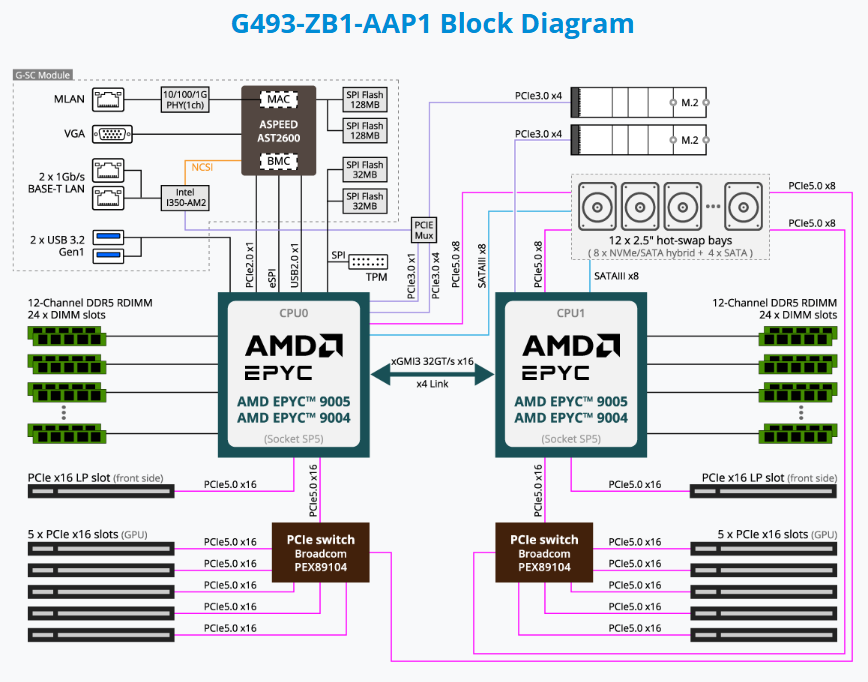

HPC/AI Server - AMD EPYC™ 9005/9004 - 4U DP 10 x PCIe Gen5 GPUs (with PCIe switches)
- NVIDIA-Certified Systems™ - Data Center Servers
- Supports up to 10 x Dual slot Gen5 GPUs
- Dual AMD EPYC™ 9005/9004 Series Processors
- 12-Channel DDR5 RDIMM, 48 x DIMMs
- Dual ROM Architecture
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
- 4 x 2.5" SATA/SAS-4 hot-swap bays
- 2 x M.2 slots with PCIe Gen3 x4 interface
- 10 x FHFL PCIe Gen5 x16 slots for GPUs
- 2 x LP PCIe Gen5 x16 slots on the front side
- 3+1 3000W 80 PLUS Titanium redundant power supplies
- Ordering Numbers: 6NG493ZB1DR000ACP1*
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
-
Dimensions (WxHxD, mm)
- 4U
448 x 176 x 880
- 4U
-
Motherboard
- MZB3-G41
-
CPU
- AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 400W [1]
- At 25°C ambient, cTDP up to 500W
[1] Please refer to the QVL on the support page or contact our sales representatives for verified CPU SKUs.
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
- AMD EPYC™ 9005 Series Processors
-
Socket
- 2 x LGA 6096
Socket SP5
- 2 x LGA 6096
-
Chipset
- System on Chip
-
Memory
- 48 x DIMM slots
DDR5 memory supported
12-Channel memory per processor
AMD EPYC™ 9005:
RDIMM: Up to 5200 MT/s (1DPC)
RDIMM: Up to 4400 MT/s (1R 2DPC), 4000 MT/s (2R 2DPC)
AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)
- 48 x DIMM slots
-
LAN
- Front (G-SCM board - CDCG110):
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
- Front (G-SCM board - CDCG110):
-
Video
- Integrated in ASPEED® AST2600
- 1 x VGA port
- Integrated in ASPEED® AST2600
-
Storage
- Front hot-swap:
8 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
4 x 2.5" SATA/SAS-4 [1]
- (2 x NVMe from CPU_0, 2 x NVMe from CPU_1)
- (2 x NVMe from PEX89104_0, 2 x NVMe from PEX89104_1)
- (8 x SATA from CPU_0, 4 x SATA from CPU_1)
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
[1] SAS card is required to support SAS drives.
- Front hot-swap:
-
SAS
- Require SAS add-in cards
-
RAID
- Require RAID add-in cards
-
PCIe Expansion Slots
- Front:
1 x LP x16 (Gen5 x16), from CPU_0
1 x LP x16 (Gen5 x16), from CPU_1
Rear:
5 x FHFL x16 (Gen5 x16), from PEX89104_0, for GPUs
5 x FHFL x16 (Gen5 x16), from PEX89104_1, for GPUs
[Note] The system is only validated with a uniform GPU model.
- Front:
-
Front I/O
- G-SCM board - CDCG110:
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
- G-SCM board - CDCG110:
-

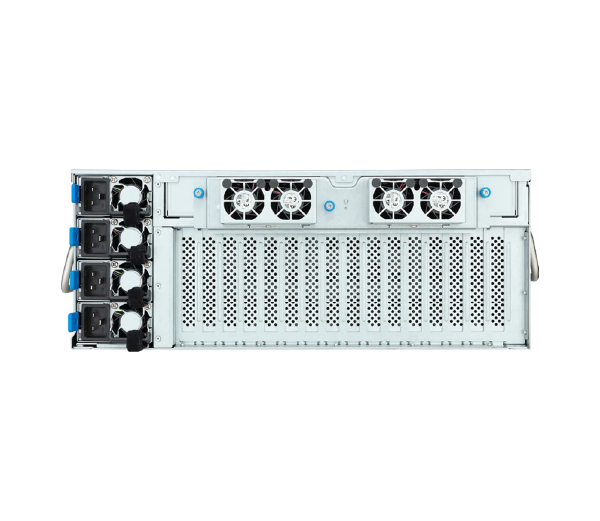

Rear I/O
- N/A
-
Backplane Board
- Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
- Speed and bandwidth:
-
Security Modules
- 1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- 1 x TPM header with SPI interface
-
Power Supply[#1]
- 3+1 3000W 80 PLUS Titanium redundant power supplies [1]
AC Input:
- 100-127V~/ 14.5A, 50/60Hz
- 200-220V~/ 16A, 50/60Hz
- 220-240V~/ 16A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1097.4W/ 100-127V~
+12.2V/ 87A
+12Vsb/ 3A
- Max 2598W/ 200-220V~
+12.2V/ 210A
+12Vsb/ 3A
- Max 3037.2W/ 220-240V~ or 240Vdc Input
+12.2V/ 246A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
- 3+1 3000W 80 PLUS Titanium redundant power supplies [1]
-
System Management
- ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
- ASPEED® AST2600 Baseboard Management Controller
-
OS Compatibility
- Please refer to OS compatibility table in support page
-
System Fans
- 4 x 40x40x28mm (25,000rpm)
12 x 60x60x38mm (23,000rpm) [1]
[1] Two fans share a single power connector.
- 4 x 40x40x28mm (25,000rpm)
-
Operating Properties
- Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
- Operating temperature: 10°C to 35°C
-
Weight
- Net Weight: 49 kg
Gross Weight: 69.6 kg
- Net Weight: 49 kg
-
Packaging Dimensions
- 1200 x 800 x 444 mm w/ pallet
-
Packaging Content
- 1 x G493-ZB1-AAP1
2 x CPU fansinks
8 x GPU power cables (12VHPWR, 150mm)
2 x GPU power cables (12VHPWR, 350mm)
1 x L-shape Rail kit
- 1 x G493-ZB1-AAP1
-
Part Numbers
- - Barebone package: 6NG493ZB1DR000ACP1*
- Motherboard: 9MZB3G41UR-000-3*
- L-shape Rail kit: 25HB2-A96100-K0R
- CPU fansink: 25ST0-0Z6023-C1R/25ST0-0Z6024-C1R
- Backplane board - CBP10C2: 9CBP10C2NR-00*
- Fan module: 25ST2-442829-D0R/25ST2-663823-F1R
- PCIe switch board - CPB49A0: 9CPB49A0NR-00*
- G-SCM board - CDCG110: 9CDCG110UR-00*
- GPU power cable (12VHPWR, 150mm): 25CRI-1500B3-Y4R
- GPU power cable (12VHPWR, 350mm): 25CRI-3500B3-Y4R
- Power supply: 25EP0-203K02-D0S
Optional parts:
- RMA packaging: 6NG493ZB1SR-RMA-A100
- - Barebone package: 6NG493ZB1DR000ACP1*
