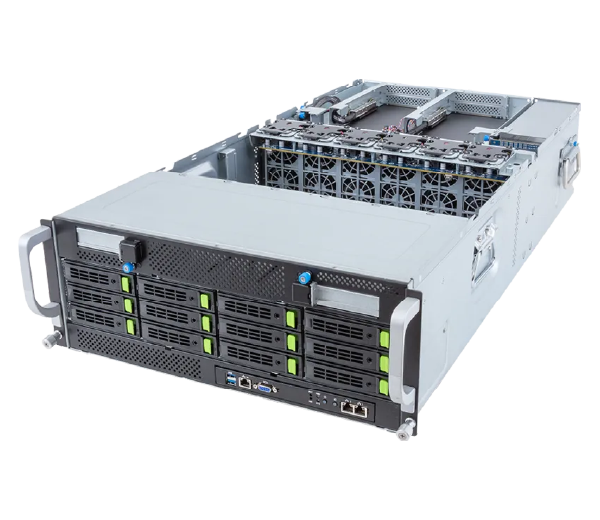

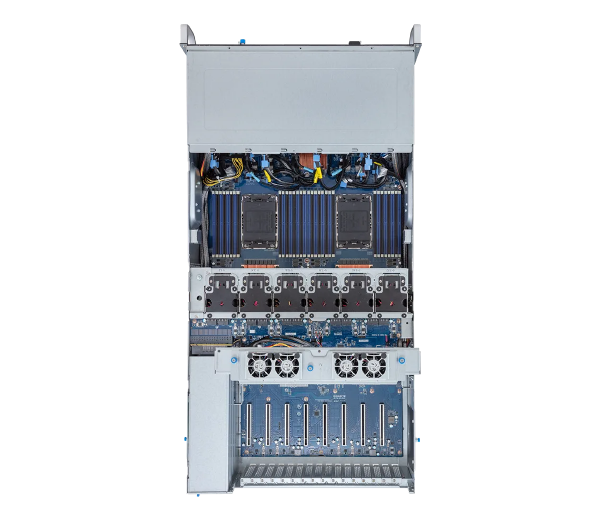

G493-SB1-AAP1

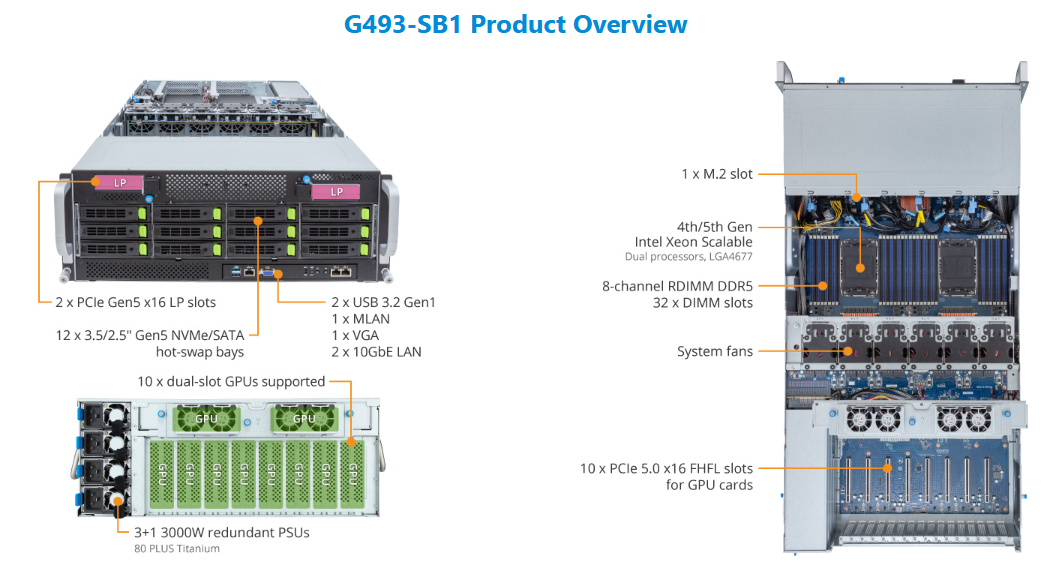

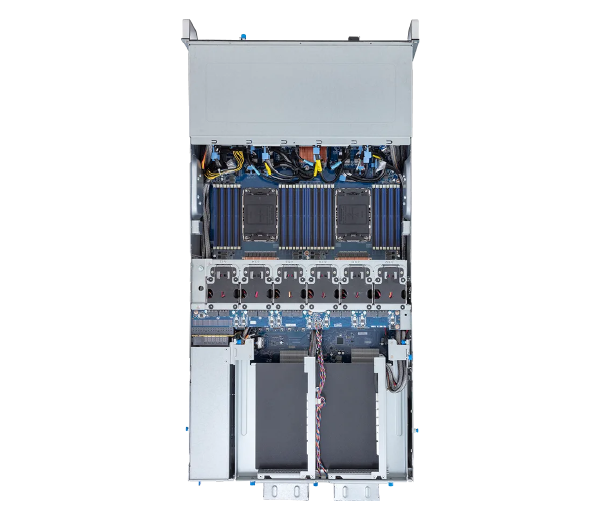

HPC/AI Server - 5th/4th Gen Intel® Xeon® Scalable - 4U DP 10 x PCIe Gen5 GPUs (with PCIe switches)
- Supports up to 10 x Dual slot Gen5 GPUs
- Dual 5th/4th Gen Intel® Xeon® Scalable Processors
- Dual Intel® Xeon® CPU Max Series
- 8-Channel DDR5 RDIMM, 32 x DIMMs
- Dual ROM Architecture
- 2 x 10Gb/s LAN ports via Intel® X710-AT2
- 12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
- 1 x M.2 slot with PCIe Gen3 x1 interface
- 10 x FHFL PCIe Gen5 x16 slots for GPUs
- 2 x LP PCIe Gen5 x16 slots on the front side
- 3+1 3000W 80 PLUS Titanium redundant power supplies
- Ordering Numbers: 6NG493SB1DR000ABP1*
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
-
Dimensions (WxHxD, mm)
- 4U
448 x 176 x 880
- 4U
-
Motherboard
- MSB3-G40
-
CPU
- 5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP up to 350W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
- 5th Generation Intel® Xeon® Scalable Processors
-
Socket
- 2 x LGA 4677
Socket E
- 2 x LGA 4677
-
Chipset
- Intel® C741
-
Memory
- 32 x DIMM slots
Support DDR5 RDIMM
8-Channel memory per processor
5th Gen Intel® Xeon®:
Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) [1]
4th Gen Intel® Xeon®:
Up to 4800 MT/s (1DPC), 4400MT/s (2DPC)
Intel® Xeon® Max Series:
Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
[1] 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.
- 32 x DIMM slots
-
LAN
- Front (I/O board - CDCG120):
2 x 10Gb/s LAN (1 x Intel® X710-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
- Front (I/O board - CDCG120):
-
Video
- Integrated in ASPEED® AST2600
- 1 x VGA port
- Integrated in ASPEED® AST2600
-

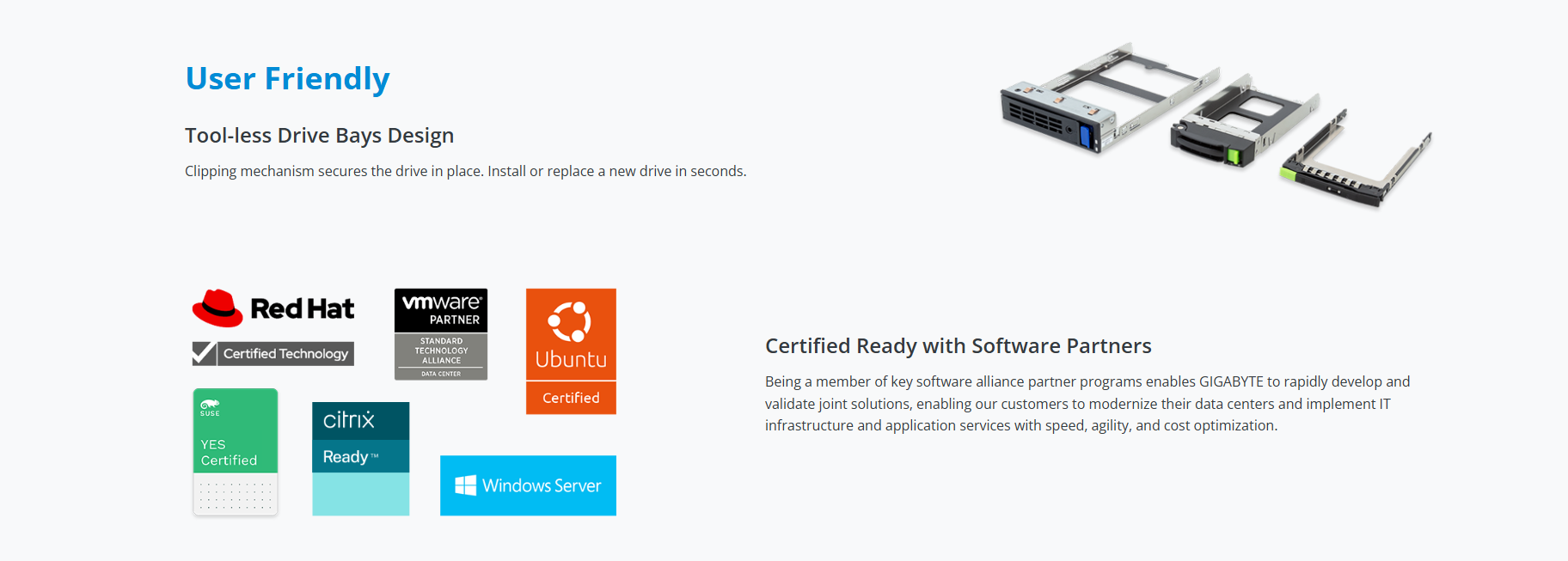

Storage

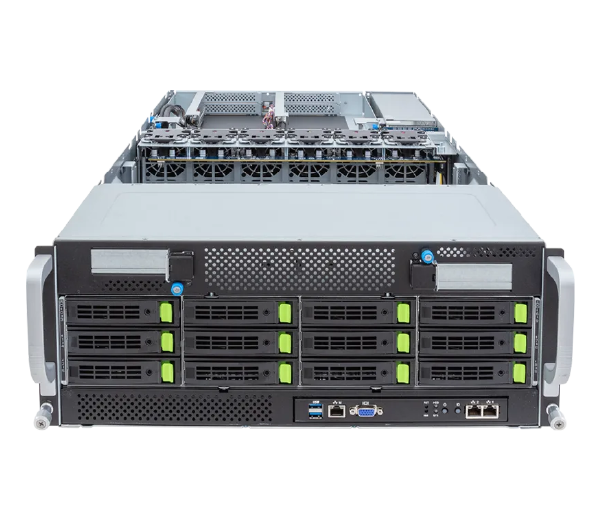

- Front hot-swap:
12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 [1]
- (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)
- (2 x NVMe from PEX89104_0, 2 x NVMe from PEX89104_1)
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x1, from PCH
[1] SAS card is required to support SAS drives.
- Front hot-swap:
-
SAS
- Require SAS add-in cards
-
RAID
- Intel® SATA RAID 0/1/10/5
Onboard VROC key header
Support optional RAID add-in cards
- Intel® SATA RAID 0/1/10/5
-

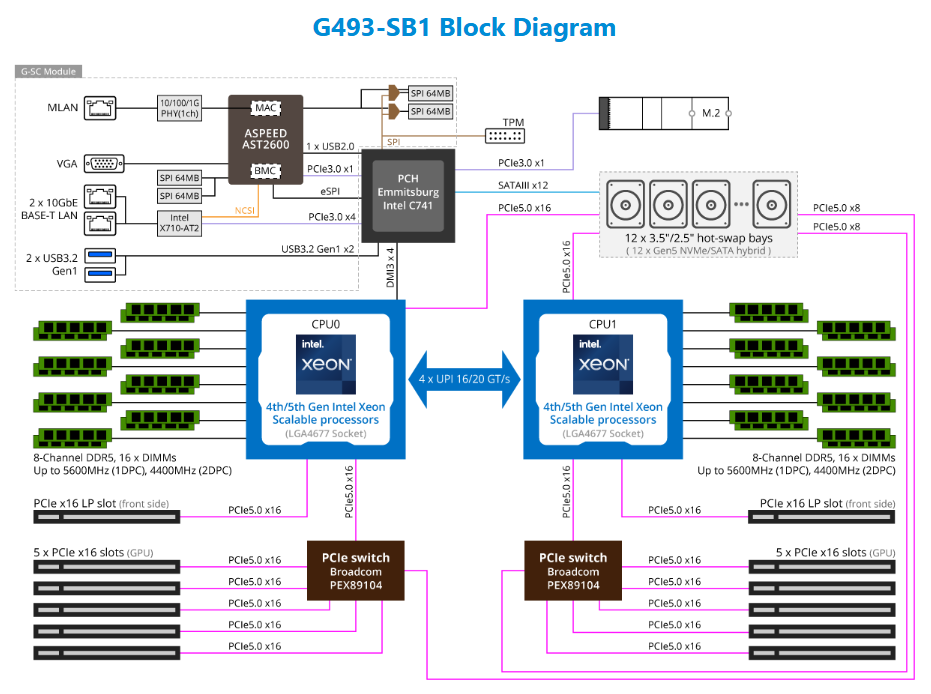

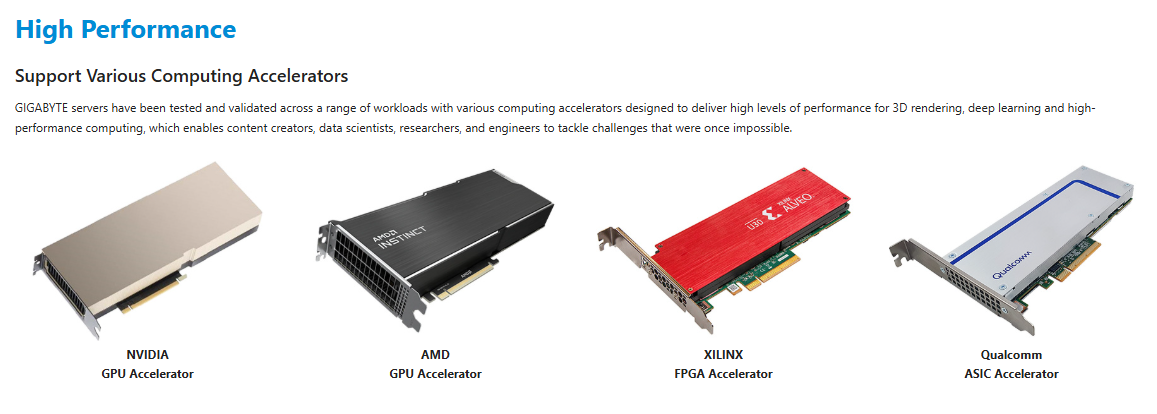

PCIe Expansion Slots

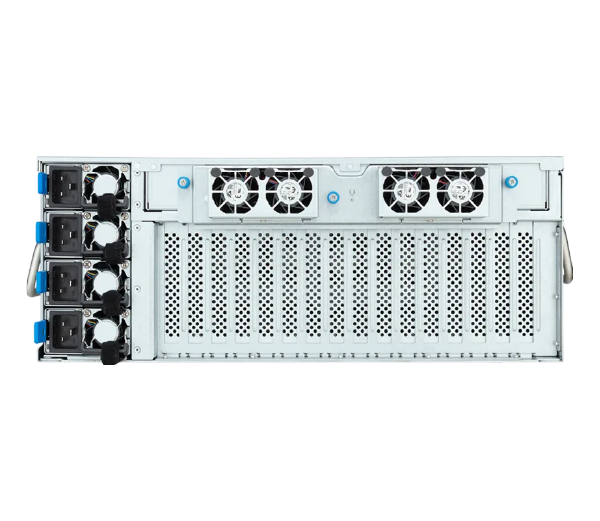

- Rear:
5 x FHFL x16 (Gen5 x16), from PEX89104_0, for GPUs
5 x FHFL x16 (Gen5 x16), from PEX89104_1, for GPUs
Front:
1 x LP x16 (Gen5 x16), from CPU_0
1 x LP x16 (Gen5 x16), from CPU_1
[Note] The system is only validated with a uniform GPU model.
- Rear:
-
Front I/O
- I/O board - CDCG120:
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
- I/O board - CDCG120:
-
Rear I/O
- N/A
-
Backplane Board
- Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
- Speed and bandwidth:
-
Security Modules
- 1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- 1 x TPM header with SPI interface
-
Power Supply[#1]
- 3+1 3000W 80 PLUS Titanium redundant power supplies [1]
AC Input:
- 100-127V~/ 14.5A, 50/60Hz
- 200-220V~/ 16A, 50/60Hz
- 220-240V~/ 16A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1097.4W/ 100-127V~
+12.2V/ 87A
+12Vsb/ 3A
- Max 2598W/ 200-220V~
+12.2V/ 210A
+12Vsb/ 3A
- Max 3037.2W/ 220-240V~ or 240Vdc Input
+12.2V/ 246A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
- 3+1 3000W 80 PLUS Titanium redundant power supplies [1]
-
System Management
- ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
- ASPEED® AST2600 Baseboard Management Controller
-
OS Certifications
- Windows Server 2022
-
System Fans
- 4 x 40x40x28mm
12 x 60x60x38mm [1]
[1] Two fans share a single power connector.
- 4 x 40x40x28mm
-
Operating Properties
- Operating temperature: 10°C to 35°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
- Operating temperature: 10°C to 35°C
-
Weight
- Net Weight: 66.8 kg
Gross Weight: 68.8 kg
- Net Weight: 66.8 kg
-
Packaging Dimensions
- 1200 x 800 x 439 mm
-
Packaging Content
- 1 x G493-SB1-AAP1
2 x CPU fansinks
8 x GPU power cables (16-pin, 150mm)
2 x GPU power cables (16-pin, 350mm)
6 x Carriers
1 x L-shape Rail kit
- 1 x G493-SB1-AAP1
-
Part Numbers
- - Barebone package (5th/4th Gen): 6NG493SB1DR000ABP1*
- Barebone package (4th Gen): 6NG493SB1DR000AAP1*
- Motherboard: 9MSB3G40NR-000*
- L-shape Rail kit: 25HB2-A96100-K0R
- CPU fansink: 25ST1-363204-C1R
- Backplane board - CBP20C7: 9CBP20C7NR-00*
- Fan module: 25ST2-442829-D0R
- Fan module: 25ST2-663823-F1R
- I/O board - CDCG120: 9CDCG120UR-00*
- PCIe switch board - CPB49A0: 9CPB49A0NR-00*
- GPU power cable (16-pin, 150mm): 25CRI-1500B3-Y4R
- GPU power cable (16-pin, 350mm): 25CRI-3500B3-Y4R
- Power supply: 25EP0-23000C-D0S
Optional parts:
- RMA packaging: 6NG493SB1SR-RMA-A100
