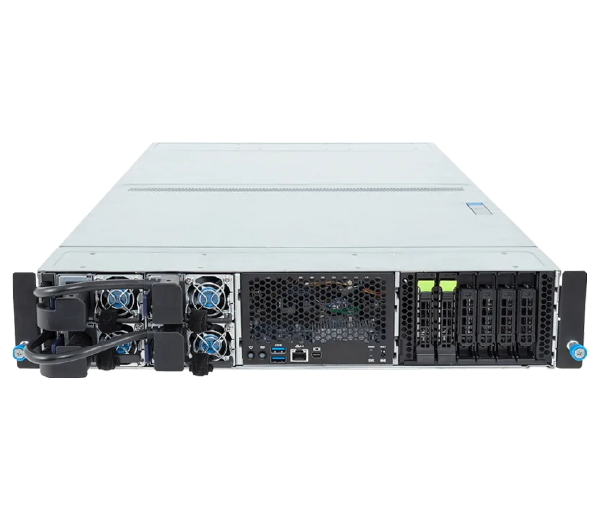

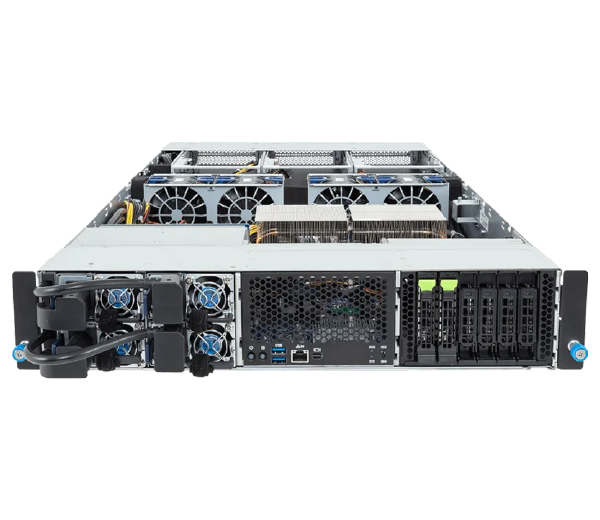

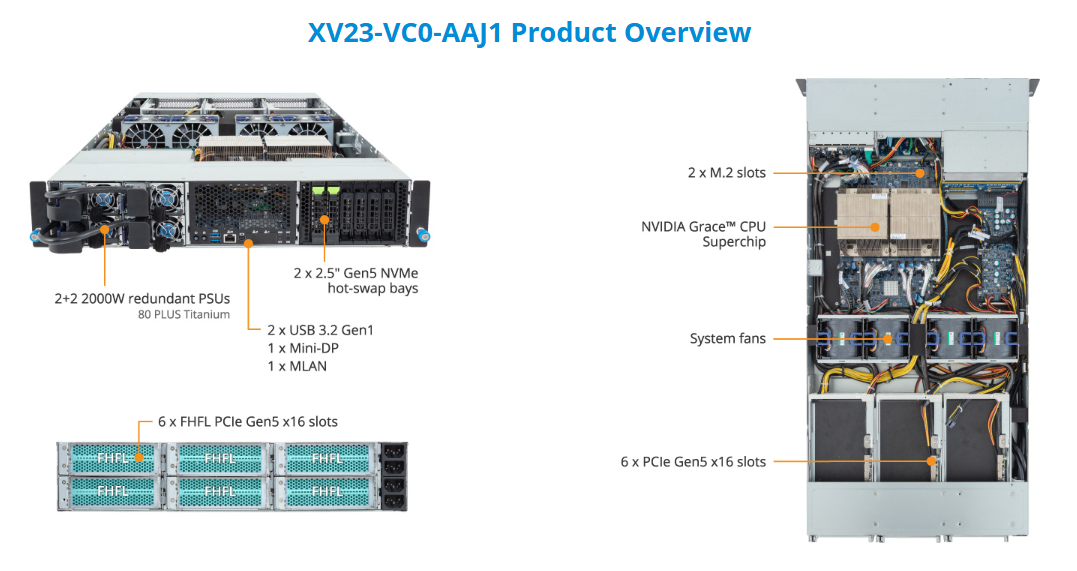

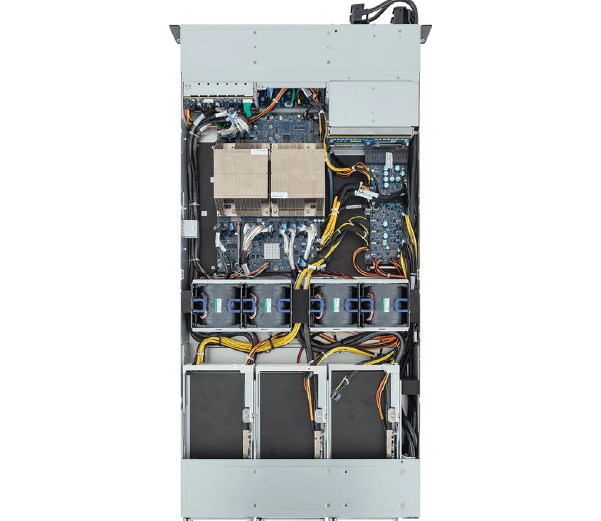

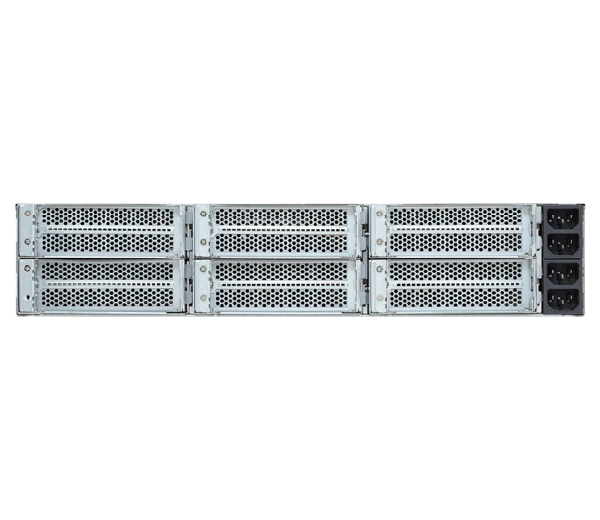

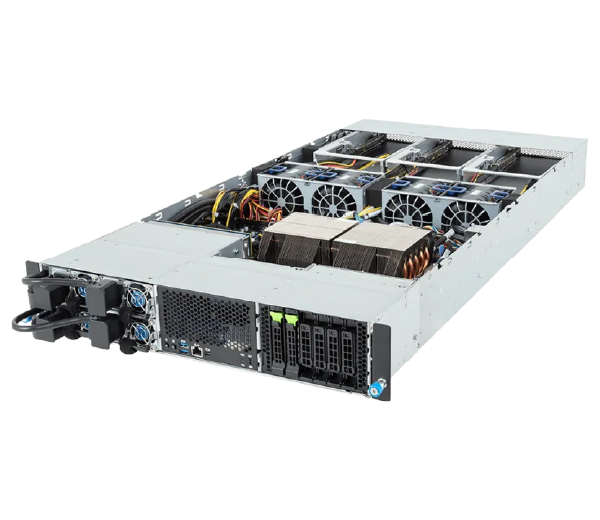

XV23-VC0-AAJ1

NVIDIA MGX™ Arm Server - NVIDIA Grace™ CPU Superchip - 2U DP 4 x PCIe Gen5 GPUs

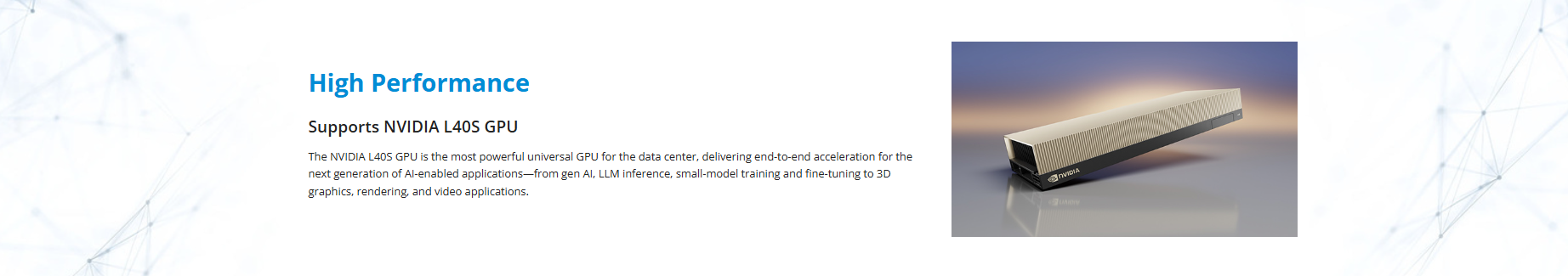

  • Supports up to 4 x Dual slot Gen5 GPUs
  • High-performance CPU for HPC and cloud computing
  • NVIDIA MGX™ modular server design
  • NVIDIA Grace™ CPU Superchip
  • 900GB/s NVIDIA NVLink™-C2C Interconnect
  • 480GB CPU LPDDR5X ECC memory
  • Compatible with NVIDIA® BlueField®-3 DPUs

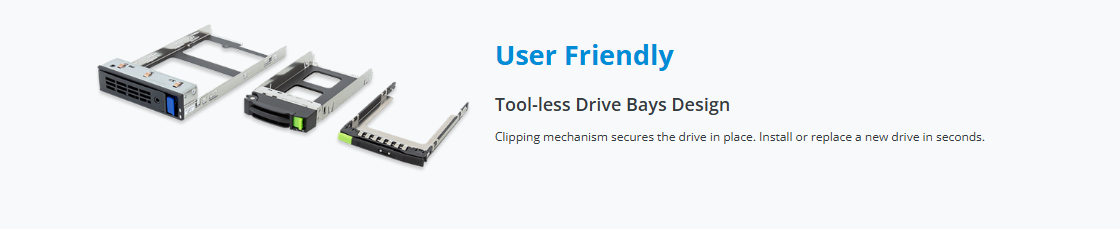

  • 2 x 2.5" Gen5 NVMe hot-swap bays
  • 2 x M.2 slots with PCIe Gen5 x4 interface
  • 4 x FHFL PCIe Gen5 x16 slots for GPUs
  • 2 x FHFL PCIe Gen5 x16 slots for add-in cards
  • 2+2 2000W 80 PLUS Titanium redundant power supplies
  • Ordering Numbers: 6NXV23VC0DR000AAJ1*
문의하기 데이터시트












[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

  • Dimensions (WxHxD, mm)

    • 2U
      438 x 87 x 900

  • Motherboard

    • MVC3-MG0

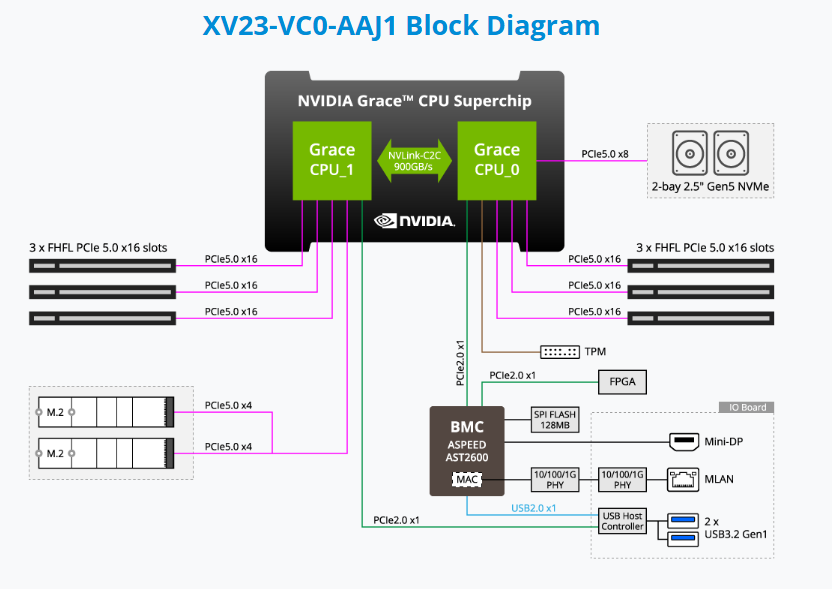

  • Superchip

    • NVIDIA Grace™ CPU Superchip:
      - 2 x NVIDIA Grace™ CPUs
      - Connected with NVIDIA NVLink™-C2C
      - TDP up to 500W (CPU + memory)

  • Memory

    • 480GB of LPDDR5X memory with ECC
      Memory bandwidth up to 1TB/s

  • LAN

    • Front:
      1 x 10/100/1000 Mbps Management LAN

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x Mini-DP

  • Storage

    • Front hot-swap:
      2 x 2.5" Gen5 NVMe
      - (NVMe from CPU_0)

      Internal M.2:
      2 x M.2 (2242/2260/2280/22110), PCIe Gen5 x4, from CPU_1

  • SAS

    • N/A

  • RAID

    • N/A

  • PCIe Expansion Slots

    • PCIe Cable x 6:
      - 2 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
      - 1 x FHFL x16 (Gen5 x16), from CPU_0
      - 2 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
      - 1 x FHFL x16 (Gen5 x16), from CPU_1

  • Front I/O

    • I/O board - CFPX040:
      2 x USB 3.2 Gen1 ports (Type-A)
      1 x Mini-DP
      1 x MLAN port
      1 x Power button with LED
      1 x ID button with LED
      1 x Reset button
      1 x Storage activity LED
      1 x System status LED

  • Rear I/O

    • N/A

  • Backplane Board

    • Speed and bandwidth:
      PCIe Gen5 x4

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM012

  • Power Supply[#1]

    • 2+2 2000W 80 PLUS Titanium redundant power supplies

      AC Input:
      - 100-127V~/ 13A, 50-60Hz
      - 200-220V~/ 10A, 50-60Hz
      - 220-240V~/ 10A, 50-60Hz

      DC Input: (Only for China)
      - 240Vdc/ 10A

      DC Output:
      - Max 1000W/ 100-127V~
      +12.2V/ 82A
      +12.2Vsb/ 3A
      - Max 1800W/ 200-220V~
      +12.2V/ 148A
      +12.2Vsb/ 3A
      - Max 2000W/ 220-240V~ or 240Vdc Input
      +12.2V/ 164A
      +12.2Vsb/ 3A

  • System Management

    • ASPEED® AST2600 Baseboard Management Controller
      GIGABYTE Management Console web interface

      Dashboard
      HTML5 KVM
      Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
      Sensor Reading History Data
      FRU Information
      SEL Log in Linear Storage / Circular Storage Policy
      Hardware Inventory
      Fan Profile
      System Firewall
      Power Consumption
      Power Control
      Advanced power capping
      LDAP / AD / RADIUS Support
      Backup & Restore Configuration
      Remote BIOS/BMC/CPLD Update
      Event Log Filter
      User Management
      Media Redirection Settings
      PAM Order Settings
      SSL Settings
      SMTP Settings

  • OS Compatibility

    • Please refer to OS compatibility table in support page

      Additional certifications:
      Red Hat Enterprise Linux 9.3 or later

  • System Fans

    • 4 x 80x80x80mm

  • Operating Properties

    • Operating temperature: 10°C to 30°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

  • Weight

    • Net Weight: 46.6 kg
      Gross Weight: 48.6 kg

  • Packaging Dimensions

    • 1196 x 744 x 400 mm

  • Packaging Content

    • 1 x XV23-VC0-AAJ1
      2 x Superchip heatsinks
      1 x Mini-DP to D-Sub cable
      1 x DPU power cable (2x PCIe 8pin, 520mm)
      2 x GPU power cables (16-pin, 450mm)
      2 x GPU power cables (16-pin, 750mm)
      1 x 3-Section Rail kit

  • Part Numbers

    • - Barebone package: 6NXV23VC0DR000AAJ1*
      - Motherboard: 9MVC3MG0UR-000*
      - 3-Section Rail kit: 25HB2-T76100-K0R
      - Superchip heatsink: 25ST1-1532G1-M1R
      - Backplane board - CBPX060: 9CBPX060NR-00*
      - Fan module: 25ST2-888024-D0R
      - I/O board - CFPX040: 9CFPX040NR-00*
      - DC-SCM board - CDCX100: 9CDCX100NR-00*
      - Mini-DP to D-sub cable: 25CRN-200801-K1R
      - DPU power cable (2x PCIe 8pin, 520mm): 25CRI-5201B0-Y4R
      - GPU power cable (16-pin, 450mm): 25CRI-4500B0-Y4R
      - GPU power cable (16-pin, 750mm): 25CRI-7500B0-Y4R
      - Power supply: 25EP0-22000P-G1S

      Optional parts:

      - Cable Management Arm: 25HB2-2AA700-K0R
      - RMA packaging: 6NXV23VC0SR-RMA-A100
