XV23-ZU0-AAJ1

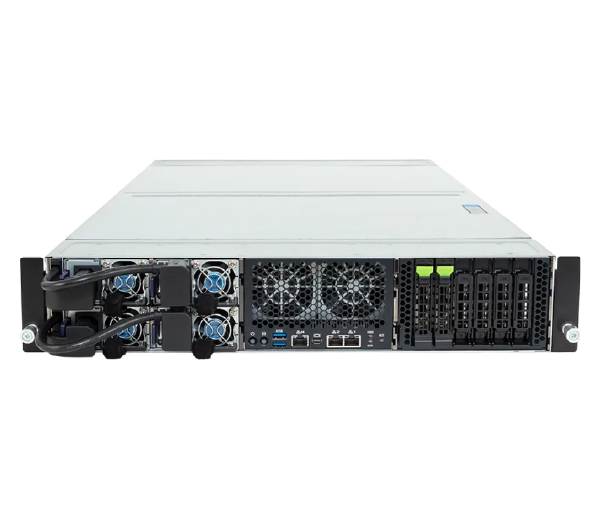

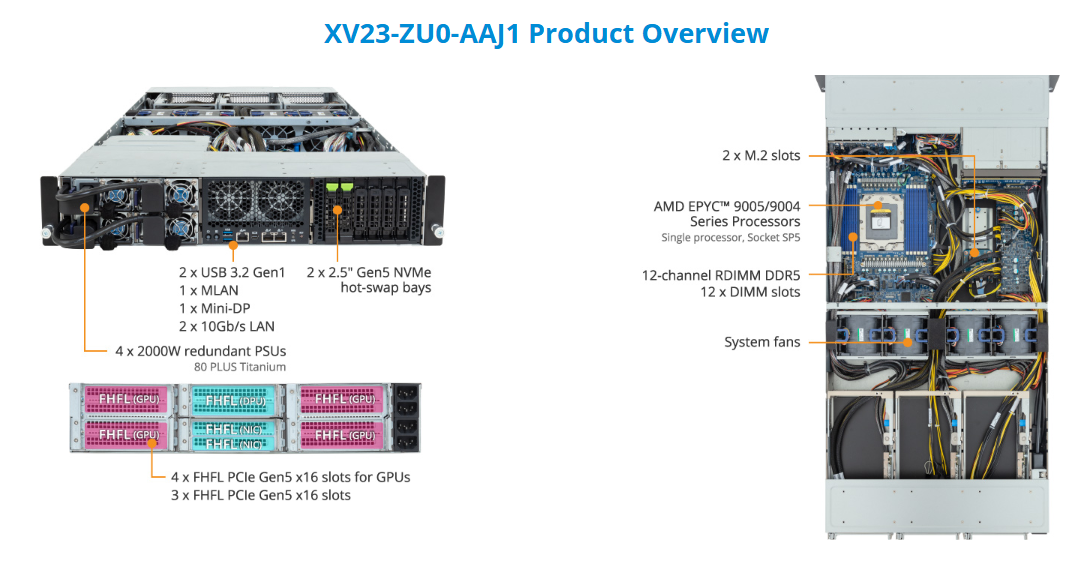

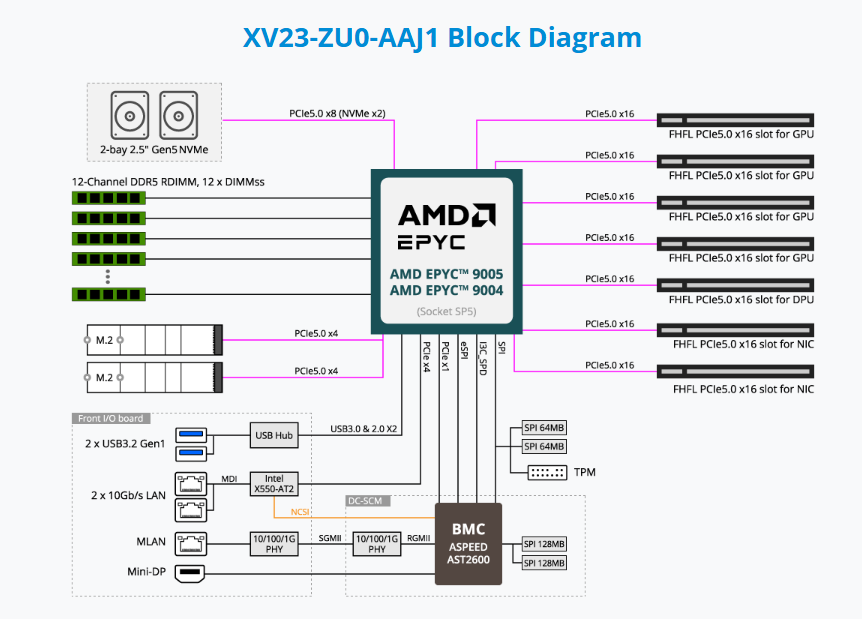

NVIDIA MGX™ Server - AMD EPYC™ 9005/9004 - 2U UP 4 x PCIe Gen5 GPUs
- Supports up to 4 x Dual slot Gen5 GPUs
- Supports 4 x NVIDIA H200 NVL PCIe GPUs with 2-way NVLink bridges or
- 4 x NVIDIA RTX PRO™ 6000 Blackwell Server Edition GPUs
- NVIDIA MGX™ modular server design
- Single AMD EPYC™ 9005/9004 Series Processors
- 12-Channel DDR5 RDIMM, 12 x DIMMs
- Dual ROM Architecture
- 2 x 10Gb/s LAN ports via Intel® X550-AT2
- 2 x 2.5" Gen5 NVMe hot-swap bays
- 2 x M.2 slots with PCIe Gen5 x4 interface
- 4 x FHFL PCIe Gen5 x16 slots for GPUs
- 2 x FHFL PCIe Gen5 x16 slots for NVIDIA ConnectX®-7 NICs
- 1 x FHFL PCIe Gen5 x16 slot for NVIDIA® BlueField®-3 DPUs
- 3+1 2000W 80 PLUS Titanium redundant power supplies
- Ordering Numbers: 6NXV23ZU0DR000ACJ1*
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
-
Dimensions (WxHxD, mm)
- 2U
438 x 87 x 900
- 2U
-

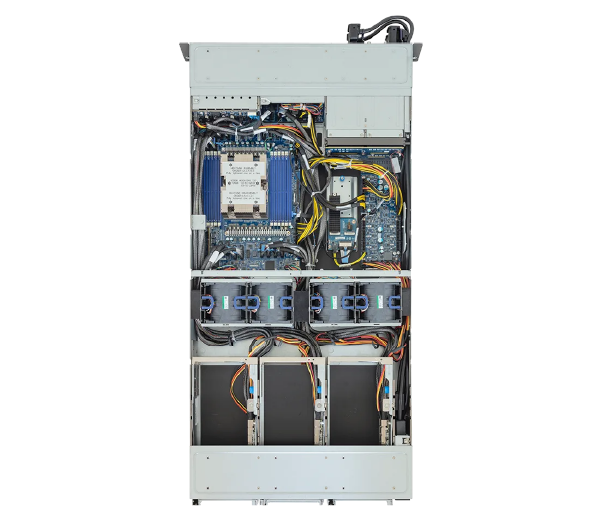

Motherboard
- MZU3-MG0
-
CPU
- AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Single processor, cTDP up to 400W
- At 30°C ambient, cTDP up to 500W
- AMD EPYC™ 9005 Series Processors
-
Socket
- 1 x LGA 6096
Socket SP5
- 1 x LGA 6096
-
Chipset
- System on Chip
-
Memory
- 12 x DIMM slots
Support DDR5 RDIMM
12-Channel memory per processor
AMD EPYC™ 9005:
Up to 6400 MT/s
AMD EPYC™ 9004:
Up to 4800 MT/s
- 12 x DIMM slots
-
LAN
- Front (I/O board - CFPX142):
2 x 10Gb/s LAN (1 x Intel® X550-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
- Front (I/O board - CFPX142):
-
Video
- Integrated in ASPEED® AST2600
- 1 x Mini-DP
- Integrated in ASPEED® AST2600
-
Storage
- Front hot-swap:
2 x 2.5" Gen5 NVMe
Internal M.2:
2 x M.2 (2242/2260/2280/22110), PCIe Gen5 x4
- Front hot-swap:
-
SAS
- N/A
- N/A
-
RAID
- N/A
-

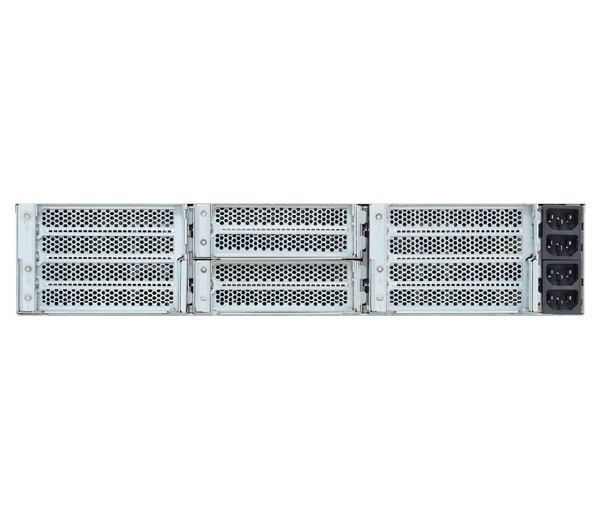

PCIe Expansion Slots
- PCIe Cable x 7:
- 4 x FHFL x16 (Gen5 x16), for GPUs
- 2 x FHFL x16 (Gen5 x16), for NICs
- 1 x FHFL x16 (Gen5 x16), for DPUs
[Note] The system supports 4 x NVIDIA H200 NVL PCIe GPUs at 25°C ambient, arranged as two 2-GPU sets, each with a 2-way NVLink bridge. Please contact our sales representatives for more details.
[Note] The system supports 4 x RTX PRO™ 6000 Blackwell Server Edition GPUs at 25°C ambient.
[Note] The system is only validated with a uniform GPU model.
- PCIe Cable x 7:
-

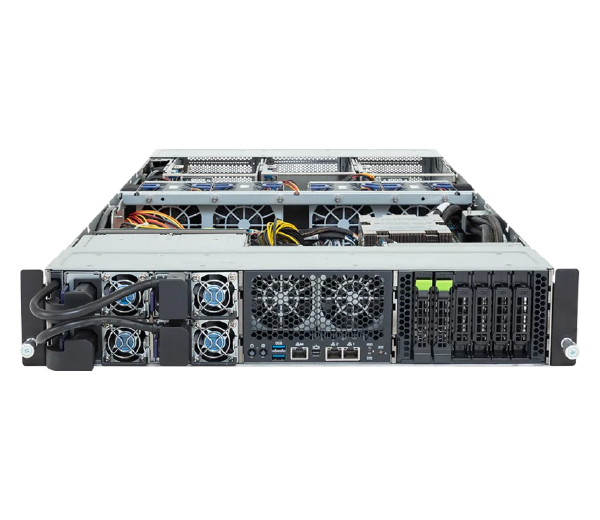

Front I/O
- I/O board - CFPX142:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x Storage activity LED
1 x System status LED
- I/O board - CFPX142:
-
Rear I/O
- N/A
-
Backplane Board
- Speed and bandwidth:
PCIe Gen5 x4
- Speed and bandwidth:
-
Security Modules
- 1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012
- 1 x TPM header with SPI interface
-
Power Supply[#1]
- 3+1 2000W 80 PLUS Titanium redundant power supplies [1]
AC Input:
- 100-127V~/ 13A, 50-60Hz
- 200-220V~/ 10A, 50-60Hz
- 220-240V~/ 10A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1800W/ 200-220V~
+12.2V/ 148A
+12.2Vsb/ 3A
- Max 2000W/ 220-240V~ or 240Vdc Input
+12.2V/ 164A
+12.2Vsb/ 3A
[1] 2+2 PSU redundancy supported for GPUs below 400W.
- 3+1 2000W 80 PLUS Titanium redundant power supplies [1]
-
System Management
- ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Control
LDAP / AD Support
Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
SSL Settings
SMTP Settings
- ASPEED® AST2600 Baseboard Management Controller
-
OS Compatibility
- Please refer to OS compatibility table in support page
-
System Fans
- 2 x 60x60x56mm
4 x 80x80x80mm
- 2 x 60x60x56mm
-
Operating Properties
- Operating temperature: 10°C to 35°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
- Operating temperature: 10°C to 35°C
-
Weight
- Net Weight: 26.5 kg
Gross Weight: 51.64 kg
- Net Weight: 26.5 kg
-
Packaging Dimensions
- 1196 x 744 x 400 mm
-
Packaging Content
- 1 x XV23-ZU0-AAJ1
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x GPU power cable (16-pin, 450mm)
1 x GPU power cable (16-pin, 550mm)
2 x GPU power cables (16-pin, 750mm)
1 x DPU power cable (2x PCIe 8pin, 520mm)
1 x 3-Section Rail kit
- 1 x XV23-ZU0-AAJ1
-
Part Numbers
- - Barebone package: 6NXV23ZU0DR000ACJ1*
- Motherboard: 9MZU3MG0UR-000-3*
- 3-Section Rail kit: 25HB2-T76100-K0R
- CPU heatsink: 25ST1-563400-C1R
- M.2 heatsink: 12SP2-11000E-00R
- Backplane board - CBPX060: 9CBPX060NR-00*
- Fan module 60x60x56mm: 25ST2-665620-S1R
- Fan module 80x80x80mm: 25ST2-88802D-F1R
- I/O board - CFPX142: 9CFPX142NR-00*
- DC-SCM board (A)+(B):
A) CDCX101: 9CDCX101NR-00*
B) CSC403: 9CSC403NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (16-pin, 450mm): 25CRI-4500B0-Y4R
- GPU power cable (16-pin, 550mm): 25CRI-5500B1-Y4R
- GPU power cable (16-pin, 750mm): 25CRI-7500B0-Y4R
- DPU power cable (2x PCIe 8pin, 520mm): 25CRI-5201B0-Y4R
- Power supply: 25EP0-22000P-G1S
Optional parts:
- Chassis intrusion switch: 25HA1-R28390-U1R
- Cable Management Arm: 25HB2-2AA700-K0R
- - Barebone package: 6NXV23ZU0DR000ACJ1*
