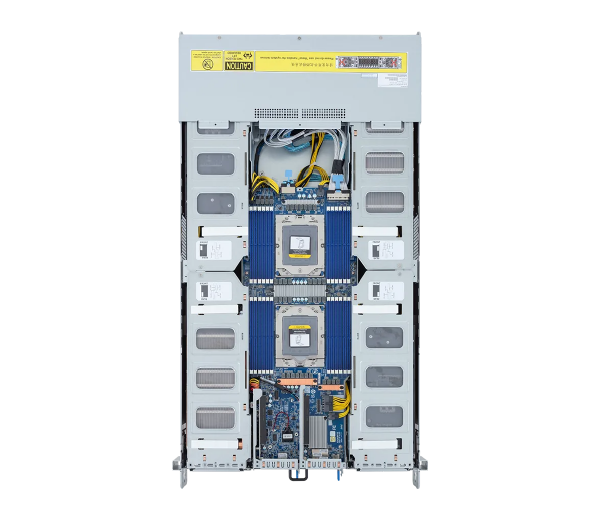

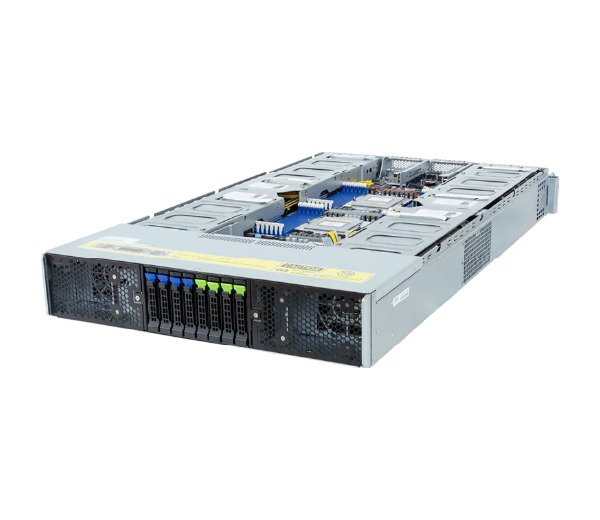

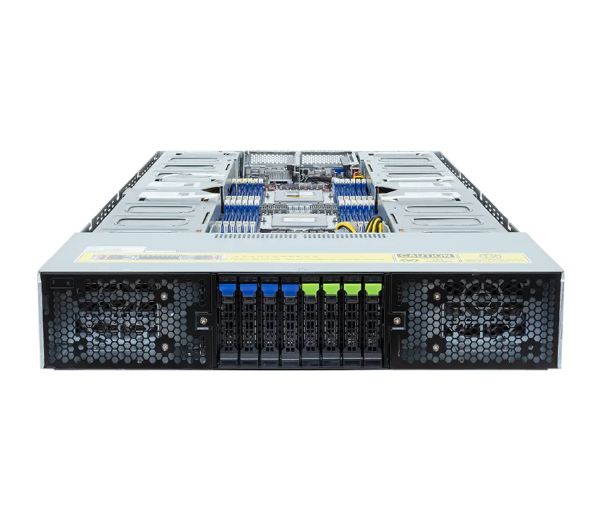

G293-Z42-IAP1

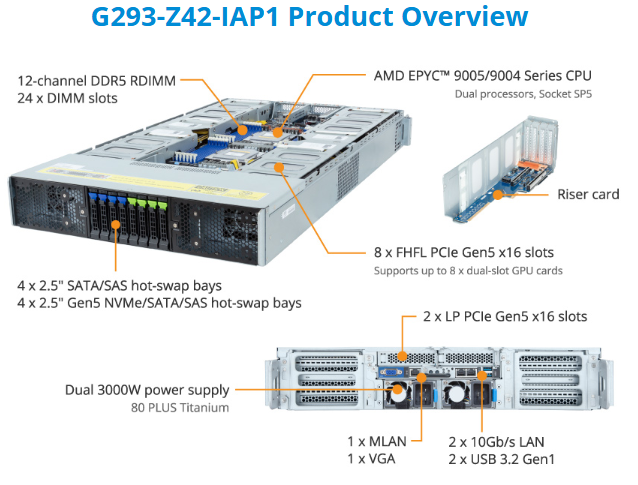

HPC/AI Server - AMD EPYC™ 9005/9004 - 2U DP 8 x PCIe Gen5 GPUs (with PCIe switches) Immersion
- Immersion Cooling Server
- Supports up to 8 x Dual slot Gen5 GPUs
- Dual AMD EPYC™ 9005/9004 Series Processors
- 12-Channel DDR5 RDIMM, 24 x DIMMs
- Dual ROM Architecture
- 2 x 10Gb/s LAN ports via Broadcom® BCM57416
- 4 x 2.5" Gen5 NVMe/SATA/SAS hot-swap bays
- 4 x 2.5" SATA/SAS hot-swap bays
- 8 x FHFL PCIe Gen5 x16 slots for GPUs
- 2 x LP PCIe Gen5 x16 slots for add-in cards
- Dual 3000W 80 PLUS Titanium redundant power supply
- Ordering Numbers: 6NG293Z42DR000ICP1*
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
-
Dimensions (WxHxD, mm)
- 2U
448 x 87.5 x 800
- 2U
-
Motherboard
- MZ43-G20
-
CPU
- AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 400W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
- AMD EPYC™ 9005 Series Processors
-
Socket
- 2 x LGA 6096
Socket SP5
- 2 x LGA 6096
-
Chipset
- System on Chip
-
Memory
- 24 x DIMM slots
DDR5 memory supported
12-Channel memory per processor
AMD EPYC™ 9005:
RDIMM: Up to 6400 MT/s
AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
- 24 x DIMM slots
-
LAN
- Top:
2 x 10Gb/s LAN (1 x Broadcom® BCM57416)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
- Top:
-
Video
- Integrated in ASPEED® AST2600
- 1 x VGA port
- Integrated in ASPEED® AST2600
-
Storage
- Bottom:
4 x 2.5" Gen5 NVMe/SATA/SAS [1]
4 x 2.5" SATA/SAS [1]
- (NVMe from CPU_1)
- (SATA from CPU_1)
[1] SAS card is required to support SAS drives.
- Bottom:
-
SAS
- Require SAS add-in cards
-
RAID
- Require RAID add-in cards
-

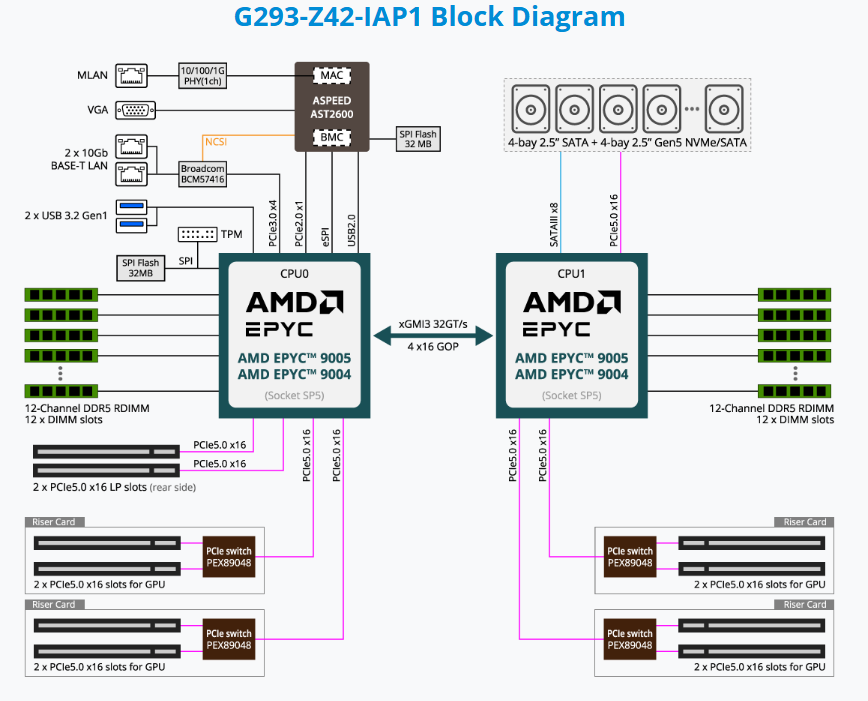

PCIe Expansion Slots
- Riser Card CRSG622 x 2:
- 4 x FHFL x16 (Gen5 x16), from PEX89048, for GPUs
Riser Card CRSG623 x 2:
- 4 x FHFL x16 (Gen5 x16), from PEX89048, for GPUs
Riser Card CRSG01F x 2:
- 2 x LP x16 (Gen5 x16), from CPU_0
[Note] Maximum GPU dimensions (LxWxH): 285 x 111.5 x 39.5mm.
[Note] The system is validated for use with a single GPU model.
- Riser Card CRSG622 x 2:
-

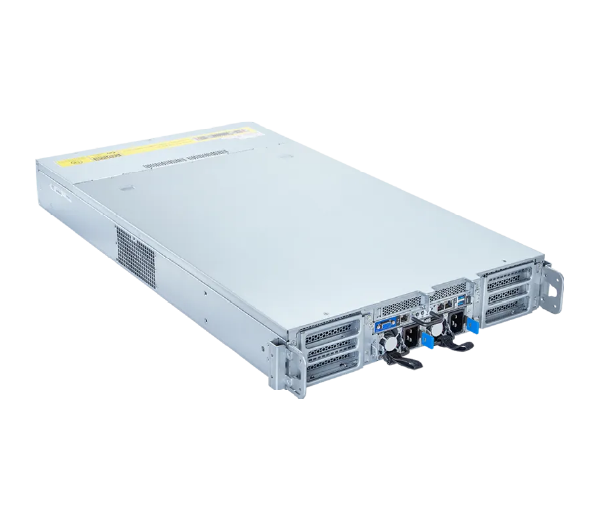

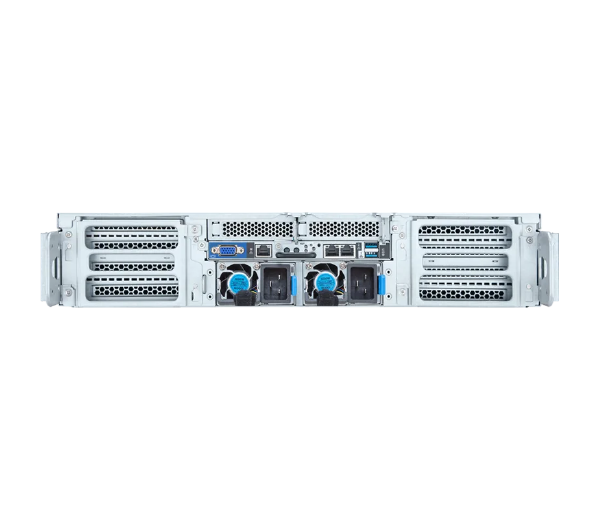

Top I/O
- 2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED
- 2 x USB 3.2 Gen1 ports (Type-A)
-
Backplane Board
- Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s
- Speed and bandwidth:
-
Security Modules
- 1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- 1 x TPM header with SPI interface
-
Power Supply[#1]
- Dual 3000W 80 PLUS Titanium redundant power supply [1]
AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-220V~/ 15.5A, 50-60Hz
- 220-240V~/ 15.5A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 15.5A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A
- Max 2600W/ 200-220V~
+12.2V/ 213A
+12Vsb/ 3A
- Max 3000W/ 220-240V~ or 240Vdc Input
+12.2V/ 245A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
- Dual 3000W 80 PLUS Titanium redundant power supply [1]
-
System Management
- ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
- ASPEED® AST2600 Baseboard Management Controller
-
OS Compatibility
- Please refer to OS compatibility table in support page
Additional certifications:
Windows Server 2022
Windows Server 2025
- Please refer to OS compatibility table in support page
-
Operating Properties
- Operating coolant temperature: 25°C to 30°C
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
- Operating coolant temperature: 25°C to 30°C
-
Weight
- Gross Weight: 35 kg
-
Packaging Dimensions
- 1138 x 730 x 275 mm
-
Packaging Content
- 1 x G293-Z42-IAP1
2 x CPU heatsinks
4 x GPU power cables (12VHPWR, 250mm)
4 x GPU power cables (12VHPWR, 280mm)
- 1 x G293-Z42-IAP1
-
Part Numbers
- - Barebone package: 6NG293Z42DR000ICP1*
- Motherboard: 9MZ43G20UR-000-3*
- CPU heatsink: 25ST1-453217-A0R
- Backplane board - CBPG086: 9CBPG086NR-00*
- Riser card - CRSG01F: 9CRSG01FNR-00*
- Riser card - CRSG622: 9CRSG622NR-00*
- Riser card - CRSG623: 9CRSG623NR-00*
- GPU power cable (12VHPWR, 250mm): 25CRI-250107-Y4R
- GPU power cable (12VHPWR, 280mm): 25CRI-300102-Y4R
- Power supply: 25EP0-23000E-G1S
Optional parts:
- RMA packaging: 6NG293Z42SR-RMA-I100
- - Barebone package: 6NG293Z42DR000ICP1*
