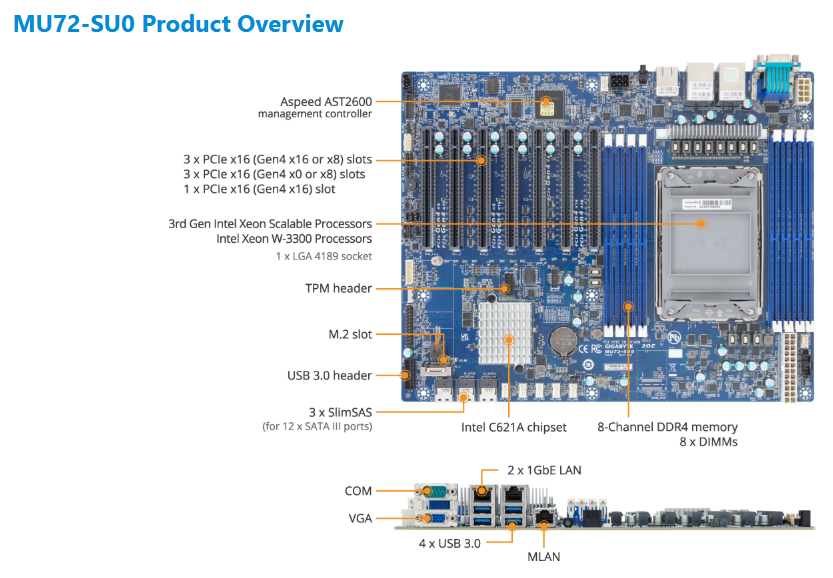

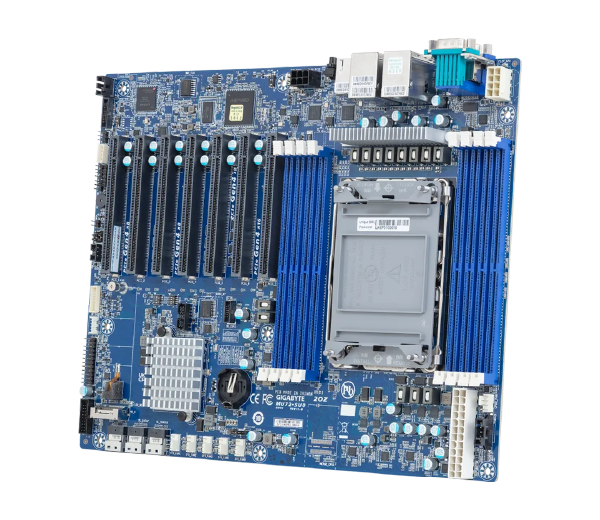

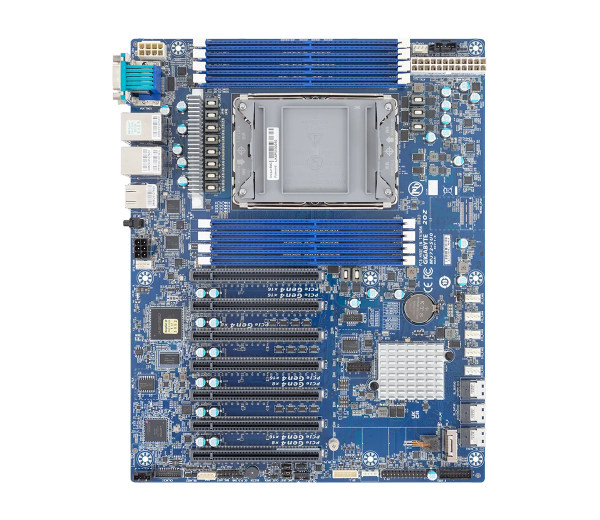

MU72-SU0

Motherboard - 3rd Gen Intel® Xeon® Scalable & Intel® Xeon® W-3300 - ATX UP

  • Single 3rd Gen Intel® Xeon® Scalable Processors

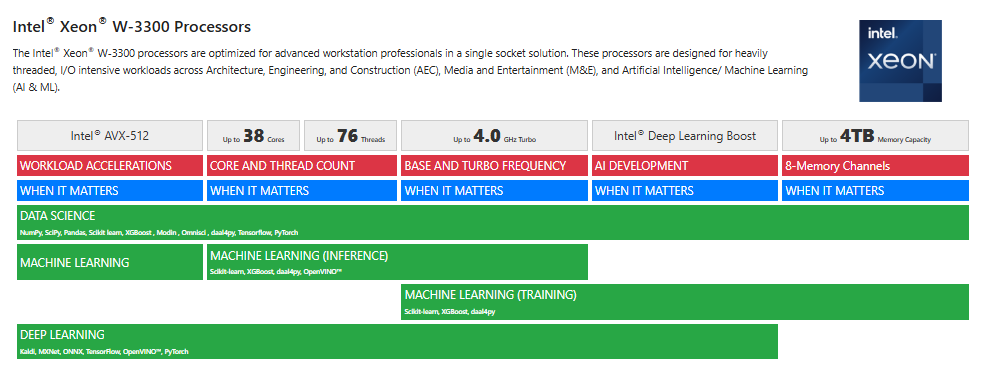

  • Single Intel® Xeon® W-3300 Processors
  • 8-Channel DDR4 RDIMM/LRDIMM, 8 x DIMMs
  • Supports Intel® Optane™ Persistent Memory 200 series
  • Intel® C621A Chipset
  • 2 x 1Gb/s LAN ports via Intel® I210-AT
  • 3 x SlimSAS 4i connectors with SATA interface
  • 1 x M.2 slot with PCIe Gen3 x4 interface
  • 7 x PCIe Gen4 x16 and x8 expansion slots
  • Ordering Numbers:
  • Retail: 9MU72SU0MR-00-2*
  • Bulk: 9MU72SU0NR-00-2*
문의하기 데이터시트









[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#3] All trademarks and logos are the property of their respective owners.

  • Form Factor (WxD, mm)

    • ATX
      304.8 x 244

  • CPU

    • 3rd Generation Intel® Xeon® Scalable Processors
      Intel® Xeon® W-3300 Processors

      Single processor, TDP up to 270W

  • Socket

    • 1 x LGA 4189
      Socket P+

  • Chipset

    • Intel® C621A

  • Memory

    • 8 x DIMM slots
      Support DDR4 RDIMM/LRDIMM
      8-channel memory per processor
      Memory speed: 3200/2933/2666 MT/s

  • LAN

    • 2 x 1Gb/s LAN (2 x Intel® I210-AT)
      - Support NCSI function

      1 x 10/100/1000 Mbps Management LAN

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x VGA port

  • Storage Interface

    • SlimSAS:
      3 x SlimSAS 4i for 12 x SATA, from PCH

      M.2:
      1 x M.2 (2280), PCIe Gen3 x4, from PCH

  • RAID

    • Intel® SATA RAID 0/1/10/5
      Onboard VROC key header

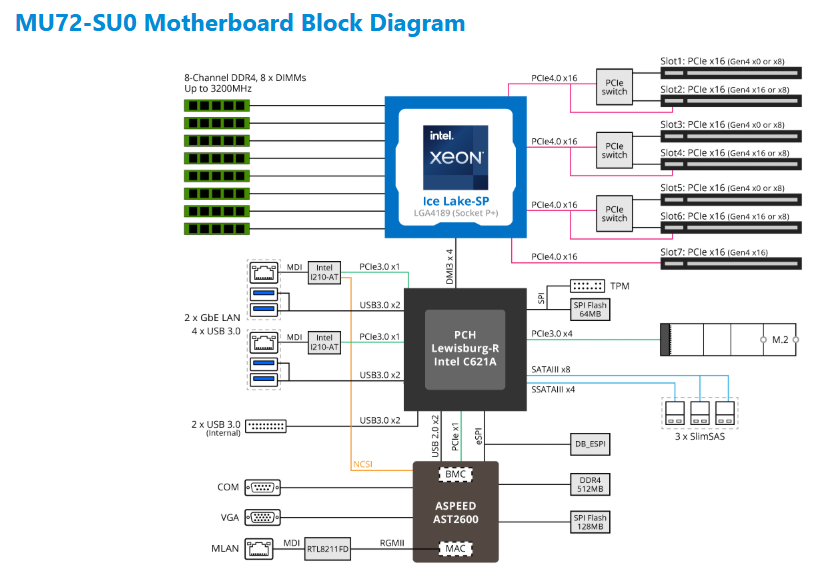

  • PCIe Expansion Slots

    • Slot_7: PCIe x16 (Gen4 x16)
      Slot_6: PCIe x16 (Gen4 x16 or x8), shared with Slot_5
      Slot_5: PCIe x16 (Gen4 x8)
      Slot_4: PCIe x16 (Gen4 x16 or x8), shared with Slot_3
      Slot_3: PCIe x16 (Gen4 x8)
      Slot_2: PCIe x16 (Gen4 x16 or x8), shared with Slot_1
      Slot_1: PCIe x16 (Gen4 x8)

  • Internal I/O

    • 1 x 24-pin ATX main power connector
      1 x 8-pin ATX 12V power connector
      1 x 6-pin ATX 12V power connector for PCIe slots
      1 x CPU fan header
      6 x System fan headers
      1 x USB 3.0 x2 header
      1 x M.2 slot
      3 x SlimSAS 4i connectors
      1 x VROC connector
      1 x Front panel header
      1 x Backplane board header
      1 x PMBus header
      1 x IPMB header
      1 x TPM header

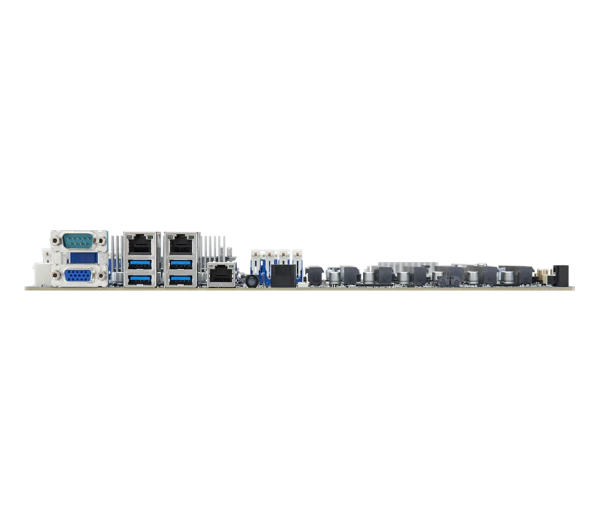

  • Rear I/O

    • 4 x USB 3.0 ports (Type-A)
      1 x VGA port
      1 x Serial port
      2 x RJ45 ports
      1 x MLAN port
      1 x ID button with LED

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM010

  • OS Compatibility

    • Windows Server 2016
      Windows Server 2019
      Windows Server 2022

      Red Hat Enterprise Linux 7.9 or later
      Red Hat Enterprise Linux 8.2 or later
      Red Hat Enterprise Linux 9.0 or later

      SUSE Linux Enterprise Server 12 SP5 or later
      SUSE Linux Enterprise Server 15 SP2 or later

      Ubuntu 20.04 LTS or later
      Ubuntu 22.04 LTS or later

      VMware ESXi 6.7 Update3 P03 or later
      VMware ESXi 7.0 Update2 or later
      VMware ESXi 8.0 or later

      Citrix Hypervisor 8.2.0 or later

      OS certifications:
      Windows Server 2019
      Windows Server 2022

  • Board Management

    • ASPEED® AST2600 Baseboard Management Controller
      GIGABYTE Management Console web interface

      Dashboard
      HTML5 KVM
      Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
      Sensor Reading History Data
      FRU Information
      SEL Log in Linear Storage / Circular Storage Policy
      Hardware Inventory
      Fan Profile
      System Firewall
      Power Consumption
      Power Control
      Advanced power capping
      LDAP / AD / RADIUS Support
      Backup & Restore Configuration
      Remote BIOS/BMC/CPLD Update
      Event Log Filter
      User Management
      Media Redirection Settings
      PAM Order Settings
      SSL Settings
      SMTP Settings

  • PSU Connectors

    • 1 x 24-pin ATX main power connector
      1 x 8-pin ATX 12V power connector
      1 x 6-pin ATX 12V power connector for PCIe slots

  • Operating Properties

    • Operating temperature: 10°C to 40°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

  • Retail Packaging Content

    • 1 x MU72-SU0
      1 x I/O shield
      1 x Quick start guide
      1 x SlimSAS 4i to 4 x SATA cable (600mm)

      Single Box dimensions: 360 x 330 x 80 mm
      Carton dimensions: 674 x 424 x 385 mm
      Quantity: 10 x single boxes in one carton

  • Bulk Packaging Content

    • 10 x MU72-SU0
      10 x I/O shields

      Carton dimensions: 600 x 473 x 495 mm

  • Reference Numbers

    • Retail: 9MU72SU0MR-00-2*/1*
      Bulk: 9MU72SU0NR-00-2*/1*

      Part Numbers:

      - I/O shield: 12AIO-MU72SU-00R
      - SlimSAS 4i to 4 x SATA cable (600mm): 25CFM-600700-A4R

      Optional parts:

      - Fansink: 25ST4-353203-M1R
