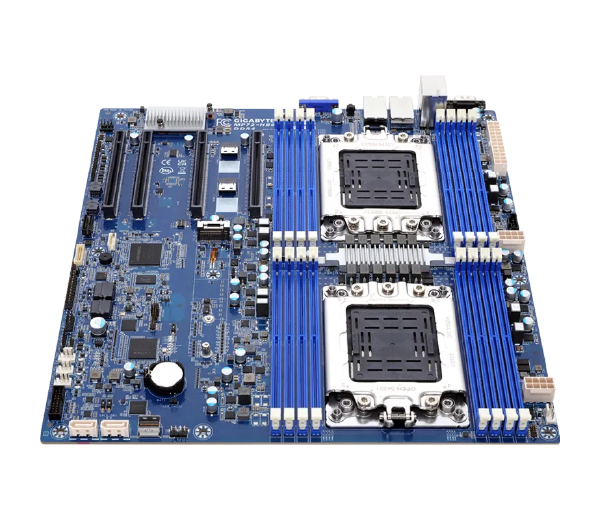

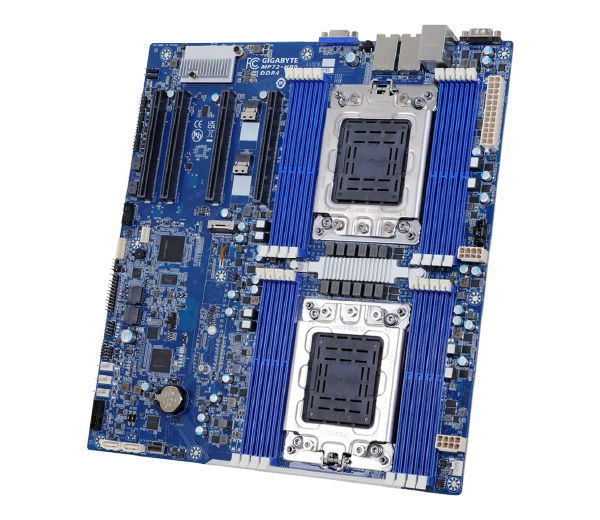

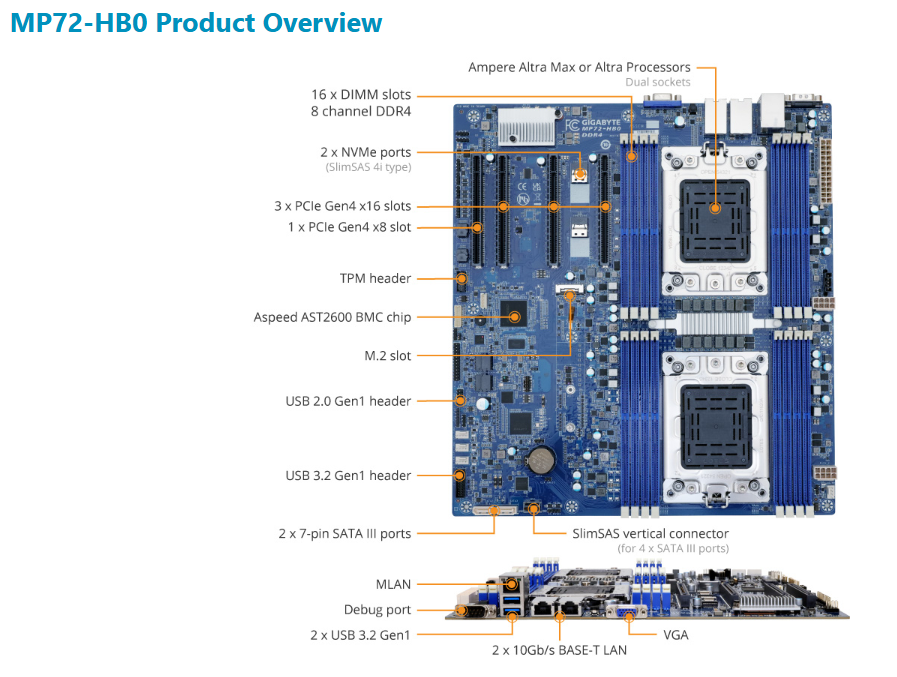

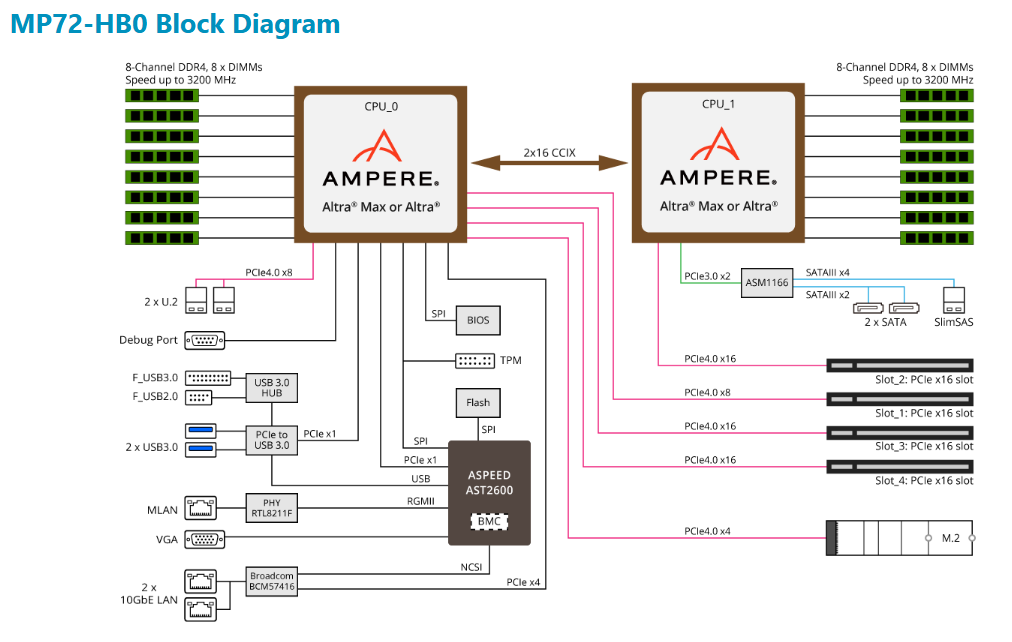

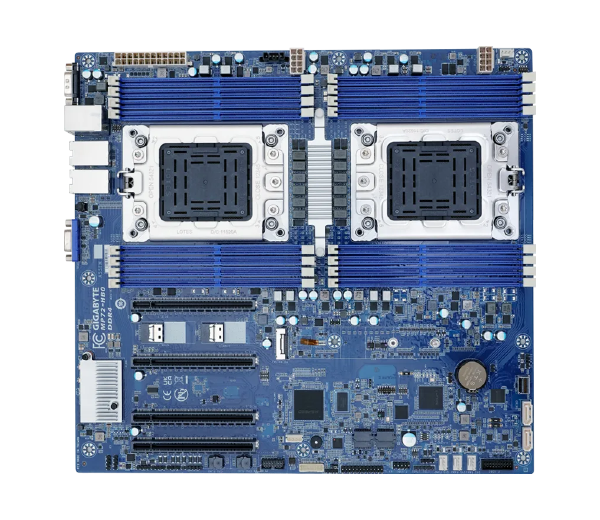

MP72-HB0

Motherboard - Ampere® Altra®/Altra® Max - E-ATX DP

  • Dual Ampere® Altra®/Altra® Max Processors
  • 8-Channel DDR4 RDIMM/LRDIMM, 16 x DIMMs
  • Dual ROM Architecture
  • 2 x 10Gb/s LAN ports via Broadcom® BCM57416
  • 2 x SlimSAS 4i connectors with PCIe Gen4 x4 interface
  • 1 x SlimSAS 4i connectors with SATA interface
  • 2 x SATA 7-pin ports
  • 1 x M.2 slot with PCIe Gen4 x4 interface
  • 4 x PCIe Gen4 x16 and x8 expansion slots
  • Ordering Numbers: 9MP72HB0NR-00-3*
문의하기 데이터시트









[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#3] All trademarks and logos are the property of their respective owners.

  • Form Factor (WxD, mm)

    • E-ATX
      305 x 330

  • CPU

    • Ampere® Altra® Processors
      Ampere® Altra® Max Processors

      Dual processor, TDP 250W

      [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

  • Socket

    • 2 x LGA 4926

  • Chipset

    • System on Chip

  • Memory

    • 16 x DIMM slots
      Support DDR4 RDIMM/LRDIMM
      8-Channel memory per processor
      Up to 3200 MT/s

      [Note] Only supports configurations with 1, 2, 4, 6, 8 DIMMs (1DPC).

  • LAN

    • 2 x 10Gb/s LAN (1 x Broadcom® BCM57416)
      - Support NCSI function

      1 x 10/100/1000 Mbps Management LAN

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x VGA port

  • Audio

    • Integrated in ASPEED® AST2600
      - 1 x VGA port

  • Storage Interface

    • SlimSAS:
      2 x SlimSAS 4i for 2 x Gen4 NVMe, from CPU_0
      1 x SlimSAS 4i for 4 x SATA, from CPU_1

      SATA 7-pin:
      2 x SATA, from CPU_1

      M.2:
      1 x M.2 (2280/22110), PCIe Gen4 x4, from CPU_0

  • RAID

    • N/A

  • PCIe Expansion Slots

    • Slot_4: PCIe x16 (Gen4 x16), from CPU_0
      Slot_3: PCIe x16 (Gen4 x16), from CPU_0
      Slot_2: PCIe x16 (Gen4 x16), from CPU_1
      Slot_1: PCIe x16 (Gen4 x8), from CPU_0

  • Internal I/O

    • 1 x 24-pin ATX main power connector
      2 x 8-pin ATX 12V power connectors
      2 x CPU fan headers
      2 x System fan headers
      1 x USB 3.2 Gen1 x2 header
      1 x USB 2.0 header
      1 x M.2 slot
      3 x SlimSAS 4i connectors
      2 x SATA 7-pin connectors
      1 x Front panel header
      1 x Backplane board header
      1 x PMBus connector
      1 x IPMB connector
      1 x TPM header

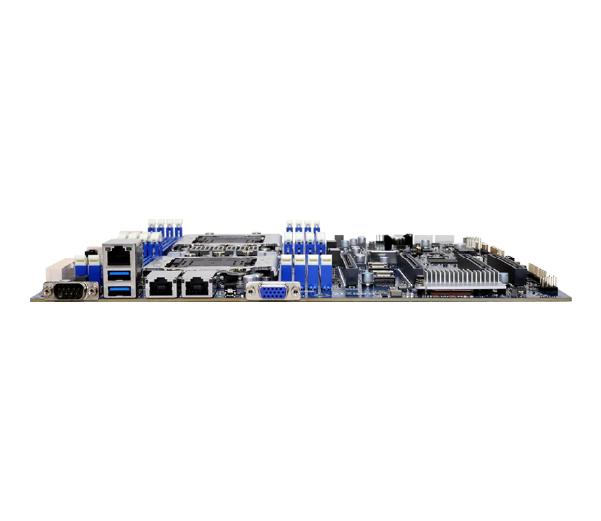

  • Rear I/O

    • 2 x USB 3.2 Gen1 ports (Type-A)
      1 x VGA port
      2 x RJ45 ports
      1 x MLAN port
      1 x ID button with LED

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM010

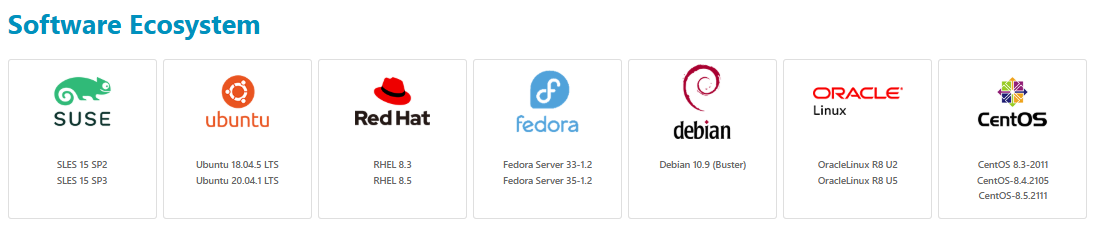

  • OS Compatibility

    • CentOS 8.3-2011 or later
      CentOS-8.4.2105 or later
      CentOS-8.5.2111 or later

      Debian 10.9
      Debian 11.1

      Fedora Server 33-1.2 or later
      Fedora Server 35-1.2 or later

      OracleLinux R8 U2
      OracleLinux R8 U5

      Red Hat Enterprise Linux 8.3 or later
      Red Hat Enterprise Linux 8.5 or later
      Red Hat Enterprise Linux 9.0 or later

      SUSE Linux Enterprise Server 15 SP2 or later
      SUSE Linux Enterprise Server 15 SP3 or later

      Ubuntu 18.04.5 LTS or later
      Ubuntu 20.04.1 LTS or later

      OS certifications:
      Red Hat Enterprise Linux 9.0 or later

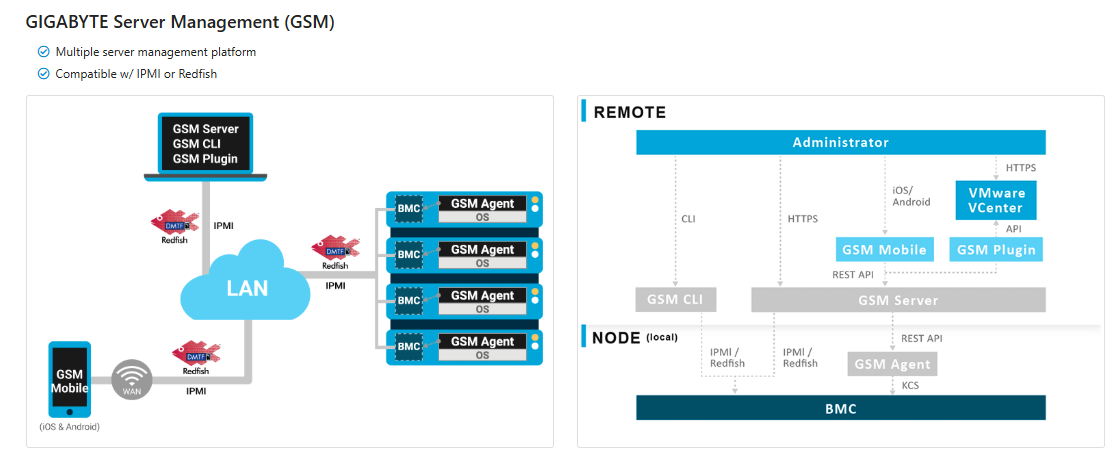

  • Board Management

    • ASPEED® AST2600 Baseboard Management Controller
      GIGABYTE Management Console web interface

      Dashboard
      HTML5 KVM
      Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
      Sensor Reading History Data
      FRU Information
      SEL Log in Linear Storage / Circular Storage Policy
      Hardware Inventory
      Fan Profile
      System Firewall
      Power Consumption
      Power Control
      Advanced power capping
      LDAP / AD / RADIUS Support
      Backup & Restore Configuration
      Remote BIOS/BMC/CPLD Update
      Event Log Filter
      User Management
      Media Redirection Settings
      PAM Order Settings
      SSL Settings
      SMTP Settings

  • PSU Connectors

    • 1 x 24-pin ATX main power connector
      2 x 8-pin ATX 12V power connectors

  • Operating Properties

    • Operating temperature: 10°C to 40°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

  • Retail Packaging Content

    • N/A

  • Bulk Packaging Content

    • 10 x MP72-HB0
      10 x I/O shields

      Carton dimensions: 600 x 473 x 495 mm

  • Reference Numbers

    • Bulk: 9MP72HB0NR-00-3*

      Part Numbers:

      - I/O shield: 12AIO-MZ72H0-00R

      Optional parts:

      - CPU fansink: 12SF2-01A101-00R
