MS34-CP0

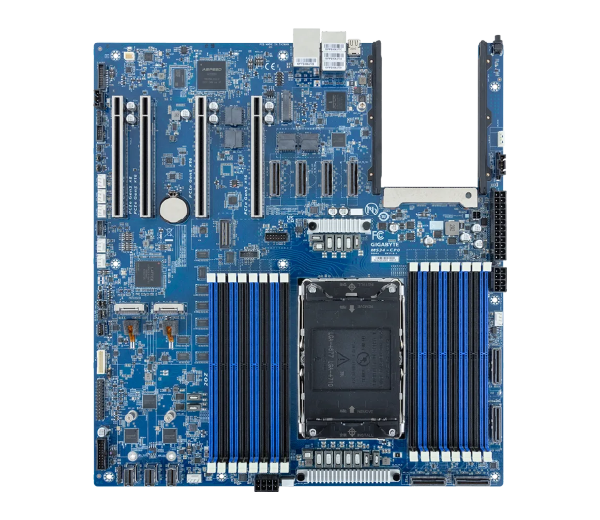

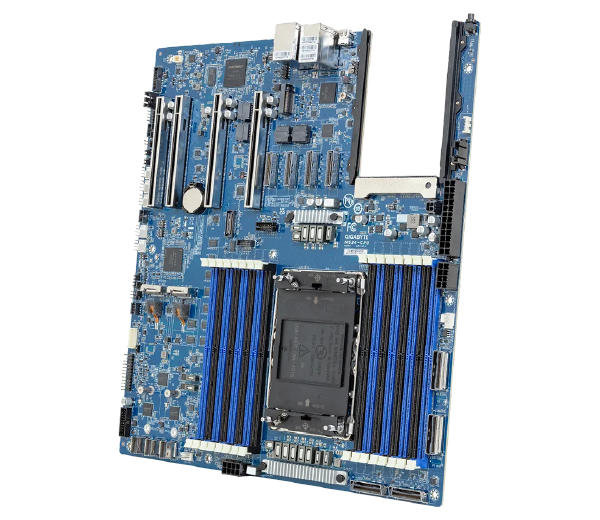

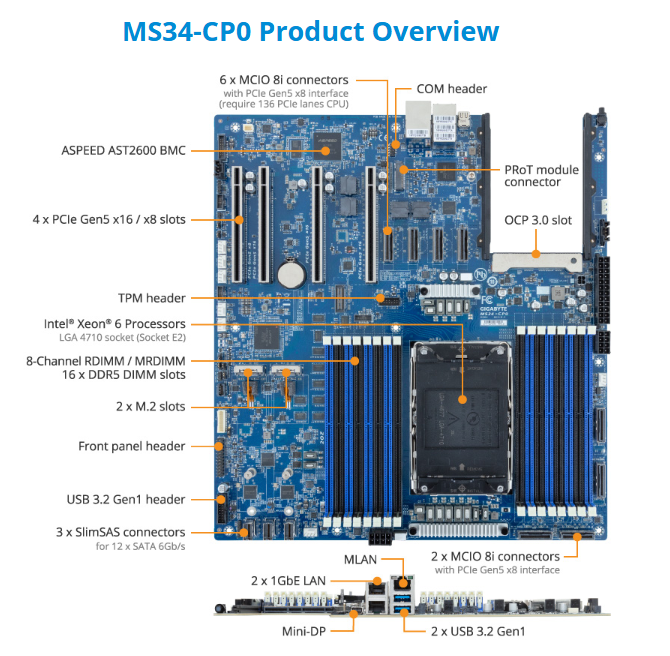

Motherboard - Intel® Xeon® 6 Processors R1S - E-ATX UP

  • Single Intel® Xeon® 6700/6500-Series Processors with 136 PCIe lanes
  • 8-Channel DDR5 RDIMM / MRDIMM, 16 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Broadcom® BCM5720
  • 2 x MCIO 8i connectors with PCIe Gen5 x8 interface
  • 6 x MCIO 8i connectors with PCIe Gen5 x8 interface, require 136 PCIe lanes CPU
  • 3 x SlimSAS 4i connectors with SATA interface
  • 1 x M.2 slot with PCIe Gen5 x2 interface
  • 1 x M.2 slot with PCIe Gen5 x2 interface, shared with SATA
  • 4 x PCIe Gen5 x16 and x8 expansion slots
  • 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
  • Ordering Numbers:
  • Retail: 9MS34CP0MR-000-1*
  • Bulk: 9MS34CP0NR-000-1*
문의하기 데이터시트











[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#3] All trademarks and logos are the property of their respective owners.

  • Form Factor (WxD, mm)

    • E-ATX
      304.8 x 330.2

  • CPU

    • Intel® Xeon® 6 Processors
      - Intel® Xeon® 6700-Series Processors
      - Intel® Xeon® 6500-Series Processors

      Single processor, TDP up to 350W

  • Socket

    • 1 x LGA 4710
      Socket E2

  • Chipset

    • System on Chip

  • Memory

    • 16 x DIMM slots
      Support DDR5 RDIMM/MRDIMM [1]
      8-Channel memory per processor
      RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
      MRDIMM: Up to 8000 MT/s

      [1] MRDIMMs are only supported with Intel® Xeonv 6 Processors with P-cores and in a 1DPC configuration.

  • LAN

    • 2 x 1Gb/s LAN (1 x Broadcom® BCM5720)
      - Support NCSI function

      1 x 10/100/1000 Mbps Management LAN

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x Mini-DP

  • Audio

    • N/A

  • Storage Interface

    • MCIO:
      2 x MCIO 8i for 4 x Gen5 NVMe

      SlimSAS:
      3 x SlimSAS 4i for 12 x SATA [1]

      M.2:
      1 x M.2 (2280/22110), PCIe Gen5 x2
      1 x M.2 (2280/22110), PCIe Gen5 x2, shared with SATA

      [1] SATA support is shared with 1 x M.2 slot. Please adjust the switch according to the manual for proper support.

  • RAID

    • Onboard VROC key header

  • PCIe Expansion Slots

    • Slot_6: PCIe x16 (Gen5 x16)
      Slot_4: PCIe x16 (Gen5 x16)
      Slot_2: PCIe x16 (Gen5 x16 or x8), shared with Slot_1
      Slot_1: PCIe x16 (Gen5 x8)

      1 x OCP NIC 3.0 (Gen5 x16)
      - Supports NCSI function

      2 x MCIO 8i (Gen5 x8)
      6 x MCIO 8i (Gen5 x8) [1]

      [1] Require CPU with 136 PCIe lanes.

  • Internal I/O

    • 1 x 24-pin ATX main power connector
      2 x 8-pin ATX 12V power connectors
      1 x 4-pin 12V standby power connector
      1 x CPU fan header
      6 x System fan headers
      1 x USB 3.2 Gen1 x2 header
      2 x M.2 slots
      8 x MCIO 8i connectors
      3 x SlimSAS 4i connectors
      1 x VROC connector
      1 x NCSI connector
      1 x Front panel header
      1 x Backplane board header
      1 x COM header
      1 x PMBus header
      1 x IPMB header
      1 x TPM header
      1 x PRoT connector (only enabled on RoT SKU)

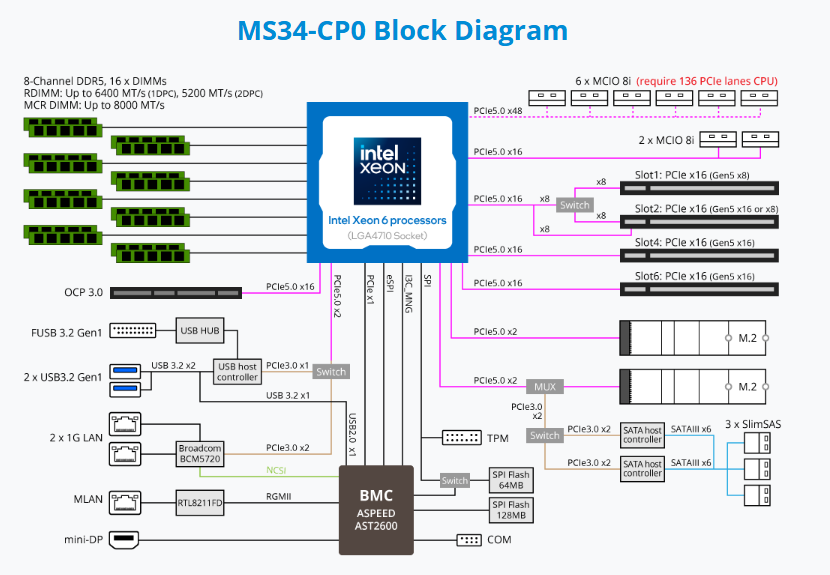

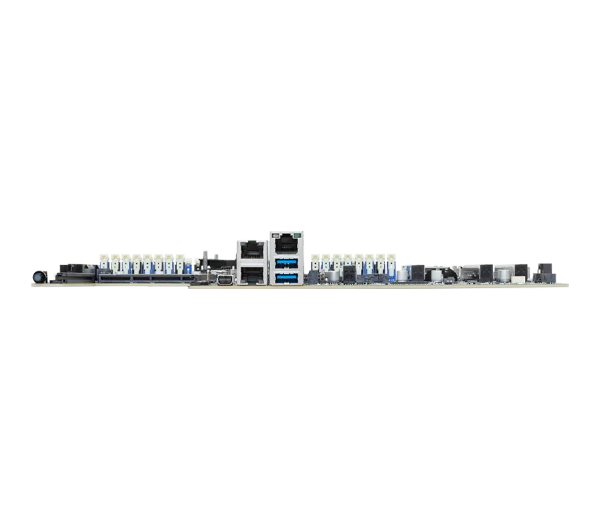

  • Rear I/O

    • 2 x USB 3.2 Gen1 ports (Type-A)
      1 x Mini-DP
      2 x RJ45 ports
      1 x MLAN port
      1 x ID button with LED

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM012

      1 x PRoT connector (only enabled on RoT SKU)

  • Board Management

    • ASPEED® AST2600 Baseboard Management Controller
      GIGABYTE Management Console web interface

      Dashboard
      HTML5 KVM
      Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
      Sensor Reading History Data
      FRU Information
      SEL Log in Linear Storage / Circular Storage Policy
      Hardware Inventory
      Fan Profile
      System Firewall
      Power Consumption
      Power Control
      Advanced power capping
      LDAP / AD / RADIUS Support
      Backup & Restore Configuration
      Remote BIOS/BMC/CPLD Update
      Event Log Filter
      User Management
      Media Redirection Settings
      PAM Order Settings
      SSL Settings
      SMTP Settings

  • PSU Connectors

    • 1 x 24-pin ATX main power connector
      2 x 8-pin ATX 12V power connectors
      1 x 4-pin 12V standby power connector

  • Operating Properties

    • Operating temperature: 10°C to 40°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

  • Retail Packaging Content

    • 1 x MS34-CP0
      1 x I/O shield
      1 x Quick start guide
      1 x Mini-DP to D-Sub cable
      2 x Carriers

      Single Box dimensions: 409 x 355 x 78 mm
      Carton dimensions: 729 x 415 x 432 mm
      Quantity: 10 x single boxes in one carton

  • Bulk Packaging Content

    • 10 x MS34-CP0
      10 x I/O shields
      20 x Carriers

      Carton dimensions: 600 x 473 x 517 mm

  • Reference Numbers

    • Retail: 9MS34CP0MR-000-1*
      Bulk: 9MS34CP0NR-000-1*

      Part Numbers:

      - I/O shield: 12AIO-MS33CP-00R
      - Mini-DP to D-Sub cable: 25CRN-200801-K1R
