S453-Z30-AAV2

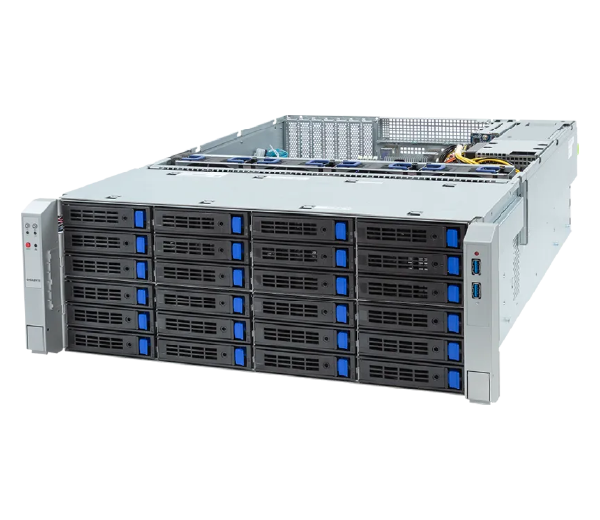

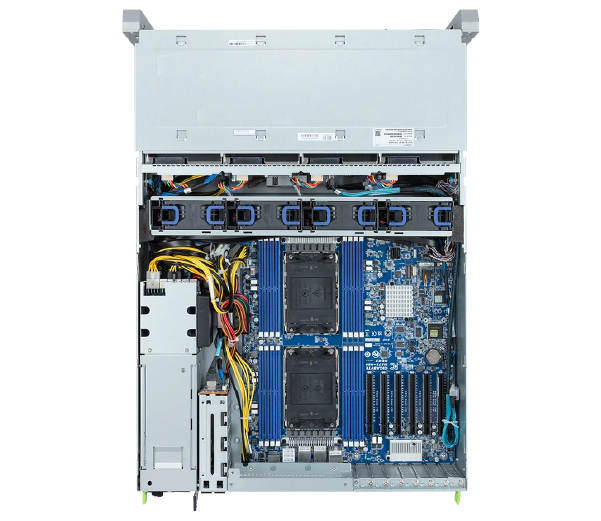

Storage Server - AMD EPYC™ 9005/9004 - 4U UP 36+2-Bay SATA/SAS

  • Single AMD EPYC™ 9005/9004 Series Processors
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • 2 x 10Gb/s LAN ports via Broadcom® BCM57416

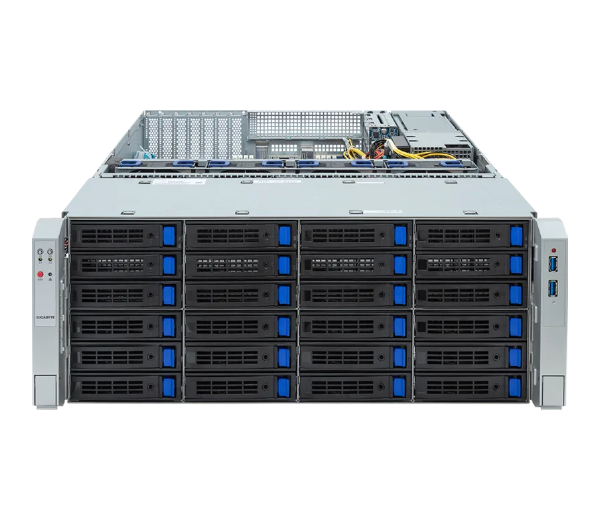

  • 24 x 3.5"/2.5" SATA/SAS hot-swap bays on the front side
  • 12 x 3.5"/2.5" SATA/SAS hot-swap bays on the rear side
  • 2 x 2.5" SATA/SAS bays on the rear side for boot drives
  • SAS expander with 12Gb/s transfer speed
  • 1 x M.2 slot with PCIe Gen4 x4 interface
  • 4 x LP PCIe Gen5 x16 slots
  • Dual 1600W 80 PLUS Titanium redundant power supply
  • Ordering Numbers: 6NS453Z30MR000ACV2*
문의하기 데이터시트














[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

  • Dimensions (WxHxD, mm)

    • 4U
      448.5 x 174.3 x 625

  • Motherboard

    • MZ33-AR1

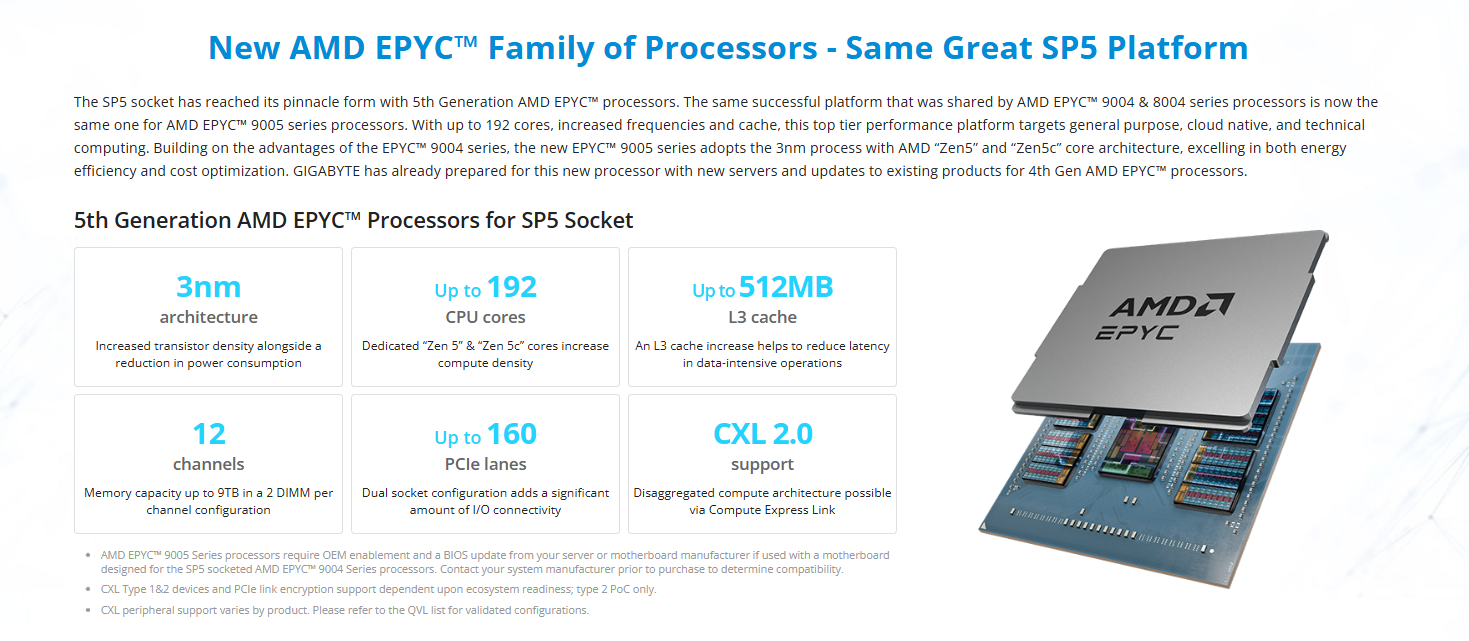

  • CPU

    • AMD EPYC™ 9005 Series Processors
      AMD EPYC™ 9004 Series Processors

      Single processor, cTDP up to 500W

  • Socket

    • 1 x LGA 6096
      Socket SP5

  • Chipset

    • System on Chip

  • Memory

    • 24 x DIMM slots
      Support DDR5 RDIMM
      12-Channel memory per processor

      AMD EPYC™ 9005:
      Up to 5200 MT/s (1DPC)
      Up to 4400 MT/s (1R 2DPC), 4000 MT/s (2R 2DPC)

      AMD EPYC™ 9004:
      Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)

  • LAN

    • Rear:
      2 x 10Gb/s LAN (1 x Broadcom® BCM57416)
      - Support NCSI function

      1 x 10/100/1000 Mbps Management LAN

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x VGA port

  • Storage

    • Front hot-swap:
      24 x 3.5"/2.5" SATA/SAS [1]

      Rear hot-swap:
      12 x 3.5"/2.5" SATA/SAS [1]

      Rear:
      2 x 2.5" SATA/SAS [2], for boot drives

      Internal M.2:
      1 x M.2 (2280/22110), PCIe Gen4 x4

      [1] Storage card is required to enable SATA and SAS drives.
      - Broadcom SAS35x48 expander
      - Bandwidth: SATA 6Gb/s or SAS 12Gb/s per port

      [2] Additional SAS card is required for SAS support on boot drives.

  • SAS

    • Supported via storage cards

      Recommended SAS cards:
      CSA4710
      CRA4760
      CRA4761

  • RAID

    • Require RAID add-in cards

  • PCIe Expansion Slots

    • 4 x LP x16 (Gen5 x16)

  • Front I/O

    • 2 x USB 3.2 Gen1 ports (Type-A)
      1 x Power button with LED
      1 x ID button with LED
      1 x Reset button
      2 x LAN activity LEDs
      1 x System status LED

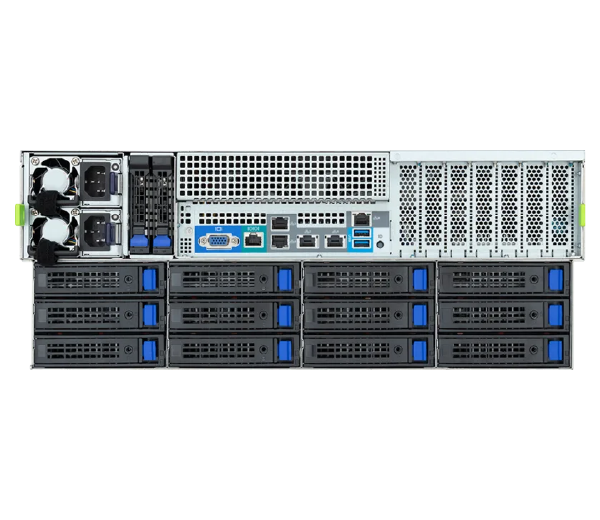

  • Rear I/O

    • 2 x USB 3.2 Gen1 ports (Type-A)
      1 x VGA port
      1 x Serial port
      2 x RJ45 ports
      1 x MLAN port
      1 x ID button with LED

  • Backplane Board

    • Speed and bandwidth:
      Front - CBPD4O0: SATA 6Gb/s or SAS 12Gb/s
      Rear - CBP2021: SATA 6Gb/s or SAS 12Gb/s
      Rear - CBPD0C0: SATA 6Gb/s or SAS 12Gb/s

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM012

  • Power Supply[#1]

    • Dual 1600W 80 PLUS Titanium redundant power supply

      AC Input:
      - 100-240V~/ 12-9.5A, 50/60Hz

      DC Input: (Only for China)
      - 240Vdc/ 9.5A

      DC Output:
      - Max 1000W/ 100-127V~
      +12.2V/ 82A
      +12Vsb/ 3A
      - Max 1600W/ 200-240V~ or 240Vdc Input
      +12.2V/ 131.2A
      +12Vsb/ 3A

  • System Management

    • ASPEED® AST2600 Baseboard Management Controller
      GIGABYTE Management Console web interface

      Dashboard
      HTML5 KVM
      Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
      Sensor Reading History Data
      FRU Information
      SEL Log in Linear Storage / Circular Storage Policy
      Hardware Inventory
      Fan Profile
      System Firewall
      Power Consumption
      Power Control
      Advanced power capping
      LDAP / AD / RADIUS Support
      Backup & Restore Configuration
      Remote BIOS/BMC/CPLD Update
      Event Log Filter
      User Management
      Media Redirection Settings
      PAM Order Settings
      SSL Settings
      SMTP Settings

  • OS Compatibility

    • 8 x 80x80x38mm

  • Operating Properties

    • Operating temperature: 10°C to 30°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

  • Weight

    • Net Weight: 46 kg
      Gross Weight: 48 kg

  • Packaging Dimensions

    • 870 x 635 x 449 mm

  • Packaging Content

    • 1 x S453-Z30-AAV2
      1 x CPU heatsink
      1 x 3-Section Rail kit

  • Part Numbers

    • - Barebone package: 6NS453Z30MR000ACV2*
      - Motherboard: 9MZ33AR1NR-000*
      - 3-Section Rail kit: 25HB2-3A6104-I0R
      - CPU heatsink: 25ST1-563400-C1R
      - Backplane board - CBP2021: 9CBP2021NR-00*
      - Backplane board - CBPD0C0: 9CBPD0C0NR-00*
      - Backplane board - CBPD4O0: 9CBPD4O0NR-00*
      - Fan module: 25420-8038B-D00R
      - Fan module: 25ST2-883829-D0R
      - Power supply: 25EP0-21600L-L0S
