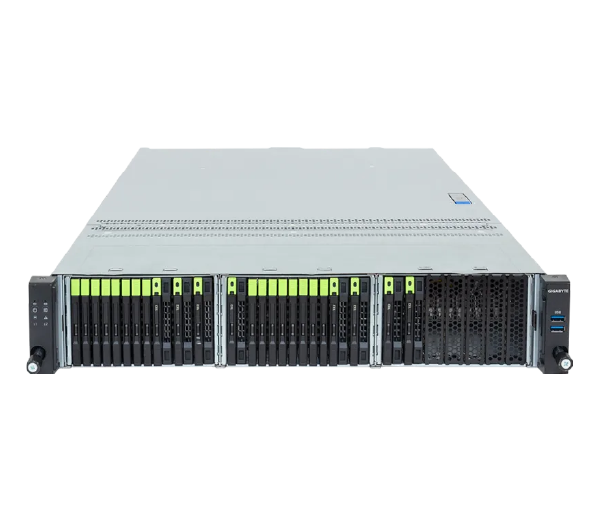

R284-S91-AAJ2

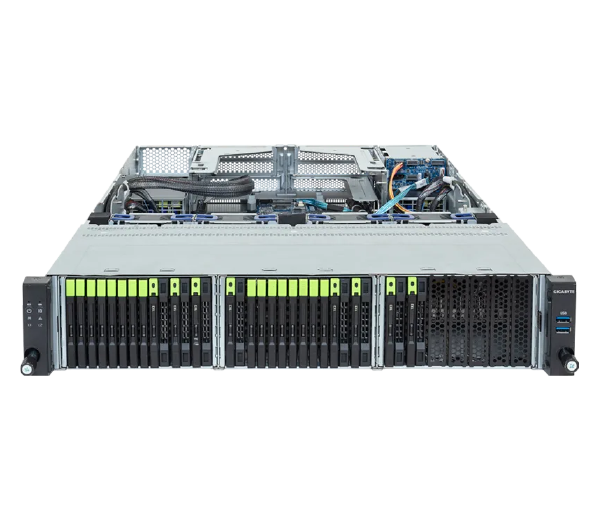

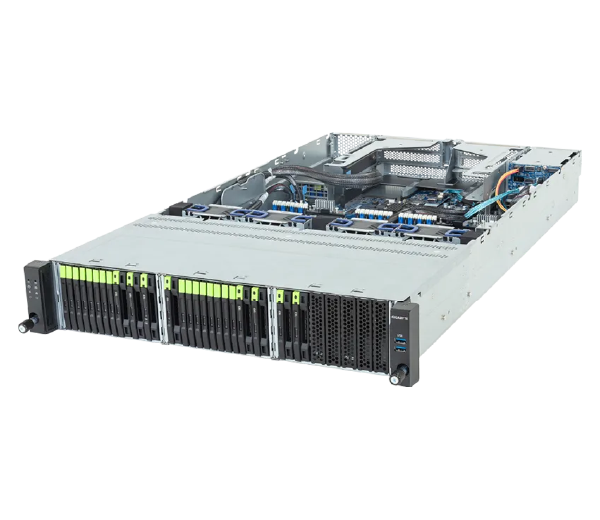

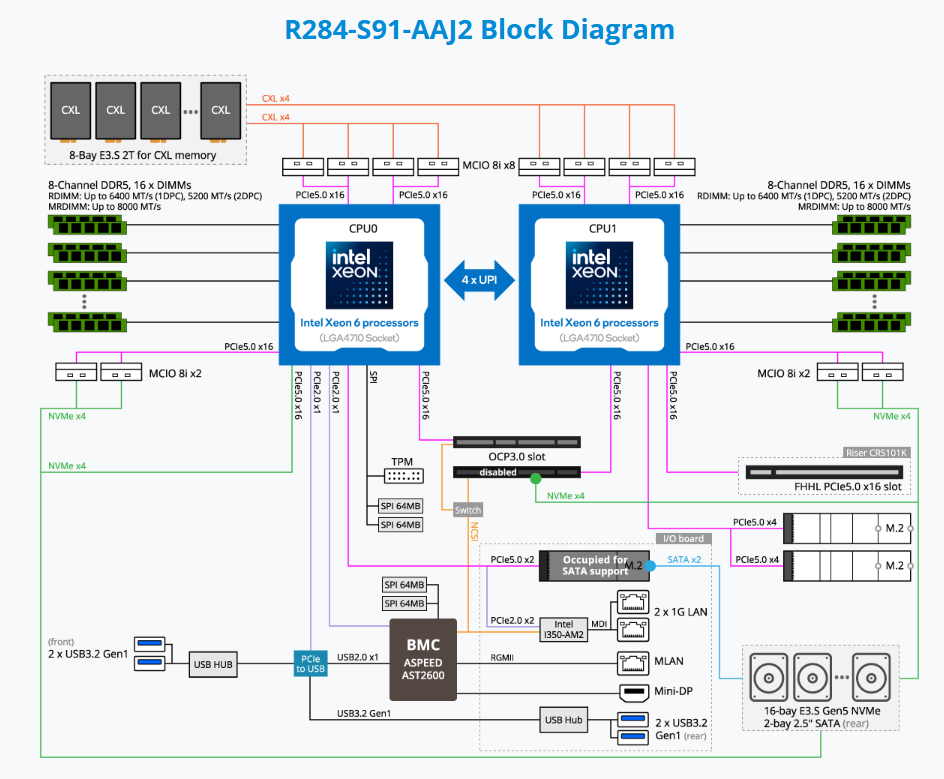

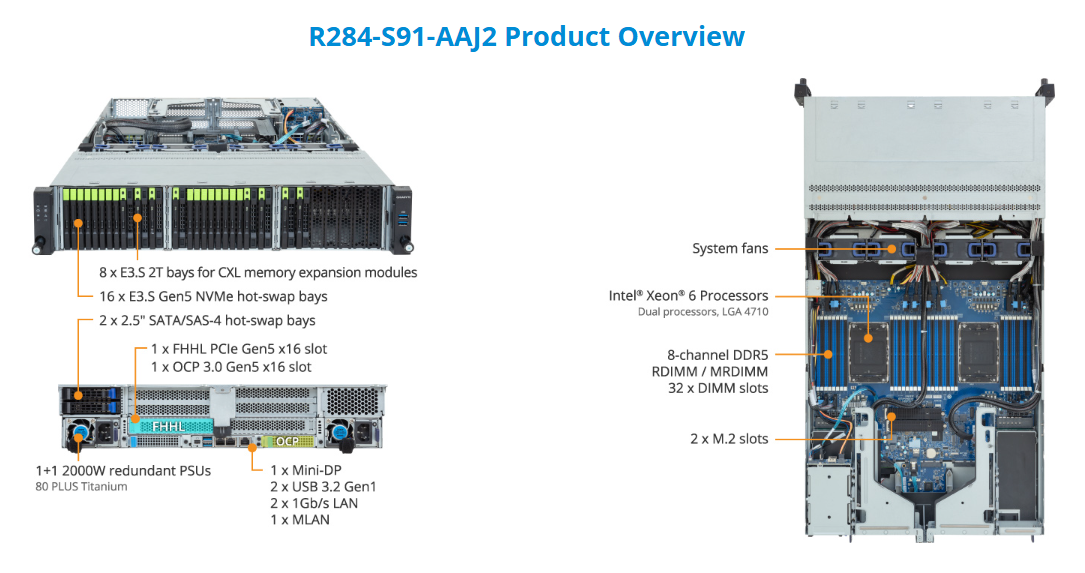

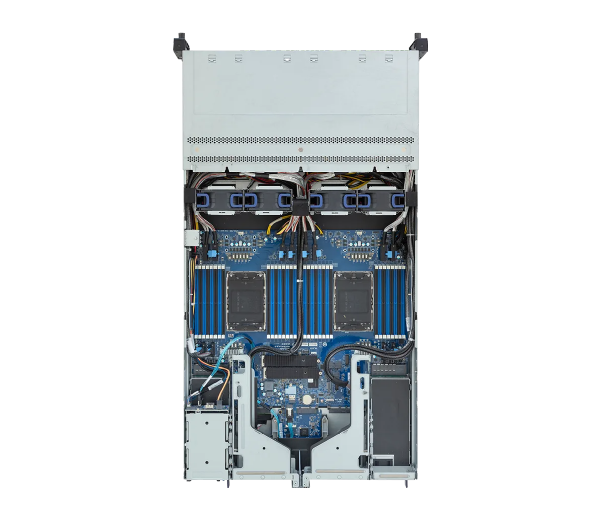

Rack Server - Intel® Xeon® 6 Processors - 2U DP 16-Bay E3.S Gen5 NVMe + 8 x E3.S 2T CXL

  • Dual Intel® Xeon® 6700/6500-Series Processors
  • 8-Channel DDR5 RDIMM / MRDIMM, 32 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2

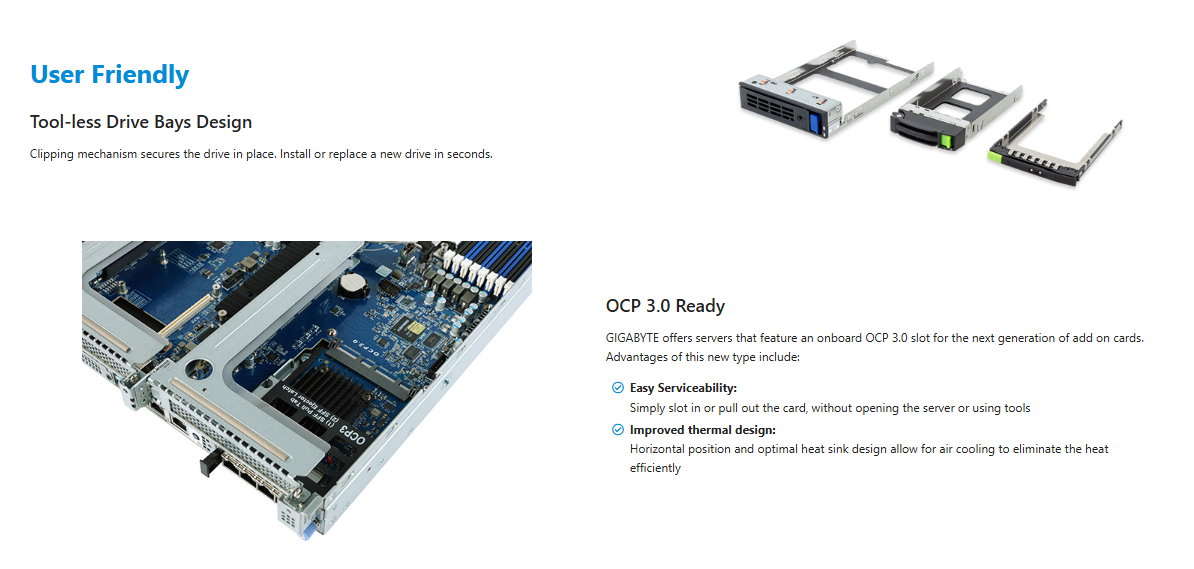

  • 16 x E3.S Gen5 NVMe hot-swap bays
  • 8 x E3.S 2T bays for CXL memory expansion modules
  • 2 x 2.5" SATA/SAS-4 hot-swap bays on the rear side
  • 2 x M.2 slots with PCIe Gen5 x4 interface
  • 1 x FHHL PCIe Gen5 x16 slot
  • 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
  • 1+1 2000W 80 PLUS Titanium redundant power supplies
  • Ordering Numbers: 6NR284S91DR000AAJ2*
문의하기 데이터시트

















[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

  • Dimensions (WxHxD, mm)

    • 2U
      438 x 87.5 x 815

  • Motherboard

    • MS94-FS0

  • CPU

    • Intel® Xeon® 6 Processors
      - Intel® Xeon® 6700-Series Processors
      - Intel® Xeon® 6500-Series Processors

      Dual processor, TDP up to 350W

      [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

  • Socket

    • 2 x LGA 4710
      Socket E2

  • Chipset

    • System on Chip

  • Memory

    • 32 x DIMM slots
      Support DDR5 RDIMM/MRDIMM [1]
      8-Channel memory per processor
      RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
      MRDIMM: Up to 8000 MT/s

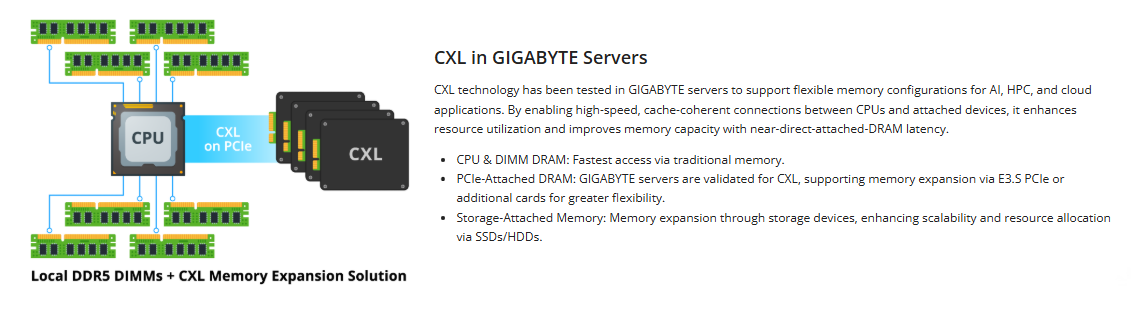

      CXL memory expansion module:
      4 x E3.S 2T (Gen5 x8), from CPU_0
      4 x E3.S 2T (Gen5 x8), from CPU_1

      [1] MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores and in a 1DPC configuration.

  • LAN

    • Rear (I/O board - CDCR010):
      2 x 1Gb/s LAN (1 x Intel® I350-AM2)
      - Support NCSI function

      1 x 10/100/1000 Mbps Management LAN

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x Mini-DP

  • Storage

    • Front hot-swap:
      16 x E3.S Gen5 NVMe
      - (8 x NVMe from CPU_0, 8 x NVMe from CPU_1)

      Rear hot-swap:
      2 x 2.5" SATA/SAS-4 [1]
      - (SATA from CPU_0, through I/O board)

      Internal M.2:
      2 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_1

      Internal M.2 (I/O board - CDCR010):
      1 x M.2 (2280), PCIe Gen5 x2, from CPU_0, occupied for SATA

      [1] SAS card is required to support SAS drives.

  • PCIe Expansion Slots

    • Riser Card CRS101K:
      - 1 x FHHL x16 (Gen5 x16), from CPU_1

      1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
      - Supports NCSI function

      1 x OCP NIC 3.0 (Gen5 x16), from CPU_1, occupied for NVMe

  • Front I/O

    • 2 x USB 3.2 Gen1 ports (Type-A)
      1 x Power button with LED
      1 x ID button with LED
      1 x NMI button
      1 x Reset button
      2 x LAN activity LEDs
      1 x Storage activity LED
      1 x System status LED

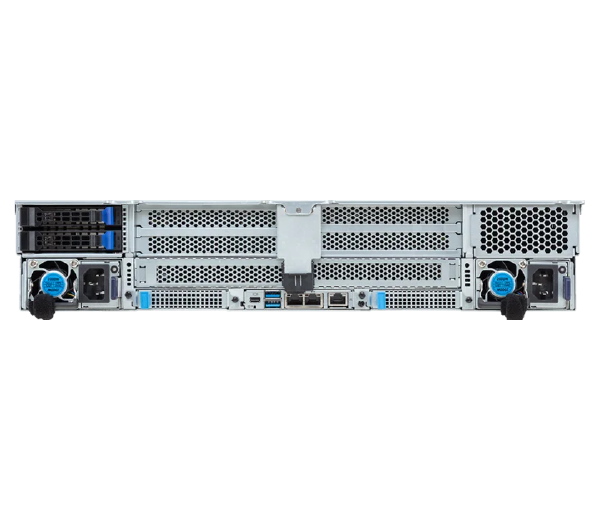

  • Rear I/O

    • I/O board - CDCR010:
      2 x USB 3.2 Gen1 ports (Type-A)
      1 x Mini-DP
      2 x RJ45 ports
      1 x MLAN port
      1 x ID LED

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM012

      1 x PRoT connector (only enabled on RoT SKU)

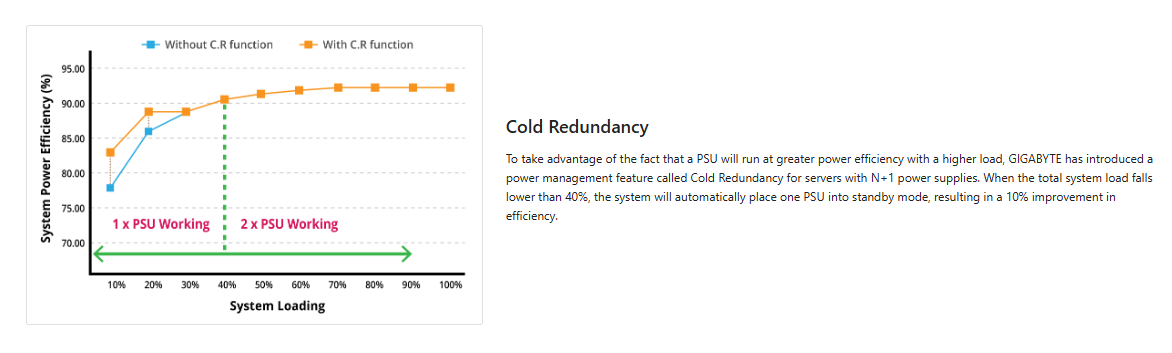

  • Power Supply[#1]

    • 1+1 2000W 80 PLUS Titanium redundant power supplies

      AC Input:
      - 100-127V~/ 13A, 50-60Hz
      - 200-220V~/ 10A, 50-60Hz
      - 220-240V~/ 10A, 50-60Hz

      DC Input: (Only for China)
      - 240Vdc/ 10A

      DC Output:
      - Max 1000W/ 100-127V~
      +12.2V/ 82A
      +12.2Vsb/ 3A
      - Max 1800W/ 200-220V~
      +12.2V/ 148A
      +12.2Vsb/ 3A
      - Max 2000W/ 220-240V~ or 240Vdc Input
      +12.2V/ 164A
      +12.2Vsb/ 3A

      [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.

  • OS Certifications

    • Windows Server 2022
      Windows Server 2025

  • System Fans

    • 4 x 80x80x38mm

  • Operating Properties

    • Operating temperature: 10°C to 35°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

  • Weight

    • Net Weight: 21.2 kg
      Gross Weight: 29.4 kg

  • Packaging Dimensions

    • 1082 x 685 x 314 mm

  • Packaging Content

    • 1 x R284-S91-AAJ2
      2 x CPU heatsinks
      1 x Mini-DP to D-Sub cable
      4 x Carriers
      1 x 2-Section Rail kit

  • Part Numbers

    • - Barebone package: 6NR284S91DR000AAJ2*
      - Motherboard: 9MS94FS0UR-000*
      - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
      - CPU heatsink: 25ST1-323208-A0R
      - M.2 heatsink: 12SP2-11000E-00R
      - Front panel board - CFP2001: 9CFP2001NR-00*
      - Backplane board - CBP2025: 9CBP2025NR-00*
      - Backplane board - CBP20E0: 9CBP20E0NR-00*
      - Backplane board - CBP20P0: 9CBP20P0NR-00*
      - Fan module: 25ST2-88382Y-A0R
      - M.2 type SATA card - CRS2810: 9CRS2810NR-00*
      - Riser card - CRS101K: 9CRS101KNR-00*
      - I/O board with M.2 slot - CDCR010: 9CDCR010NR-00*
      - Mini-DP to D-Sub cable: 25CRN-200801-K1R
      - Power supply: 25EP0-22000L-G1S

      Optional parts:

      - 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
      - Cable Management Arm: 25HB1-R18300-K0R
      - RMA packaging: 6NR284S91SR-RMA-A100
