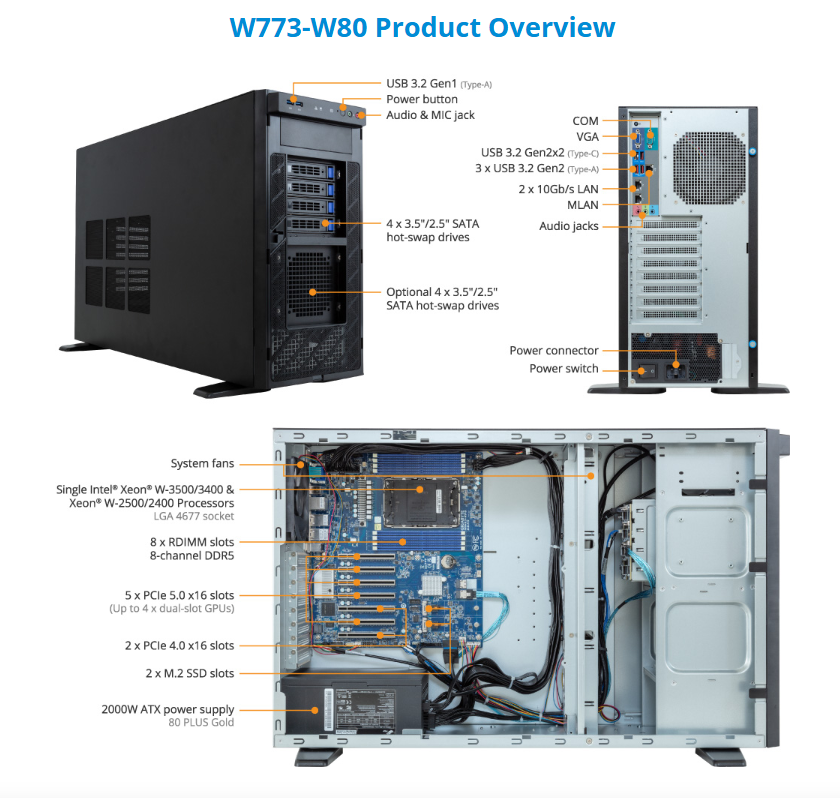

W773-W80
GPU Workstation - Intel® Xeon® W-3500/2500/3400/2400
- Supports up to 4 x Dual slot Gen5 GPUs
- Single Intel® Xeon® W-3500/3400 Processors
- Single Intel® Xeon® W-2500/2400 Processors*
- 8-Channel DDR5 RDIMM, 8 x DIMMs
- Intel® W790 Chipset
- 2 x 10Gb/s LAN ports via Intel® X710-AT2
- 2 x M.2 slots with PCIe Gen4 x4 interface
- Up to 8 x 3.5"/2.5" SATA bays
- 5 x PCIe Gen5 x16 slots
- 2 x PCIe Gen4 x16 slots
- Single 2000W ATX 80 PLUS Gold power supply
- Ordering Numbers: 6NW773W80MR-000-3*
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
-
Dimensions (WxHxD, mm)
- Pedestal
218 x 455 x 726.3
- Pedestal
-

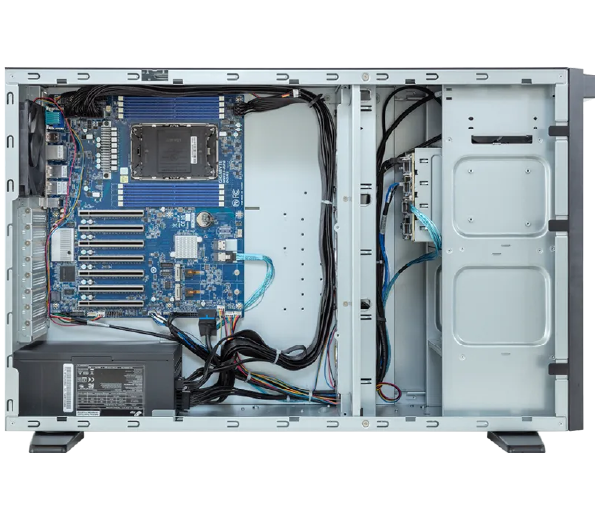

Motherboard
- MW83-RP0
-
CPU
- Intel® Xeon® W-3500 Processors
Intel® Xeon® W-2500 Processors [1]
Intel® Xeon® W-3400 Processors
Intel® Xeon® W-2400 Processors [1]
Single processor, TDP up to 385W
[1] Carriers for Intel® Xeon® W-2500/2400 Processors are not included. Please refer to the optional parts for proper support.
[Note] Please select Intel® Xeon® W-3500/3400 Processors to enable all functions.
- Intel® Xeon® W-3500 Processors
-
Socket
- 1 x LGA 4677
Socket E
- 1 x LGA 4677
-
Chipset
- Intel® W790
-
Memory
- 8 x DIMM slots
Support DDR5 RDIMM
8-channel memory per processor
Up to 4800 MT/s
[Note] Only 4 x DIMM slots are supported with Intel® Xeon® W-2500/2400 Processors.
[Note] When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0.
- 8 x DIMM slots
-

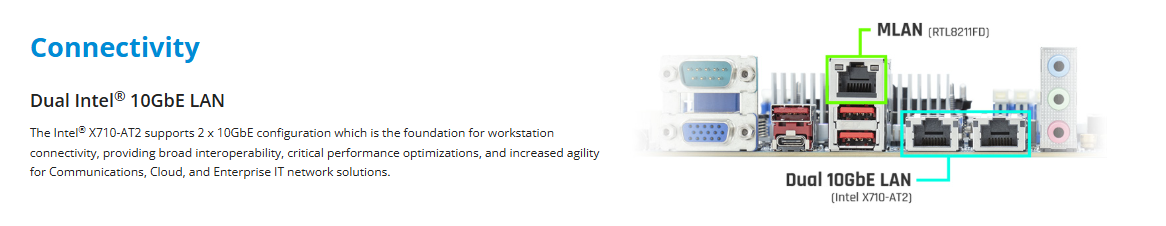

LAN
- 2 x 10Gb/s LAN (1 x Intel® X710-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
- 2 x 10Gb/s LAN (1 x Intel® X710-AT2)
-
Video
- Integrated in ASPEED® AST2600
- 1 x VGA port
- Integrated in ASPEED® AST2600
-
Audio
- Realtek® ALC897 HD Audio Codec
Supports 2/4/5.1/7.1 channel configurations
Rear: 3 x Audio jacks (Audio in/Audio out/Mic)
Front: 2 x Audio jacks (Audio out/Mic)
- Realtek® ALC897 HD Audio Codec
-

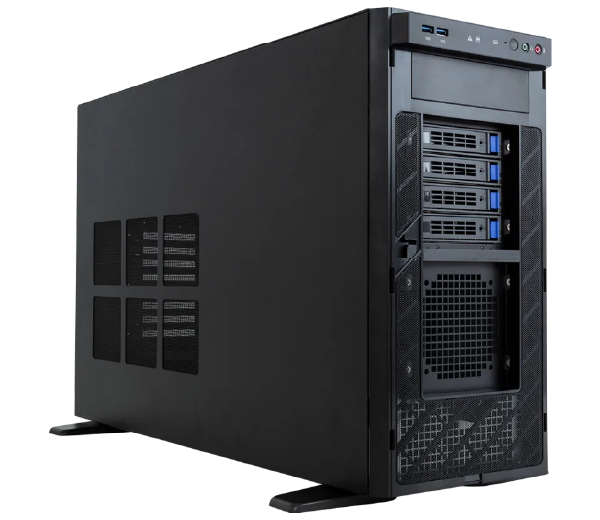

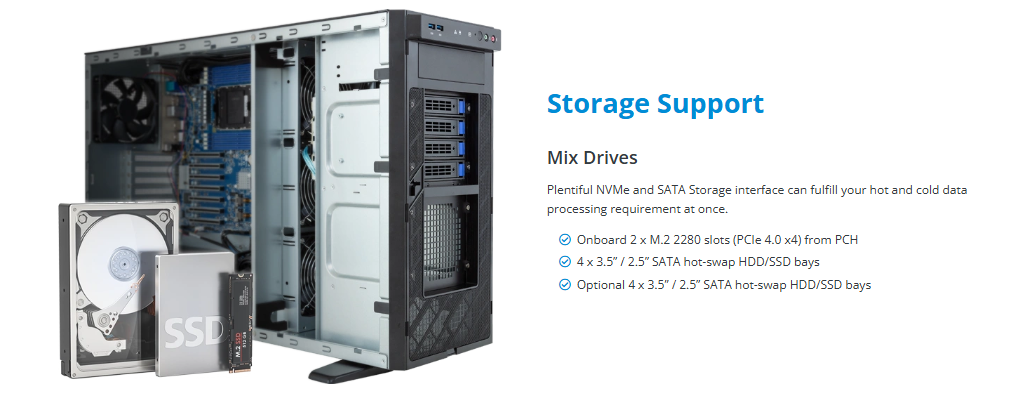

Storage
- Front hot-swap:
4 x 3.5"/2.5" SATA
Optional 4 x 3.5"/2.5" SATA
Internal M.2:
2 x M.2 (2280), PCIe Gen4 x4, from PCH
[Note] Storage card is required to support NVMe and SAS drives.
- Front hot-swap:
-
RAID
- Intel® SATA RAID 0/1/10/5
-
Peripheral Drives
- 5.25" space reserved for ODD device
-
PCIe Expansion Slots
- Slot_7: PCIe x16 (Gen5 x16)
Slot_6: PCIe x16 (Gen5 x16) [1]
Slot_5: PCIe x16 (Gen5 x16) [1]
Slot_4: PCIe x16 (Gen5 x16) [1]
Slot_3: PCIe x16 (Gen4 x16)
Slot_2: PCIe x16 (Gen5 x16)
Slot_1: PCIe x16 (Gen4 x16)
[1] Slot_4/5/6 are not supported with Intel® Xeon® W-2500/2400 Processors.

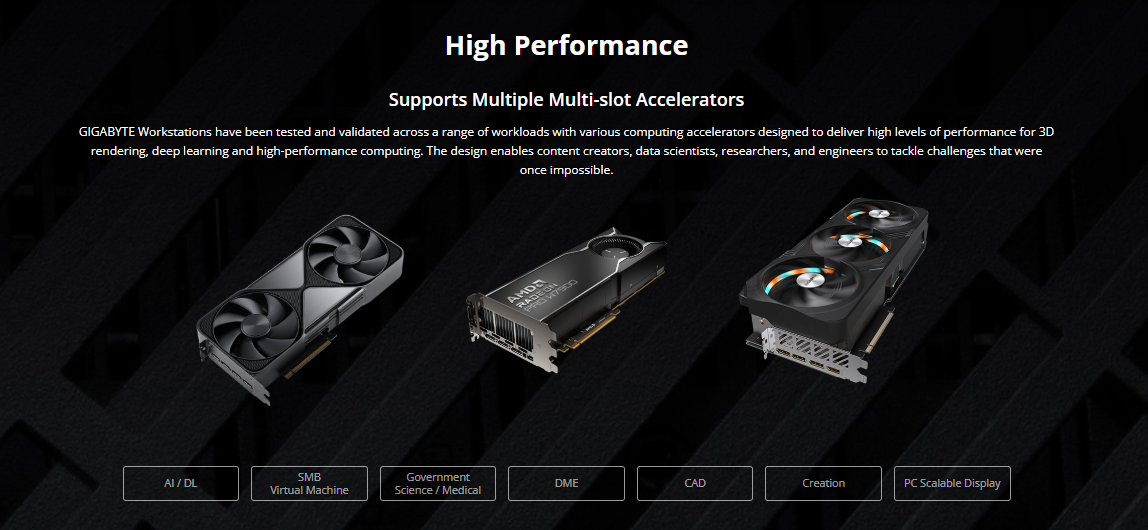

[Note] The system supports the following GPU configurations:
- Dual-slot 300W GPUs: 4 x GPUs
- Dual-slot 600W GPUs: 1 x GPU
- Triple-slot GPUs: 2 x GPUs
- Slot_7: PCIe x16 (Gen5 x16)
-
Front I/O
- 2 x USB 3.2 Gen1 ports (Type-A)
2 x Audio jacks (Audio out/Mic)
1 x Power button
1 x Reset button
1 x Power LED
1 x Storage activity LED
1 x System status LED
- 2 x USB 3.2 Gen1 ports (Type-A)
-

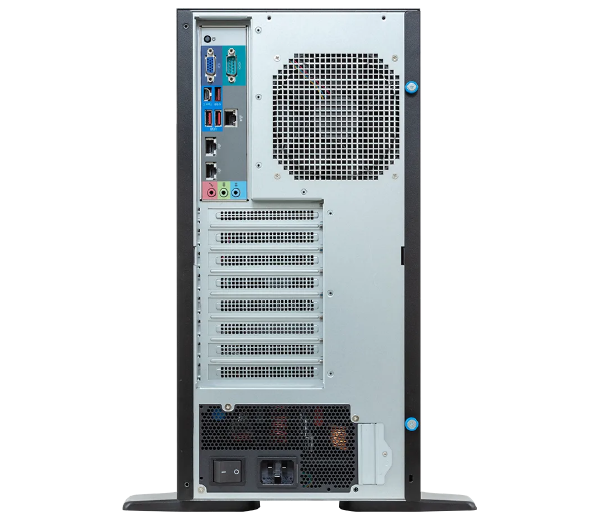

Rear I/O
- 1 x USB 3.2 Gen2x2 port (Type-C)
3 x USB 3.2 Gen2x1 ports (Type-A)
1 x VGA port
1 x COM port
2 x RJ45 ports
1 x MLAN port
3 x Audio jacks (Audio in/Audio out/Mic)
1 x ID button with LED
- 1 x USB 3.2 Gen2x2 port (Type-C)
-
Security Modules
- 1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- 1 x TPM header with SPI interface
-
Power Supply[#1]
- Single 2000W ATX 80 PLUS Gold power supply [1]
AC Input:
- 100-240V~/ 15-12A, 60-50Hz
DC Output:
- Max 1200W/ 100-115V~
+12V/ 100A
+5V/ 25A
+3.3V/ 25A
+5Vsb/ 4A
- Max 1500W/ 115-200V~
+12V/ 125A
+5V/ 25A
+3.3V/ 25A
+5Vsb/ 4A
- Max 2000W/ 200-240V~
+12V/ 166.6A
+5V/ 25A
+3.3V/ 25A
+5Vsb/ 4A
[1] The system power supply requires C19 power cord.
[Note] 220-240V AC input is recommended for optimized user experience.
- Single 2000W ATX 80 PLUS Gold power supply [1]
-
System Management
- ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
- ASPEED® AST2600 Baseboard Management Controller
-
OS Compatibility
- CentOS Stream 9
Debian 11.5.0
Red Hat Enterprise Linux 9.0
Ubuntu 22.04 LTS
Windows 11 Enterprise
- CentOS Stream 9
-

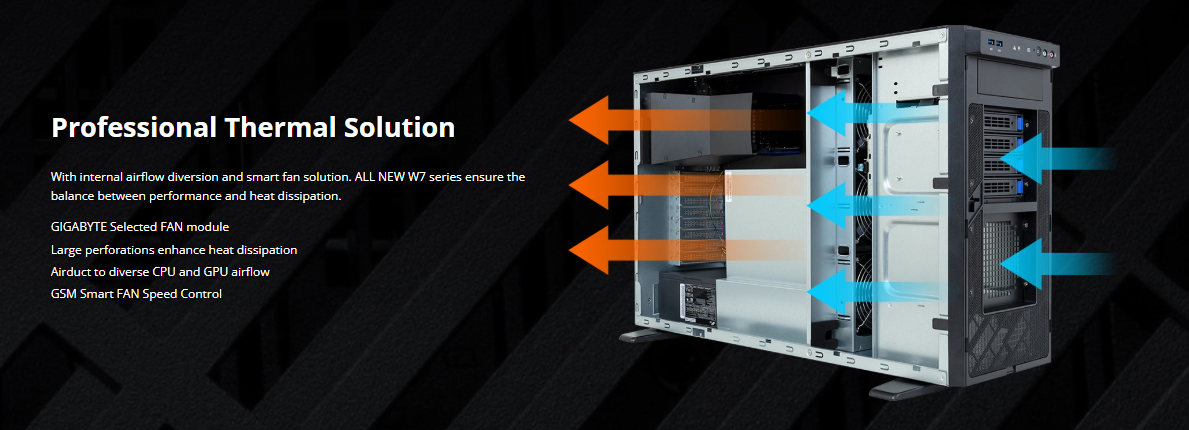

System Fans
- Middle:
3 x 120x120x38mm
Rear:
1 x 120x120x25mm
- Middle:
-
Operating Properties
- Operating temperature: 10°C to 30°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
- Operating temperature: 10°C to 30°C
-
Weight
- Net Weight: 21.57 kg
Gross Weight: 34 kg
- Net Weight: 21.57 kg
-
Packaging Dimensions
- 1050 x 417 x 594 mm
-
Packaging Content
- 1 x W773-W80
1 x CPU fansink
1 x W-3500/3400 (E1A) carrier [1]
[1] Carriers for Intel® Xeon® W-2500/2400 Processors are not included. Please refer to the optional parts for proper support.
- 1 x W773-W80
-
Part Numbers
- - Barebone package (Refresh): 6NW773W80MR-000-3*
- Barebone package: 6NW773W80MR-000-1*
- Motherboard: 9MW83RP0NR-000*
- I/O shield: 12AIO-MW83RP-00R
- CPU fansink: 25ST0-0Z9221-A3R
- W-3500/3400 (E1A) carrier: 12KRC-0I4677-00R
- M.2 heatsink: 12SP2-080027-00R
- Middle fan: 25ST2-113824-S1R
- Rear fan: 25ST2-112522-S1R
- Power supply: 25EP0-22000I-F3S
Optional parts:
- W-2500/2400 (E1B) carrier: 12KRC-0I4677-12R
- Rail kit for W7x3 series ((A)+(B)+(C)+(D)):
(A) 25HB2-A66126-K0R (Slide Rail), Q'ty: 1 set
(B) 25HB4-W77304-C0R (Rack Ear Right), Q'ty: 1 set
(C) 25HB4-W77305-C0R (Rack Ear Left), Q'ty: 1 set
(D) 25HB7-W77300-C0R (Top Cover for Assembly), Q'ty: 1 set
