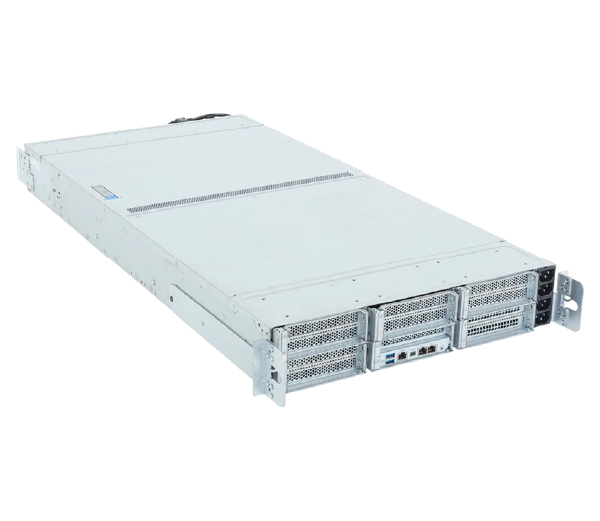

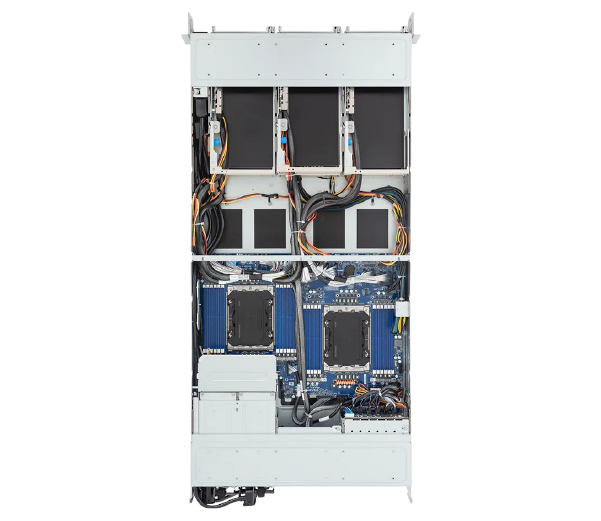

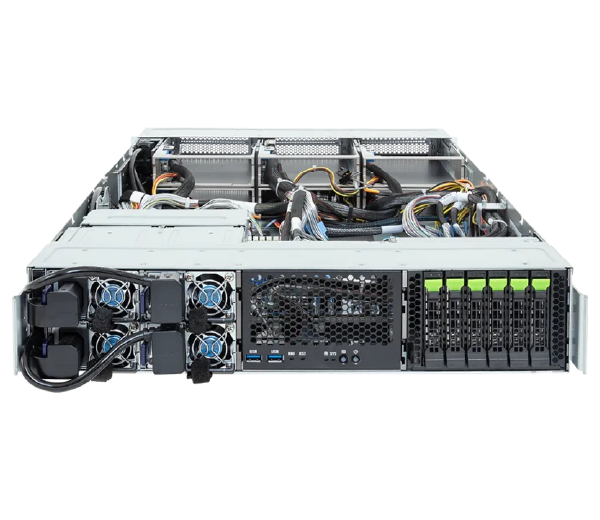

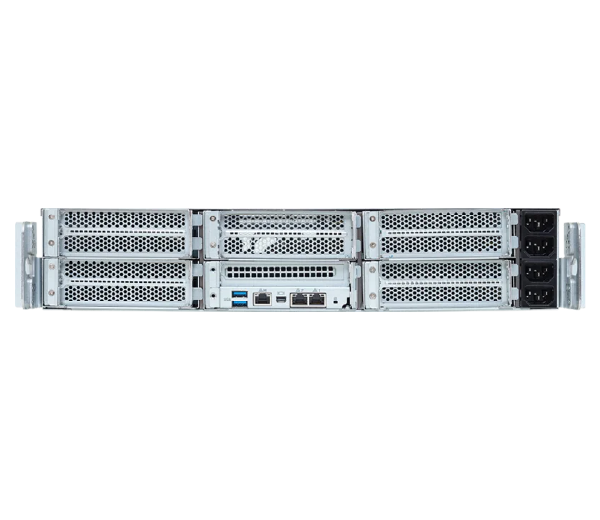

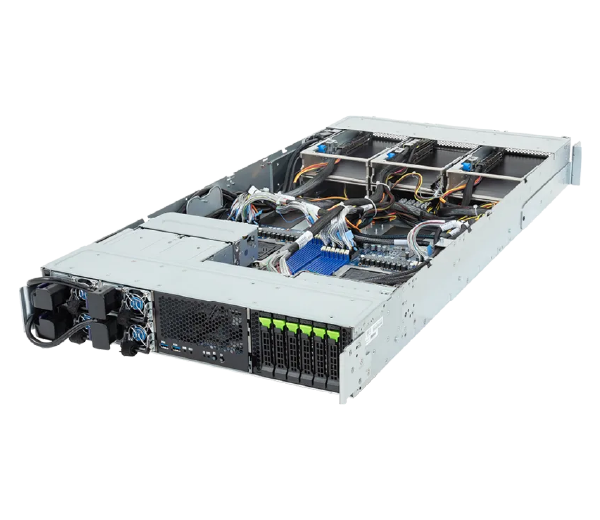

XV24-AX0-IAJ1

NVIDIA MGX™ Server - Intel® Xeon® 6 Processors - 2U DP 4 x PCIe Gen5 GPUs Immersion

  • Immersion Cooling Server
  • Supports up to 4 x Dual slot Gen5 GPUs
  • NVIDIA MGX™ modular server design
  • Dual Intel® Xeon® 6900-Series Processors
  • 12-Channel DDR5 RDIMM / MRDIMM, 24 x DIMMs
  • 2 x 10Gb/s LAN ports via Intel® X550-AT2
  • 6 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 2 x M.2 slots with PCIe Gen5 x2 interface
  • 4 x FHFL PCIe Gen5 x16 slots for GPUs
  • 3 x FHFL PCIe Gen5 x16 slots
  • 2+2 2000W 80 PLUS Titanium redundant power supplies
  • Ordering Numbers: 6NXV24AX0DR000IAJ1*
문의하기 데이터시트













[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

  • Dimensions (WxHxD, mm)

    • 2U
      438 x 87 x 900

  • Motherboard

    • MAX4-MG0

  • CPU

    • Intel® Xeon® 6 Processors
      - Intel® Xeon® 6900-Series Processors

      Dual processor, TDP up to 500W

      [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

  • Socket

    • 2 x LGA 7529
      Socket BR

  • Chipset

    • System on Chip

  • Memory

    • 24 x DIMM slots
      Support DDR5 RDIMM/MRDIMM [1]
      12-Channel memory per processor
      RDIMM: Up to 6400 MT/s
      MRDIMM: Up to 8800 MT/s

      [1] MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores.

  • LAN

    • Top (I/O board - CFPX141):
      2 x 10Gb/s LAN (1 x Intel® X550-AT2)
      - Support NCSI function

      1 x 10/100/1000 Mbps Management LAN

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x Mini-DP

  • Storage

    • Bottom hot-swap:
      6 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
      - (4 x NVMe from CPU_0, 2 x NVMe from CPU_1)

      Internal M.2 (I/O board - CFPX141):
      2 x M.2 (2280/22110), PCIe Gen5 x2, from CPU_0

      [1] Storage card is required to support SATA and SAS drives.

  • PCIe Expansion Slots

    • PCIe Cable x 7:
      - 2 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
      - 2 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
      - 2 x FHFL x16 (Gen5 x16), from CPU_0
      - 1 x FHFL x16 (Gen5 x16), from CPU_1

  • Top I/O

    • I/O board - CFPX141:
      2 x USB 3.2 Gen1 ports (Type-A)
      1 x Mini-DP
      2 x RJ45 ports
      1 x MLAN port
      1 x ID LED

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM012

      1 x PRoT connector (only enabled on RoT SKU)

  • Power Supply[#1]

    • 2+2 2000W 80 PLUS Titanium redundant power supplies

  • OS Certifications

    • Red Hat Enterprise Linux 10.0 or later

  • Operating Properties

    • Operating coolant temperature: 20°C to 35°C
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

  • Packaging Dimensions

    • 1196 x 744 x 400 mm

  • Packaging Content

    • 1 x XV24-AX0-IAJ1
      2 x CPU heatsinks
      1 x Mini-DP to D-Sub cable
      2 x GPU power cables (16-pin, 620mm)
      2 x GPU power cables (16-pin, 750mm)
      2 x Carriers

  • Part Numbers

    • - Barebone package: 6NXV24AX0DR000IAJ1*
      - Motherboard: 9MAX4MG0UR-000*
      - CPU heatsink: 25ST1-044320-M1R
      - Front panel board - CFP1010: 9CFP1010NR-00*
      - Backplane board - CBPX060: 9CBPX060NR-00*
      - I/O board with M.2 slots - CFPX141: 9CFPX141NR-00*
      - DC-SCM board (A)+(B):
      A) CDCX101: 9CDCX101NR-00*
      B) CSC402: 9CSC402NR-00*
      - Mini-DP to D-Sub cable: 25CRN-200801-K1R
      - GPU power cable (16-pin, 620mm): 25CRI-6200B0-Y4R
      - GPU power cable (16-pin, 750mm): 25CRI-7500B0-Y4R
      - Power supply: 25EP0-22000R-G1S

      Optional parts:

      - Chassis intrusion switch: 25HA1-R28390-U1R
