R163-SG2-AAC1

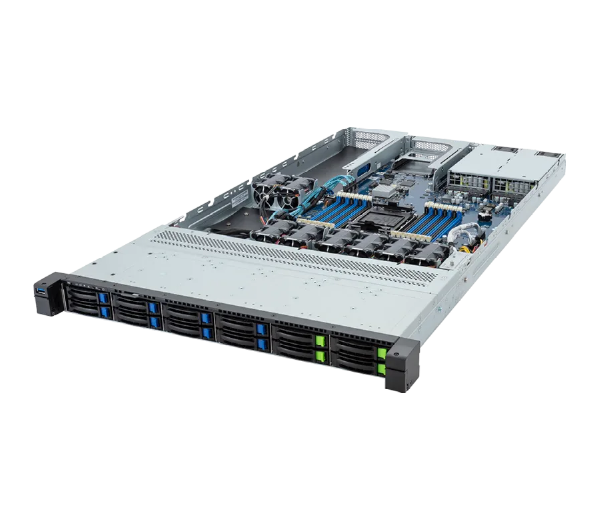

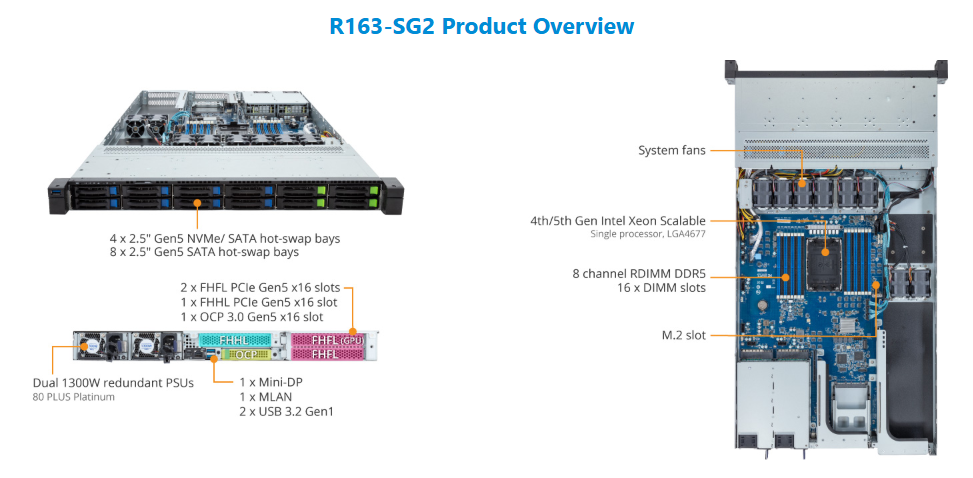

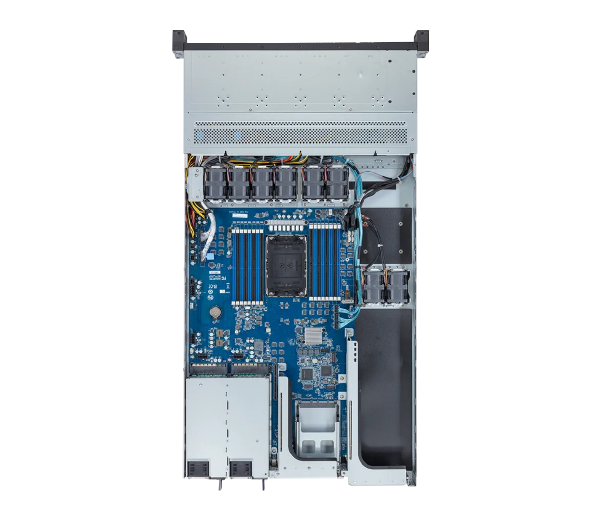

Rack Server - 5th/4th Gen Intel® Xeon® Scalable - 1U UP 1 x PCIe Gen5 GPU

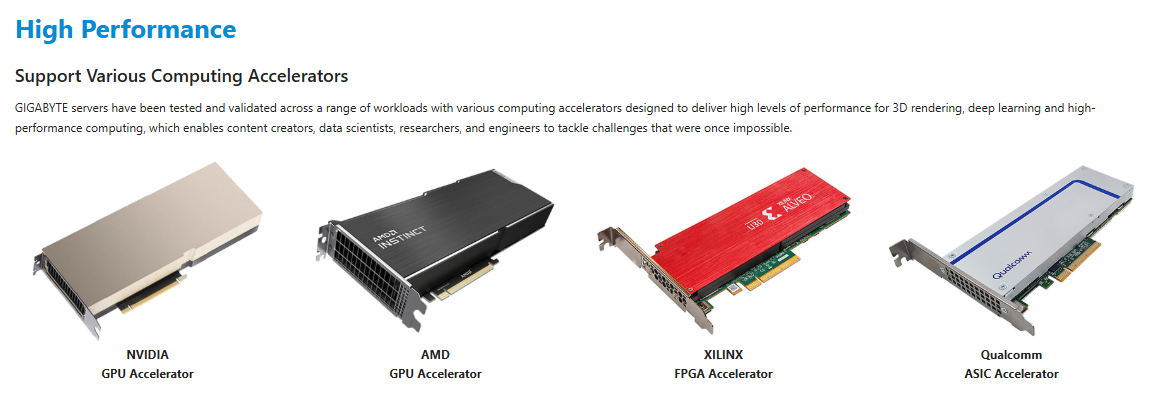

  • Supports 1 x Dual slot Gen5 GPU
  • Single 5th/4th Gen Intel® Xeon® Scalable Processors
  • Single Intel® Xeon® CPU Max Series
  • 8-Channel DDR5 RDIMM, 16 x DIMMs
  • Dual ROM Architecture

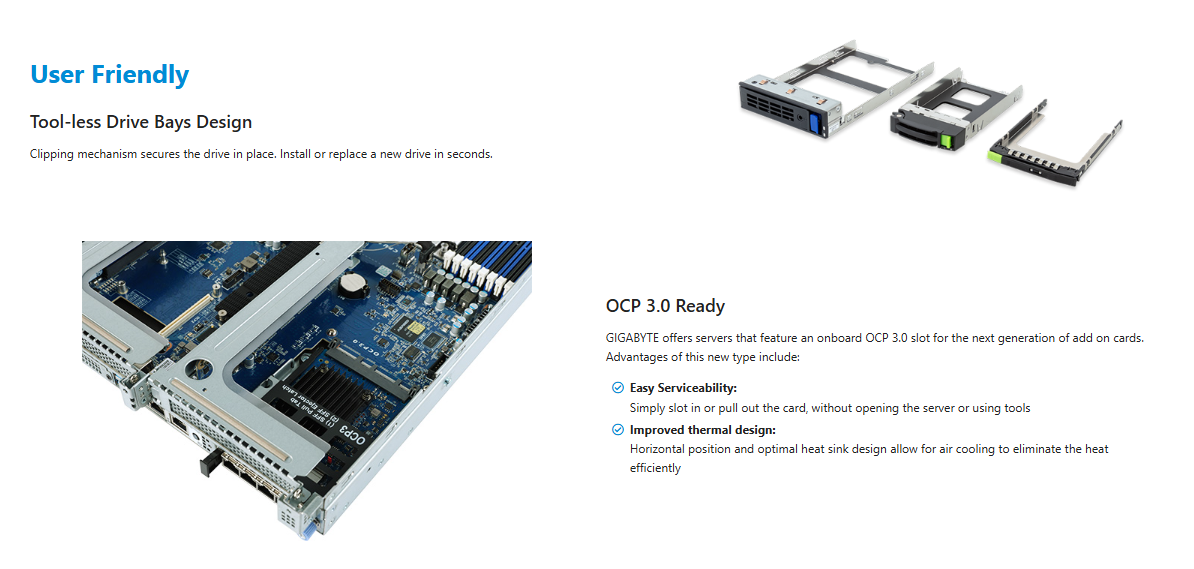

  • 4 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 8 x 2.5" SATA/SAS-4 hot-swap bays
  • 1 x M.2 slot with PCIe Gen3 x4 interface
  • 1 x FHFL PCIe Gen5 x16 slot for GPUs
  • 1 x FHFL PCIe Gen5 x16 slot
  • 1 x FHHL PCIe Gen5 x16 slot
  • 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
  • 1+1 1300W 80 PLUS Platinum redundant power supplies
  • Ordering Numbers: 6NR163SG2DR000ABC1*
문의하기 데이터시트















[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

  • Dimensions (WxHxD, mm)

    • 1U
      438 x 43.5 x 815

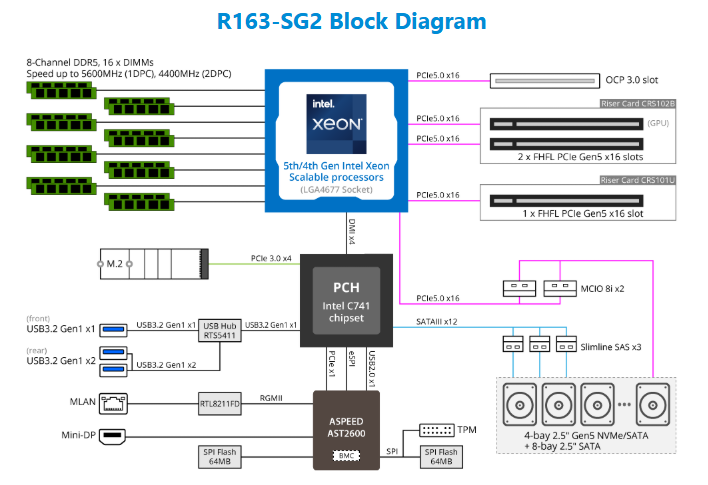

  • Motherboard

    • MSG3-GU0

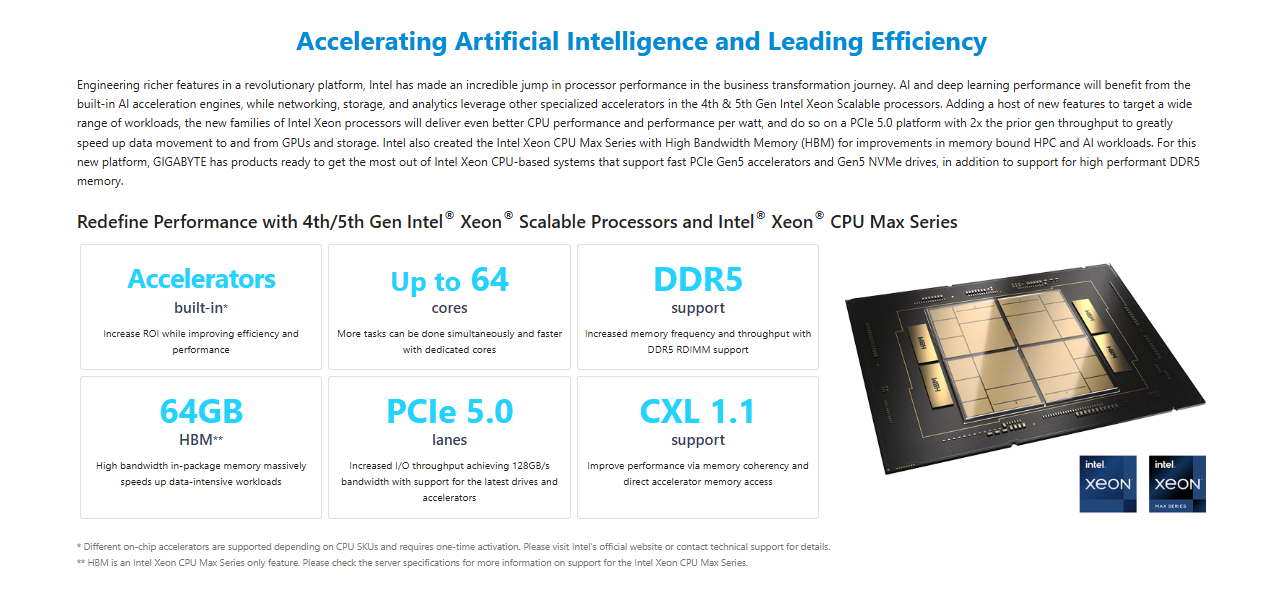

  • CPU

    • 5th Generation Intel® Xeon® Scalable Processors
      4th Generation Intel® Xeon® Scalable Processors
      Intel® Xeon® CPU Max Series

      Single processor, TDP up to 350W

  • Socket

    • 1 x LGA 4677
      Socket E

  • Chipset

    • Intel® C741

  • Memory

    • 16 x DIMM slots
      Support DDR5 RDIMM
      8-Channel memory per processor

      5th Gen Intel® Xeon®:
      Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) [1]

      4th Gen Intel® Xeon®:
      Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

      Intel® Xeon® Max Series:
      Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

      [1] 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.

  • LAN

    • Rear:
      1 x 10/100/1000 Mbps Management LAN

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x Mini-DP

  • Storage

    • Front hot-swap:
      4 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
      8 x 2.5" SATA/SAS-4 [1]

      Internal M.2:
      1 x M.2 (2280/22110), PCIe Gen3 x4, from PCH

      [1] SAS card is required to support SAS drives.

  • SAS

    • Require SAS add-in cards

  • RAID

    • Intel® SATA RAID 0/1/10/5
      Onboard VROC key header

  • PCIe Expansion Slots

    • Riser Card CRS102B:
      - 1 x FHFL x16 (Gen5 x16), for GPUs
      - 1 x FHFL x16 (Gen5 x16), occupied when Dual slot GPU is installed

      Riser Card CRS101U:
      - 1 x FHHL x16 (Gen5 x16)

      1 x OCP NIC 3.0 (Gen5 x16)
      - Supports NCSI function

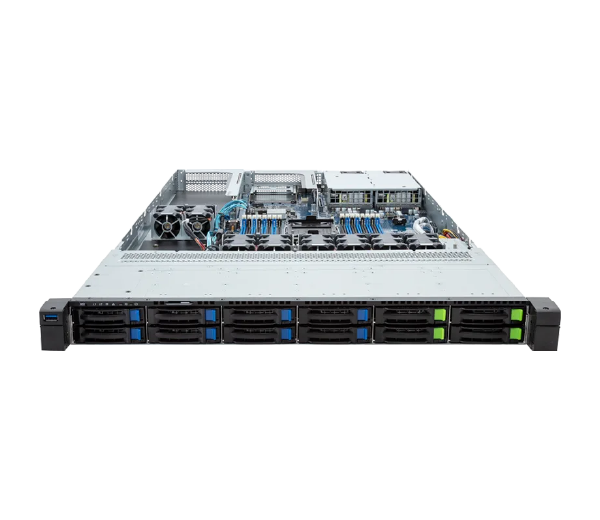

  • Front I/O

    • 1 x USB 3.2 Gen1 port (Type-A)
      1 x Power button with LED
      1 x ID button with LED
      1 x Reset button
      2 x LAN activity LEDs (disabled)
      1 x Storage activity LED
      1 x System status LED

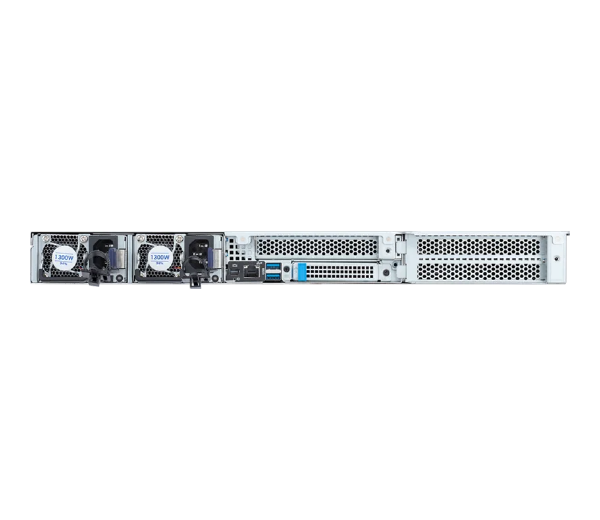

  • Rear I/O

    • 2 x USB 3.2 Gen1 ports (Type-A)
      1 x Mini-DP
      1 x MLAN port
      1 x ID LED

  • Backplane Board

    • Speed and bandwidth:
      PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM010

  • Power Supply[#1]

    • 1+1 1300W 80 PLUS Platinum redundant power supplies

      AC Input:
      - 100-240V~/ 12-7A, 50-60Hz
      - 200-240V~/ 8A, 50-60Hz

      DC Input: (Only for China)
      - 240Vdc/ 6.5A

      DC Output:
      - Max 1000W/ 100-240V~
      +12V/ 80.5A
      +12Vsb/ 3A
      - Max 1300W/ 200-240V~ or 240Vdc Input
      +12V/ 105.4A
      +12Vsb/ 3A

  • System Management

    • ASPEED® AST2600 Baseboard Management Controller
      GIGABYTE Management Console web interface

      Dashboard
      HTML5 KVM
      Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
      Sensor Reading History Data
      FRU Information
      SEL Log in Linear Storage / Circular Storage Policy
      Hardware Inventory
      Fan Profile
      System Firewall
      Power Consumption
      Power Control
      Advanced power capping
      LDAP / AD / RADIUS Support
      Backup & Restore Configuration
      Remote BIOS/BMC/CPLD Update
      Event Log Filter
      User Management
      Media Redirection Settings
      PAM Order Settings
      SSL Settings
      SMTP Settings

  • OS Certifications

    • Windows Server 2022

  • System Fans

    • 8 x 40x40x56mm

  • Operating Properties

    • Operating temperature: 10°C to 35°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

  • Weight

    • Net Weight: 21.14 kg
      Gross Weight: 26.14 kg

  • Packaging Dimensions

    • 1043 x 594 x 252 mm

  • Packaging Content

    • 1 x R163-SG2-AAC1
      1 x CPU heatsink
      1 x Mini-DP to D-Sub cable
      1 x GPU power cable (16-pin, 400mm)
      3 x Carriers
      1 x 2-Section Rail kit

  • Part Numbers

    • - Barebone package (5th/4th Gen): 6NR163SG2DR000ABC1*
      - Barebone package (4th Gen): 6NR163SG2DR000AAC1*
      - Motherboard: 9MSG3GU0UR-000*
      - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
      - CPU heatsink: 25ST1-4Z3200-S7R
      - M.2 heatsink: 12SP2-11000E-00R
      - Front panel board - CFP1030: 9CFP1030NR-00*
      - Backplane board - CBP10C2: 9CBP10C2NR-00*
      - Fan module: 25ST2-40562H-A0R
      - Riser card - CRS101U: 9CRS101UNR-00*
      - Riser card - CRS102B: 9CRS102BNR-00*
      - Mini-DP to D-Sub cable: 25CRN-200801-K1R
      - GPU power cable (16-pin, 400mm): 25CRI-400104-Y4R
      - Power supply: 25EP0-21300B-F3S

      Optional parts:

      - 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
      - Cable Management Arm: 25HB1-R18300-K0R
