R163-S32-AAH2

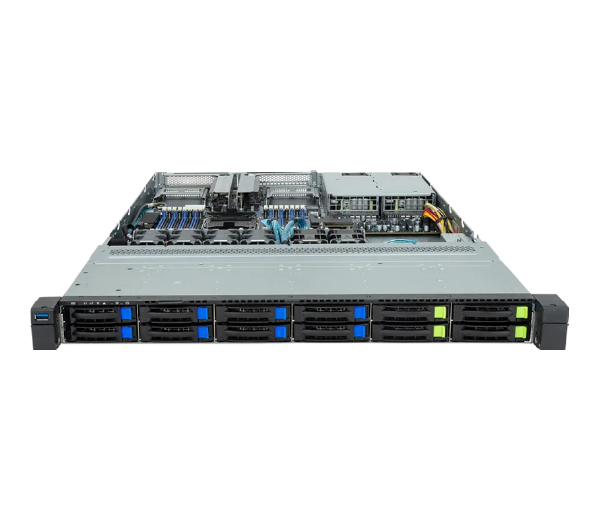

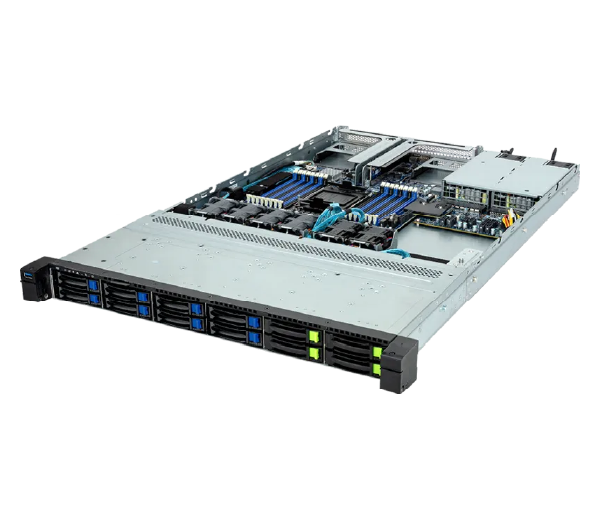

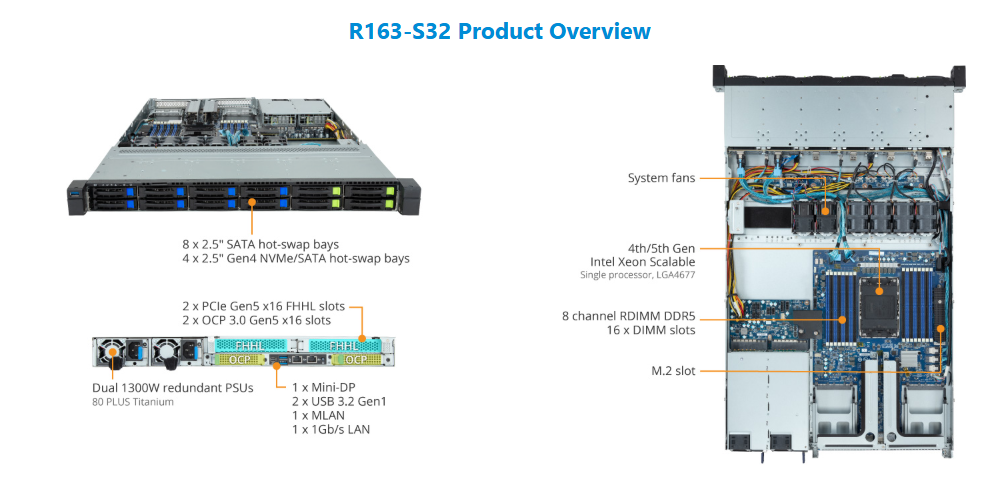

Rack Server - 5th/4th Gen Intel® Xeon® Scalable - 1U UP 12-Bay Gen4 NVMe/SATA/SAS (4 x NVMe) Titanium

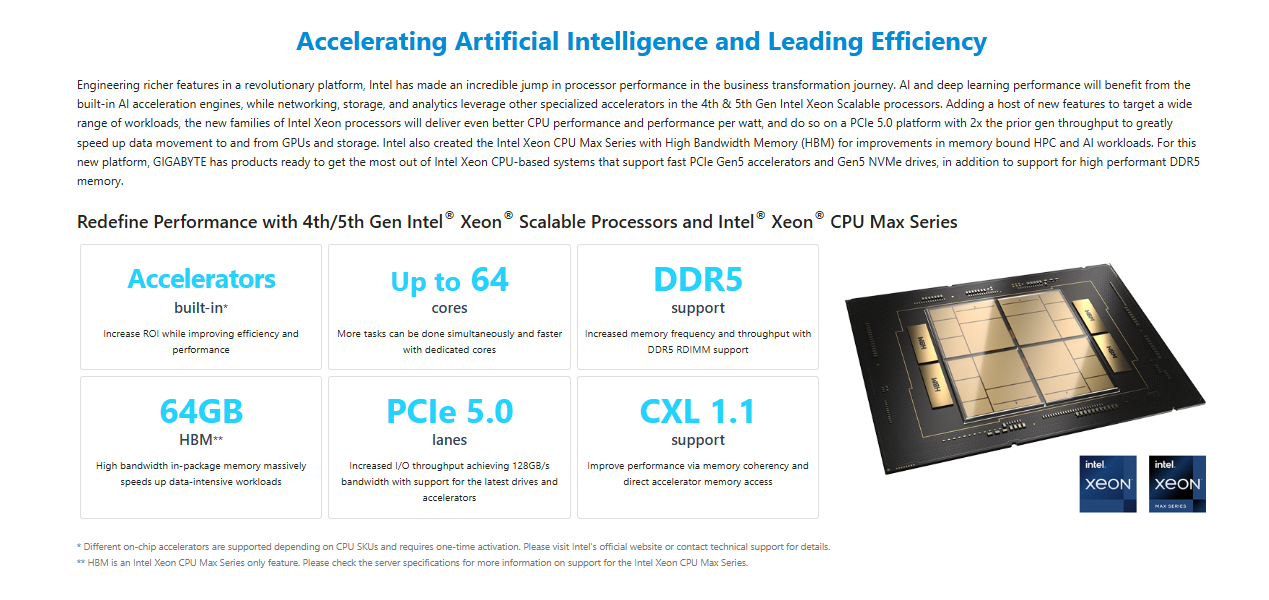

Single 5th/4th Gen Intel® Xeon® Scalable Processors
Single Intel® Xeon® CPU Max Series
8-Channel DDR5 RDIMM, 16 x DIMMs
Dual ROM Architecture
1 x 1Gb/s LAN port via Intel® I210-AT
4 x 2.5" Gen4 NVMe/SATA/SAS hot-swap bays
8 x 2.5" SATA/SAS hot-swap bays
1 x M.2 slot with PCIe Gen3 x4 interface
2 x FHHL PCIe Gen5 x16 slots
2 x OCP NIC 3.0 PCIe Gen5 x16 slots
Compatible with SupremeRAID™ by Graid Technology
1+1 1300W 80 PLUS Titanium redundant power supplies
Ordering Numbers: 6NR163S32DR000ABH2*

문의하기 데이터시트

개요
스펙

[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

Dimensions (WxHxD, mm)
- 1U
  438 x 43.5 x 710

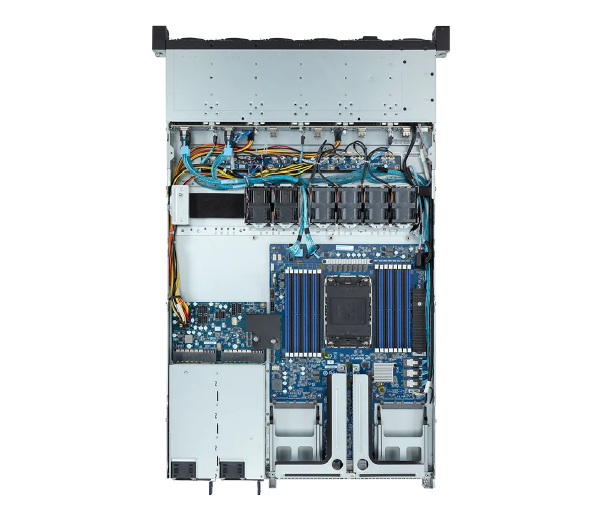

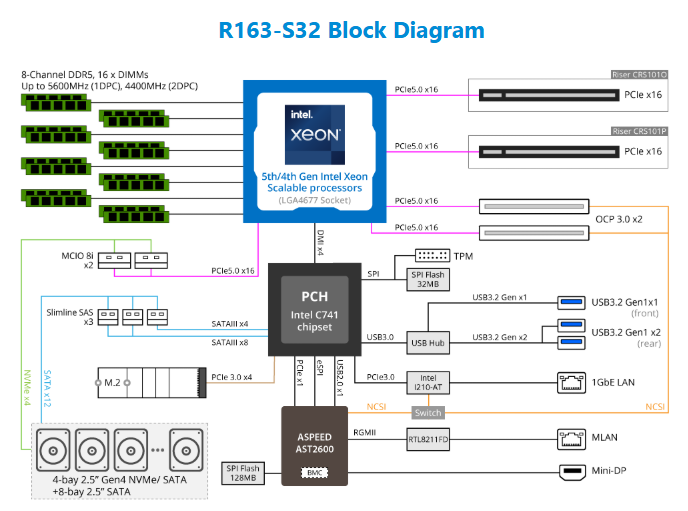

Motherboard
- MS33-DC0
CPU
- 5th Generation Intel® Xeon® Scalable Processors
  4th Generation Intel® Xeon® Scalable Processors
  Intel® Xeon® CPU Max Series

  Single processor, TDP up to 350W
Socket
- 1 x LGA 4677
  Socket E
Chipset
- Intel® C741
Memory
- 16 x DIMM slots
  Support DDR5 RDIMM
  8-Channel memory per processor

  5th Gen Intel® Xeon®:
  Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)

  4th Gen Intel® Xeon®:
  Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

  Intel® Xeon® Max Series:
  Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
LAN
- Rear:
  1 x 1Gb/s LAN (1 x Intel® I210-AT)
  - Supports NCSI function

  1 x 10/100/1000 Mbps Management LAN
Video
- Integrated in ASPEED® AST2600
  - 1 x Mini-DP
Storage
- Front hot-swap:
  4 x 2.5" Gen4 NVMe/SATA/SAS [1]
  8 x 2.5" SATA/SAS [1]

  Internal M.2:
  1 x M.2 (2280/22110), PCIe Gen3 x4, from PCH

  [1] SAS card is required to support SAS drives.
SAS
- Require SAS add-in cards
RAID
- Intel® SATA RAID 0/1/10/5
  Onboard VROC key header

  Optional compatible RAID Cards:

  NVMe RAID Cards with SupremeRAID™ by Graid Technology
  RAID Card models: SR-1001-ED4
  Support RAID 0/1/5/6/10
PCIe Expansion Slots
- Riser Card CRS101O:
  - 1 x FHHL x16 (Gen5 x16)

  Riser Card CRS101P:
  - 1 x FHHL x16 (Gen5 x16)

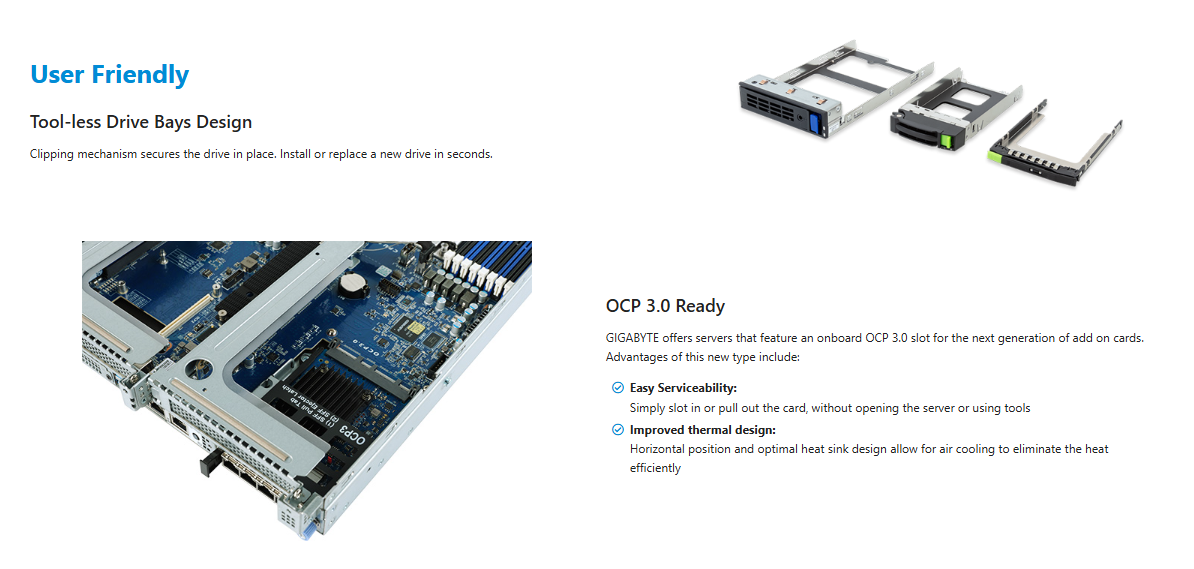

  2 x OCP NIC 3.0 (Gen5 x16)
  - Support NCSI function
Front I/O
- 1 x USB 3.2 Gen1 port (Type-A)
  1 x Power button with LED
  1 x ID button with LED
  1 x NMI button
  1 x Reset button
  1 x LAN activity LED
  1 x Storage activity LED
  1 x System status LED

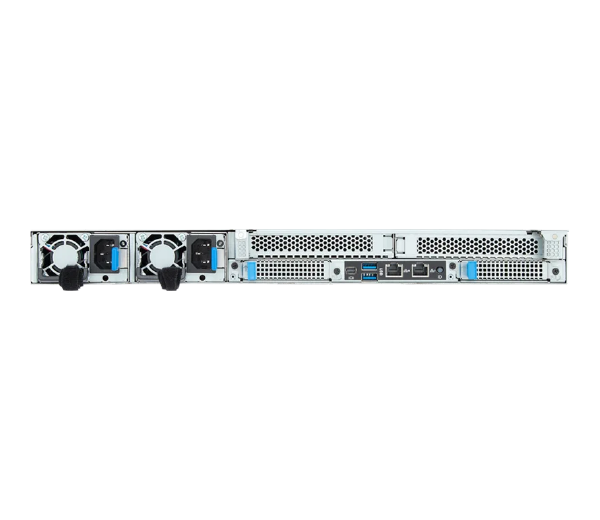

Rear I/O
- 2 x USB 3.2 Gen1 ports (Type-A)
  1 x Mini-DP
  1 x RJ45 port
  1 x MLAN port
  1 x ID button with LED
Backplane Board
- Speed and bandwidth:
  PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Security Modules
- 1 x TPM header with SPI interface
  - Optional TPM2.0 kit: CTM010

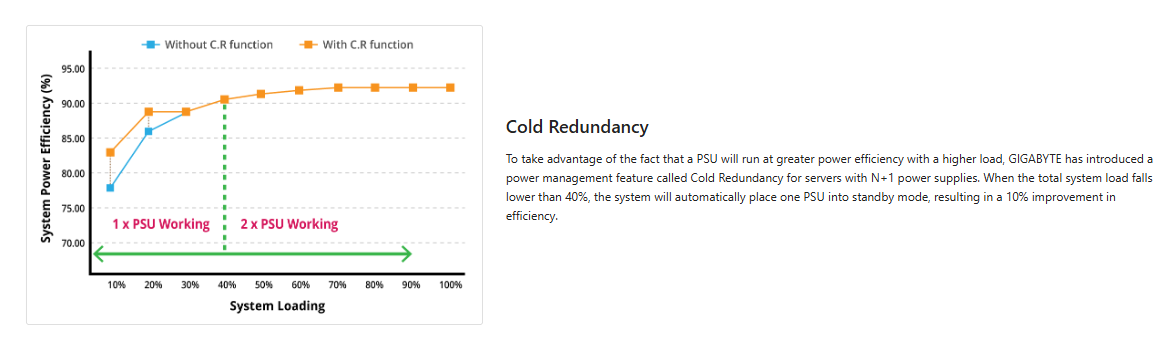

Power Supply[#1]
- 1+1 1300W 80 PLUS Titanium redundant power supplies

  AC Input:
  - 100-127V~/ 12A, 50-60Hz
  - 200-240V~/ 8A, 50-60Hz

  DC Input: (Only for China)
  - 240Vdc/ 7A

  DC Output:
  - Max 1000W/ 100-127V~
  +12.2V/ 82A
  +12.2Vsb/ 3A
  - Max 1300W/ 200-240V~ or 240Vdc Input
  +12.2V/ 106A
  +12.2Vsb/ 3A

  [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
System Management
- ASPEED® AST2600 Baseboard Management Controller
  GIGABYTE Management Console web interface

  Dashboard
  HTML5 KVM
  Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  Sensor Reading History Data
  FRU Information
  SEL Log in Linear Storage / Circular Storage Policy
  Hardware Inventory
  Fan Profile
  System Firewall
  Power Consumption
  Power Control
  Advanced power capping
  LDAP / AD / RADIUS Support
  Backup & Restore Configuration
  Remote BIOS/BMC/CPLD Update
  Event Log Filter
  User Management
  Media Redirection Settings
  PAM Order Settings
  SSL Settings
  SMTP Settings
OS Certifications
- Windows Server 2022
  Windows Server 2025
System Fans
- 2 x 40x40x28mm
  4 x 40x40x56mm
Operating Properties
- Operating temperature: 10°C to 35°C
  Operating humidity: 8% to 80% (non-condensing)
  Non-operating temperature: -40°C to 60°C
  Non-operating humidity: 20% to 95% (non-condensing)
Weight
- Gross Weight: 21.2 kg
Packaging Dimensions
- 982 x 594 x 250 mm
Packaging Content
- 1 x R163-S32-AAH2
  1 x CPU heatsink
  1 x Mini-DP to D-Sub cable
  3 x Carriers
  1 x 2-Section Rail kit
Part Numbers
- - Barebone package (5th/4th Gen): 6NR163S32DR000ABH2*
  - Barebone package (4th Gen): 6NR163S32DR000AAH2*
  - Motherboard: 9MS33DC0UR-000*
  - 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R
  - CPU heatsink: 25ST1-4Z3200-S7R
  - M.2 heatsink: 12SP2-11000E-00R
  - Front panel board - CFP1030: 9CFP1030NR-00*
  - Backplane board - CBP10C0: 9CBP10C0NR-00*
  - Fan module (40x40x28mm): 25ST2-442828-D0R
  - Fan module (40x40x56mm): 25ST2-405623-A0R
  - Riser card - CRS101O: 9CRS101ONR-00*
  - Riser card - CRS101P: 9CRS101PNR-00*
  - Mini-DP to D-Sub cable: 25CRN-200801-K1R
  - Power supply: 25EP0-21300F-G1S

  Optional parts:

  - RAID card (SR-1001-ED4): 25FC1-SR1000-AFS
  - 3-Section Rail kit (Supports CMA): 25HB2-A56120-K0R
  - Cable Management Arm: 25HBZ-R18100-K0R
