R163-P32-AAH1

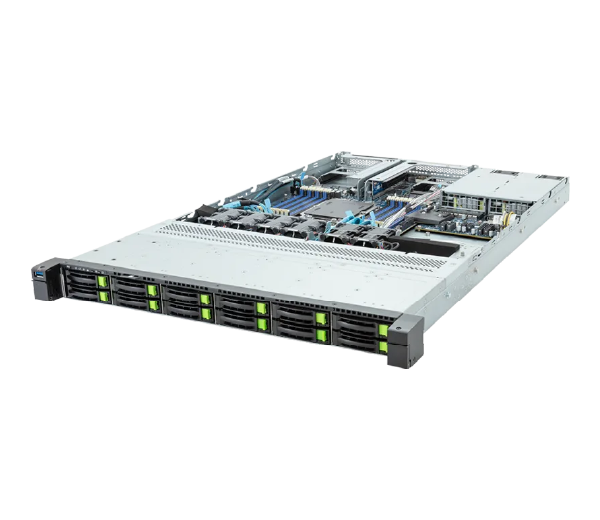

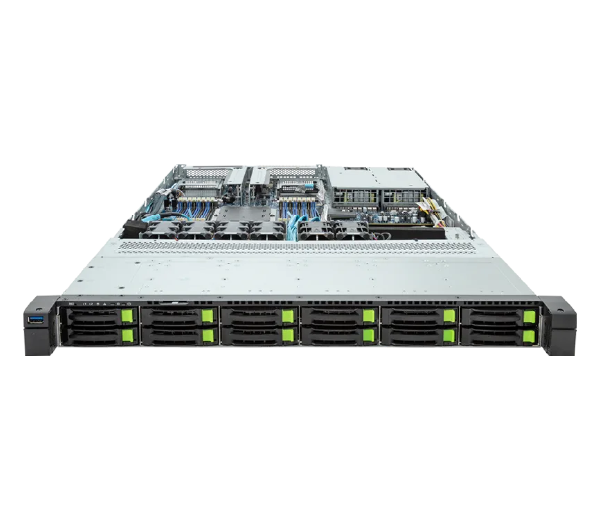

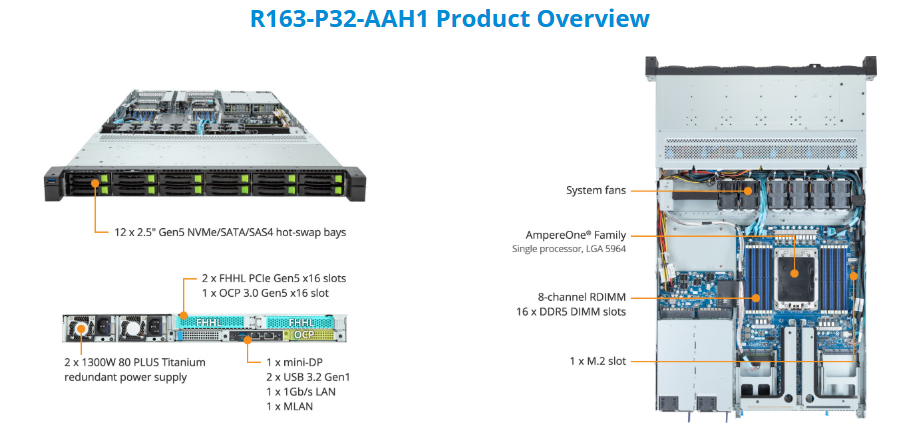

Rack Arm Server - AmpereOne® Family - 1U UP 12-Bay Gen5 NVMe/SATA/SAS-4 Titanium

  • Single AmpereOne® Family Processors
  • 8-Channel DDR5 RDIMM, 16 x DIMMs
  • Dual ROM Architecture
  • 1 x 1Gb/s LAN port via Intel® I210-AT

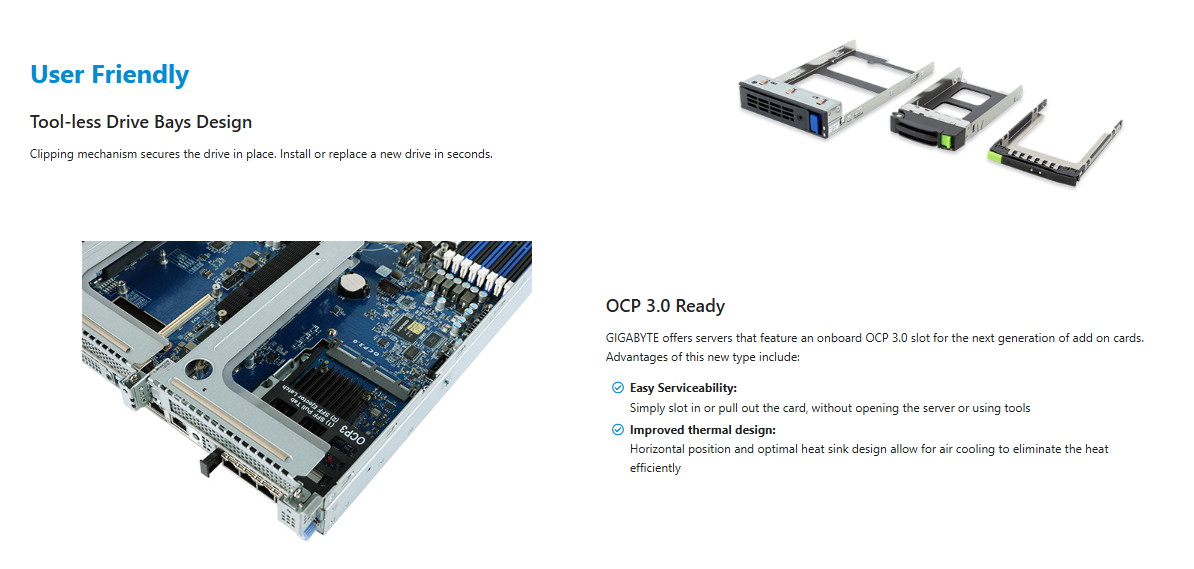

  • 12 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 1 x M.2 slot with PCIe Gen5 x4 interface
  • 2 x FHHL PCIe Gen5 x16 slots
  • 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
  • 1+1 1300W 80 PLUS Titanium redundant power supply
  • Ordering Numbers: 6NR163P32DR000ABH1*
문의하기 데이터시트














[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

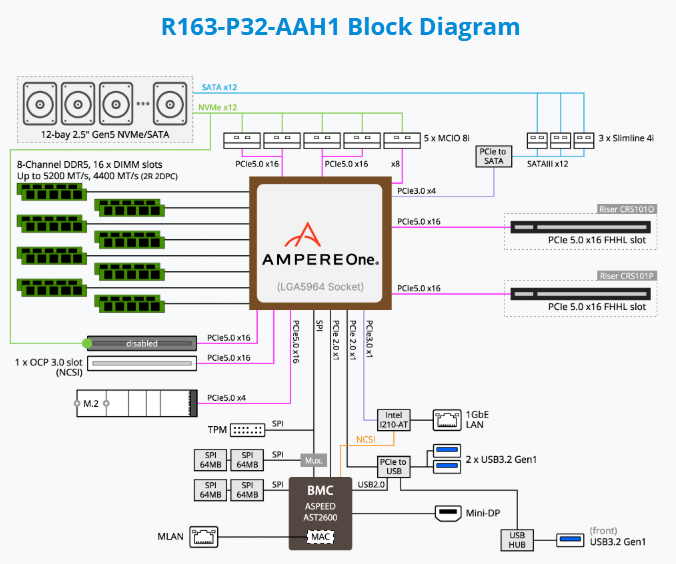

  • Dimensions (WxHxD, mm)

    • 1U
      438 x 43.5 x 710

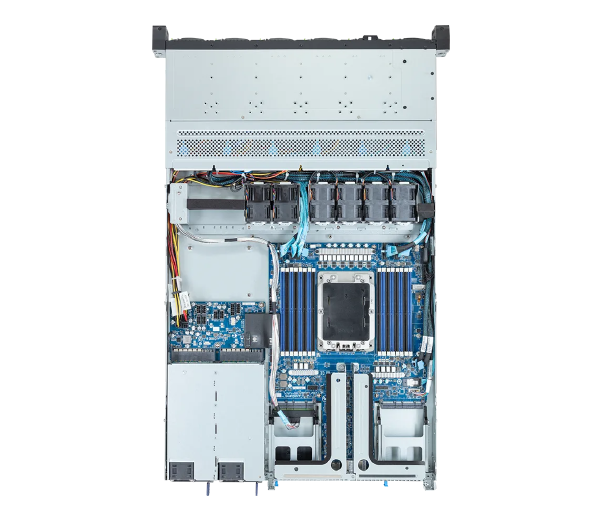

  • Motherboard

    • MP33-DC0

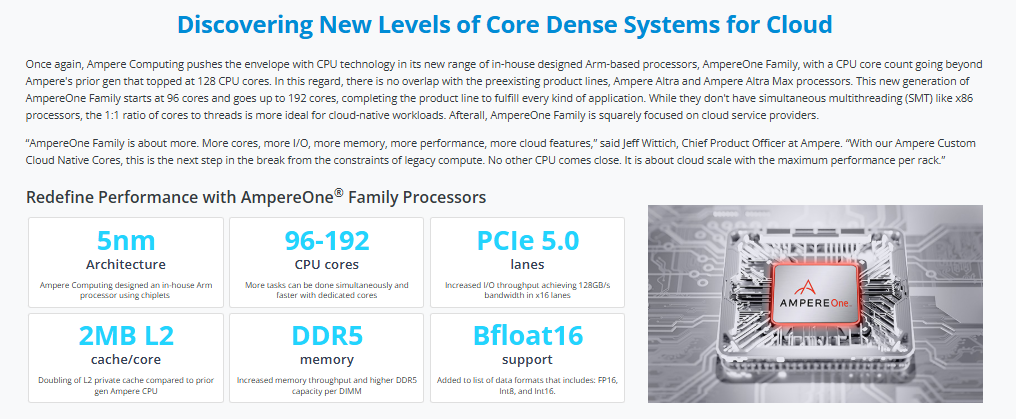

  • CPU

    • AmpereOne® Family Processors

      Single processor, TDP up to 400W

  • Socket

    • 1 x LGA 5964

  • Chipset

    • System on Chip

  • Memory

    • 16 x DIMM slots
      DDR5 memory supported
      8-Channel memory per processor
      RDIMM: Up to 5200 MT/s, 4400 MT/s (2R 2DPC)

  • LAN

    • Rear:
      1 x 1Gb/s LAN (1 x Intel® I210-AT)
      - Supports NCSI function

      1 x 10/100/1000 Mbps Management LAN

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x Mini-DP

  • Storage

    • Front hot-swap:
      12 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]

      Internal M.2:
      1 x M.2 (2280/22110), PCIe Gen5 x4

      [1] SAS card is required to support SAS drives.

  • SAS

    • Require SAS add-in cards

  • RAID

    • Require RAID add-in cards

  • PCIe Expansion Slots

    • Riser Card CRS101O:
      - 1 x FHHL x16 (Gen5 x16)

      Riser Card CRS101P:
      - 1 x FHHL x16 (Gen5 x16)

      1 x OCP NIC 3.0 (Gen5 x16)
      - Supports NCSI function

      1 x OCP NIC 3.0 (Gen5 x16), occupied for NVMe

  • Front I/O

    • 1 x USB 3.2 Gen1 port (Type-A)
      1 x Power button with LED
      1 x ID button with LED
      1 x Reset button
      2 x LAN activity LEDs (1 x LED disabled)
      1 x Storage activity LED
      1 x System status LED

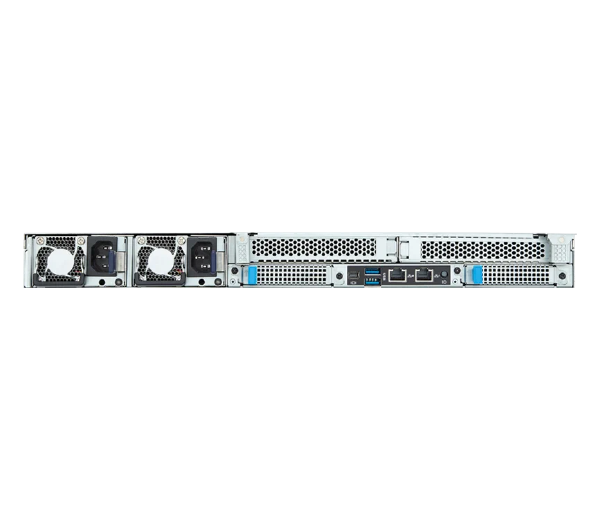

  • Rear I/O

    • 2 x USB 3.2 Gen1 ports (Type-A)
      1 x Mini-DP
      1 x RJ45 port
      1 x MLAN port
      1 x ID button with LED

  • Backplane Board

    • Speed and bandwidth:
      PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM010

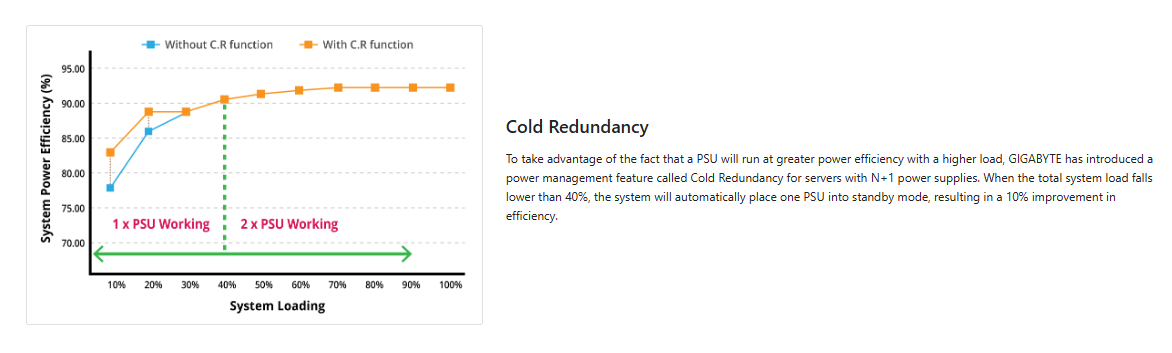

  • Power Supply[#1]

    • 1+1 1300W 80 PLUS Titanium redundant power supplies

      AC Input:
      - 100-127V~/ 12A, 50-60Hz
      - 200-240V~/ 8A, 50-60Hz

      DC Input: (Only for China)
      - 240Vdc/ 7A

      DC Output:
      - Max 1000W/ 100-127V~
      +12.2V/ 82A
      +12.2Vsb/ 3A
      - Max 1300W/ 200-240V~ or 240Vdc Input
      +12.2V/ 106A
      +12.2Vsb/ 3A

      [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.

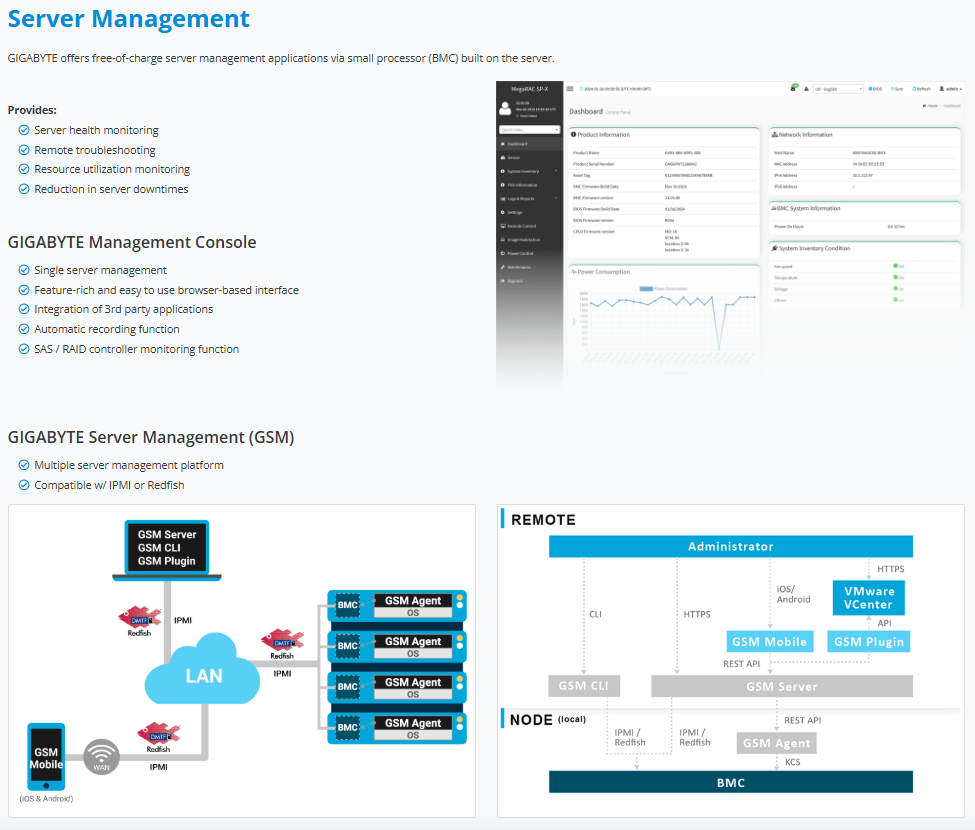

  • System Management

    • ASPEED® AST2600 Baseboard Management Controller
      GIGABYTE Management Console web interface

      Dashboard
      HTML5 KVM
      Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
      Sensor Reading History Data
      FRU Information
      SEL Log in Linear Storage / Circular Storage Policy
      Hardware Inventory
      Fan Profile
      System Firewall
      Power Consumption
      Power Control
      Advanced power capping
      LDAP / AD / RADIUS Support
      Backup & Restore Configuration
      Remote BIOS/BMC/CPLD Update
      Event Log Filter
      User Management
      Media Redirection Settings
      PAM Order Settings
      SSL Settings
      SMTP Settings

  • OS Compatibility

    • Please refer to OS compatibility table in support page

  • System Fans

    • 2 x 40x40x28mm
      4 x 40x40x56mm

  • Operating Properties

    • Operating temperature: 10°C to 35°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

  • Weight

    • Net Weight: 13.5 kg
      Gross Weight: 15.7 kg

  • Packaging Dimensions

    • 982 x 594 x 250 mm

  • Packaging Content

    • 1 x R163-P32-AAH1
      1 x CPU heatsink
      1 x Mini-DP to D-Sub cable
      1 x Carrier
      1 x 2-Section Rail kit

  • Part Numbers

    • - Barebone package: 6NR163P32DR000ABH1*
      - Motherboard: 9MP33DC0UR-000*
      - 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R
      - CPU heatsink: 25ST1-453102-C1R
      - M.2 heatsink: 12SP2-11000E-00R
      - Front panel board - CFP1030: 9CFP1030NR-00*
      - Backplane board - CBP10C2: 9CBP10C2NR-00*
      - Fan module 40x40x28mm: 25ST2-442828-D0R
      - Fan module 40x40x56mm: 25ST2-40562H-A0R
      - Riser card - CRS101O: 9CRS101ONR-00*
      - Riser card - CRS101P: 9CRS101PNR-00*
      - Mini-DP to D-Sub cable: 25CRN-200801-K1R
      - Power supply: 25EP0-21300F-G1S

      Optional parts:

      - 3-Section Rail kit (Supports CMA): 25HB2-A56120-K0R
      - Cable Management Arm: 25HBZ-R18100-K0R
