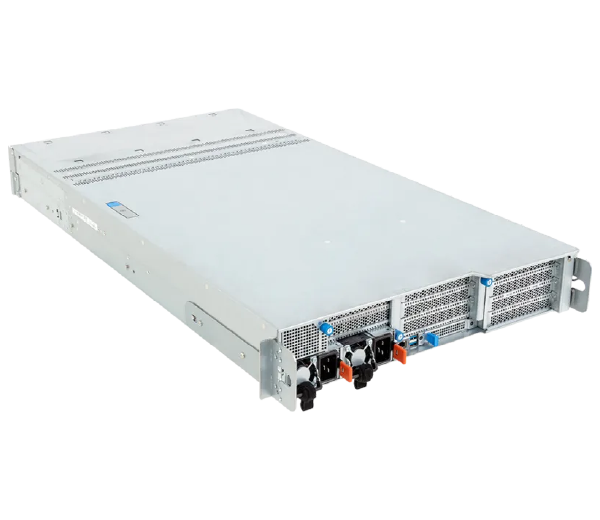

R283-SF0-IAL1
Rack Server - 5th/4th Gen Intel® Xeon® Scalable - 2U DP 4 x PCIe Gen5 GPUs Immersion
- Immersion Cooling Server
- Supports up to 4 x Dual slot Gen5 GPUs
- Dual 5th/4th Gen Intel® Xeon® Scalable Processors
- Dual Intel® Xeon® CPU Max Series
- 8-Channel DDR5 RDIMM, 32 x DIMMs
- Dual ROM Architecture

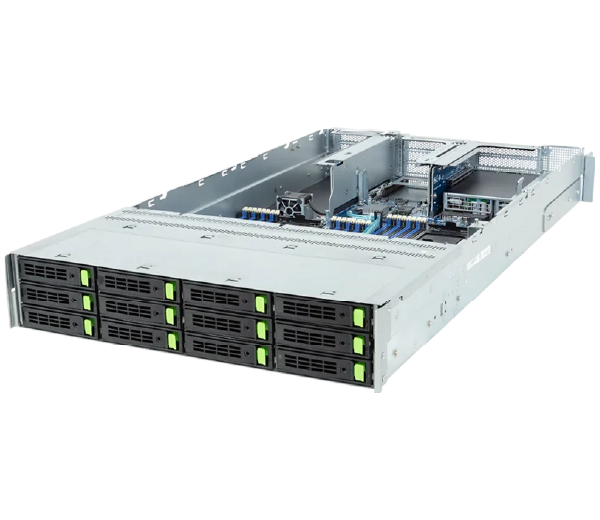

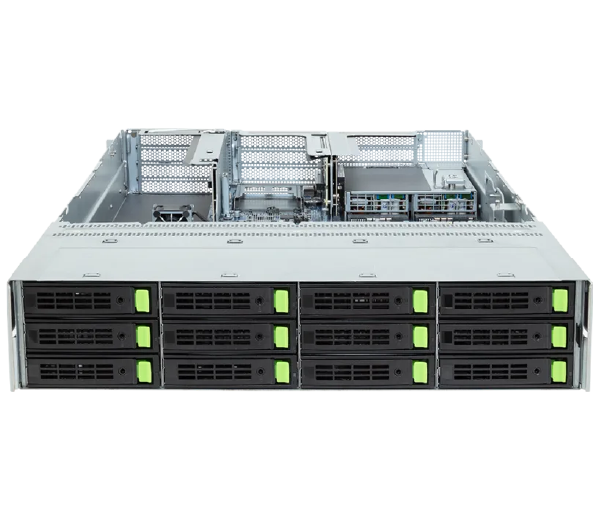

- 12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
- 4 x FHFL PCIe Gen5 x16 slots for GPUs
- 1 x FHHL PCIe Gen5 x16 slot
- 1 x OCP NIC 3.0 Gen5 x16 slot
- Dual 2700W 80 PLUS Titanium redundant power supply
- Ordering Numbers: 6NR283SF0DR000IBL1*
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
-
Dimensions (WxHxD, mm)
- 2U
438 x 87.5 x 815
- 2U
-
Motherboard
- MSF3-GP0
-
CPU
- 5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP up to 350W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
- 5th Generation Intel® Xeon® Scalable Processors
-
Socket
- 2 x LGA 4677
Socket E
- 2 x LGA 4677
-
Chipset
- Intel® C741
-
Memory
- 32 x DIMM slots
DDR5 memory supported
8-Channel memory per processor
5th Gen Intel® Xeon®:
RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel® Xeon®:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel® Xeon® Max Series:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
- 32 x DIMM slots
-
LAN
- Top:
1 x 10/100/1000 Mbps Management LAN
- Top:
-
Video
- Integrated in ASPEED® AST2600
- 1 x Mini-DP
- Integrated in ASPEED® AST2600
-
Storage
- Bottom hot-swap:
12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 [1]
- (6 x NVMe from CPU_0, 6 x NVMe from CPU_1)
[1] SAS card is required to support SAS drives.
- Bottom hot-swap:
-
SAS
- Require SAS add-in cards
-
RAID
- Intel® SATA RAID 0/1/10/5
Onboard VROC key header
Support optional RAID add-in cards
- Intel® SATA RAID 0/1/10/5
-
PCIe Expansion Slots
- Riser Card CRS201J:
- 1 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
Riser Card CRS202P:
- 2 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
Riser Card CRS202Q:
- 1 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
- 1 x FHHL x16 (Gen5 x16), from CPU_1
1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Supports NCSI function
- Riser Card CRS201J:
-

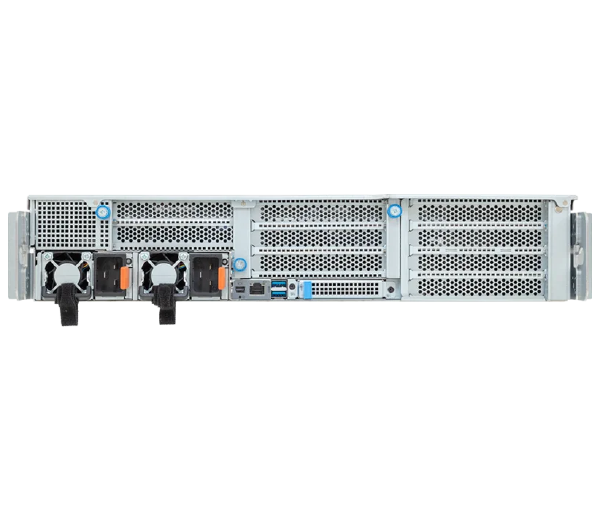

Top I/O
- 2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
1 x MLAN port
1 x ID LED
- 2 x USB 3.2 Gen1 ports (Type-A)
-
Backplane Board
- Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
- Speed and bandwidth:
-
Security Modules
- 1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- 1 x TPM header with SPI interface
-
Power Supply[#1]
- Dual 2700W 80 PLUS Titanium redundant power supply [1]
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 16A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1008W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2700W/ 200-240V~ or 240Vdc Input
+12V/ 225A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
- Dual 2700W 80 PLUS Titanium redundant power supply [1]
-
System Management
- ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
- ASPEED® AST2600 Baseboard Management Controller
-
OS Compatibility
- Please refer to OS compatibility table in support page
Additional certifications:
Windows Server 2022
Windows Server 2025
- Please refer to OS compatibility table in support page
-
Operating Properties
- Operating coolant temperature: 25°C to 35°C
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
- Operating coolant temperature: 25°C to 35°C
-
Weight
- Net Weight: 29.34 kg
Gross Weight: 31.34 kg
- Net Weight: 29.34 kg
-
Packaging Dimensions
- 1082 x 685 x 314 mm
-
Packaging Content
- 1 x R283-SF0-IAL1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x GPU power cable (12VHPWR, 100mm)
1 x GPU power cable (12VHPWR, 300mm)
1 x GPU power cable (12VHPWR, 450mm)
1 x GPU power cable (12VHPWR, 650mm)
6 x Carriers
- 1 x R283-SF0-IAL1
-
Part Numbers
- - Barebone package (5th/4th Gen): 6NR283SF0DR000IBL1*
- Barebone package (4th Gen): 6NR283SF0DR000IAL1*
- Motherboard: 9MSF3GP0UR-000*
- CPU heatsink: 25ST1-4534Z0-S7R
- Backplane board - CBP20C7: 9CBP20C7NR-00*
- Riser card - CRS201J: 9CRS201JNR-00*
- Riser card - CRS202P: 9CRS202PNR-00*
- Riser card - CRS202Q: 9CRS202QNR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (12VHPWR, 100mm): 25CRI-1001C0-Y4R
- GPU power cable (12VHPWR, 300mm): 25CRI-300102-Y4R
- GPU power cable (12VHPWR, 450mm): 25CRI-450101-Y4R
- GPU power cable (12VHPWR, 650mm): 25CRI-650102-Y4R
- Power supply: 25EP0-227001-D0S
Optional parts:
- RMA packaging: 6NR283SF0SR-RMA-I100
- - Barebone package (5th/4th Gen): 6NR283SF0DR000IBL1*
