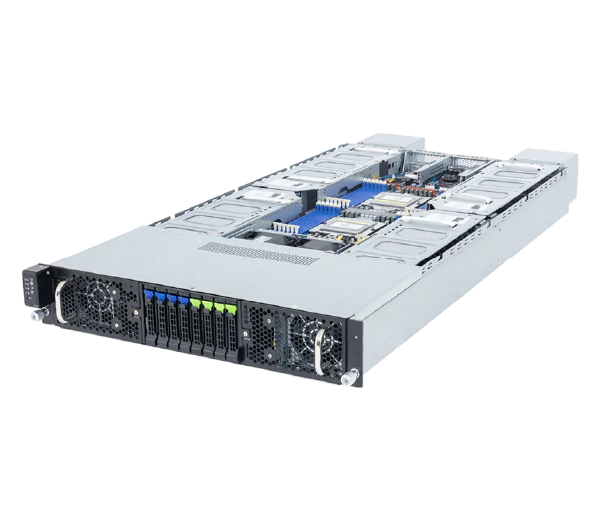

G294-Z42-AAP2

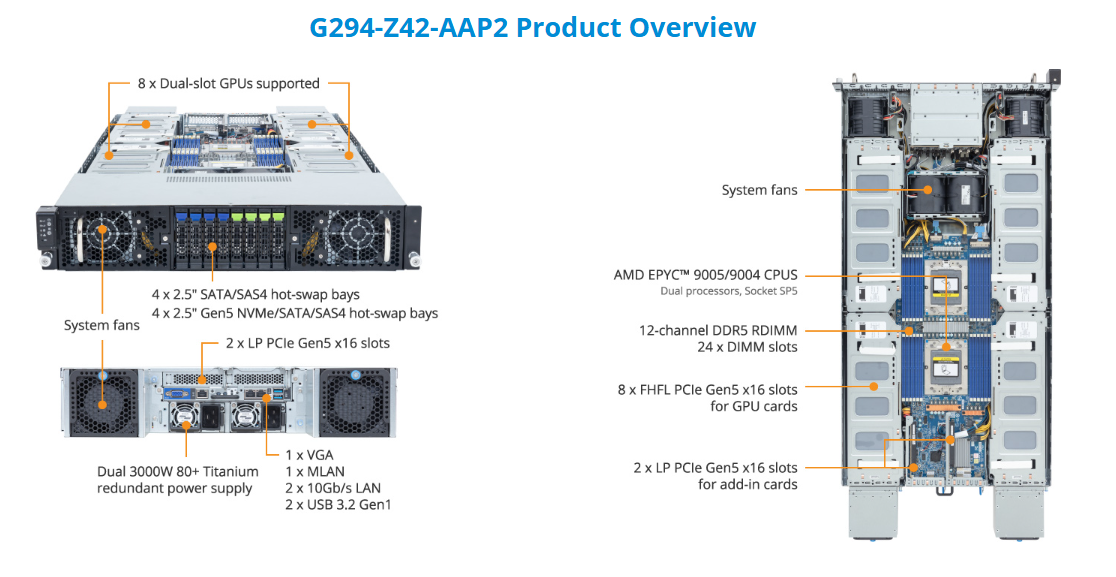

HPC/AI Server - AMD EPYC™ 9005/9004 - 2U DP 8 x PCIe Gen5 GPUs (with PCIe switches)

  • Supports up to 8 x Dual slot Gen5 GPUs
  • Supports 4 x NVIDIA H200 NVL PCIe GPUs with 2-way NVLink bridges or
  • 4 x NVIDIA RTX PRO™ 6000 Blackwell Server Edition GPUs
  • Supports 8 x AMD Radeon™ AI PRO R9700S
  • Dual AMD EPYC™ 9005/9004 Series Processors
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • 2 x 10Gb/s LAN ports via Broadcom® BCM57416
  • 4 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 4 x 2.5" SATA/SAS-4 hot-swap bays
  • 8 x FHFL PCIe Gen5 x16 for GPUs
  • 2 x LP PCIe Gen5 x16 slots for add-in cards
  • Dual 3000W 80 PLUS Titanium redundant power supply
  • Ordering Numbers: 6NG294Z42DR000ACP2*
문의하기 데이터시트















[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

  • Dimensions (WxHxD, mm)

    • 2U
      448 x 87.5 x 962 (depth including 112 mm rear fans)

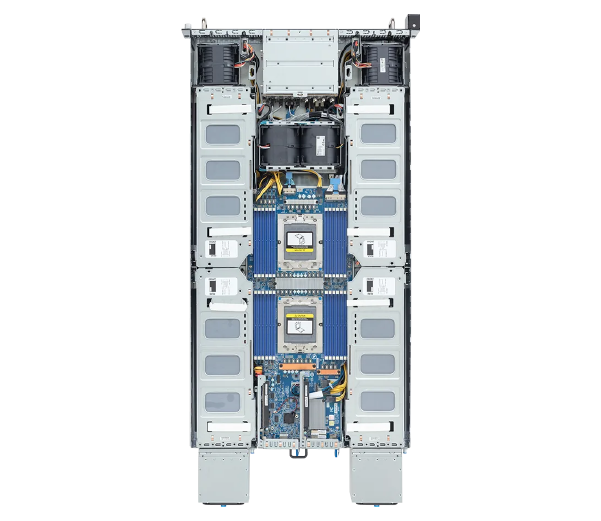

  • Motherboard

    • MZ43-G20

  • CPU

    • AMD EPYC™ 9005 Series Processors
      AMD EPYC™ 9004 Series Processors

      Dual processor, cTDP up to 240W
      - At 30°C ambient, cTDP up to 300W

      [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

  • Socket

    • 2 x LGA 6096
      Socket SP5

  • Chipset

    • System on Chip

  • Memory

    • 24 x DIMM slots
      Support DDR5 RDIMM
      12-Channel memory per processor

      AMD EPYC™ 9005:
      Up to 6400 MT/s

      AMD EPYC™ 9004:
      Up to 4800 MT/s

  • LAN

    • Rear:
      2 x 10Gb/s LAN (1 x Broadcom® BCM57416)
      - Support NCSI function

      1 x 10/100/1000 Mbps Management LAN

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x VGA port

  • Storage

    • Front hot-swap:
      4 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
      4 x 2.5" SATA/SAS-4 [1]
      - (NVMe from CPU_1)
      - (SATA from CPU_1)

      [1] SAS card is required to support SAS drives.

  • PCIe Expansion Slots

    • Riser Card CRCG620 x 2:
      - 4 x FHFL x16 (Gen5 x16), from PEX89048, for GPUs

      Riser Card CRCG621 x 2:
      - 4 x FHFL x16 (Gen5 x16), from PEX89048, for GPUs

      Riser Card CRSG01F x 2:
      - 2 x LP x16 (Gen5 x16), from CPU_0

      [Note] The system supports 4 x NVIDIA H200 NVL PCIe GPUs at 25°C ambient, arranged as two 2-GPU sets, each with a 2-way NVLink bridge.

      [Note] The system supports 4 x RTX PRO™ 6000 Blackwell Server Edition GPUs at 25°C ambient.

      [Note] GPU video output ports are not available due to mechanical limitations.

      [Note] The system is only validated with a uniform GPU model.

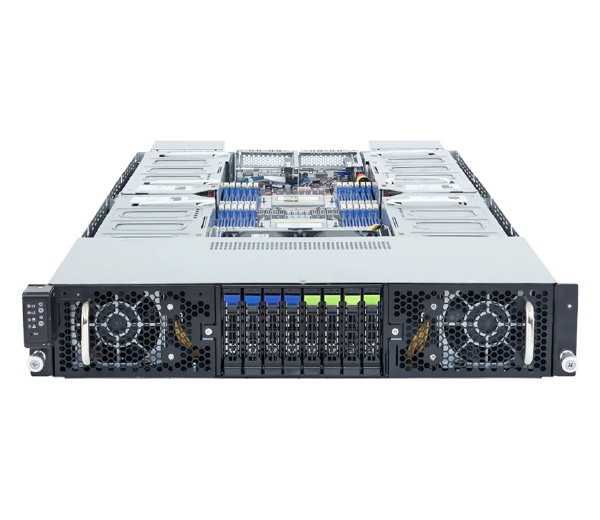

  • Front I/O

    • 1 x Power button with LED
      1 x ID button with LED
      1 x Reset button
      2 x LAN activity LEDs
      1 x Storage activity LED
      1 x System status LED

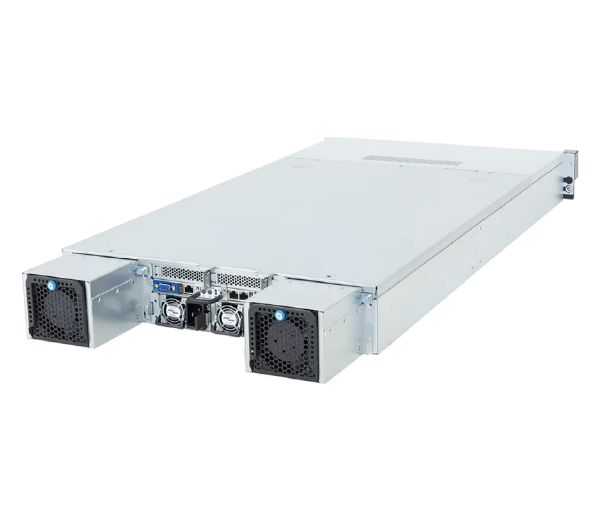

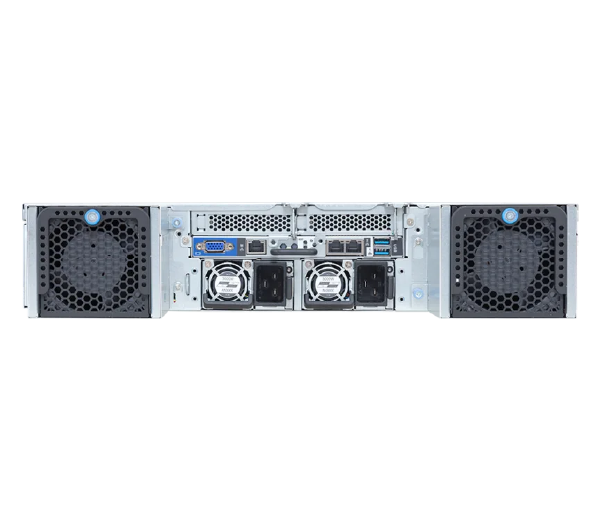

  • Rear I/O

    • 2 x USB 3.2 Gen1 ports (Type-A)
      1 x VGA port
      2 x RJ45 ports
      1 x MLAN port
      1 x Power button with LED
      1 x ID button with LED
      1 x NMI button
      1 x Reset button
      1 x System status LED

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM010

  • Power Supply[#1]

    • Dual 3000W 80 PLUS Titanium redundant power supply [1]

      AC Input:
      - 100-127V~/ 15.5A, 50-60Hz
      - 200-220V~/ 15.5A, 50-60Hz
      - 220-240V~/ 15.5A, 50-60Hz

      DC Input: (Only for China)
      - 240Vdc/ 15.5A

      DC Output:
      - Max 1000W/ 100-127V~
      +12.2V/ 81A
      +12Vsb/ 3A
      - Max 2600W/ 200-220V~
      +12.2V/ 213A
      +12Vsb/ 3A
      - Max 3000W/ 220-240V~ or 240Vdc Input
      +12.2V/ 245A
      +12Vsb/ 3A

      [1] The system power supply requires C19 power cord.

  • System Fans

    • 8 x 80x80x80mm

  • Operating Properties

    • Operating temperature: 10°C to 35°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

  • Weight

    • Net Weight: 25.5 kg
      Gross Weight: 41.6 kg

  • Packaging Dimensions

    • 1241 x 742 x 305 mm

  • Packaging Content

    • 1 x G294-Z42-AAP2
      2 x CPU heatsinks
      4 x GPU power cables (16-pin, 250mm)
      4 x GPU power cables (16-pin, 280mm)
      1 x L-shape Rail kit

  • Part Numbers

    • - Barebone package: 6NG294Z42DR000ACP2*
      - Motherboard: 9MZ43G20UR-000-3*
      - L-shape Rail kit: 25HB2-A86102-K0R
      - CPU heatsink: 25ST1-243105-A0R/25ST1-443211-A0R
      - Backplane board - CBPG086: 9CBPG086NR-00*
      - Fan module: 25ST2-888028-D0R
      - Fan module: 25ST2-88802A-F1R
      - Fan module: 25ST2-88802B-F1R
      - Riser card - CRSG01F: 9CRSG01FNR-00*
      - Riser card - CRCG620: 9CRCG620NR-00*
      - Riser card - CRCG621: 9CRCG621NR-00*
      - GPU power cable (16-pin, 250mm): 25CRI-2503B3-Y4R
      - GPU power cable (16-pin, 280mm): 25CRI-3000B2-Y4R
      - Power supply: 25EP0-203K03-G1S
