XN24-VC0-LA61

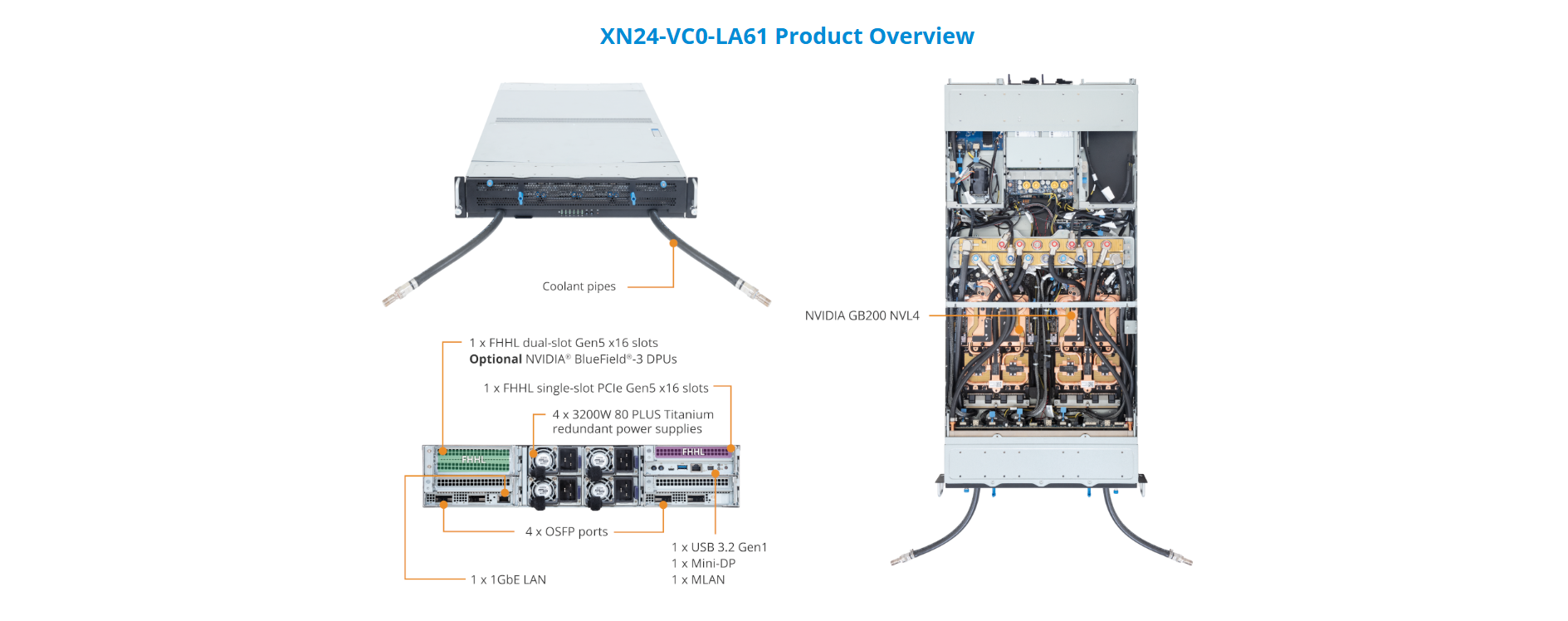

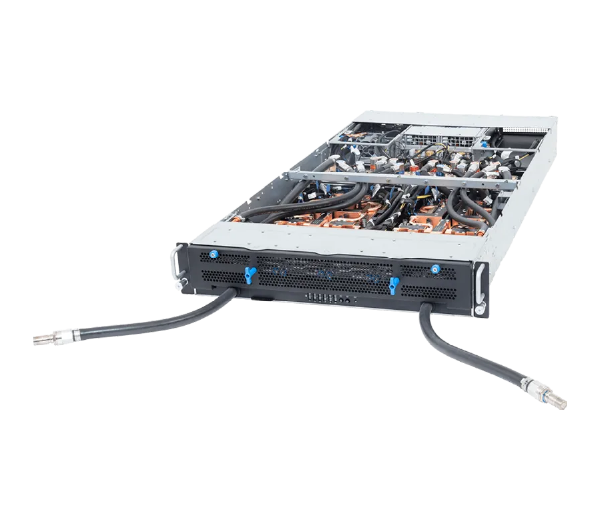

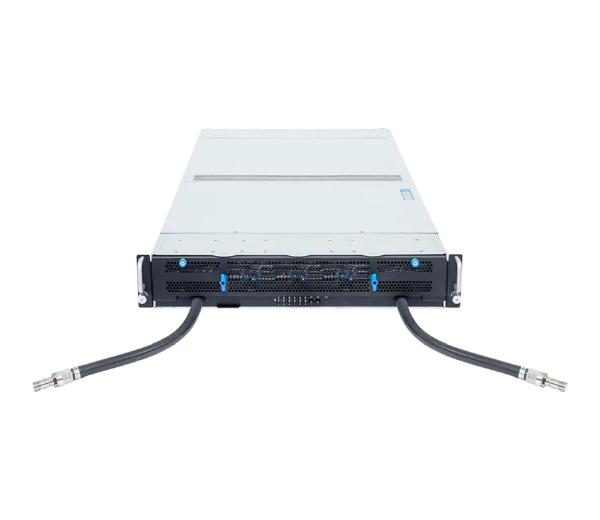

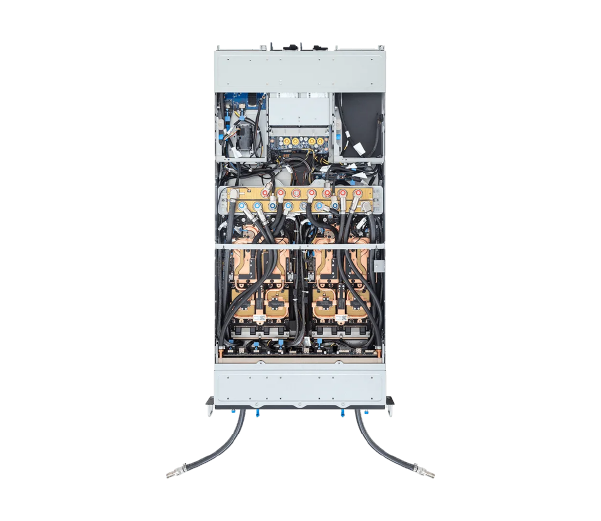

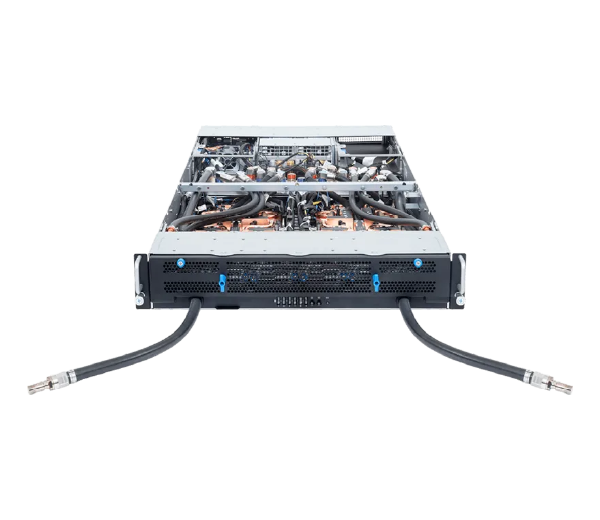

NVIDIA GB200 NVL4 Full-System DLC Server

  • Direct liquid-cooled NVIDIA GB200 NVL4 solution with integrated piping for over 85% system heat coverage
  • 4 x 800 Gb/s liquid-cooled OSFP InfiniBand XDR or dual 400 Gb/s Ethernet GPU networking ports via NVIDIA ConnectX®-8 SuperNIC™
  • 4 x 186GB HBM3E GPU memory
  • 2 x 480GB LPDDR5X ECC CPU memory
  • 1 x 1Gb/s LAN port via Intel® I210-AT
  • 8 x liquid-cooled 2.5" Gen5 NVMe bays
  • 4 x liquid-cooled 2.5" Gen5 NVMe bays via NVIDIA® BlueField®-3 DPU (optional)
  • 1 x M.2 slot with PCIe Gen5 x4 interface
  • 1 x liquid-cooled FHHL PCIe Gen5 x16 slot for NVIDIA® BlueField®-3 DPUs
  • 1 x FHHL PCIe Gen5 x16 slot
  • 4 x 3200W 80 PLUS Titanium redundant power supplies
  • Ordering Numbers: 6NXN24VC0RR000LA61*
문의하기 데이터시트





[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

  • Dimensions (WxHxD, mm)

    • 2U
      438 x 87 x 900

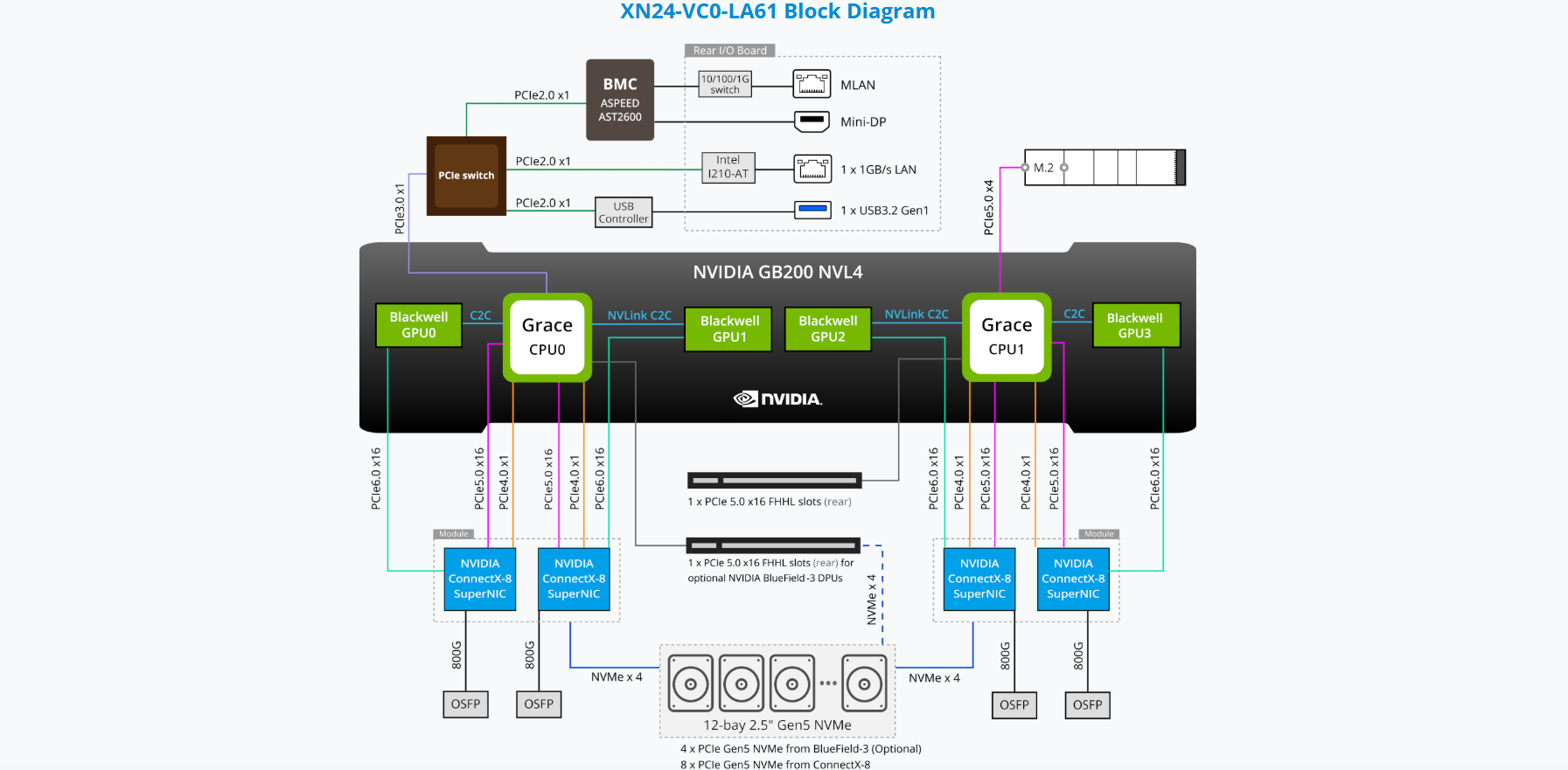

  • Superchip

    • 2 x liquid-cooled NVIDIA GB200 Grace Blackwell Superchips
      Per superchip:
      - 1 x NVIDIA Grace™ CPU
      - 2 x NVIDIA Blackwell GPUs
      - CPU and GPU connected with NVIDIA NVLink™-C2C
      - GPU and GPU connected with NVIDIA NVLink™
      - GPU TDP up to 1200W

  • Memory

    • NVIDIA Grace™ CPU:
      - 480GB of LPDDR5X memory with ECC
      - Memory bandwidth up to 512GB/s

      NVIDIA Blackwell GPU:
      - 186GB HBM3E
      - Memory bandwidth up to 8TB/s

  • LAN

    • Rear:
      4 x 800 Gb/s liquid-cooled OSFP InfiniBand XDR or dual 400 Gb/s Ethernet, for GPU networking, via NVIDIA ConnectX®-8 SuperNIC™

      1 x 1Gb/s LAN (1 x Intel® I210-AT)
      - Supports NCSI function

      1 x 10/100/1000 Mbps Management LAN

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x Mini-DP

  • Storage

    • Front:
      8 x liquid-cooled 2.5" Gen5 NVMe
      - (NVMe from ConnectX®-8 SuperNIC™)

      Optional front:
      4 x liquid-cooled 2.5" Gen5 NVMe
      - (NVMe from NVIDIA® BlueField®-3 DPUs) [1]

      Internal M.2:
      1 x M.2 (2242/2260/2280/22110), PCIe Gen5 x4, from CPU_1

      [1] Requires optional NVIDIA® BlueField®-3 DPU.

  • PCIe Expansion Slots

    • PCIe Cable x 2:
      - 1 x liquid-cooled FHHL x16 (Gen5 x16), from CPU_0, for DPUs
      - 1 x FHHL x16 (Gen5 x16), from CPU_1

  • Front I/O

    • I/O board:
      1 x Power button with LED
      1 x ID button with LED
      1 x Reset button
      12 x Storage activity LEDs

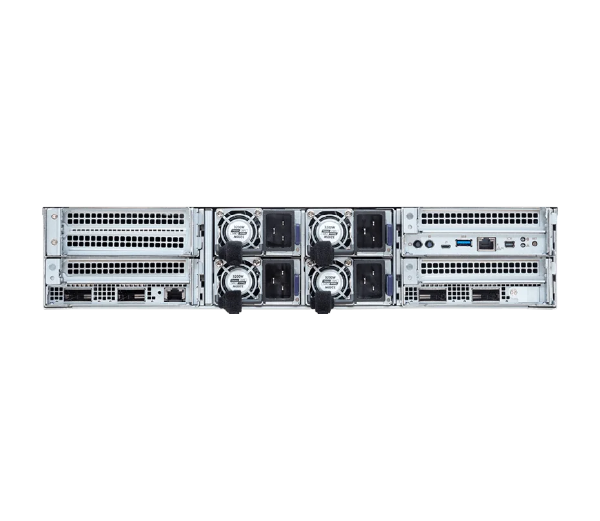

  • Rear I/O

    • 4 x OSFP ports

      I/O board:
      1 x USB 3.2 Gen1 port (Type-A)
      1 x Micro USB port (for debug only)
      1 x Mini-DP
      1 x RJ45 port
      1 x MLAN port
      1 x Power button with LED
      1 x ID button with LED
      1 x BMC reset button
      1 x System status LED
      1 x NVLink status LED

  • Security Modules

    • RoT and Dual ROM
      TPM: CTM013

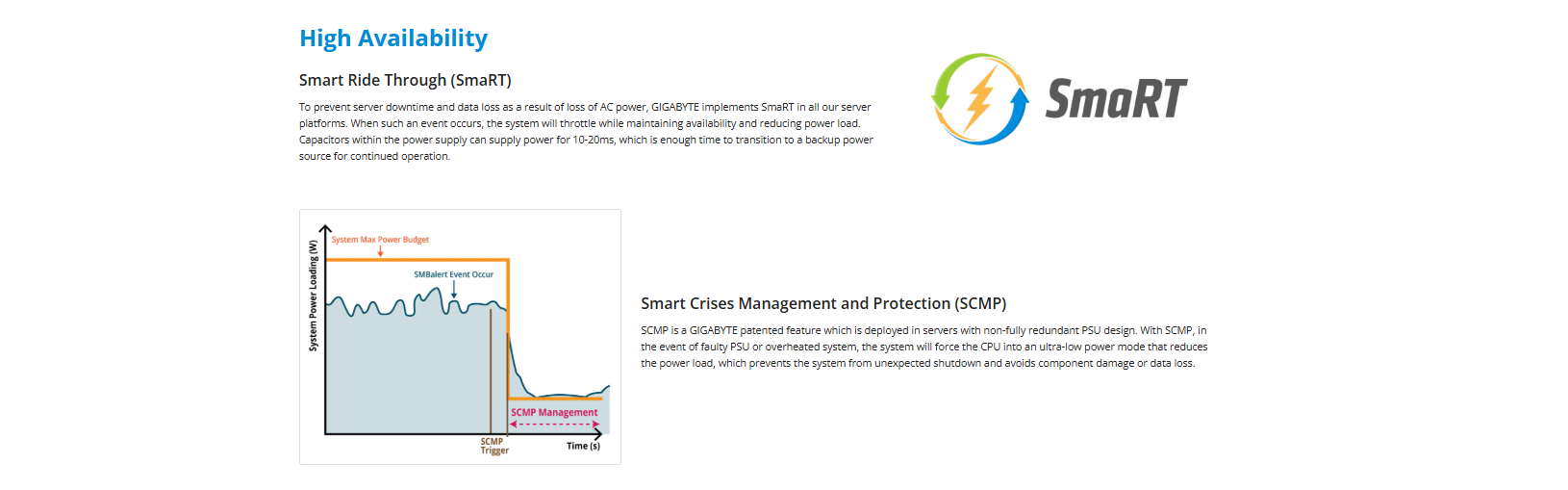

  • Power Supply[#1]

    • 4 x 3200W 80 PLUS Titanium redundant power supplies [1]

      AC Input:
      - 100-127V~/ 16A, 50-60Hz
      - 200-220V~/ 16A, 50-60Hz
      - 220-240V~/ 16A, 50-60Hz

      DC Input: (Only for China)
      - 240Vdc/ 16A

      DC Output:
      - Max 1300W/ 100-127V~
      +12.2V/ 106.6A
      +12.2Vsb/ 3A
      - Max 3000W/ 200-220V~
      +12.2V/ 246A
      +12.2Vsb/ 3A
      - Max 3200W/ 220-240V~ or 240Vdc Input
      +12.2V/ 262.3A
      +12.2Vsb/ 3A

      [1] The system power supply requires C19 power cord.

  • System Fans

    • 1 x 40x40x56mm

  • Operating Properties

    • Operating temperature: 10°C to 35°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

      [Note] To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 45°C.

  • Weight

    • Net Weight: 42.8 kg
      Gross Weight: 50 kg

  • Packaging Dimensions

    • 1178 x 730 x 387 mm

  • Packaging Content

    • 1 x XN24-VC0-LA61
      1 x Mini-DP to D-Sub cable
      1 x 3-Section Rail kit

  • Part Numbers

    • - Barebone package: 6NXN24VC0RR000LA61*
      - 3-Section Rail kit: 25HB2-UKJH00-K0R

      Optional parts:

      - Cable Management Arm: 25HB2-2AA700-K0R
