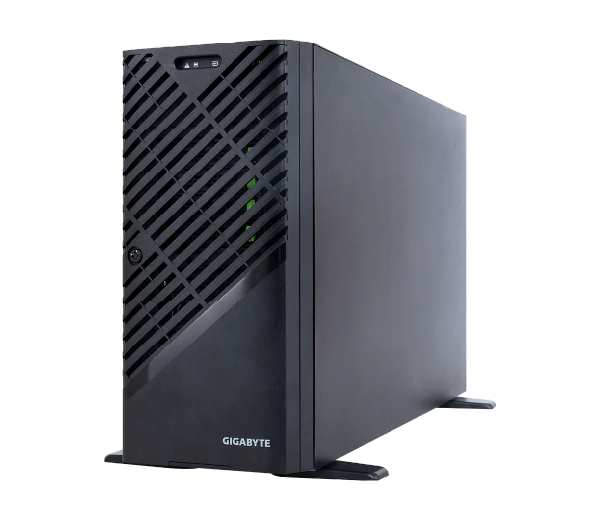

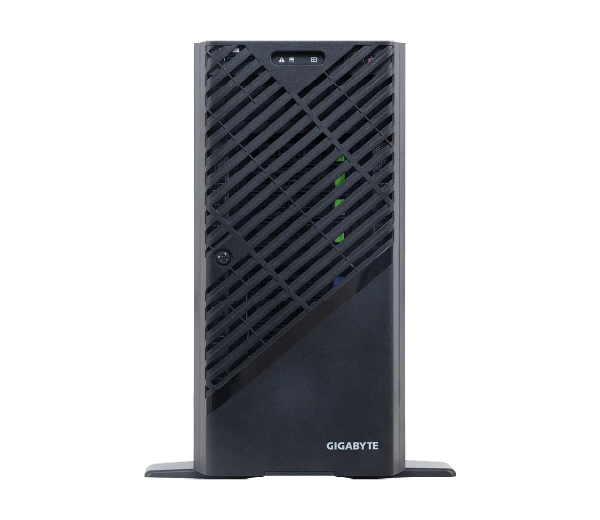

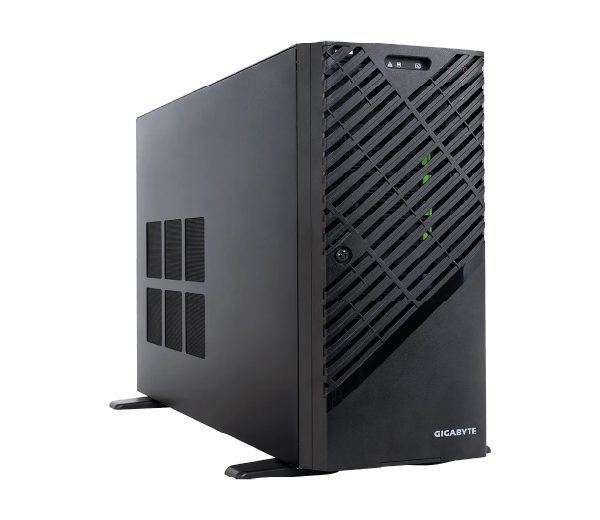

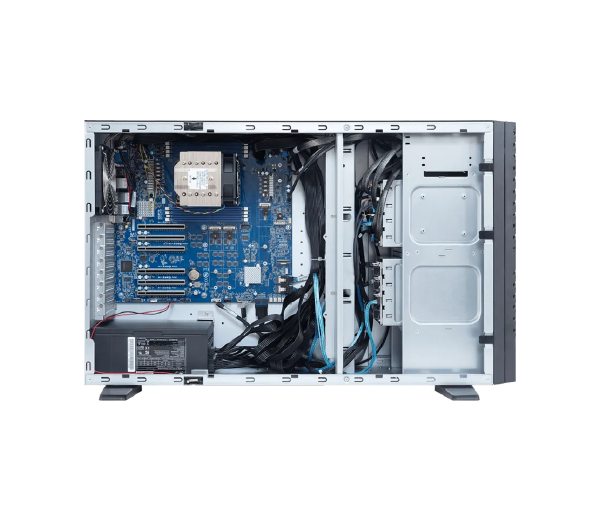

W774-W90-AAF1

GPU Workstation - Intel® Xeon® 600 Processors for Workstations

  • Supports up to 4 x dual-slot Gen5 GPUs
  • Single Intel® Xeon® 600 Processors for Workstations
  • 8-Channel DDR5 RDIMM/MRDIMM per CPU with 8 x DIMMs
  • 2 x 10 Gb/s LAN ports via Intel® X710-AT2
  • 4 x M.2 slots with PCIe Gen5 x4
  • 4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 4 x 3.5"/2.5" SATA/SAS-4 hot-swap bays
  • 4 x PCIe x16 slots with Gen5 x16 lanes
  • 2 x PCIe x16 slots with Gen5 x16 lanes, require Intel® Xeon® 690/670/650 processors
  • Single 2500 W ATX 80 PLUS Platinum power supply
  • Ordering Numbers: 6NW774W90MR000AAF1*
문의하기 데이터시트









[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

  • Dimensions (WxHxD, mm)

    • Pedestal
      218 x 455 x 726.3

  • Motherboard

    • MW94-RP0

  • CPU

    • Intel® Xeon® 600 processors for workstations

      Single processor, TDP up to 350 W

      [Note] Please select Intel® Xeon® 690/670/650 processors to enable all functions.

  • Socket

    • 1 x LGA 4710-2
      Socket E2

  • Chipset

    • Intel® W890

  • Memory

    • 8 x DIMM slots [1]
      Support DDR5 RDIMM/MRDIMM
      8-channel memory per processor
      RDIMM: Up to 6400 MT/s
      MRDIMM: Up to 8000 MT/s [2]

      [1] Only 4 x DIMMs are supported with Intel® Xeon® 630 processors.

      [2] MRDIMMs are supported only on select SKUs.

  • LAN

    • 2 x 10 Gb/s LAN (1 x Intel® X710-AT2)
      - Support NCSI function

      1 x 10/100/1000 Mb/s Management LAN

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x VGA port

  • Audio

    • Realtek® ALC897 HD Audio Codec
      Supports 2/4/5.1/7.1 channel configurations
      Rear: 3 x Audio jacks (Audio in/Audio out/Mic)
      Front: 2 x Audio jacks (Audio out/Mic)

  • Storage

    • Front hot-swap:
      4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 [1]
      4 x 3.5"/2.5" SATA/SAS-4 [1]

      Internal M.2:
      4 x M.2 (2280/22110), PCIe Gen5 x4, from CPU

      [Note] SAS card is required to support SAS drives.

  • RAID

    • Intel® SATA RAID 0/1/10/5
      Onboard VROC key header

  • Peripheral Drives

    • 5.25" space reserved for ODD device

  • PCIe Expansion Slots

    • Slot_7: PCIe x16 (Gen5 x16), from CPU
      Slot_6: PCIe x16 (Gen5 x16), from CPU [1]
      Slot_5: PCIe x16 (Gen5 x16), from CPU
      Slot_3: PCIe x16 (Gen5 x16), from CPU
      Slot_2: PCIe x16 (Gen5 x16), from CPU [1]
      Slot_1: PCIe x16 (Gen5 x16), from CPU

      [1] Slot_2/6 require Intel® Xeon® 690/670/650 processors.

      [Note] The system supports the following GPU configurations:
      - NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition: 4 x GPUs
      - AMD Radeon™ AI PRO R9700: 4 x GPUs
      - Dual-slot 300 W GPUs: 4 x GPUs
      - Dual-slot 600 W GPUs: 1 x GPU
      - Triple-slot GPUs: 2 x GPUs

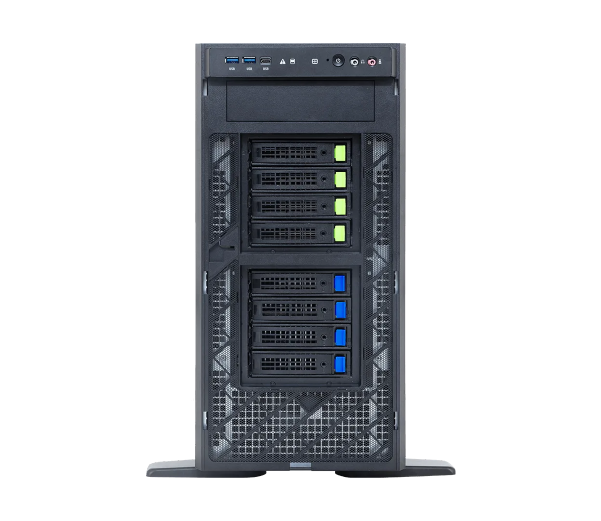

  • Front I/O

    • 1 x USB 3.2 Gen2x2 port (Type-C)
      2 x USB 3.2 Gen1 ports (Type-A)
      2 x Audio jacks (Audio out/Mic)
      1 x Power button
      1 x Reset button
      1 x Power LED
      1 x Storage activity LED
      1 x System status LED

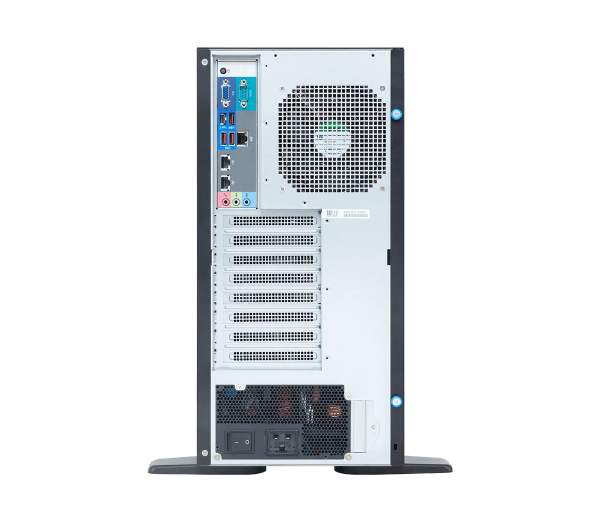

  • Rear I/O

    • 1 x USB 3.2 Gen2x2 port (Type-C)
      3 x USB 3.2 Gen2x1 ports (Type-A)
      1 x VGA port
      1 x Serial port
      2 x RJ45 ports
      1 x MLAN port
      3 x Audio jacks (Audio in/Audio out/Mic)
      1 x ID button with LED

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM 2.0 kit: CTM012

  • Power Supply[#1]

    • Single 2500 W ATX 80 PLUS Platinum power supply [1]

      AC Input:
      - 200-240V~, 15A, 50-60Hz

      DC Output:
      - Max 2500W
      +12V/ 208.3A
      +5V/ 25A
      +3.3V/ 25A
      +5Vsb/ 4A
      -12V/ 0.3A

      [1] The system power supply requires C19 power cord.

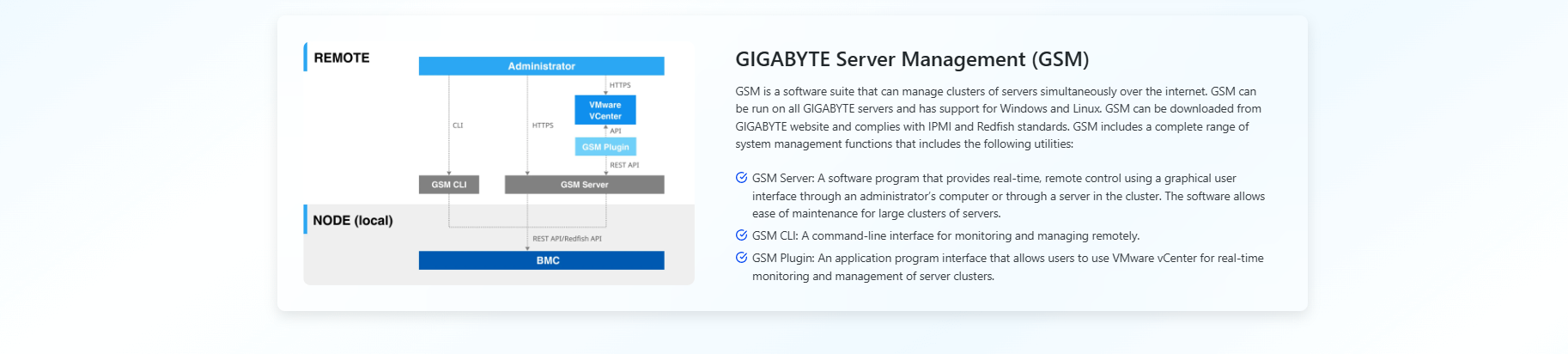

  • System Management

    • ASPEED® AST2600 Baseboard Management Controller
      GIGABYTE Management Console web interface

  • System Fans

    • Middle:
      3 x 120x120x38mm

      Rear:
      1 x 120x120x25mm

  • Operating Properties

    • Operating temperature: 10°C to 30°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

  • Weight

    • Net Weight: 29.2 kg
      Gross Weight: 34 kg

  • Packaging Dimensions

    • 1050 x 594 x 417 mm

  • Packaging Content

    • 1 x W774-W90-AAF1
      1 x CPU fansink
      2 x Carriers

  • Part Numbers

    • - Barebone package: 6NW774W90MR000AAF1*
      - Motherboard: 9MW94RP0NR-000*
      - Front panel board - CFPW040: 9CFPW040NR-00*
      - Backplane board - CBPW041: 9CBPW041NR-00*

      Optional parts:

      - Rail kit ((A)+(B)+(C)+(D)):
      (A) 25HB2-A66126-K0R (Slide Rail), Q'ty: 1 set
      (B) 25HB4-W77304-C0R (Rack Ear Right), Q'ty: 1 set
      (C) 25HB4-W77305-C0R (Rack Ear Left), Q'ty: 1 set
      (D) 25HB7-W77300-C0R (Top Cover for Assembly), Q'ty: 1 set
