G295-D21-AP1

HPC/AI Server - AMD EPYC™ 9006 SP7 Server Processors - 2U UP 4 x PCIe Gen6 GPUs

  • G295-D21-AP1
  • HPC/AI Server - AMD EPYC™ 9006 SP7 Server Processors - 2U UP 4 x PCIe Gen6 GPUs
  • AI
  • Visual Computing
  • HPC
  • AI Training
  • AI Inference
  • Supports up to 4 x dual-slot Gen6 GPUs
  • Single AMD EPYC™ 9006 SP7 Server processors
  • 12-Channel DDR5 RDIMM/MRDIMM per CPU with 12 x DIMMs
  • 2 x 10 Gb/s LAN ports via Broadcom® BCM57416
  • 4 x Optional 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 4 x Optional 2.5" SATA/SAS-4 hot-swap bays
  • 1 x M.2 slot with PCIe Gen4 x2
  • 4 x FHFL PCIe x16 slots with Gen6 x16 lanes for GPUs
  • 2 x LP PCIe x16 slots with Gen6 x16 lanes for add-in cards
  • 2 x 3000 W 80 PLUS Titanium redundant power supplies
  • Ordering Numbers: 6NG295D21HR000AP1*
문의하기 데이터시트










[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

  • Dimensions (WxHxD, mm)

    • 2U
      448 x 87.5 x 800

  • Motherboard

    • MD25-G20

  • CPU

    • AMD EPYC™ 9006 SP7 Server processors

      Single processor, PPT up to 600 W

  • Socket

    • 1 x LGA 7536
      Socket SP7

  • Chipset

    • Integrated into SoC

  • Memory

    • 12 x DIMM slots
      Support DDR5 RDIMM/MRDIMM [1]
      12-Channel memory per processor

      RDIMM: Up to 8000 MT/s
      MRDIMM: Up to 12800 MT/s

      [1] MRDIMMs are supported only on select CPU SKUs.

  • LAN

    • Rear:
      2 x 10 Gb/s LAN (1 x Broadcom® BCM57416)
      - Support NCSI function

      1 x Management LAN

  • Video

    • Integrated in ASPEED® AST2700
      - 1 x VGA port

  • Storage

    • Front hot-swap:
      [Optional] 4 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
      [Optional] 4 x 2.5" SATA/SAS-4 [1]

      Internal M.2:
      1 x M.2 (2280/22110), PCIe Gen4 x2

      [1] Storage card(s) required to support all drives.

      [Note] An alternative SKU supports 4 x native NVMe drives with LP PCIe slots. Please contact technical support for more information.

  • PCIe Expansion Slots

    • 4 x FHFL x16 (Gen6 x16), for GPUs
      2 x LP x16 (Gen6 x16)

      [Note] GPU video output ports are not available due to mechanical limitations.

      [Note] The system is only validated with a uniform GPU model.

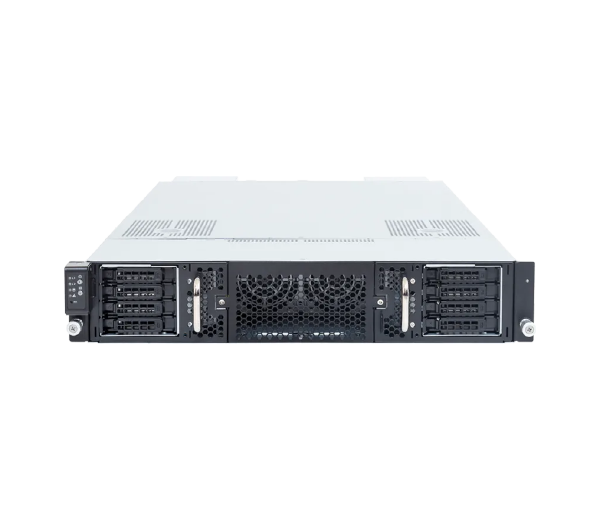

  • Front I/O

    • 1 x Power button with LED
      1 x ID button with LED
      1 x NMI button
      1 x Reset button
      2 x LAN activity LEDs
      1 x Storage activity LED
      1 x System status LED

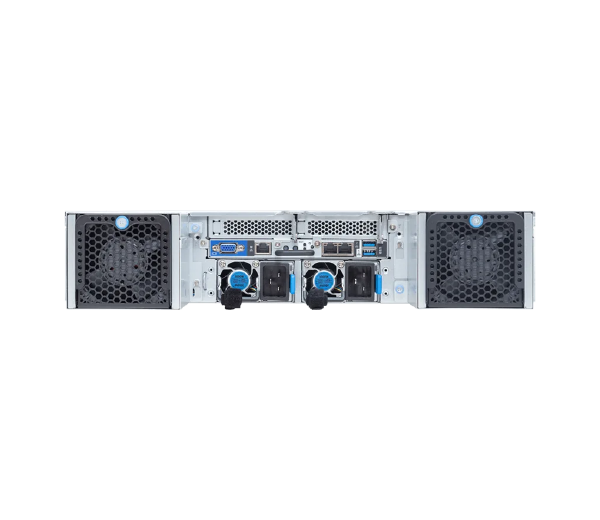

  • Rear I/O

    • 2 x USB 3.2 Gen1 ports (Type-A)
      1 x VGA port
      1 x Serial port
      2 x RJ45 ports
      1 x MLAN port
      1 x Power button with LED
      1 x ID button with LED
      1 x NMI button
      1 x Reset button
      1 x System status LED

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM 2.0 kit: CTM012

  • Power Supply[#1]

    • 2 x 3000 W 80 PLUS Titanium redundant power supplies [1]

      AC Input:
      - 100-127V~, 15.5A, 50-60Hz
      - 200-220V~, 15.5A, 50-60Hz
      - 220-240V~, 15.5A, 50-60Hz

      DC Input: (Only for China)
      - 240Vdc, 15.5A

      DC Output:
      - Max 1000W/ 100-127V~
      +12.2V/ 81A
      +12Vsb/ 3A
      - Max 2600W/ 200-220V~
      +12.2V/ 213A
      +12Vsb/ 3A
      - Max 3000W/ 220-240V~ or 240Vdc Input
      +12.2V/ 245A
      +12Vsb/ 3A

      [1] The system power supply requires C19 power cord.

  • System Fans

    • 6 x 80x80x80mm

  • Operating Properties

    • Operating temperature: 10°C to 25°C
      Operating humidity: 8% to 80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

  • Packaging Dimensions

    • 1241 x 742 x 305 mm

  • Packaging Content

    • 1 x G295-D21-AP1
      1 x CPU heatsink
      3 x GPU power cables (16-pin, 250mm)
      1 x GPU power cable (16-pin, 280mm)
      1 x L-shape Rail kit

  • Part Numbers

    • - Barebone package: 6NG295D21HR000AP1*
      - Motherboard: 9MD25G20IR-00*
      - L-shape Rail kit: 25HB2-A86102-K0R
      - Front panel board - CIF2ED1: 9CIF2ED1NS-00*
      - Backplane board - CBP2040: 9CBP2040NR-00*
