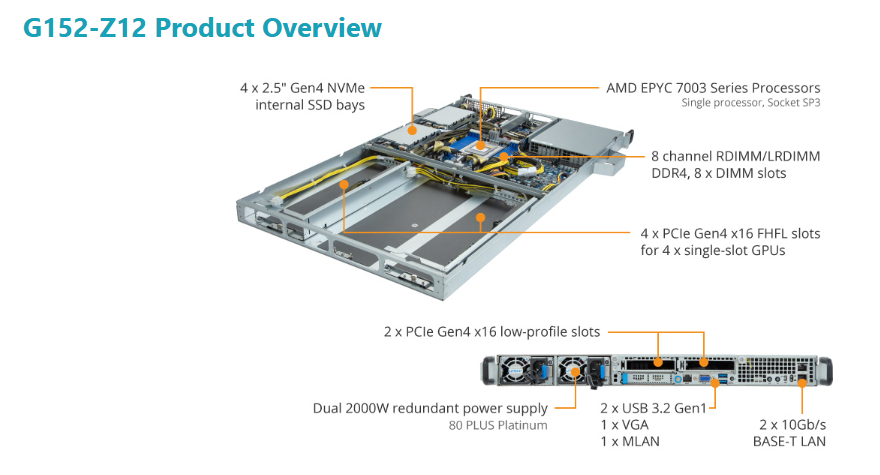

G152-Z12
HPC/AI Server - AMD EPYC™ 7003/7002 - 1U UP 4 x PCIe Gen4 GPUs Immersion

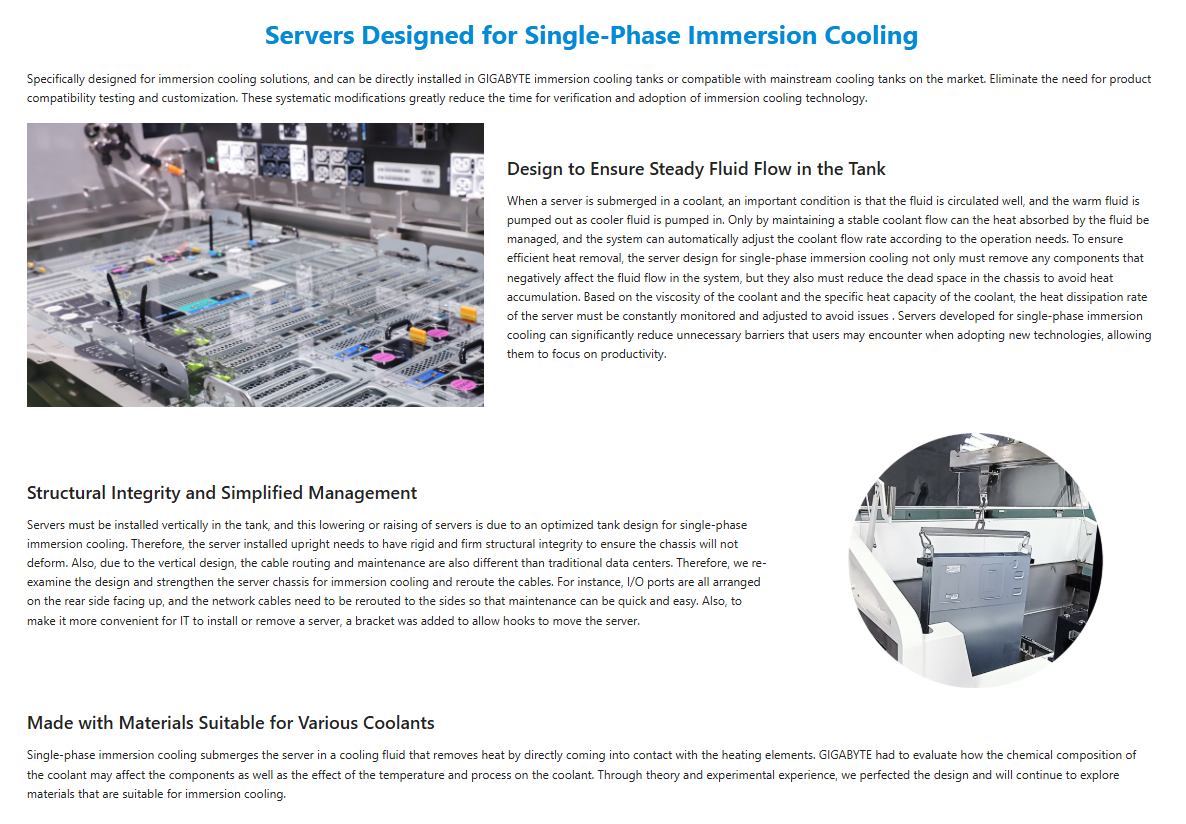

- Immersion Cooling Server
- Supports up to 4 x Single slot Gen4 GPUs
- Single AMD EPYC™ 7003/7002 Series Processors
- 8-Channel DDR4 RDIMM/LRDIMM, 8 x DIMMs
- 2 x 10Gb/s LAN ports via Intel® X550-AT2
- 4 x 2.5" Gen4 NVMe internal bays
- 4 x FHFL PCIe Gen4 x16 slots for GPUs
- 2 x LP PCIe Gen4 x16 slots
- Dual 2000W 80 PLUS Platinum redundant power supply
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
-
Dimensions (WxHxD, mm)
- 1U
448 x 43.5 x 808
- 1U
-
Motherboard
- MZ12-HD7
-
CPU

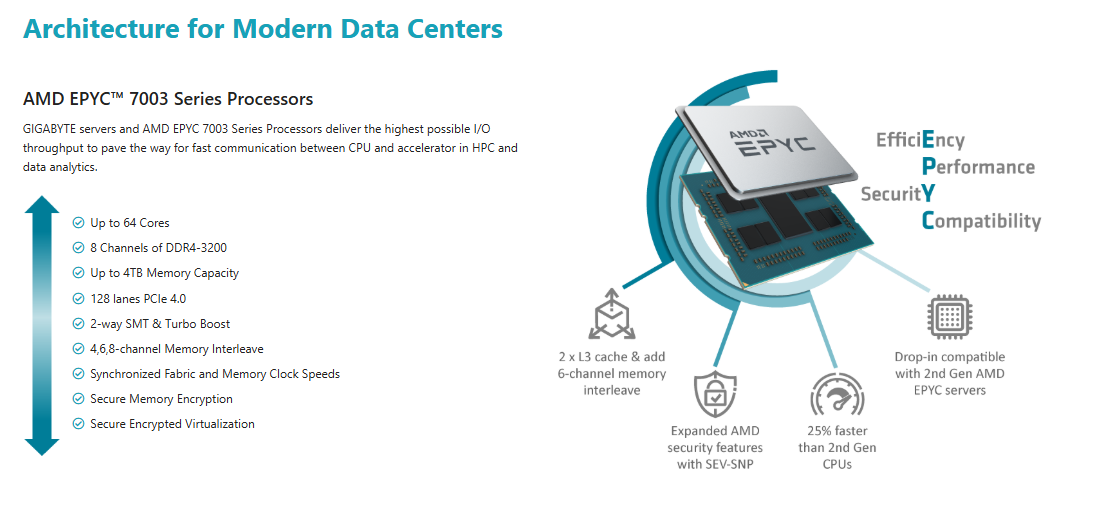

- AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Single processor, cTDP up to 280W
- AMD EPYC™ 7003 Series Processors
-
Socket
- 1 x LGA 4094
Socket SP3
- 1 x LGA 4094
-
Chipset
- System on Chip
-
Memory
- 8 x DIMM slots
DDR4 memory supported
8-Channel memory per processor
RDIMM/LRDIMM: Up to 3200 MT/s
- 8 x DIMM slots
-
LAN
- Top:
2 x 10Gb/s LAN (1 x Intel® X550-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
- Top:
-
Video
- Integrated in ASPEED® AST2500
- 1 x VGA port
- Integrated in ASPEED® AST2500
-
Storage
- Internal:
4 x 2.5" Gen4 NVMe
[Note] SATA devices not supported.
- Internal:
-
SAS
- N/A
-
RAID
- N/A
-

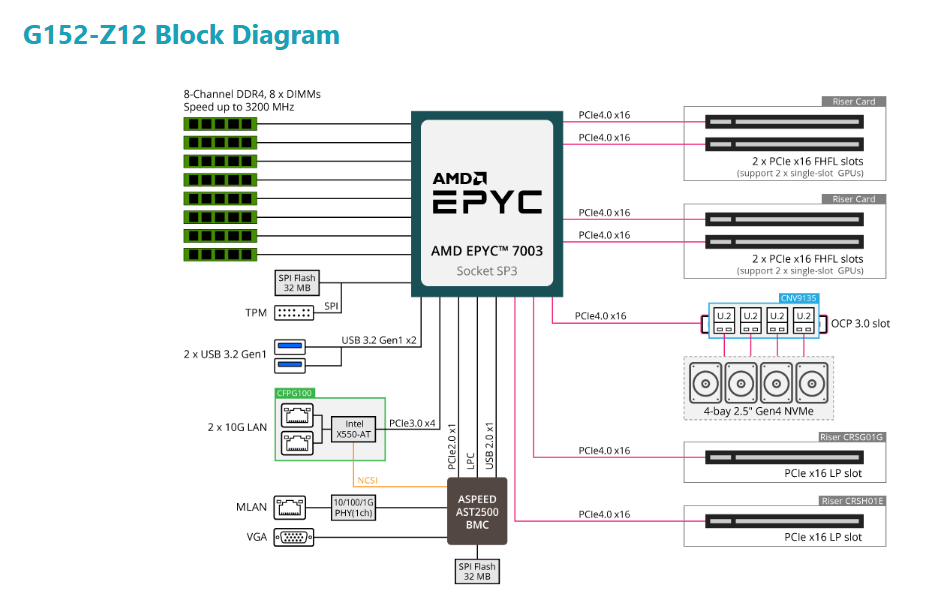

PCIe Expansion Slots
- Riser Card CRSG060 x 2:
- 4 x FHFL x16 (Gen4 x16), for GPUs
Riser Card CRSG01G:
- 1 x LP x16 (Gen4 x16)
Riser Card CRSH01E:
- 1 x LP x16 (Gen4 x16)
[Note] The system is only validated with a uniform GPU model.
- Riser Card CRSG060 x 2:
-

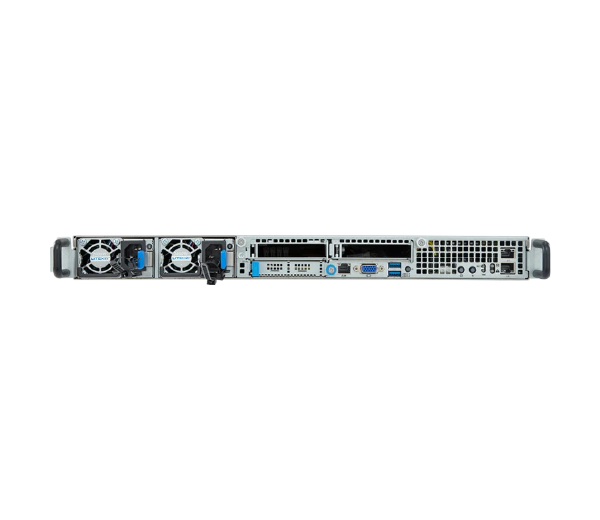

Top I/O
- 2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
1 x ID LED
- 2 x USB 3.2 Gen1 ports (Type-A)
-
Backplane Board
- Speed and bandwidth:
PCIe Gen4 x4
- Speed and bandwidth:
-
Security Modules
- 1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- 1 x TPM header with SPI interface
-
Power Supply[#1]
- Dual 2000W 80 PLUS Platinum redundant power supply
AC Input:
- 100-120V~/ 12A, 50/60Hz
- 180-240V~/ 10A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-120V~
+12.2V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 180-199V~
+12.2V/ 131A
+12Vsb/ 2.5A
- Max 1800W/ 200-220V~
+12.2V/ 147.5A
+12Vsb/ 2.5A
- Max 2000W/ 221-240V~ or 240Vdc Input
+12V/ 163.5A
+12Vsb/ 2.5A
- Dual 2000W 80 PLUS Platinum redundant power supply
-
System Management
- ASPEED® AST2500 Baseboard Management Controller

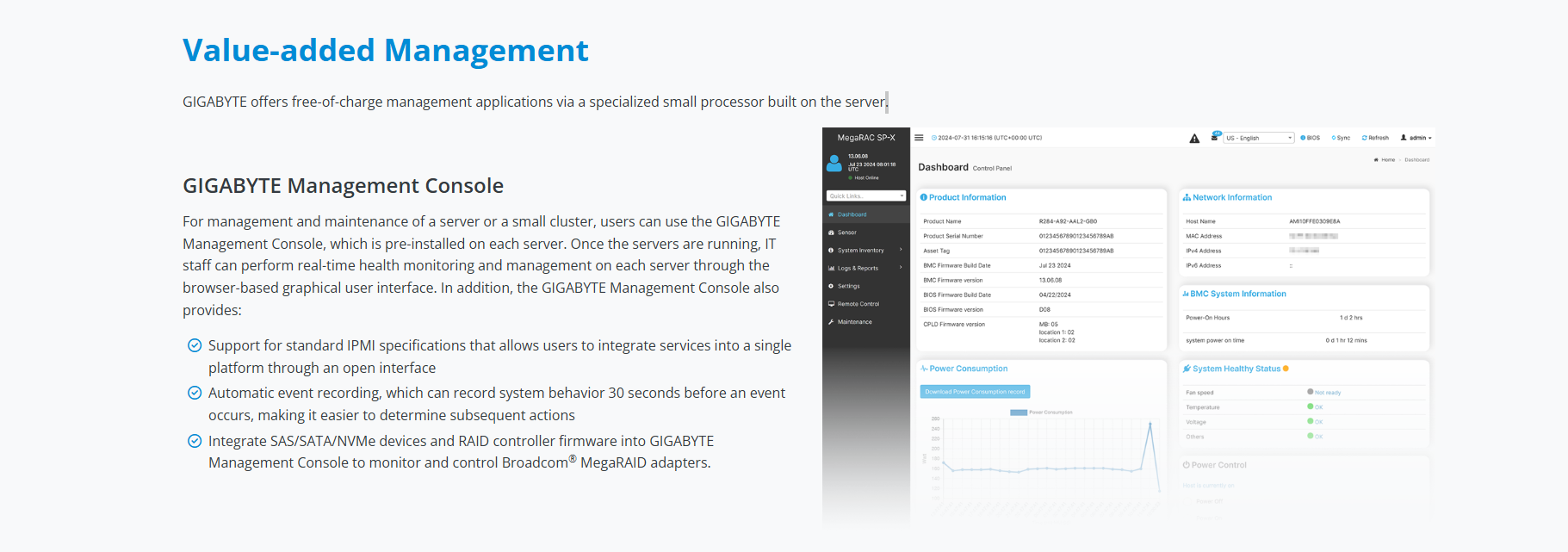

GIGABYTE Management Console web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
- ASPEED® AST2500 Baseboard Management Controller
-
OS Compatibility
- Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
- Citrix Hypervisor 8.2.0 or later
-
Operating Properties
- Operating coolant temperature: 25°C to 30°C
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
- Operating coolant temperature: 25°C to 30°C
-
Weight
- Net Weight: 13.2 kg
-
Packaging Dimensions
- 1073 x 658 x 136 mm
MOQ 5 systems per carton
- 1073 x 658 x 136 mm
-
Packaging Content
- 1 x G152-Z12
1 x CPU heatsink
- 1 x G152-Z12
-
Part Numbers
- - Barebone package: 6NG152Z12MR-00-4*
- Motherboard: 9MZ12HD7NR-00*
- CPU heatsink: 25ST1-443108-A0R
- Front I/O board - CFPG100: 9CFPG100NR-00*
- Backplane board - CBP2023: 9CBP2023NR-00*
- OCP type NVMe card - CNV9135: 9CNV9135NR-00*
- Riser card - CRSH01E: 9CRSH01ENR-00*
- Riser card - CRSG01G: 9CRSG01GNR-00*
- Riser card - CRSG060: 9CRSG060NR-00*
- Power supply: 25EP0-22000D-L0S
- - Barebone package: 6NG152Z12MR-00-4*
