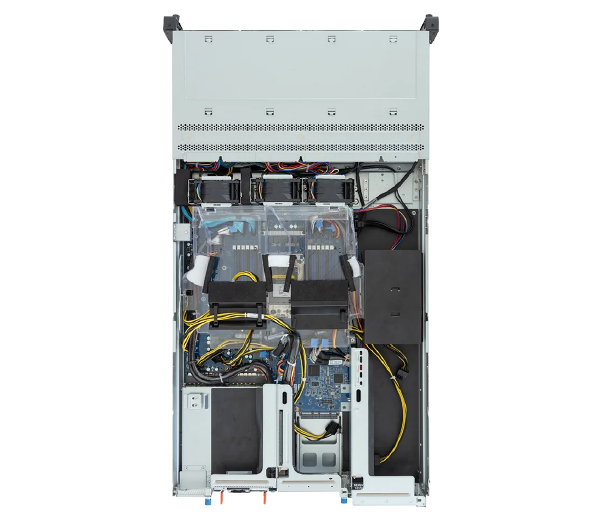

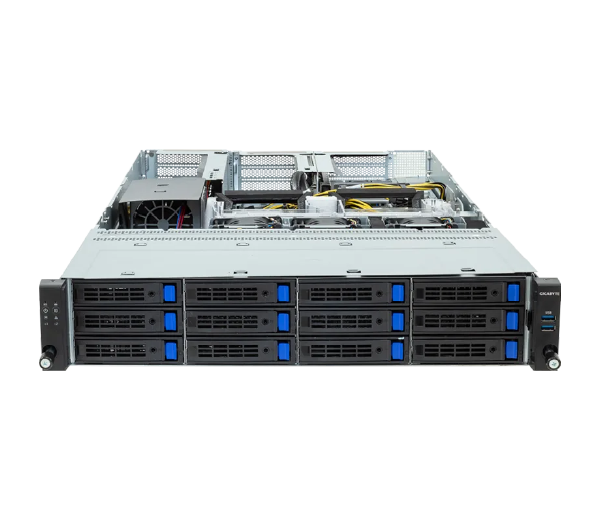

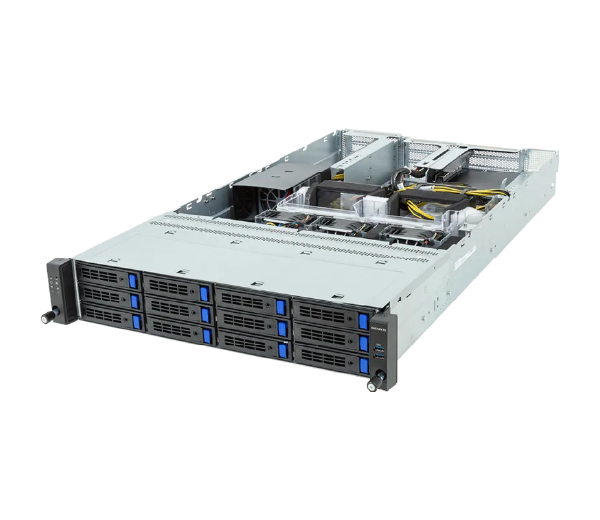

R243-EG0-AAL1

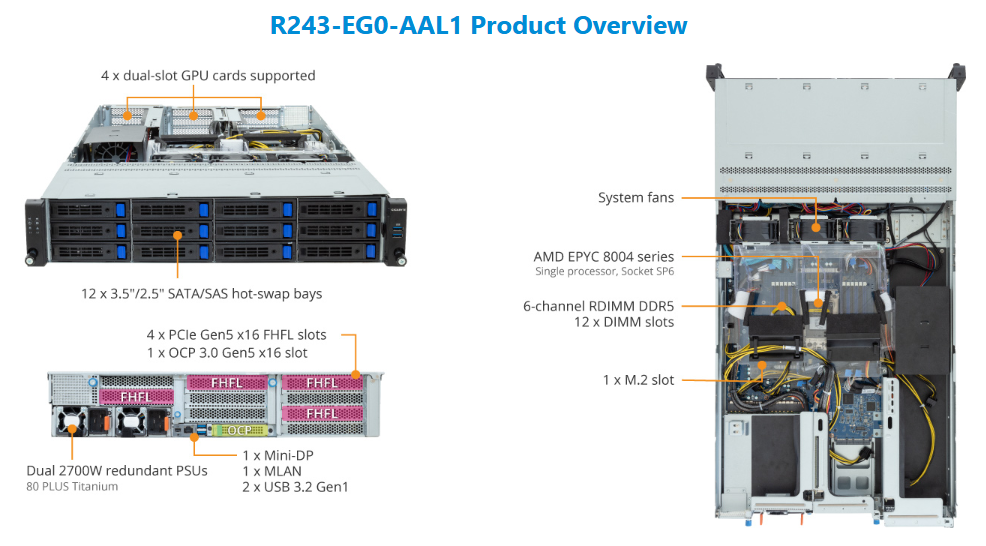

Rack Server - AMD EPYC™ 8004 - 2U UP 4 x PCIe Gen5 GPUs Titanium

  • Supports up to 4 x Dual slot Gen5 GPUs
  • Single AMD EPYC™ 8004 Series Processors
  • 6-Channel DDR5 RDIMM, 12 x DIMMs
  • Dual ROM Architecture

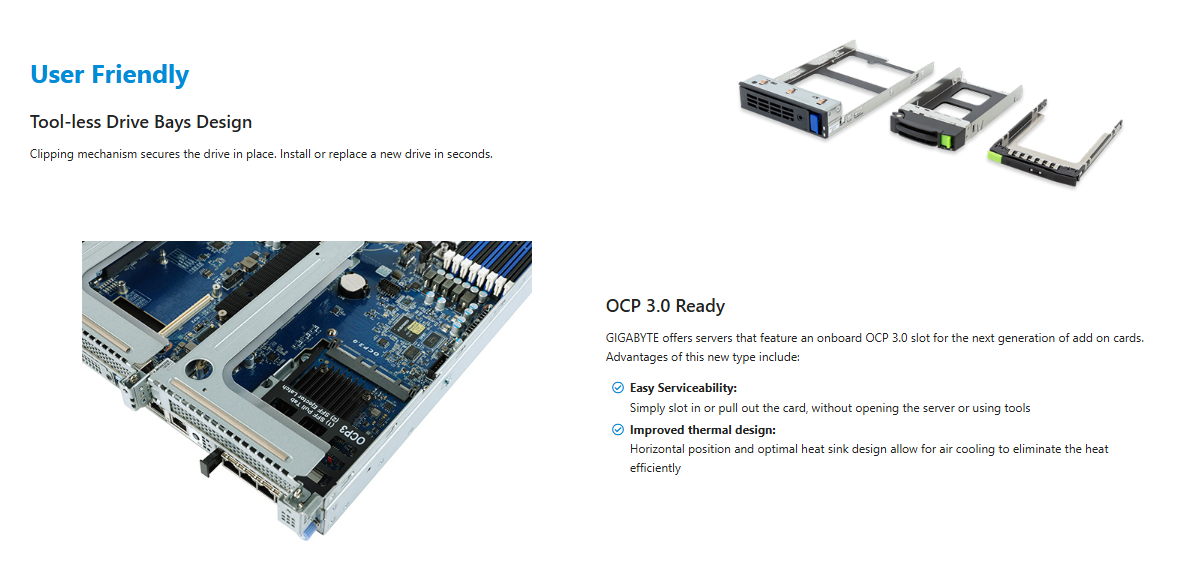

  • 12 x 3.5"/2.5" SATA/SAS hot-swappable bays
  • 1 x M.2 slot with PCIe Gen3 x4 interface
  • 4 x FHFL PCIe Gen5 x16 slots for GPUs
  • 1 x OCP 3.0 Gen5 x16 slot
  • 1+1 2700W 80 PLUS Titanium redundant power supplies
문의하기 데이터시트
















[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

  • Dimensions (WxHxD, mm)

    • 2U
      438 x 87.5 x 815

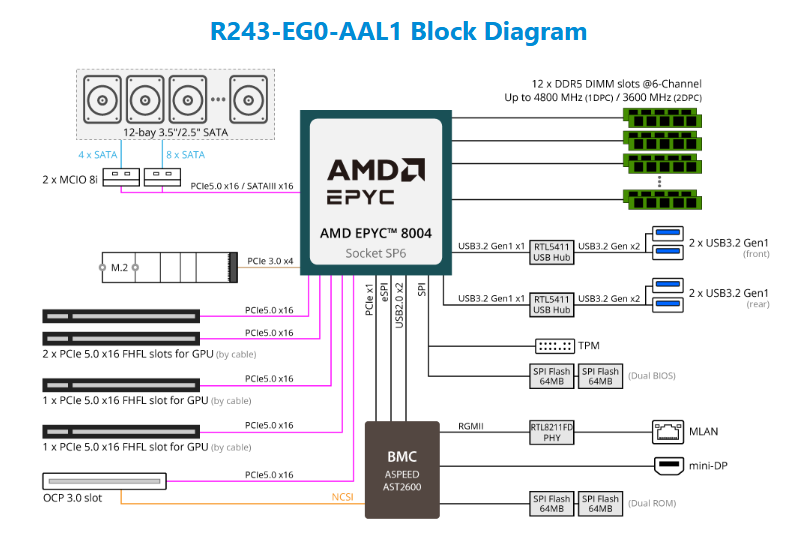

  • Motherboard

    • MEG3-GU0

  • CPU

    • AMD EPYC™ 8004 Series Processors
      Single processor, 5nm technology
      Up to 64 cores, 128 threads
      cTDP up to 225W

  • Socket

    • 1 x LGA 4844
      Socket SP6

  • Chipset

    • System on Chip

  • Memory

    • 12 x DIMM slots
      DDR5 memory supported only
      6-Channel memory architecture
      RDIMM up to 96GB supported
      Memory speed: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)

  • LAN

    • Rear side:
      1 x 10/100/1000 Mbps Management LAN

  • Video

    • Integrated in Aspeed® AST2600
      2D Video Graphic Adapter with PCIe bus interface
      1920x1200@60Hz 32bpp

  • Storage

    • Front side:
      12 x 3.5"/2.5" SATA/SAS* hot-swappable bays

      *SAS card is required to support SAS drives.

  • SAS

    • Require SAS add-in cards

  • RAID

    • Require RAID add-in cards

  • Expansion Slots

    • PCIe Cable x 4:
      - 4 x PCIe x16 (Gen5 x16) FHFL slots, for GPUs

      1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth
      Supports NCSI function

      1 x M.2 slot:
      - M-key
      - PCIe Gen3 x4
      - Supports 2280/22110 cards

  • Internal I/O

    • 1 x TPM header

  • Front I/O

    • 2 x USB 3.2 Gen1
      1 x Power button with LED
      1 x ID button with LED
      1 x NMI button
      1 x Reset button
      2 x LAN activity LEDs (disabled)
      1 x Storage activity LED
      1 x System status LED

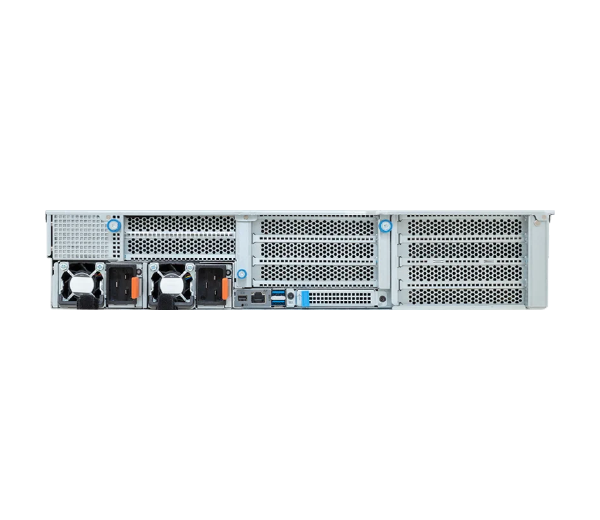

  • Rear I/O

    • 2 x USB 3.2 Gen1
      1 x Mini-DP
      1 x MLAN
      1 x ID LED

  • Backplane Board

    • Speed and bandwidth:
      SATA 6Gb/s or SAS 12Gb/s

  • TPM

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM010

  • Power Supply[#1]

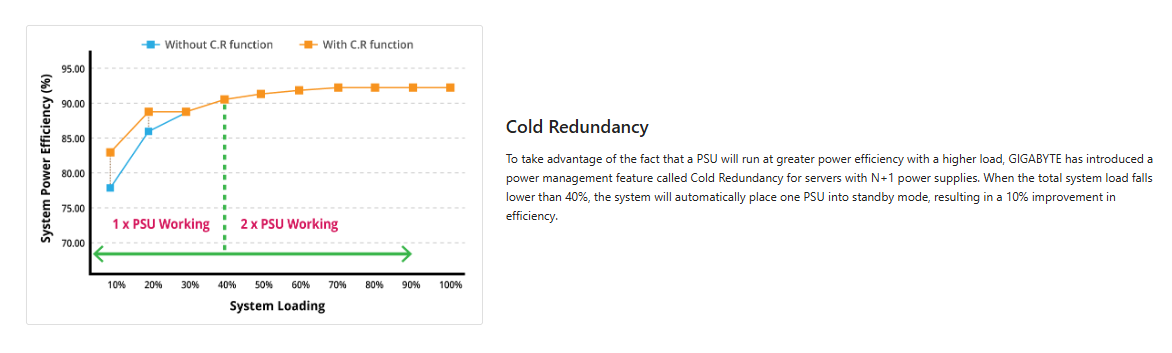

    • 1+1 2700W 80 PLUS Titanium redundant power supplies

      AC Input:
      - 100-127V~/ 12A, 50-60Hz
      - 200-240V~/ 16A, 50-60Hz

      DC Input: (Only for China)
      - 240Vdc/ 16A

      DC Output:
      - Max 1008W/ 100-127V~
      +12V/ 84A
      +12Vsb/ 3A
      - Max 2700W/ 200-240V~ or 240Vdc Input
      +12V/ 225A
      +12Vsb/ 3A

      Note: The system power supply requires C19 power cord.

  • System Management

    • Aspeed® AST2600 management controller
      GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

      Dashboard
      HTML5 KVM
      Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
      Sensor Reading History Data
      FRU Information
      SEL Log in Linear Storage / Circular Storage Policy
      Hardware Inventory
      Fan Profile
      System Firewall
      Power Consumption
      Power Control
      Advanced power capping
      LDAP / AD / RADIUS Support
      Backup & Restore Configuration
      Remote BIOS/BMC/CPLD Update
      Event Log Filter
      User Management
      Media Redirection Settings
      PAM Order Settings
      SSL Settings
      SMTP Settings

  • OS Compatibility

    • Please refer to OS compatibility table in support page

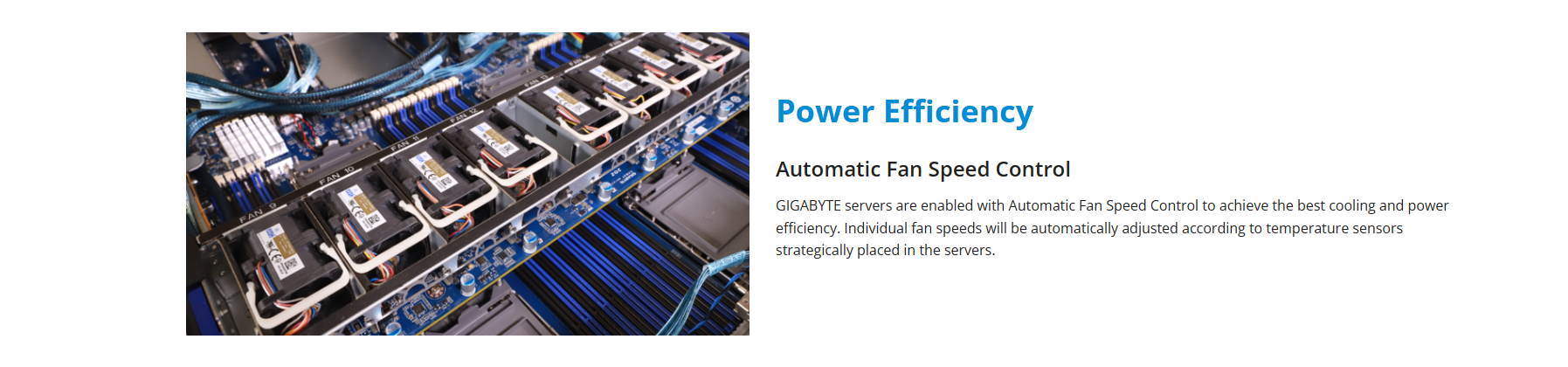

  • System Fans

    • 4 x 80x80x38mm (18,300rpm)

  • Operating Properties

    • Operating temperature: 10°C to 35°C
      Operating humidity: 8%-80% (non-condensing)
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20%-95% (non-condensing)

  • Weight

    • Net Weight: 25.9 kg
      Gross Weight: 27.9 kg

  • Packaging Dimensions

    • 1077 x 679 x 300 mm

  • Packaging Content

    • 1 x R243-EG0-AAL1
      1 x CPU heatsink
      1 x Mini-DP to D-Sub cable
      1 x GPU power cable (12VHPWR, 300mm)
      3 x GPU power cables (12VHPWR, 450mm)
      1 x 2-Section Rail kit

  • Part Numbers

    • - Barebone package: 6NR243EG0DR000AAL1*
      - Motherboard: 9MEG3GU0UR-000
      - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
      - CPU heatsink: 25ST1-44320G-A0R
      - M.2 heatsink: 12SP2-11000E-00R
      - Front board - CFP2001: 9CFP2001NR-00
      - Backplane board - CBP20C5: 9CBP20C5NR-00
      - Fan module: 25ST2-88382W-S1R
      - I/O board - CBG70: 9CBG70NR-00
      - Mini-DP to D-Sub cable: 25CRN-200801-K1R
      - GPU power cable (12VHPWR, 300mm): 25CRI-300102-Y4R
      - GPU power cable (12VHPWR, 450mm): 25CRI-450101-Y4R
      - Power supply: 25EP0-227000-D0S

      Optional parts:

      - 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
      - Cable Management Arm: 25HB1-R18300-K0R
