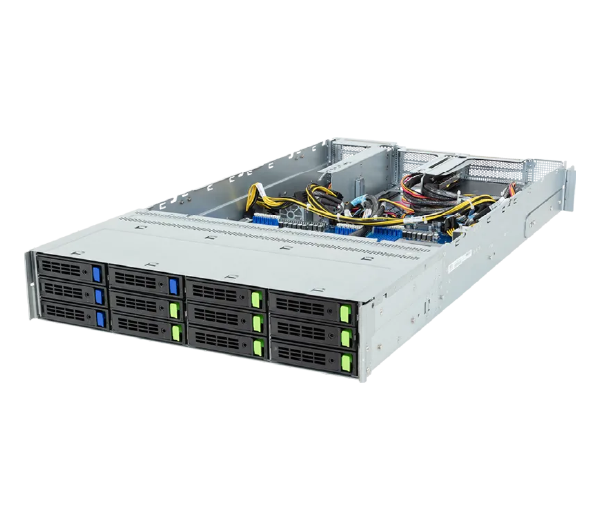

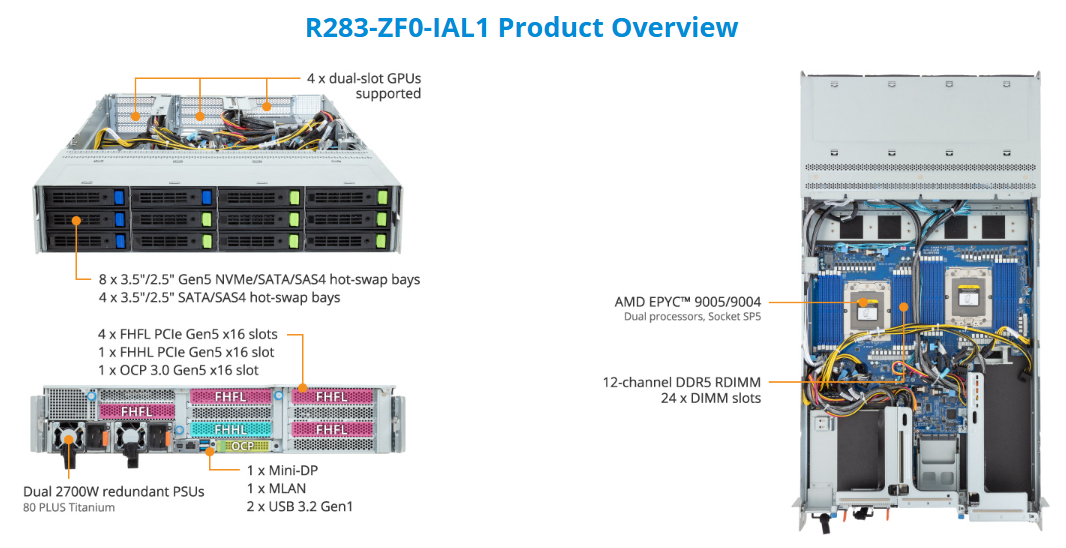

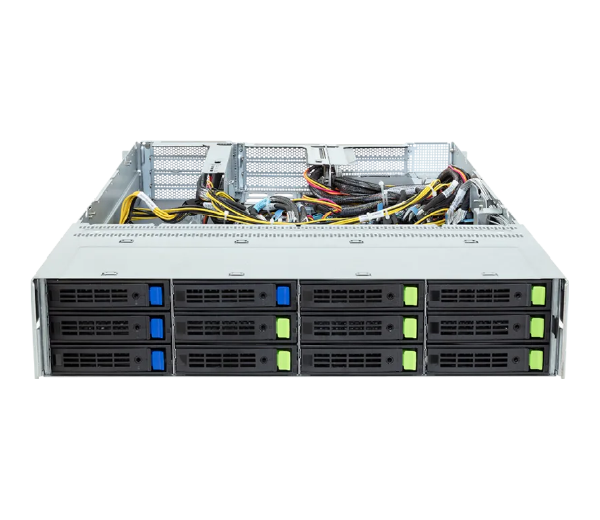

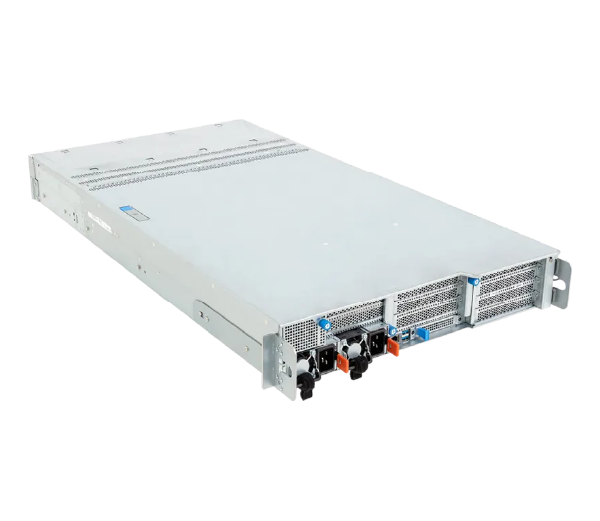

R283-ZF0-IAL1

Rack Server - AMD EPYC™ 9005/9004 - 2U DP 4 x PCIe Gen5 GPUs Immersion

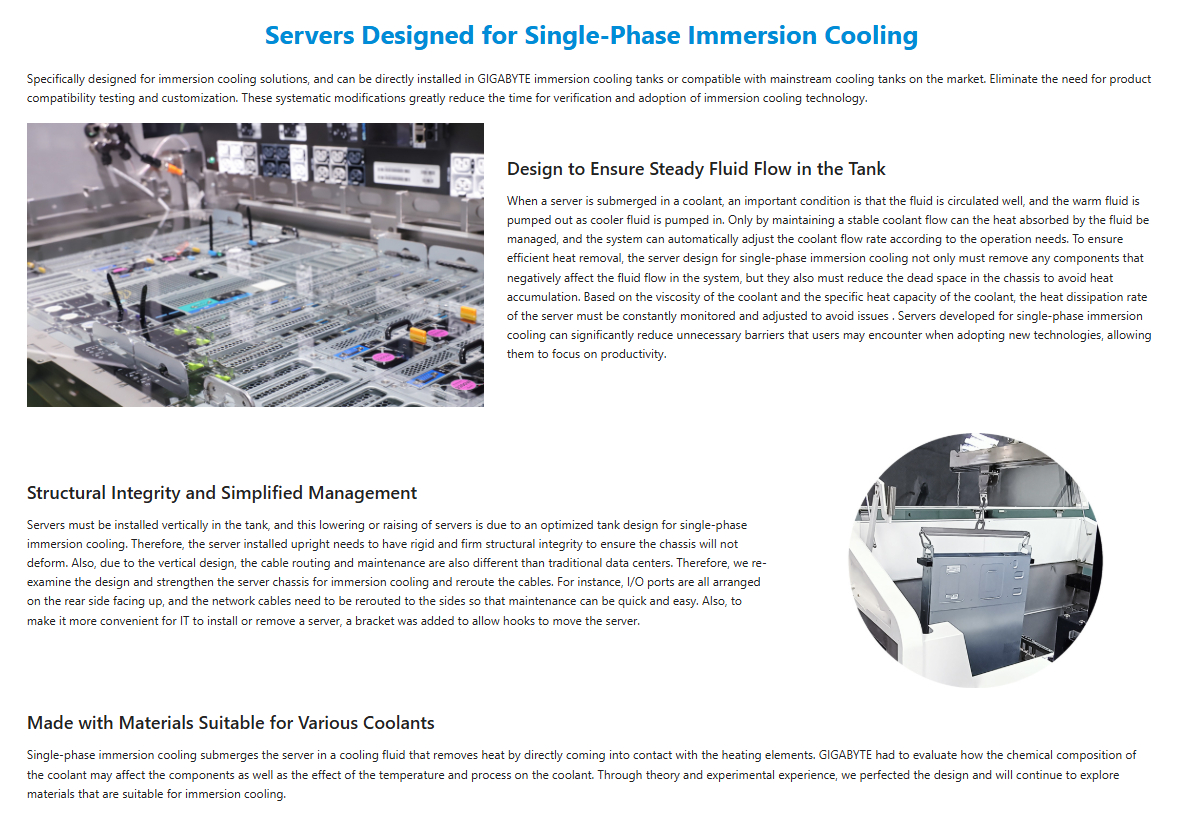

  • Immersion Cooling Server
  • Supports up to 4 x Dual slot Gen5 GPUs
  • Dual AMD EPYC™ 9005/9004 Series Processors
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 8 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 bays
  • 4 x 3.5"/2.5" SATA/SAS-4 bays
  • 4 x FHFL PCIe Gen5 x16 slots for GPUs
  • 1 x FHHL PCIe Gen5 x16 slot
  • 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
  • Dual 2700W 80 PLUS Titanium redundant power supply
  • Ordering Numbers: 6NR283ZF0DR000ICL1*
문의하기 데이터시트















[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.

  • Dimensions (WxHxD, mm)

    • 2U
      438 x 87.5 x 815

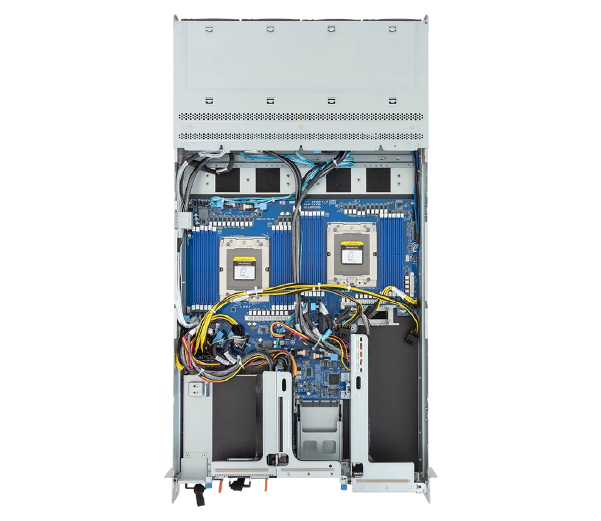

  • Motherboard

    • MZF3-GP0

  • CPU

    • AMD EPYC™ 9005 Series Processors
      AMD EPYC™ 9004 Series Processors

      Dual processor, cTDP up to 500W

      [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

  • Socket

    • 2 x LGA 6096
      Socket SP5

  • Chipset

    • System on Chip

  • Memory

    • 24 x DIMM slots
      DDR5 memory supported
      12-Channel memory per processor

      AMD EPYC™ 9005:
      RDIMM: Up to 6400 MT/s

      AMD EPYC™ 9004:
      RDIMM: Up to 4800 MT/s

  • LAN

    • Top:
      1 x 10/100/1000 Mbps Management LAN

  • Video

    • Integrated in ASPEED® AST2600
      - 1 x Mini-DP

  • Storage

    • Bottom:
      8 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 [1]
      4 x 3.5"/2.5" SATA/SAS-4 [1]
      - (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)
      - (6 x SATA via CRS2810 from CPU_0)
      - (6 x SATA via CRS2810 from CPU_1)

      Internal M.2:
      1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0, occupied for SATA
      1 x M.2 (2280), PCIe Gen3 x4, from CPU_1, occupied for SATA

      [1] SAS card is required to support SAS drives.

      [Note] SATA hotplug utility can be downloaded on support page.

  • SAS

    • Require SAS add-in cards

  • RAID

    • Require RAID add-in cards

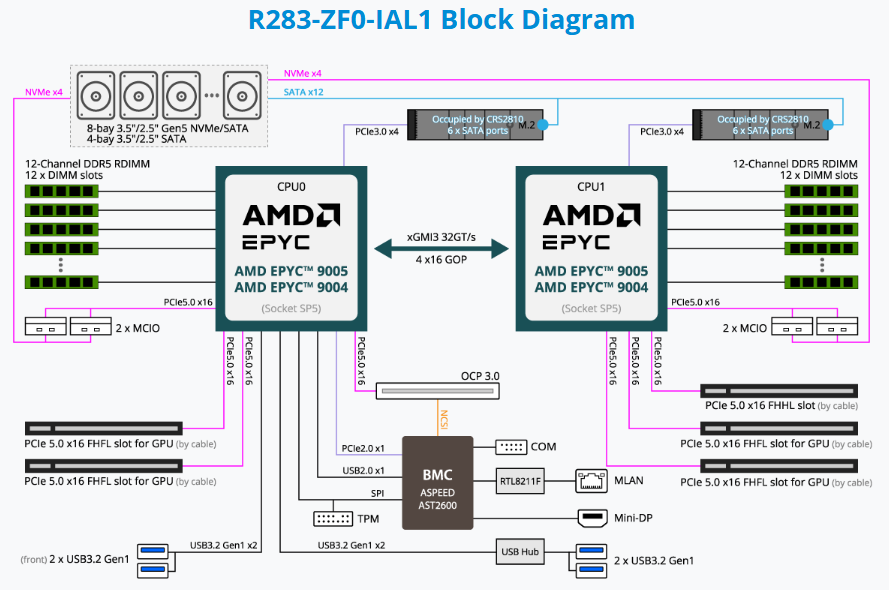

  • PCIe Expansion Slots

    • PCIe Cable x 5:
      - 2 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
      - 2 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
      - 1 x FHHL x16 (Gen5 x16), from CPU_1

      1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
      - Supports NCSI function

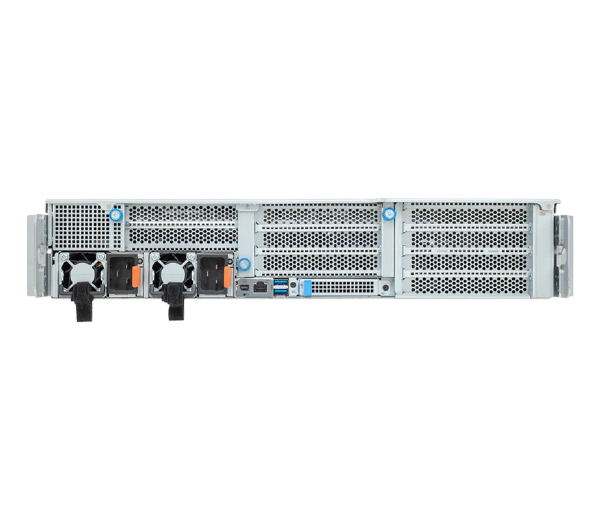

  • Top I/O

    • 2 x USB 3.2 Gen1 ports (Type-A)
      1 x Mini-DP
      1 x MLAN port
      1 x ID LED

  • Backplane Board

    • Speed and bandwidth:
      PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

  • Security Modules

    • 1 x TPM header with SPI interface
      - Optional TPM2.0 kit: CTM010

  • Power Supply[#1]

    • Dual 2700W 80 PLUS Titanium redundant power supply [1]

      AC Input:
      - 100-127V~/ 12A, 50-60Hz
      - 200-240V~/ 16A, 50-60Hz

      DC Input: (Only for China)
      - 240Vdc/ 16A

      DC Output:
      - Max 1008W/ 100-127V~
      +12V/ 84A
      +12Vsb/ 3A
      - Max 2700W/ 200-240V~ or 240Vdc Input
      +12V/ 225A
      +12Vsb/ 3A

      [1] The system power supply requires C19 power cord.

  • System Management

    • ASPEED® AST2600 Baseboard Management Controller
      GIGABYTE Management Console web interface

      Dashboard
      HTML5 KVM
      Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
      Sensor Reading History Data
      FRU Information
      SEL Log in Linear Storage / Circular Storage Policy
      Hardware Inventory
      Fan Profile
      System Firewall
      Power Consumption
      Power Control
      Advanced power capping
      LDAP / AD / RADIUS Support
      Backup & Restore Configuration
      Remote BIOS/BMC/CPLD Update
      Event Log Filter
      User Management
      Media Redirection Settings
      PAM Order Settings
      SSL Settings
      SMTP Settings

  • OS Compatibility

    • Please refer to OS compatibility table in support page

      Additional certifications:
      VMware ESXi 8.0
      Windows Server 2022
      Windows Server 2025

  • Operating Properties

    • Operating coolant temperature: 25°C to 35°C
      Non-operating temperature: -40°C to 60°C
      Non-operating humidity: 20% to 95% (non-condensing)

  • Weight

    • Net Weight: 30.86 kg

  • Packaging Dimensions

    • 1082 x 685 x 314 mm

  • Packaging Content

    • 1 x R283-ZF0-IAL1
      2 x CPU heatsinks
      1 x Mini-DP to D-Sub cable
      1 x GPU power cable (12VHPWR, 150mm)
      1 x GPU power cable (12VHPWR, 250mm)
      1 x GPU power cable (12VHPWR, 450mm)
      1 x GPU power cable (12VHPWR, 550mm)

  • Part Numbers

    • - Barebone package: 6NR283ZF0DR000ICL1*
      - Motherboard: 9MZF3GP0UR-000-3*
      - CPU heatsink: 25ST1-144320-C1R
      - Backplane board - CBP20C7: 9CBP20C7NR-00*
      - M.2 type SATA card - CRS2810: 9CRS2810NR-00*
      - I/O board - CBG70: 9CBG70NR-00*
      - Mini-DP to D-Sub cable: 25CRN-200801-K1R
      - GPU power cable (12VHPWR, 150mm): 25CRI-1500B3-Y4R
      - GPU power cable (12VHPWR, 250mm): 25CRI-2503B3-Y4R
      - GPU power cable (12VHPWR, 450mm): 25CRI-4500B0-Y4R
      - GPU power cable (12VHPWR, 550mm): 25CRI-5500B0-Y4R
      - Power supply: 25EP0-227001-D0S

      Optional parts:

      - RMA packaging: 6NR283ZF0SR-RMA-I100
